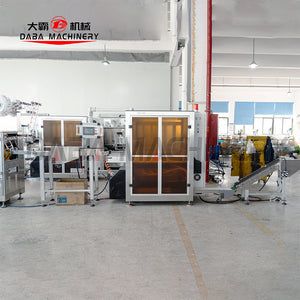

Fully Automatic Eye Mask & Warmer Pad Integrated Production Line

Vendor: DABA Machine

▶Automatic Warm Pad Forming Machine

Model: DBNB-Z330B
Rolling Cutting Speed: 15-40times/minute
Productivity: 180pcs/time(6pcs/time, 300times/minute)
Max.pack.size: 330*270mm
Packing Material: Non-woven fabric, stickers compound material
Substance: Powder
Total Power: 10.5Kw (380V)
Compressed Air: 0.6-0.8 MPa
Mold Cooling: 60L/H, tap water/recycle water
Dimension: 2970*700*1890mm
Weight: 1500Kg

▶ Steam Eye Mask Making Machine

Model: DBYZ-C220
Roll Cutting Times: 15-120times/min
Max material Width: 230mm
Raw Material: Non-woven fabric, max diameter 600mm, inner size 75mm
Compressed Air: 0.4-0.6Mpa
Power Voltage: 380V/220V 50HZ
Total Power: Around 7Kw
Overall Dimension(L*W*H): 3850×700×1850mm
Weight: 1200Kg

▶Vertical Bagging Packaging Machine

Model: DBTD-L125
Production capacity: 60-120pieces/min
Bag width: 110-125mm
Bag Length: 130-145mm
Total Power: 6.5Kw( 380V, 50HZ)
Compressed Air: 0.6-0.8MPa
Dimension: 2100*880*1700mm
Weight: 900Kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The Fully Automatic Eye Mask & Warmer Pad Integrated Production Line combines forming, sealing, ultrasonic welding, and packaging into one continuous, high-efficiency system. Integrating the DBNB-Z330B, DBYZ-C220, and DBTD-L125 machines, this line enables seamless automated production of various products such as steam eye masks, hand warmers, foot warmers, and body warm pads. With full-servo synchronization, PLC control, photoelectric tracking, and intelligent temperature management, it ensures precise alignment, consistent sealing, and superior product quality. Designed for stability, energy efficiency, and minimal manual intervention, this integrated line provides a smart, cost-effective solution for manufacturers seeking large-scale, high-speed production of comfort and wellness products.

Machine Structure

Features/Functions

The machine realizes intelligent control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.
Full servo synchronous control system, high-precision graphic benchmarking system. Ensuring stable operation and greatly increasing production capacity.
The automatic feed, synchronous feeding, rolling sealing, ultrasonic welding, rolling cutting, and automatic waste collection into rolls are synchronized by the programmable controller (PLC) output.
The high-speed reaction of the microcomputer is used to control the amount of glue sprayed and the speed of glue spray, so as to minimize the amount of glue used and avoid unnecessary waste.
Adopt automatic synchronous feeding system, easy to adjust the connection of feeding and equipment. Automatically guide positioning to ensure the synchronization and stability of the whole machine.
The ear strap is ultrasonically welded to make it seamlessly welded to the eye mask. The joint is firm and hard, and the belt is comfortable and soft.
The finished rolling cutter die adopts imported high-performance materials, special process heat treatment and precision processing. The cutter has a long service life and can be repaired. The finished product has a beautiful appearance and no burrs.
The whole machine adopts all-round safety protection isolation, the external raw material is easy to replace, safe to use and high in yield.
Automatically eliminate the used hanging ear function
