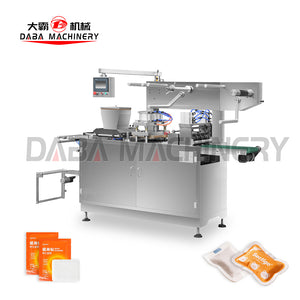

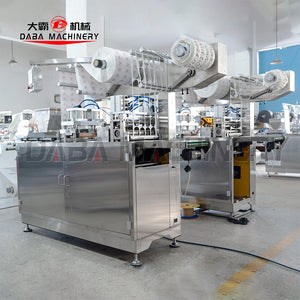

DBNB-Z330B Automatic Warm Pad Forming Machine

Vendor: DABA Machine

Model: DBNB-Z330B
Rolling Cutting Speed: 15-40times/minute
Productivity: 180pcs/time(6pcs/time, 300times/minute)
Max.pack.size: 330*270mm
Packing Material: Non-woven fabric, stickers compound material
Substance: Powder
Total Power: 10.5Kw (380V)
Compressed Air: 0.6-0.8 MPa
Mold Cooling: 60L/H, tap water/recycle water
Dimension: 2970*700*1890mm
Weight: 1500Kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

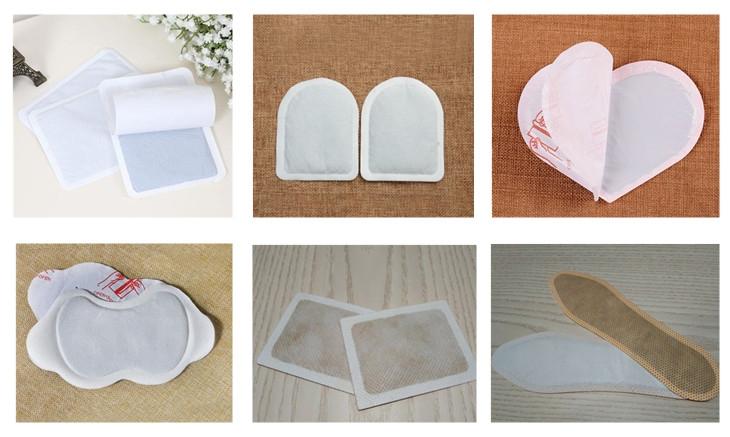

DBNB-Z330B Automatic Warm Pad Forming Packing Machine, is welcomed in Korea, Japan, Russia and high latitudes countries with cold in winter. DBNB-Z330B can produce different kinds of warm pad to cater to different needs of customers. Such as warm pad, foot warmer pad, warm knee pad, hand warmer pad, shoulder warmer pad, warm stomach pad, warm toe pad and other warm pads.

Machine Structure

Features/Functions

Strong power, high intensity, compact structure, stable operation, easy maintenance, longer usage .

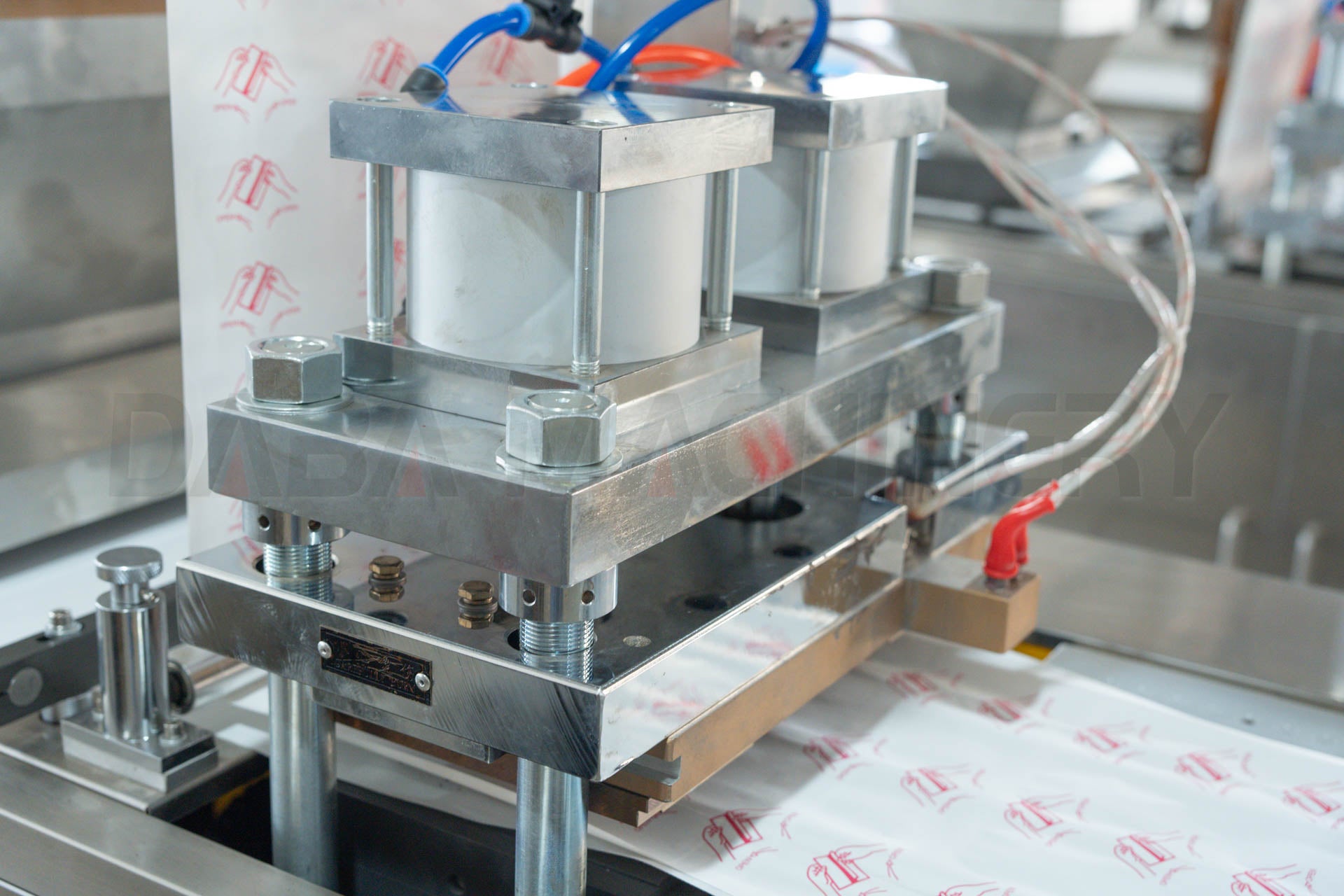

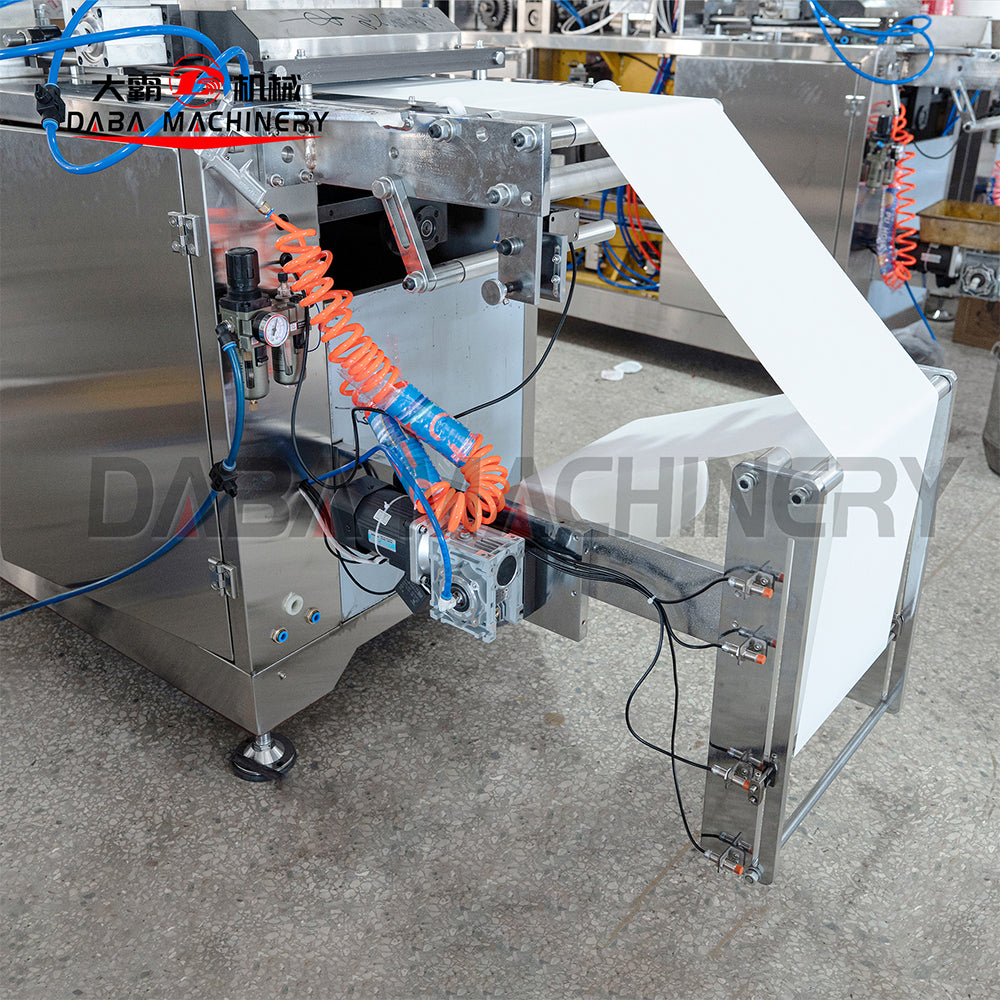

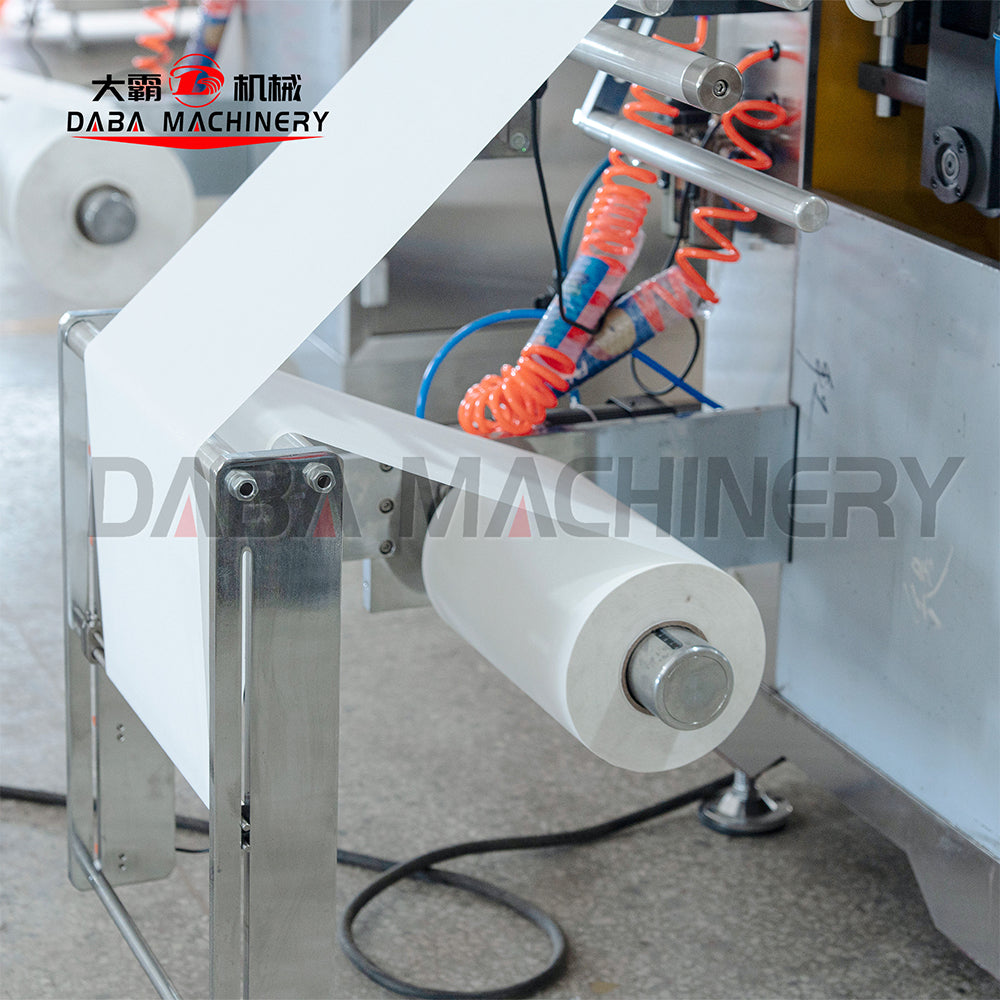

Automatic film feeding, plate heating, four-sides sealing, firmly sealed, the bag is flat and beautiful.
Speed reducer, main-rotating connection, main shaft are on one line (to decrease driving error) for mechanical transmission.
Sensor controls are adopted in pneumatic system. PLC controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor and long-distance.
Touch screen operation, configuration of servo traction system. The traction length and time can be programmed by PLC, and the operation can be set directly in the touch screen.

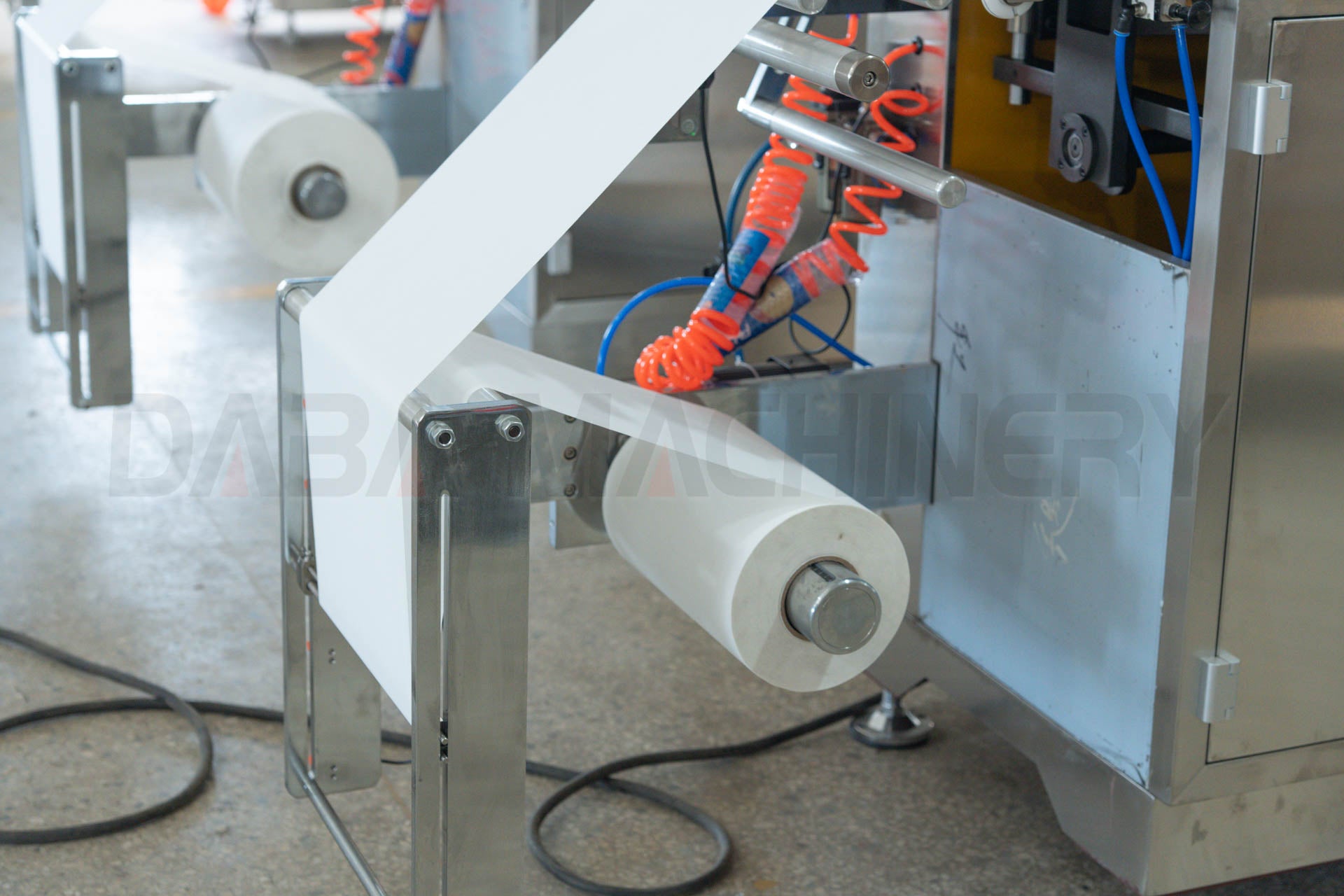

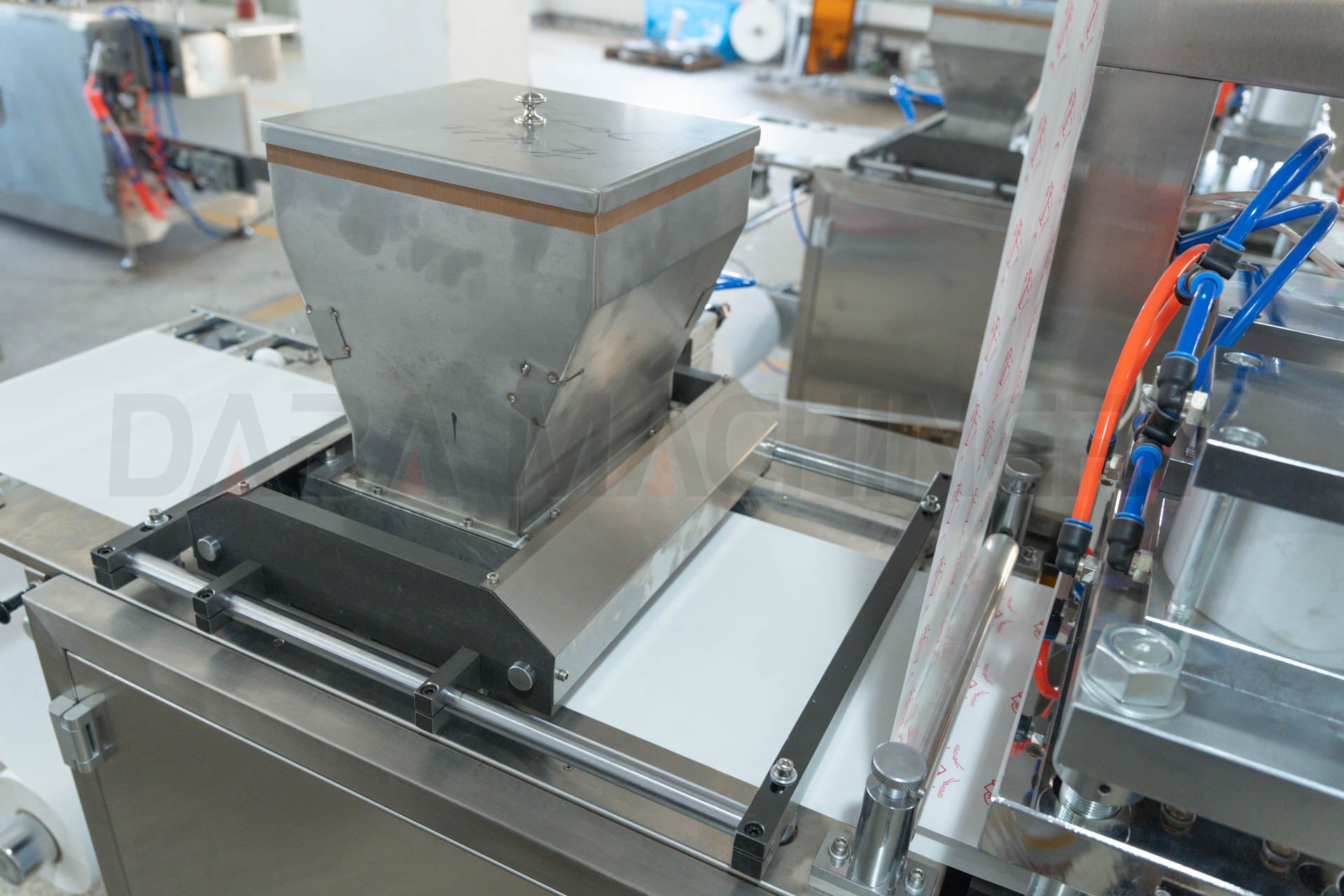

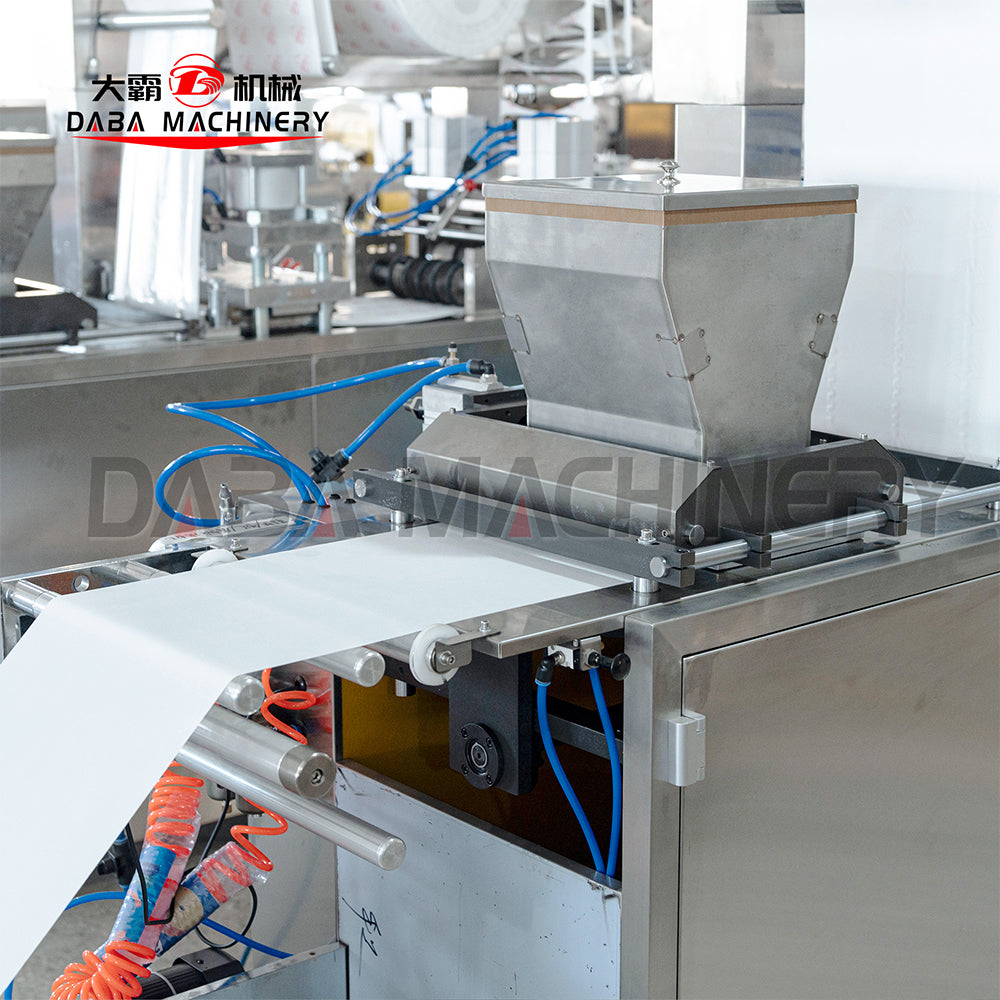

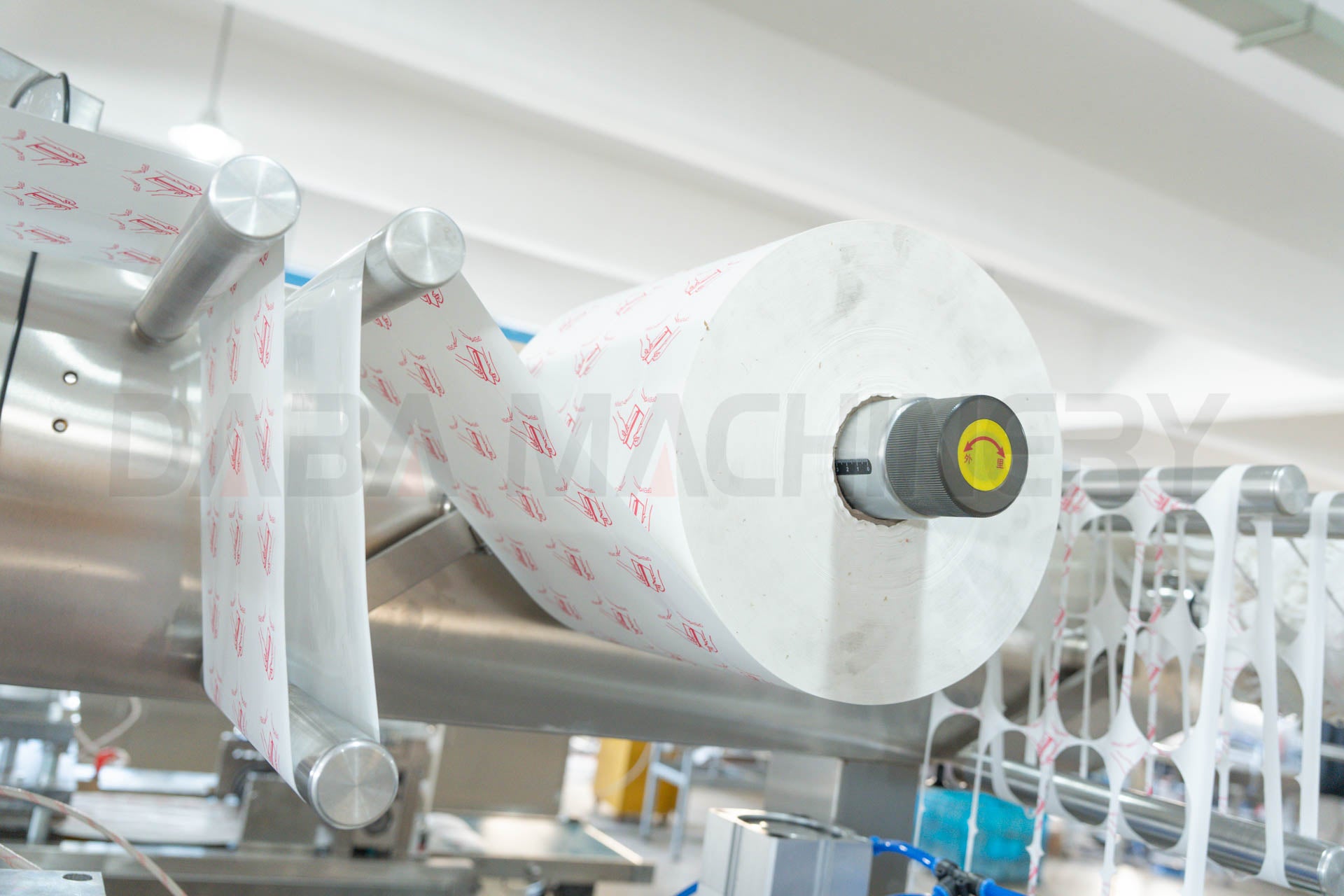

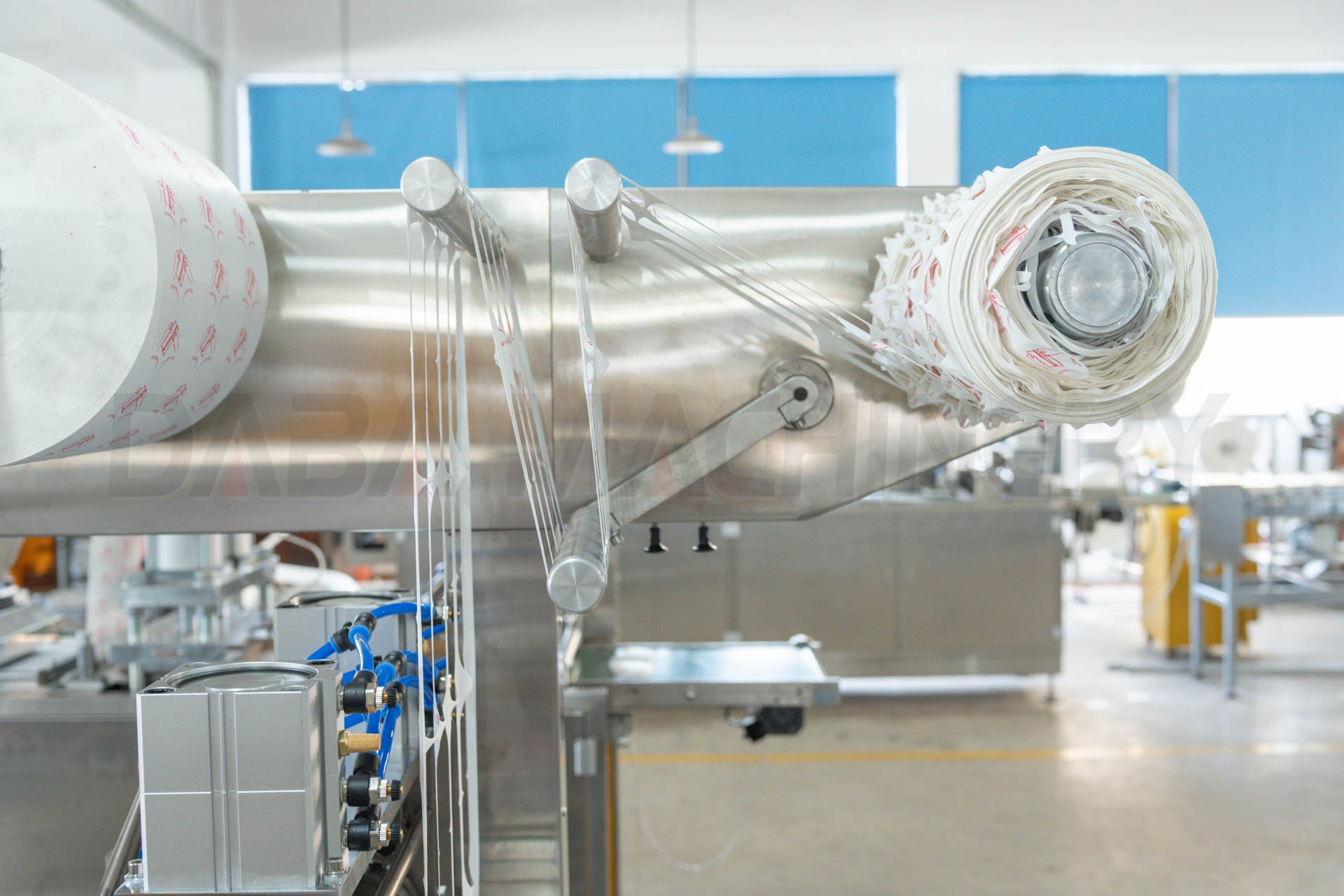

Automatic film feeding, automatic feeding, upper and down netting, cylinder sealing, servo traction, stable running, easy operation, high automatic grade. Optional bottom film or cover film cursor tracking for version sealing configuration, double film roll automatic film feed.
More advanced blanking mechanism is adopted, which greatly improves the service life of the die, reduces the defective rate, reduces the noise and co vibration of the equipment operation, and makes the powder materials more stable during operation.
A magnetic suction device is added to better shape the powder materials that can be absorbed, avoid the phenomenon of loose materials, reduce the air content in the material package and delay the reaction process.

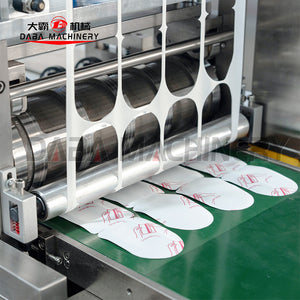

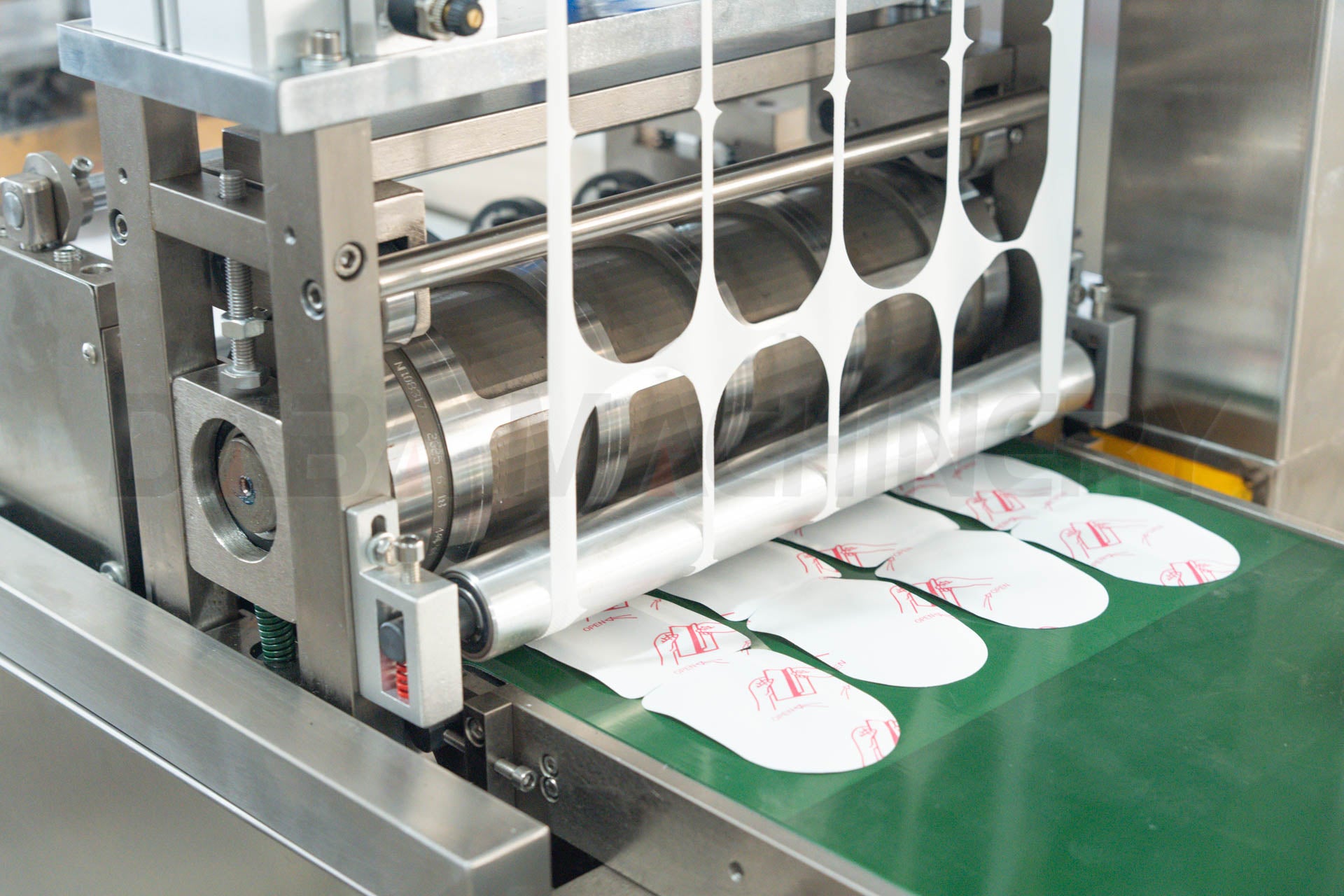

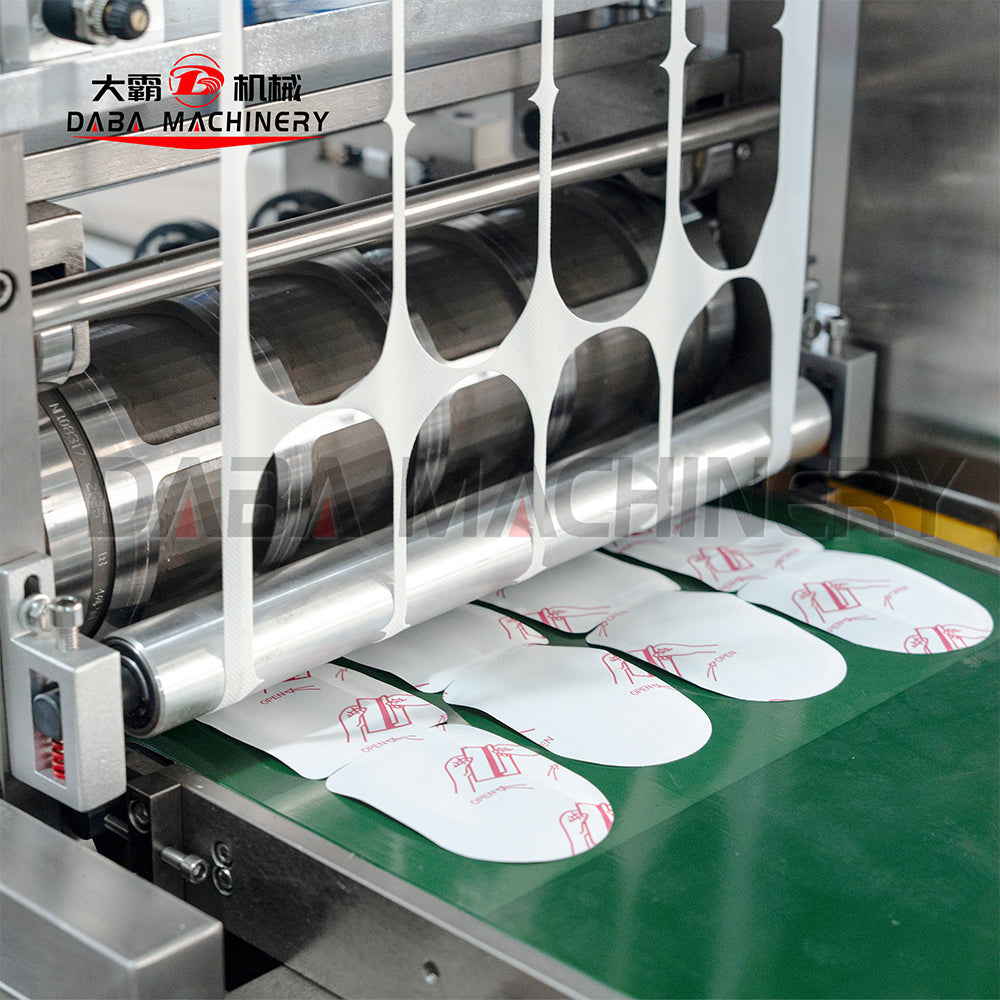

More advanced rolling cutting mode is adopted, which greatly improves the service life of the die, reduces the defective rate, and reduces the noise and co vibration of the equipment operation.
