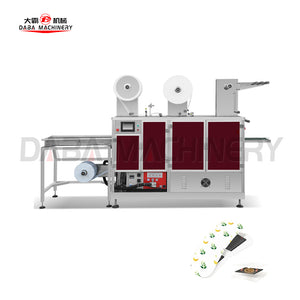

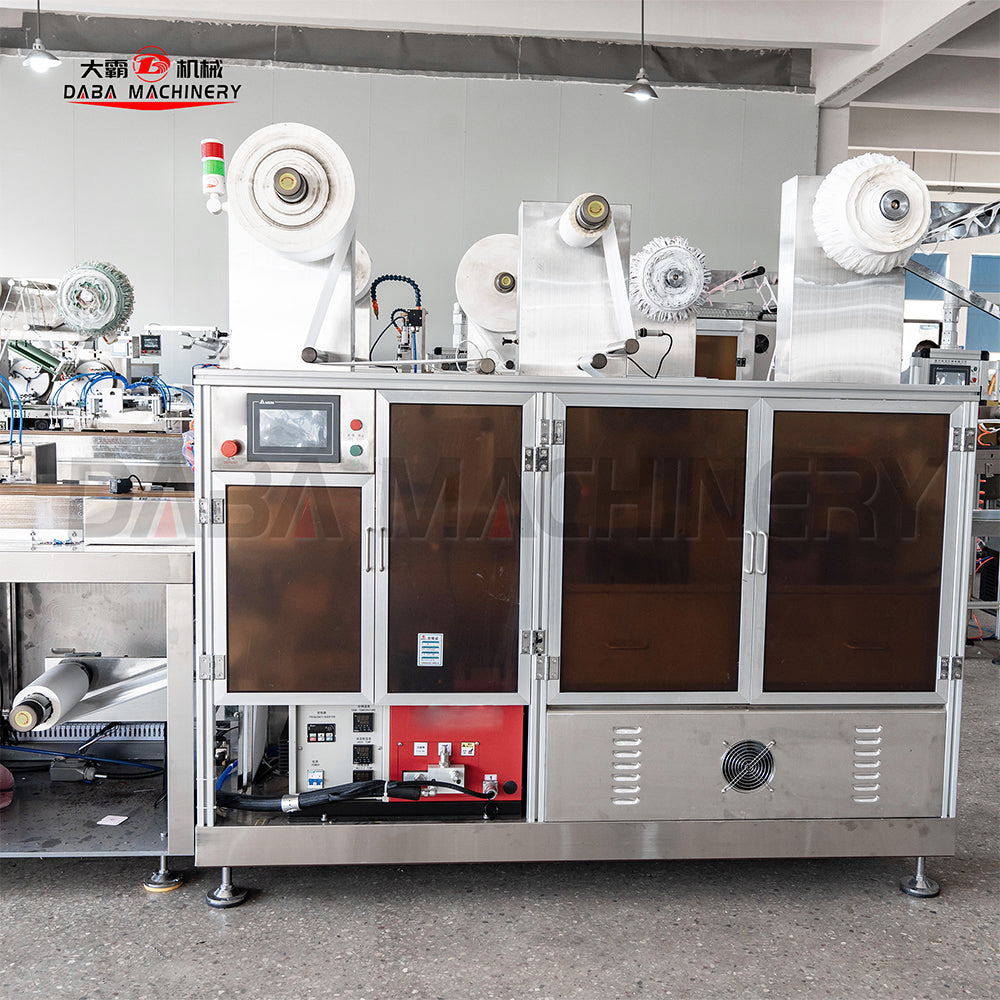

DBYZ-C220 Steam Eye Mask Making Machine

Vendor: DABA Machine

Model: DBYZ-C220
Roll Cutting Times: 15-120times/min
Max material Width: 230mm

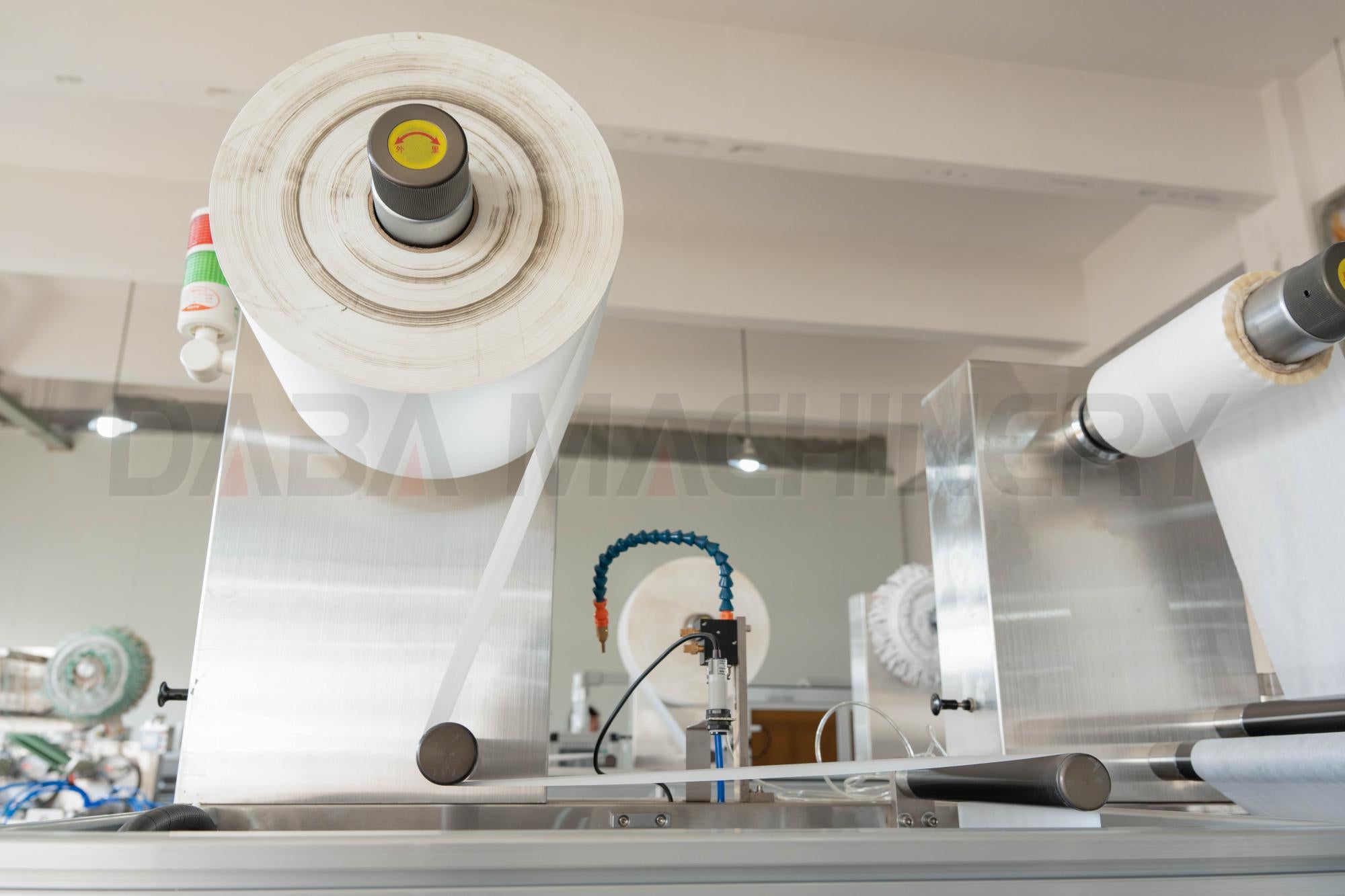

Raw Material: Non-woven fabric, max diameter 600mm, inner size 75mm
Compressed Air: 0.4-0.6Mpa
Power Voltage: 380V/220V 50HZ
Total Power: Around 7Kw
Overall Dimension(L*W*H): 3850×700×1850mm
Weight: 1200Kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBYZ-C220 Steam Eye Mask Making Machine integrates intelligent automation and precision control to deliver stable, high-efficiency production of steam eye masks. Using a full-servo synchronized system combined with PLC, photoelectric tracking, and a touch-screen interface, the machine ensures accurate alignment, consistent sealing, and reliable ultrasonic ear strap welding for a soft yet durable finish. From automatic feeding, gluing, sealing, ultrasonic welding, cutting, to waste collection, every step is seamlessly synchronized for smooth operation and minimal material waste. Built with high-quality cutting components and comprehensive safety protection, the DBYZ-C220 offers easy operation, high yield, and exceptional product appearance—making it an ideal choice for modern eye mask manufacturing lines.

Machine Structure

Features/Functions

The machine realizes intelligent control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.
Full servo synchronous control system, high-precision graphic benchmarking system. Ensuring stable operation and greatly increasing production capacity.

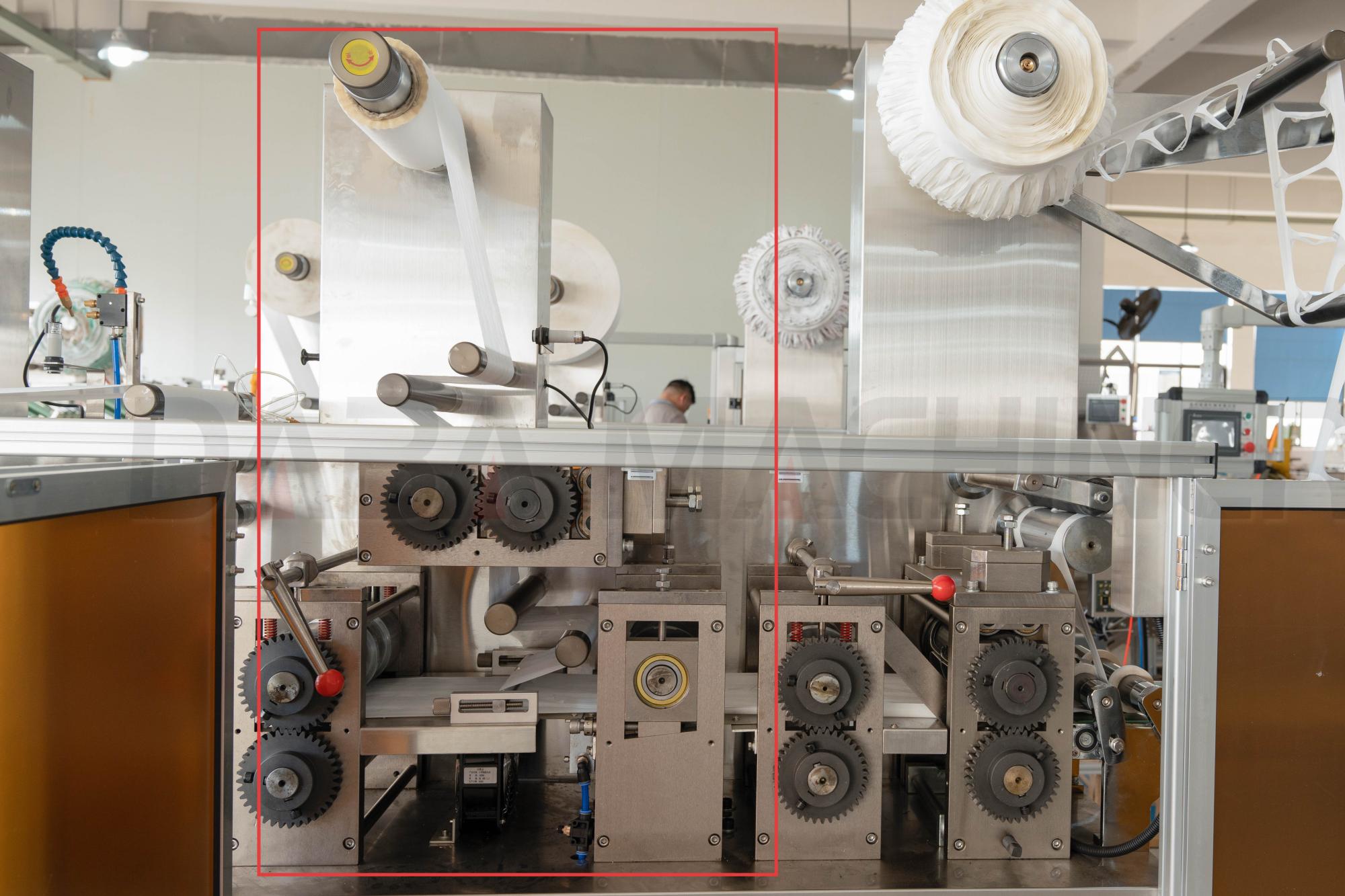

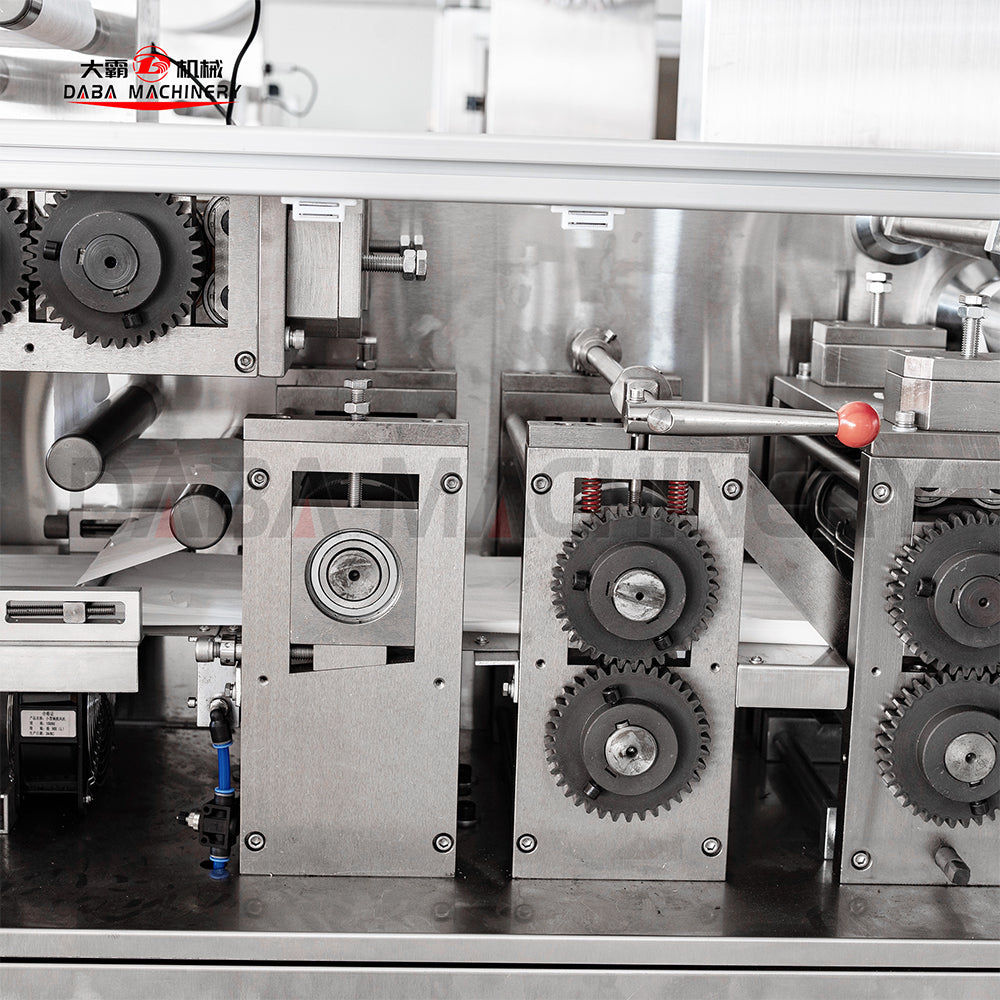

The automatic feed, synchronous feeding, rolling sealing, ultrasonic welding, rolling cutting, and automatic waste collection into rolls are synchronized by the programmable controller (PLC) output.

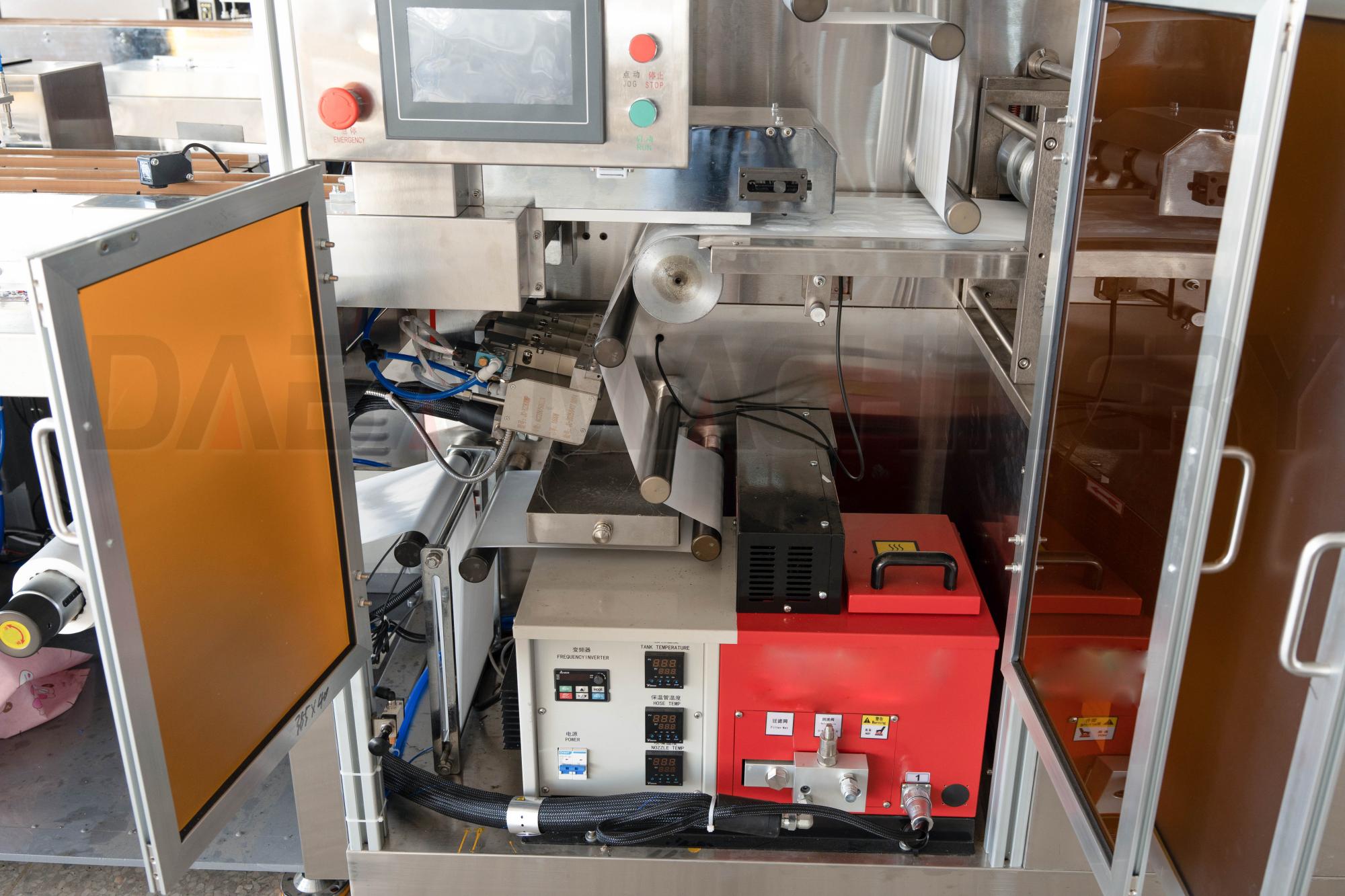

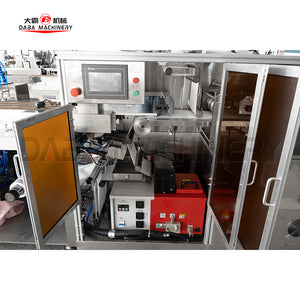

The high-speed reaction of the microcomputer is used to control the amount of glue sprayed and the speed of glue spray, so as to minimize the amount of glue used and avoid unnecessary waste.
Adopt automatic synchronous feeding system, easy to adjust the connection of feeding and equipment. Automatically guide positioning to ensure the synchronization and stability of the whole machine.

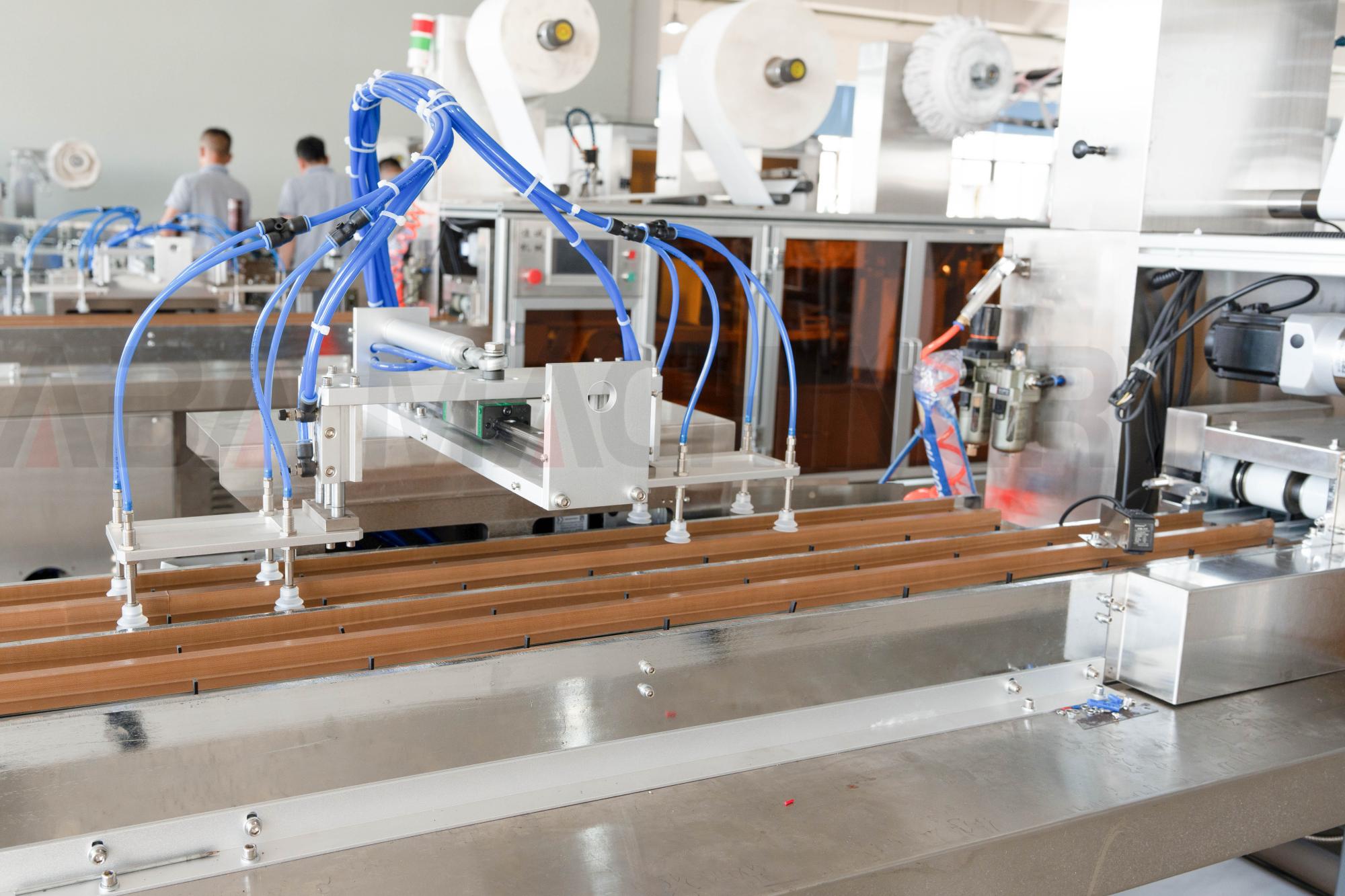

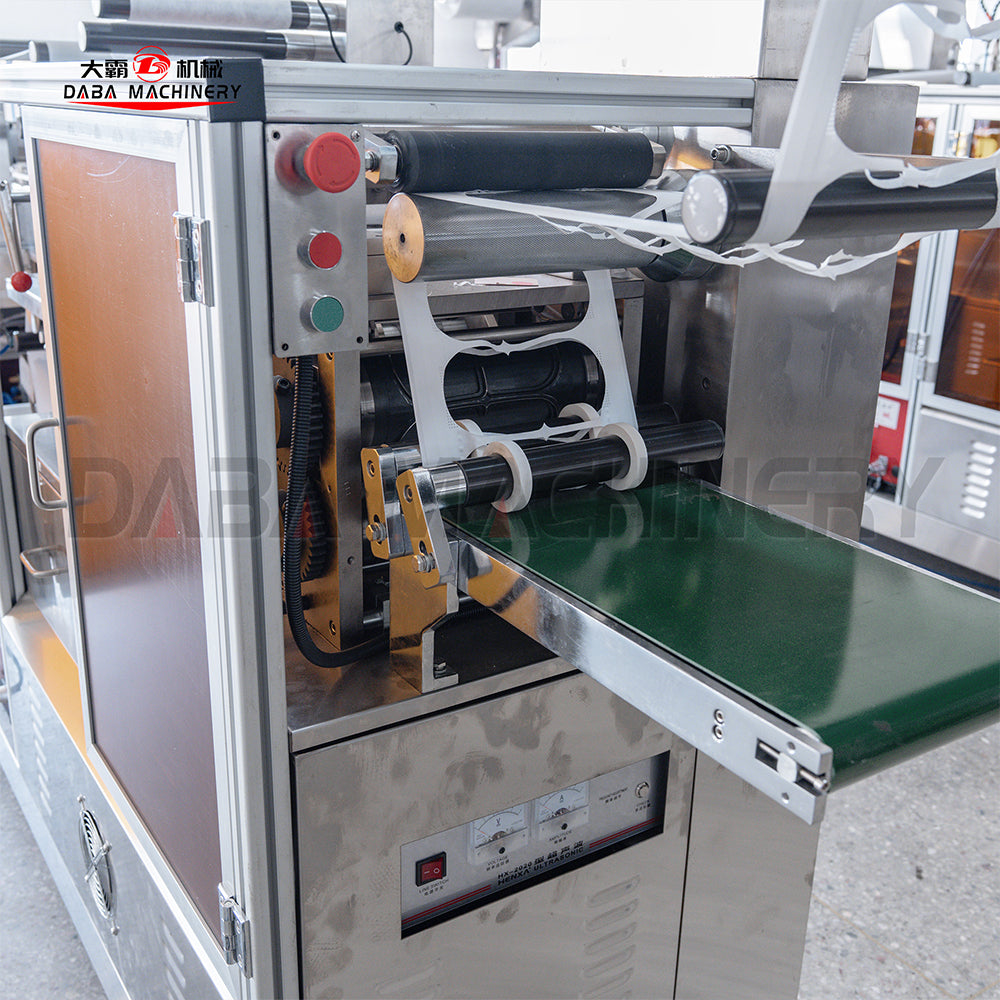

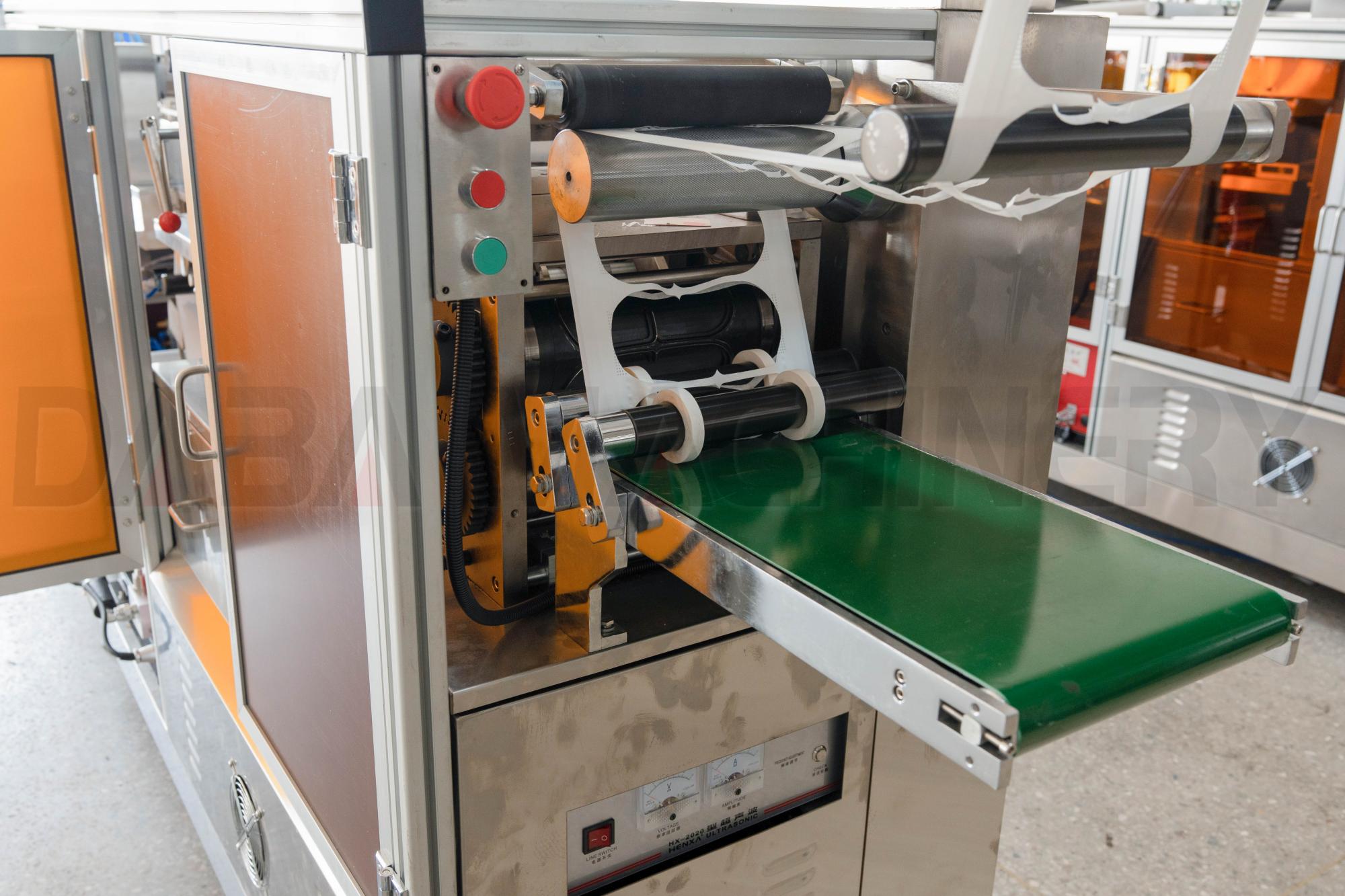

The ear strap is ultrasonically welded to make it seamlessly welded to the eye mask. The joint is firm and hard, and the belt is comfortable and soft.

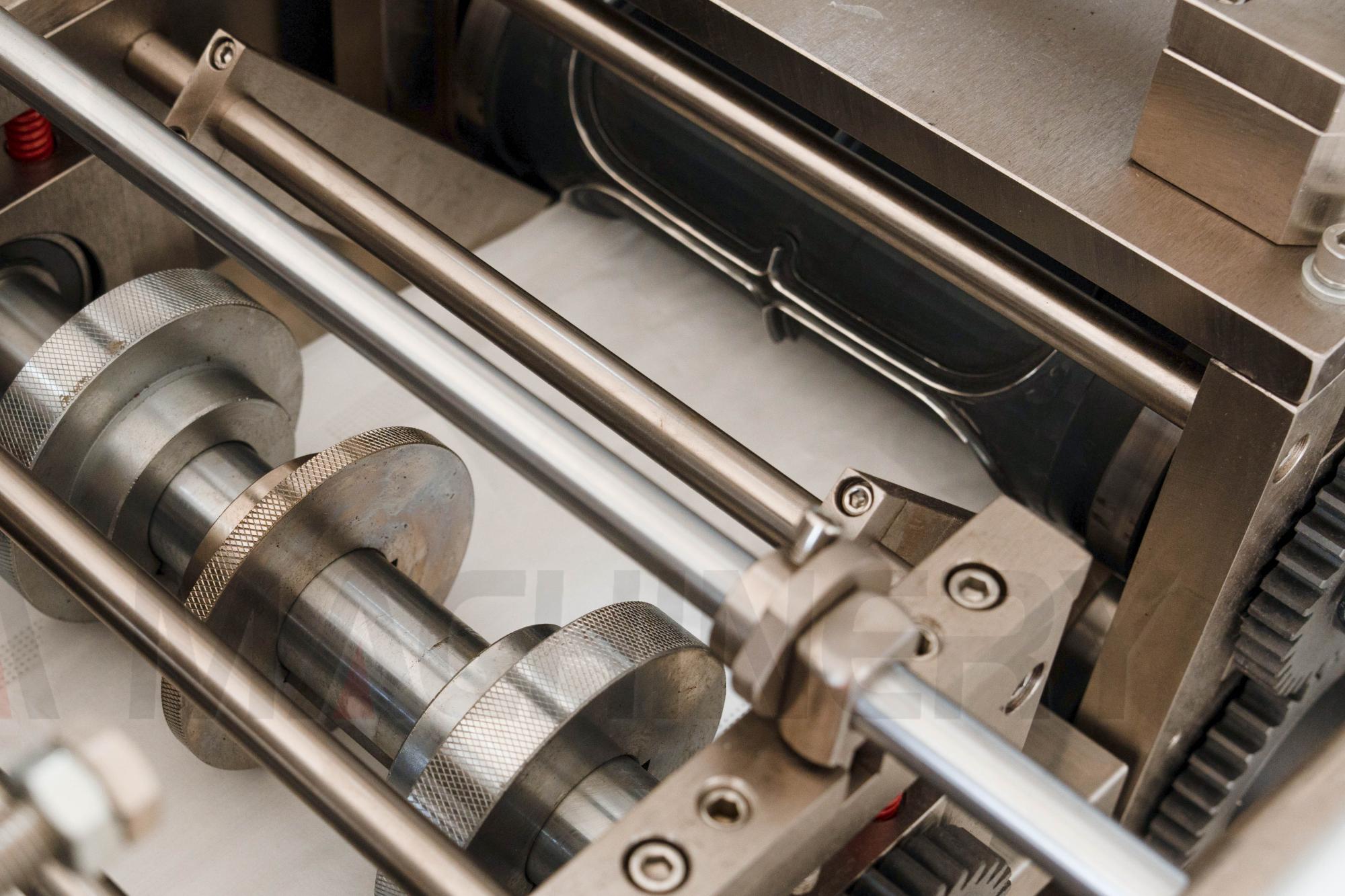

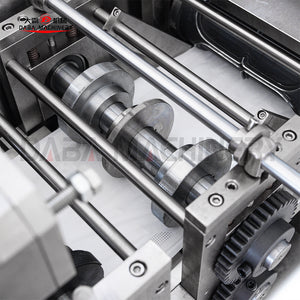

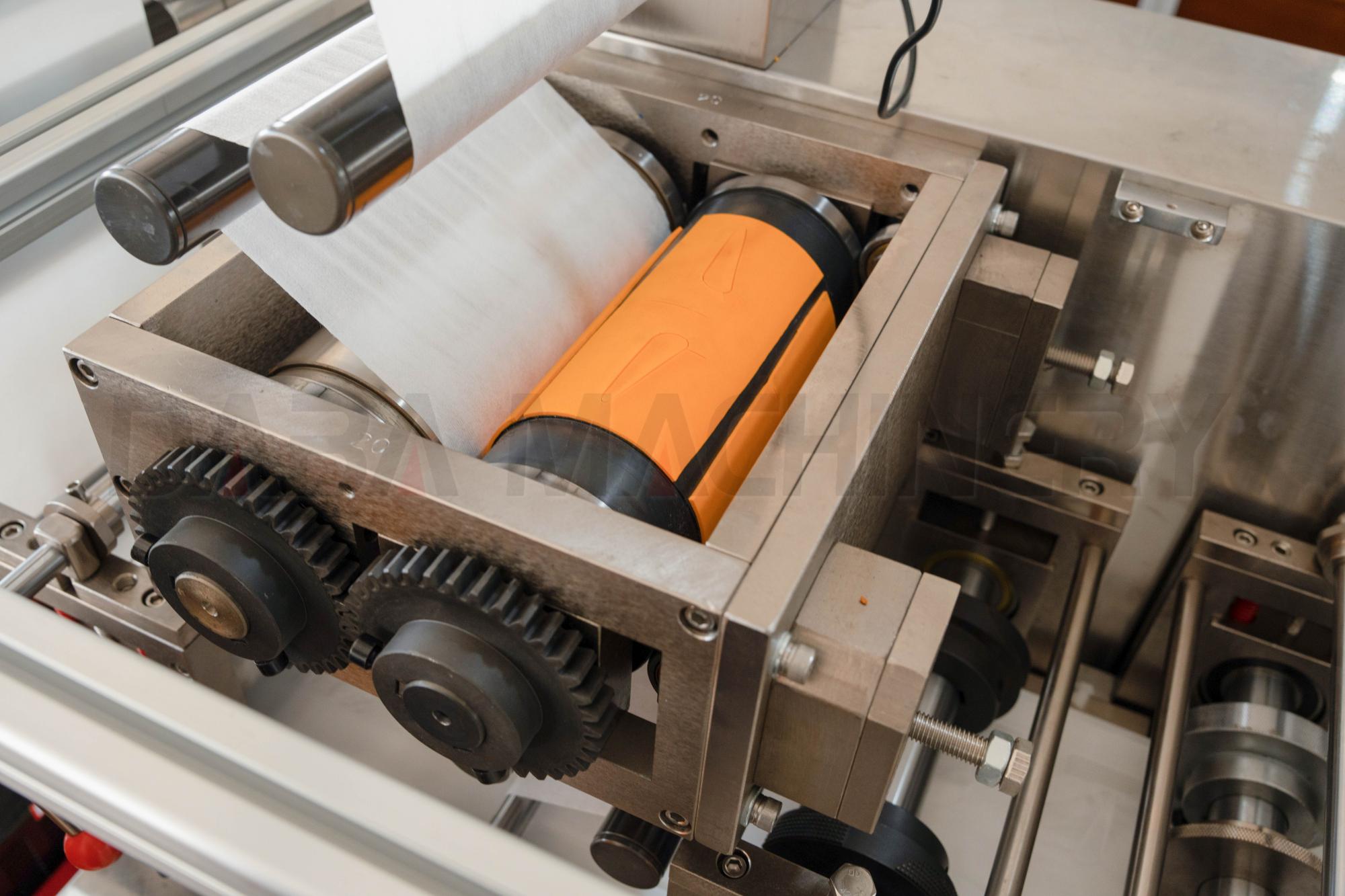

The finished rolling cutter die adopts imported high-performance materials, special process heat treatment and precision processing. The cutter has a long service life and can be repaired. The finished product has a beautiful appearance and no burrs.
The whole machine adopts all-round safety protection isolation, the external raw material is easy to replace, safe to use and high in yield.

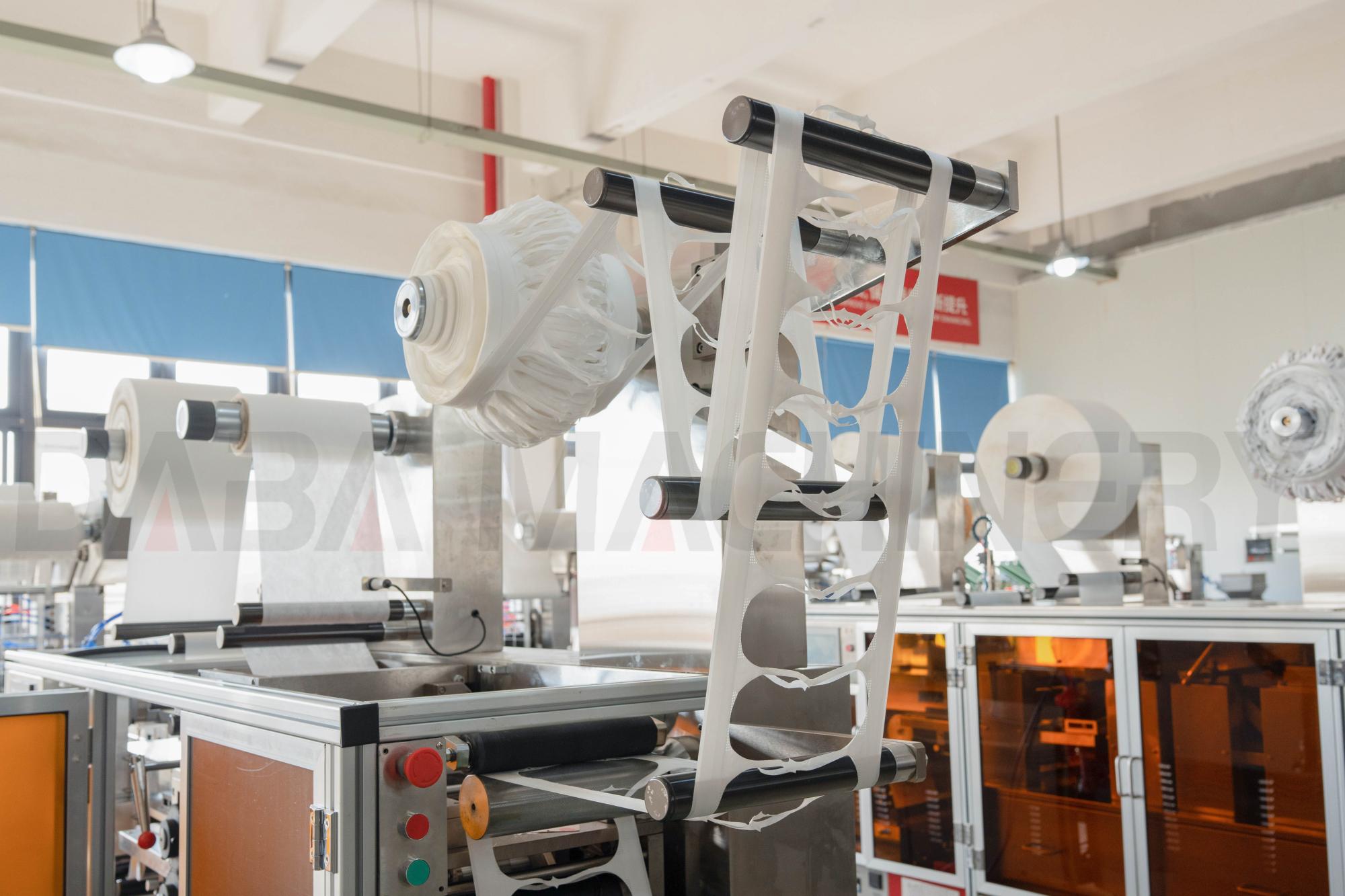

Automatically eliminate the used hanging ear function
