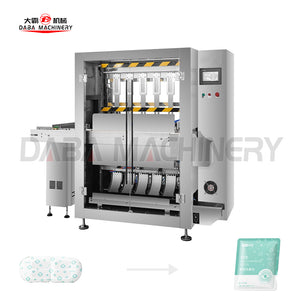

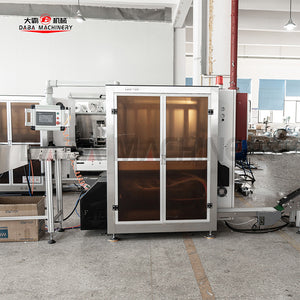

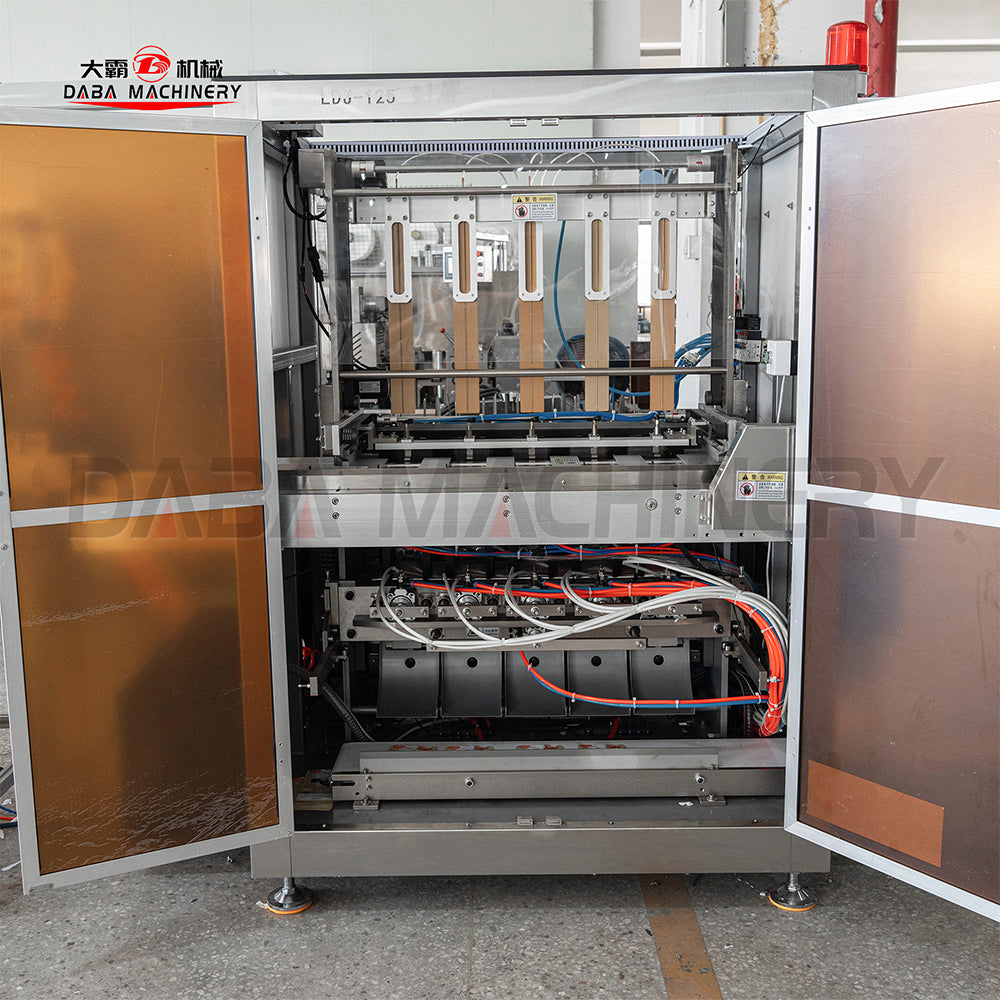

DBTD-L125 Vertical Bagging Packaging Machine

Vendor: DABA Machine
  • Model: DBTD-L125
  • Production capacity: 60-120pieces/min
  • Bag width: 110-125mm
  • Bag Length: 130-145mm
  • Total Power: 6.5Kw( 380V, 50HZ)
  • Compressed Air: 0.6-0.8MPa
  • Dimension: 2100*880*1700mm
  • Weight: 900Kg

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBTD-L125 Vertical Bagging Packaging Machine offers a highly efficient and energy-saving solution for vertical form-fill-seal applications. Designed with a compact, durable structure and advanced automation system, it integrates automatic film feeding, precise servo-driven traction, and four-side sealing to produce flat, firmly sealed bags with a clean, attractive appearance. Equipped with PLC programming control, touch-screen operation, and a high-precision temperature system, it ensures stable performance and consistent sealing quality. The intelligent film calibration and dual-roll feeding design minimize material waste by up to 80%, significantly reducing production costs. With smooth operation, easy maintenance, and flexible configuration options, the DBTD-L125 is ideal for manufacturers seeking reliable, high-speed vertical packaging efficiency.
Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper cup production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into cup fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean cup fans.

7. Cup Fan

Paper segment prepared for cup forming.

8. Paper Cup Machine

Forms cup fans and bottom paper into cups.

9. Bottom Paper

Material used for forming cup bases.

10. Paper Cup

Completed paper cup ready for inspection.

11. Paper Cup Inspection Machine

Ensures each cup meets quality standards.

12. Double Wall Paper Cup Sleeve Machine

Adds insulating sleeve for double-wall cups.

13. Packing Machine

Packs cups for transportation.

14. Packaging Paper Cups

Final packaged products ready for shipment.

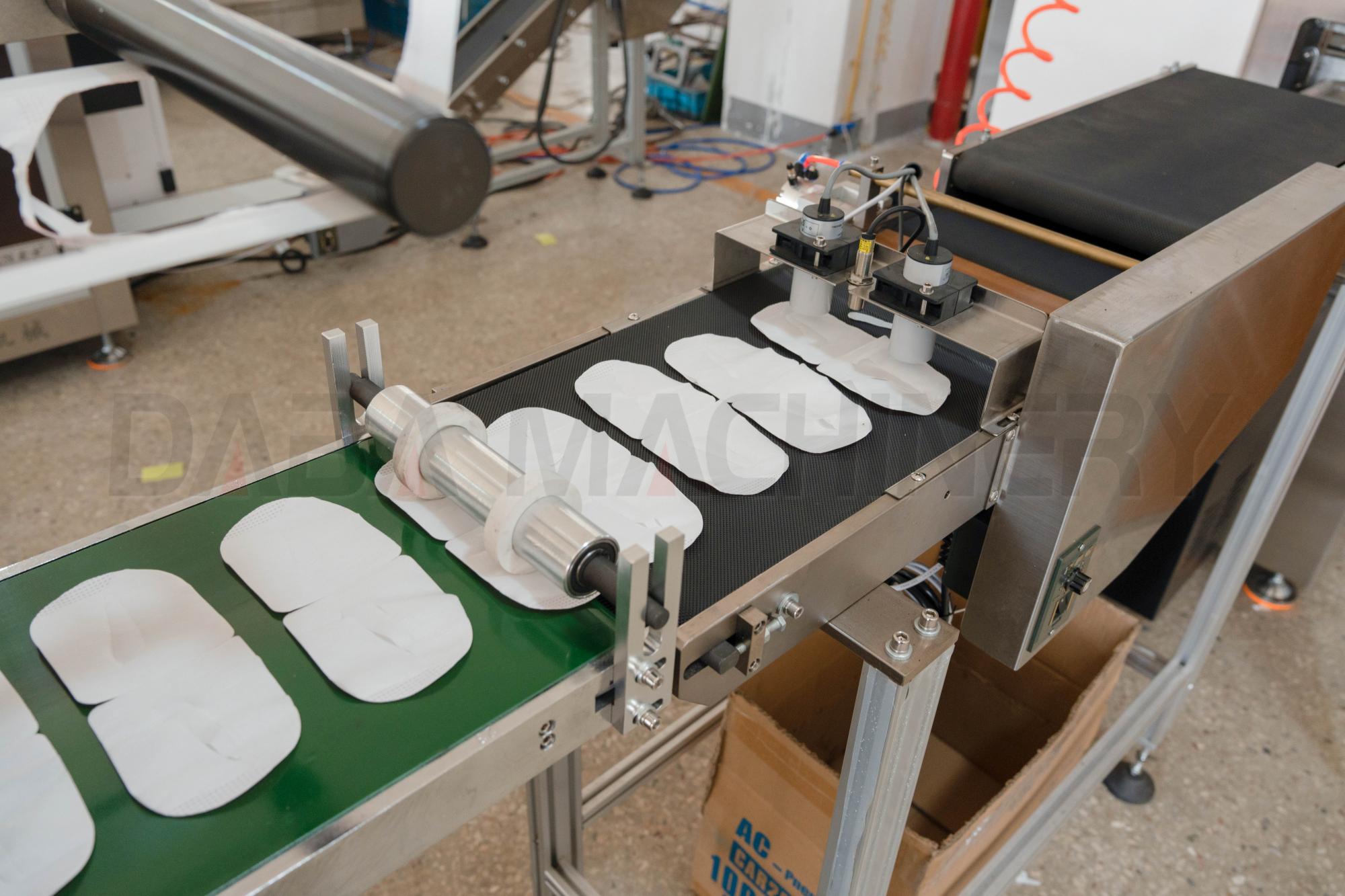

In-line Conveyor Connection

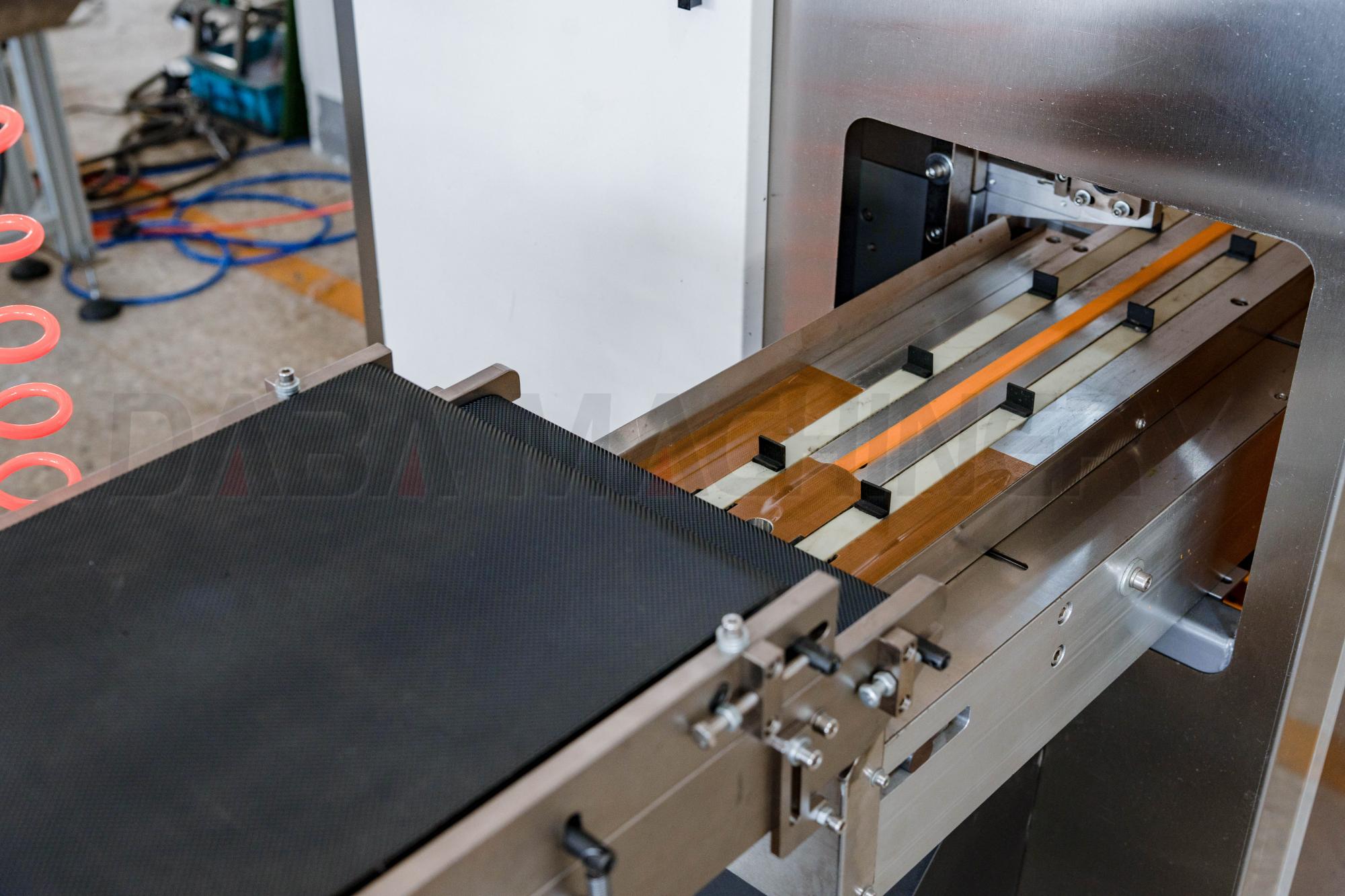

Inner Liner Inlet

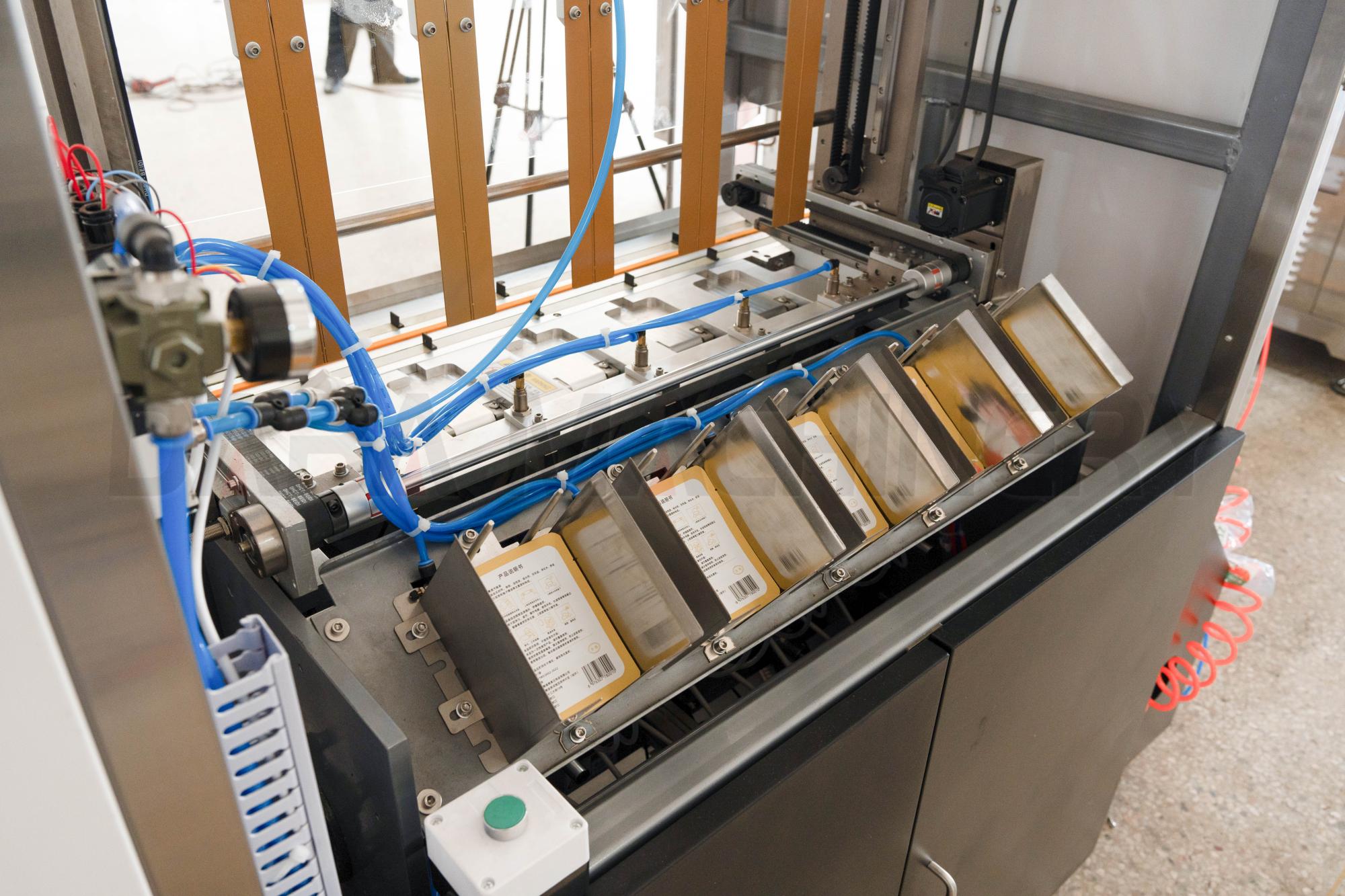

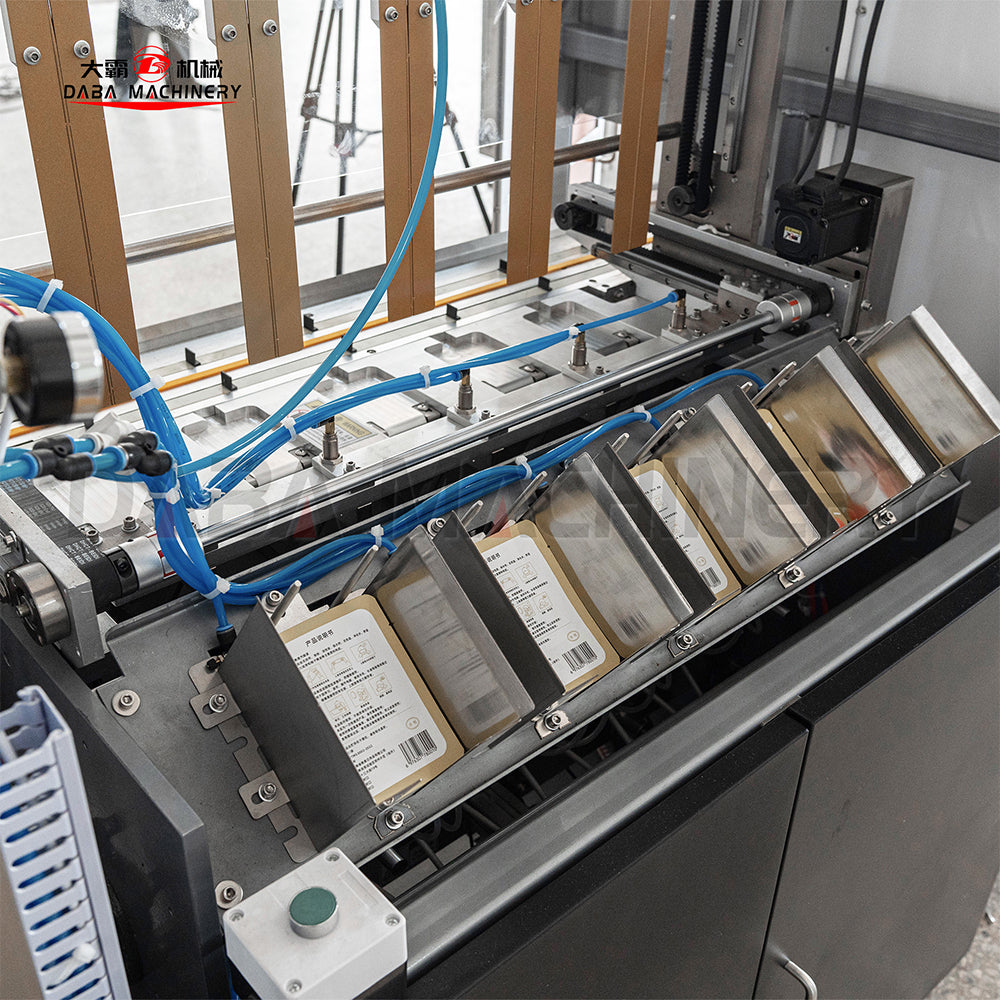

Servo-Controlled Bag Picking

Servo-Controlled Inserting

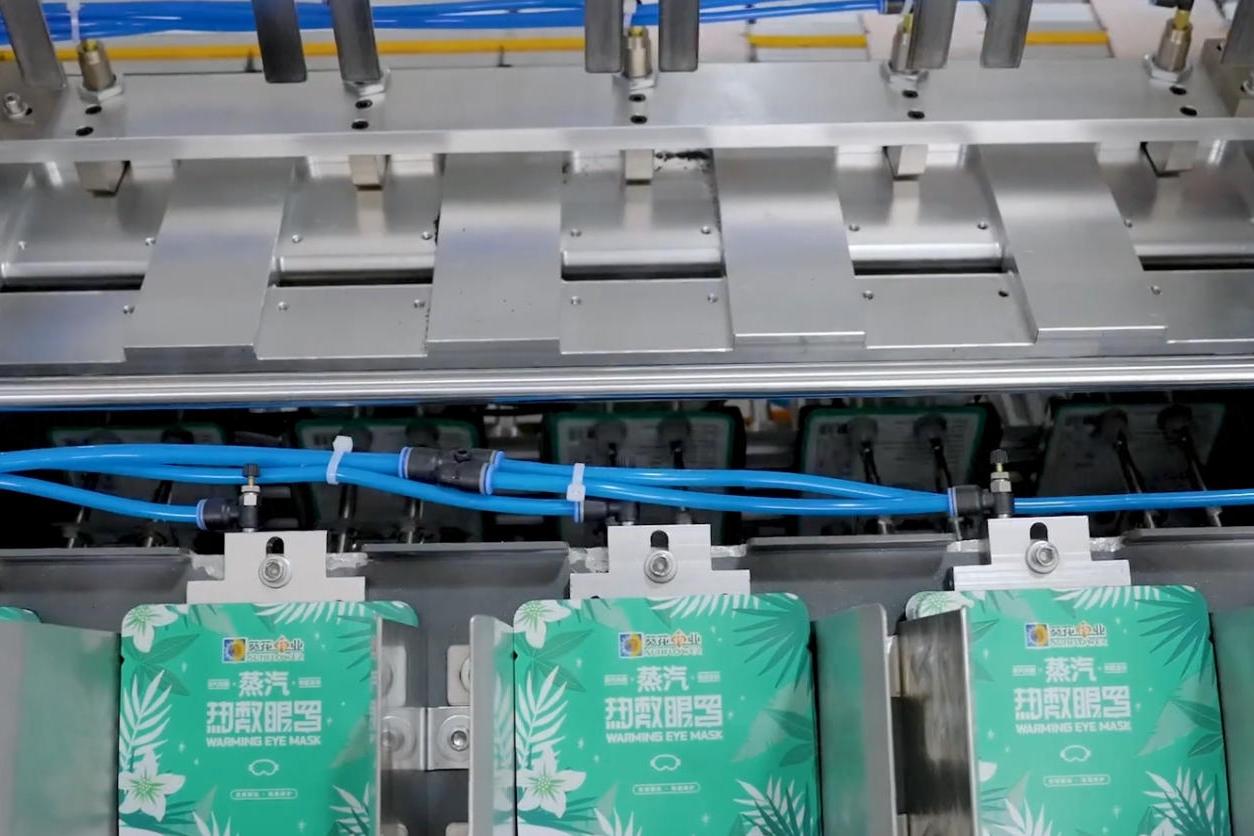

Suction Cup Bag Opening

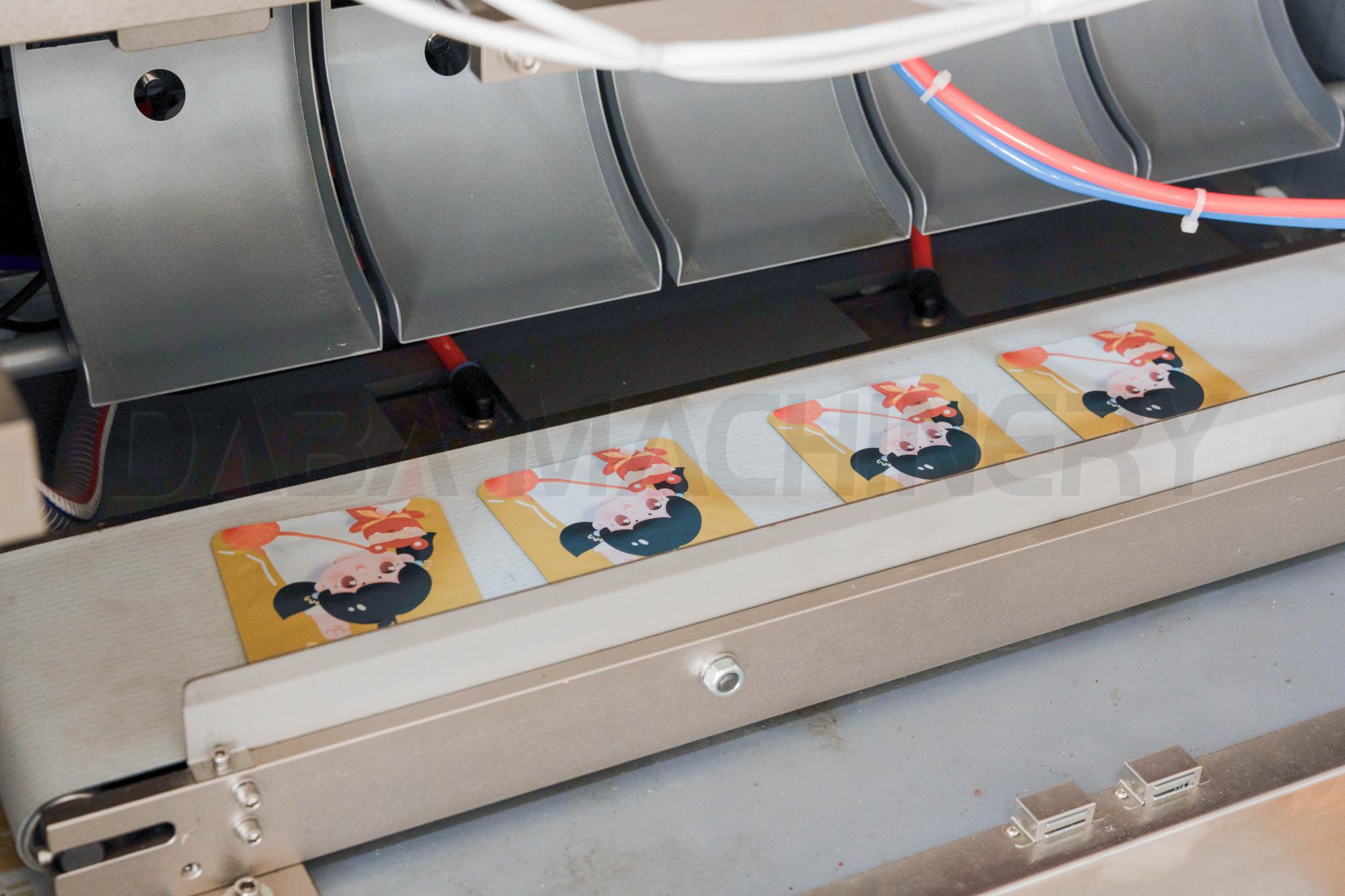

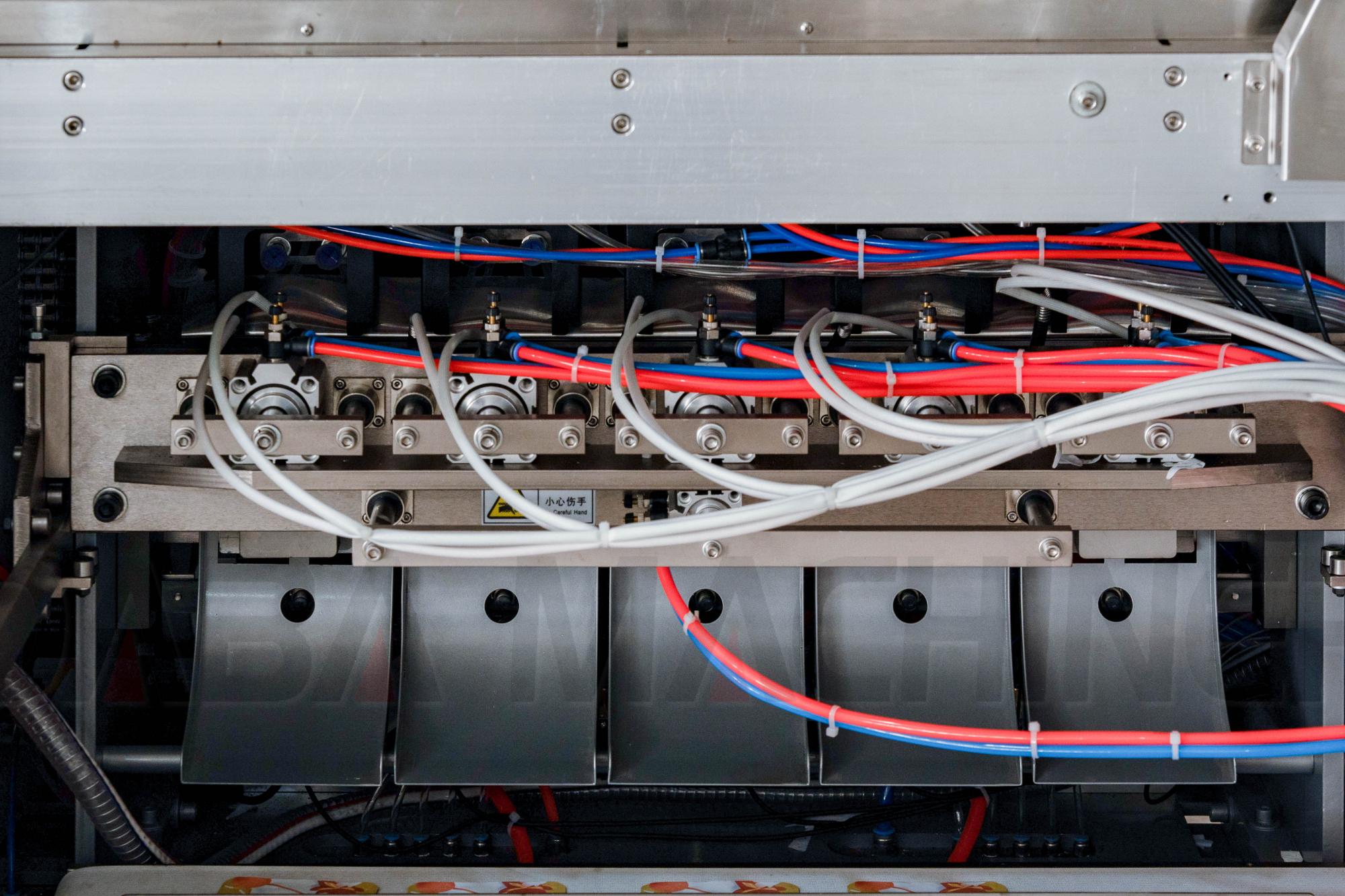

Heat Sealing

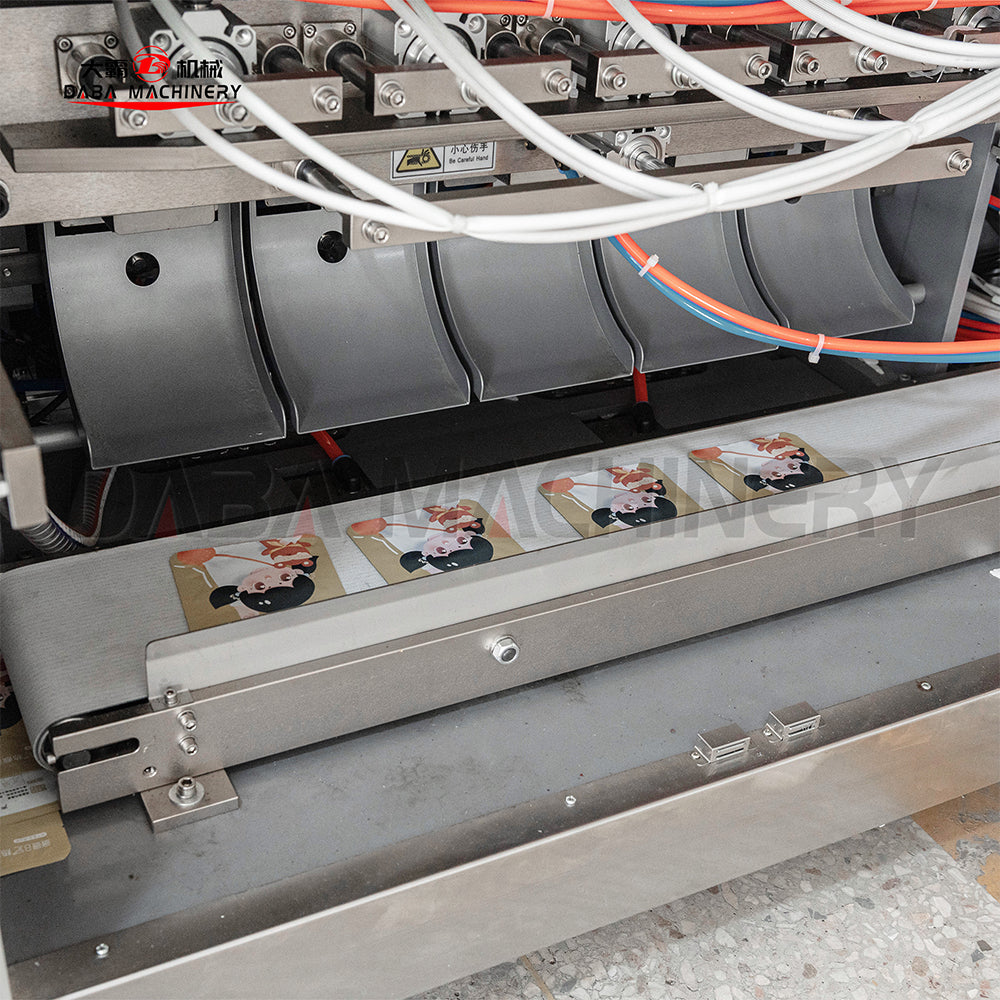

Finished Product Conveying

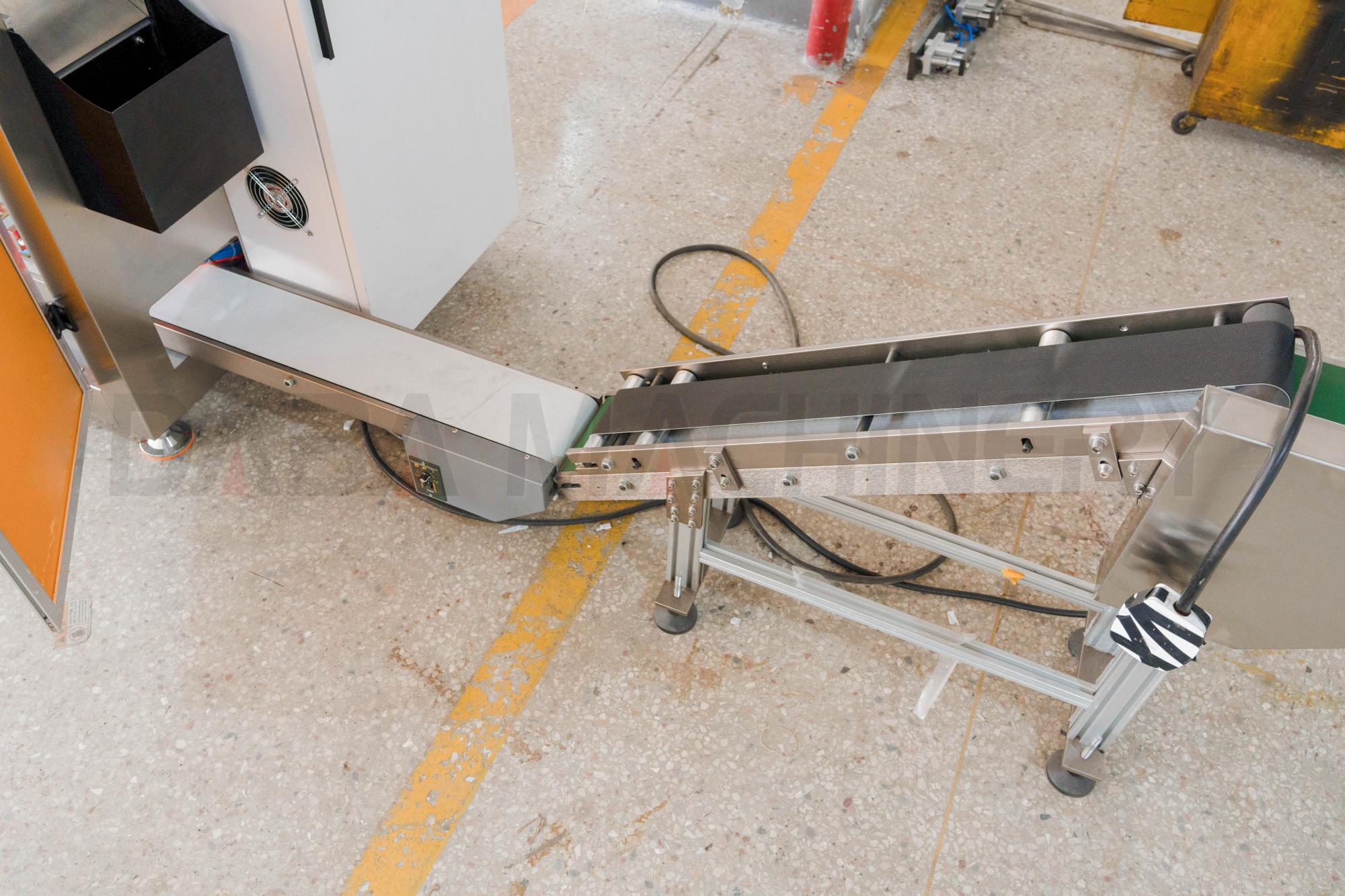

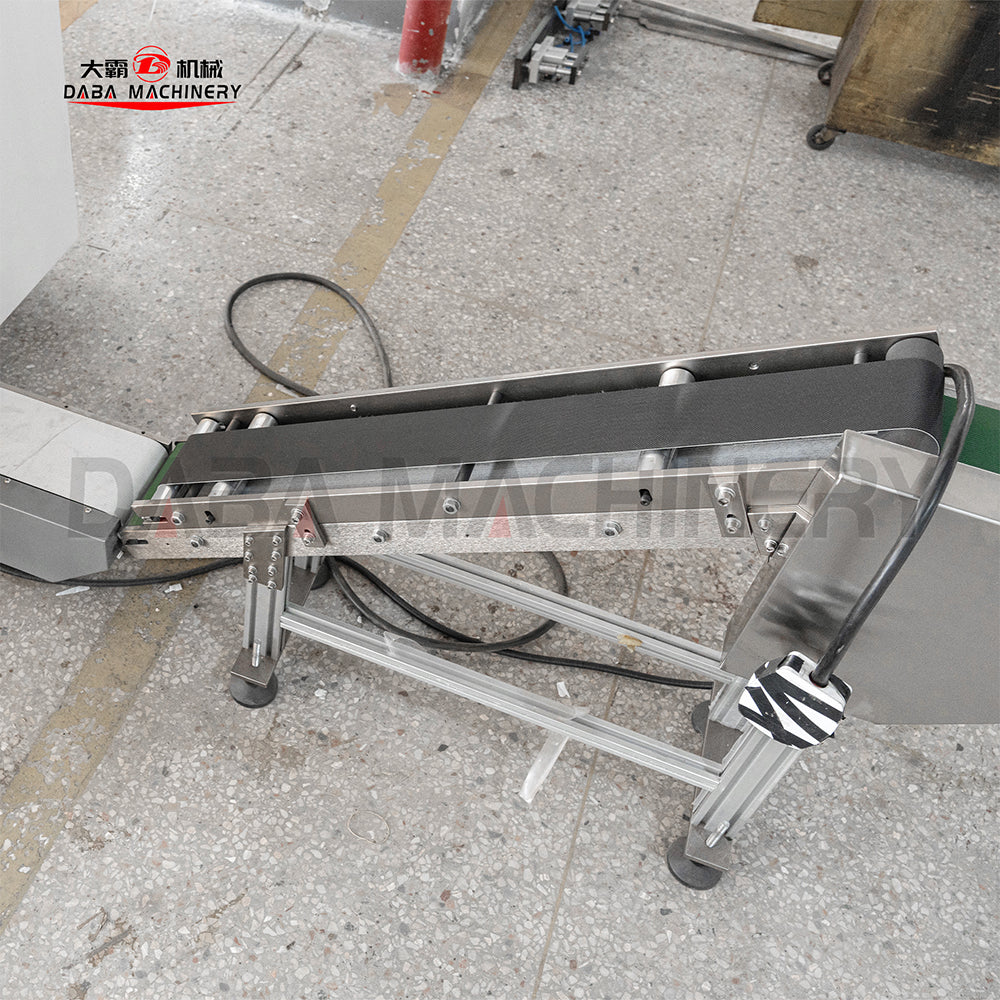

Conveyor Belt Collection
