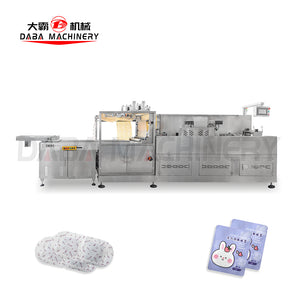

DBFS-W400 Horizontal Four Edge Sealing Packing Machine

Vendor: DABA Machine

Model: DBFS-W400
Packing Area: Length: 50-280mm, Width: 50-200mm
Packing Speed: 20-80times/minute(Depend by pouch size &material)
Output: 70*3=210bags (70times/minute, 3bags/1time)
Filling Size: Designed according to customer requirements within the packaging size range, maximum material thickness 15 mm
Film Width: 400~820mm
Roll Film Diameter: Max. 420mm
Roll Film Inner Diameter: ∅75mm
Film Packing Material: PET/AL/PE;PET/PE;NY/PE;NY/AL/PE;KOPP/PE
Power Supply: AC380V/50Hz, Max. 60A(Customized)
Compressed Air: 0.4-0.6Mpa
Total: Around 17Kw
Dimension: 5300×1330×1650mm
Weight: Around 2300kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBFS-W400 Reciprocating Horizontal Four Edge Sealing Packing Machine delivers high-speed, precision packaging performance for medical, food, and daily chemical products such as heating patches, eye masks, plasters, and gauze. Powered by a multi-axis servo motion control system and intelligent touch-screen interface, it ensures synchronized, accurate operation of every actuator for consistent packaging quality and speed. With automatic tension and correction systems, photoelectric tracking, and a roll film slitting mechanism, it achieves perfect pattern alignment and airtight seals. The modular design allows quick size changeovers and easy cleaning, while its digital temperature and pressure control systems guarantee smooth, firm, and visually appealing four-edge seals. Combining versatility, precision, and stability, the DBFS-W400 is an ideal solution for modern automated packaging lines.

Machine Structure

Features/Functions

Using a multi-axis servo motion control system and human-machine interface touch settings, the position, speed, synchronization, etc. of mechanical moving parts are braked in real time through the servo motion control system, allowing each actuator to operate accurately and autonomously in synchronization. Ensure product packaging quality while increasing packaging speed.

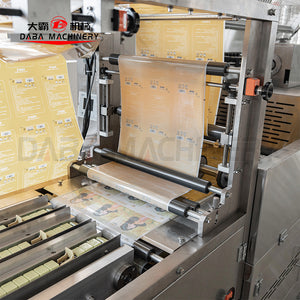

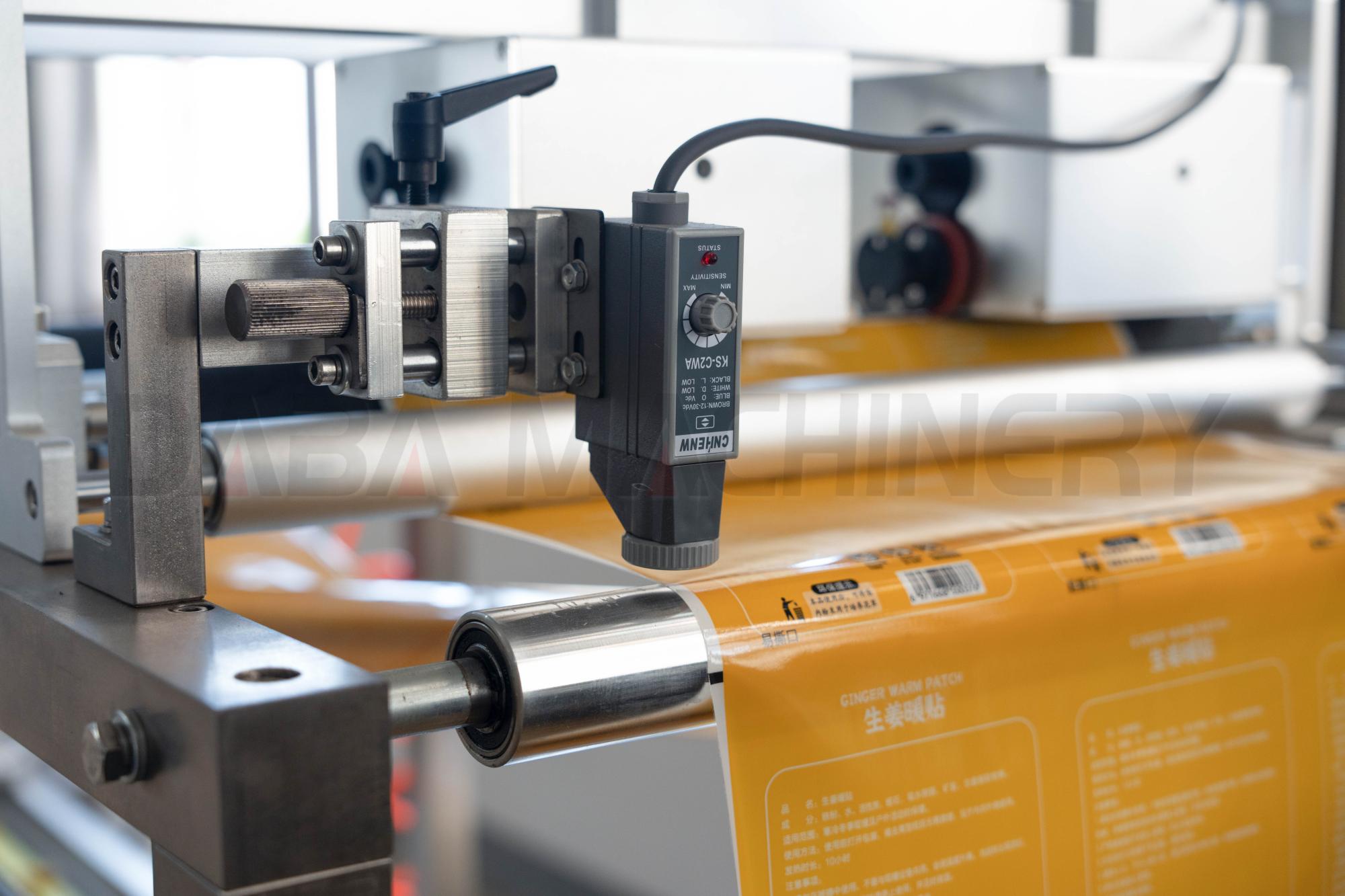

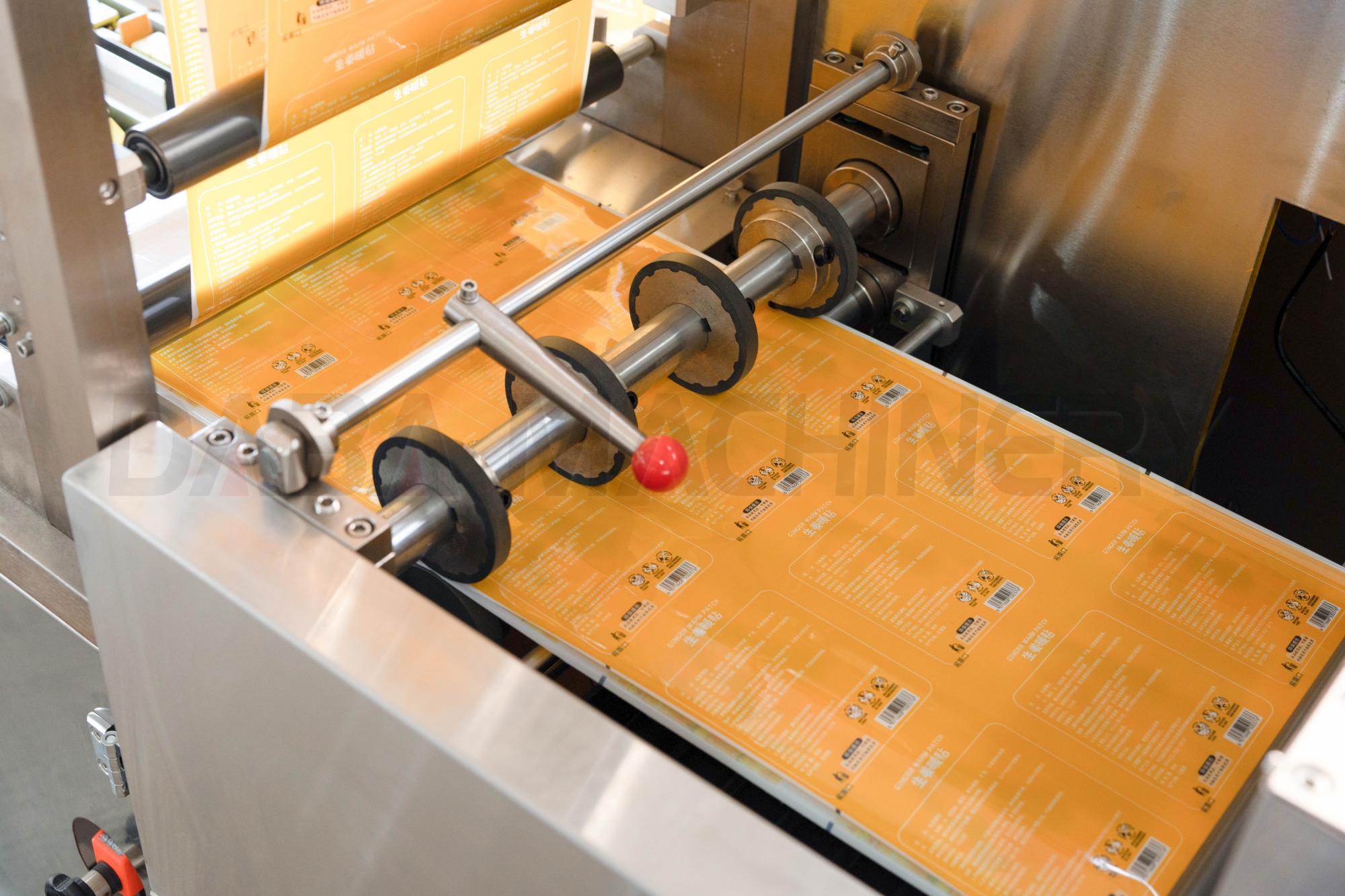

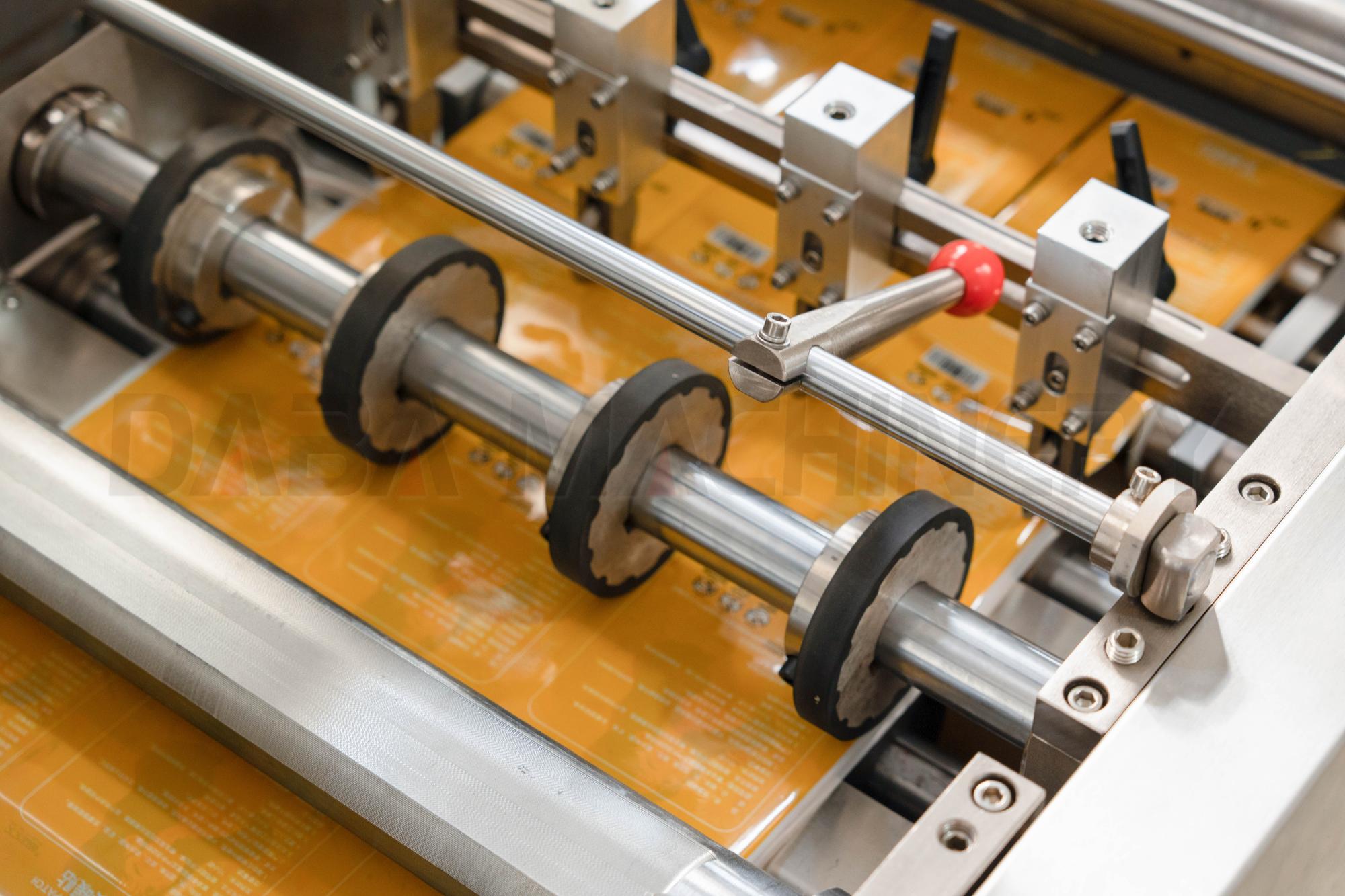

The roll film slitting mechanism is used to make the double-sided pattern alignment of the packaging bag accurate and beautiful. The photoelectric tracking and marking system ensures the accuracy of bag sealing, slitting and alignment, ensuring the uniformity of the packaging bag products, and has an automatic counting function.

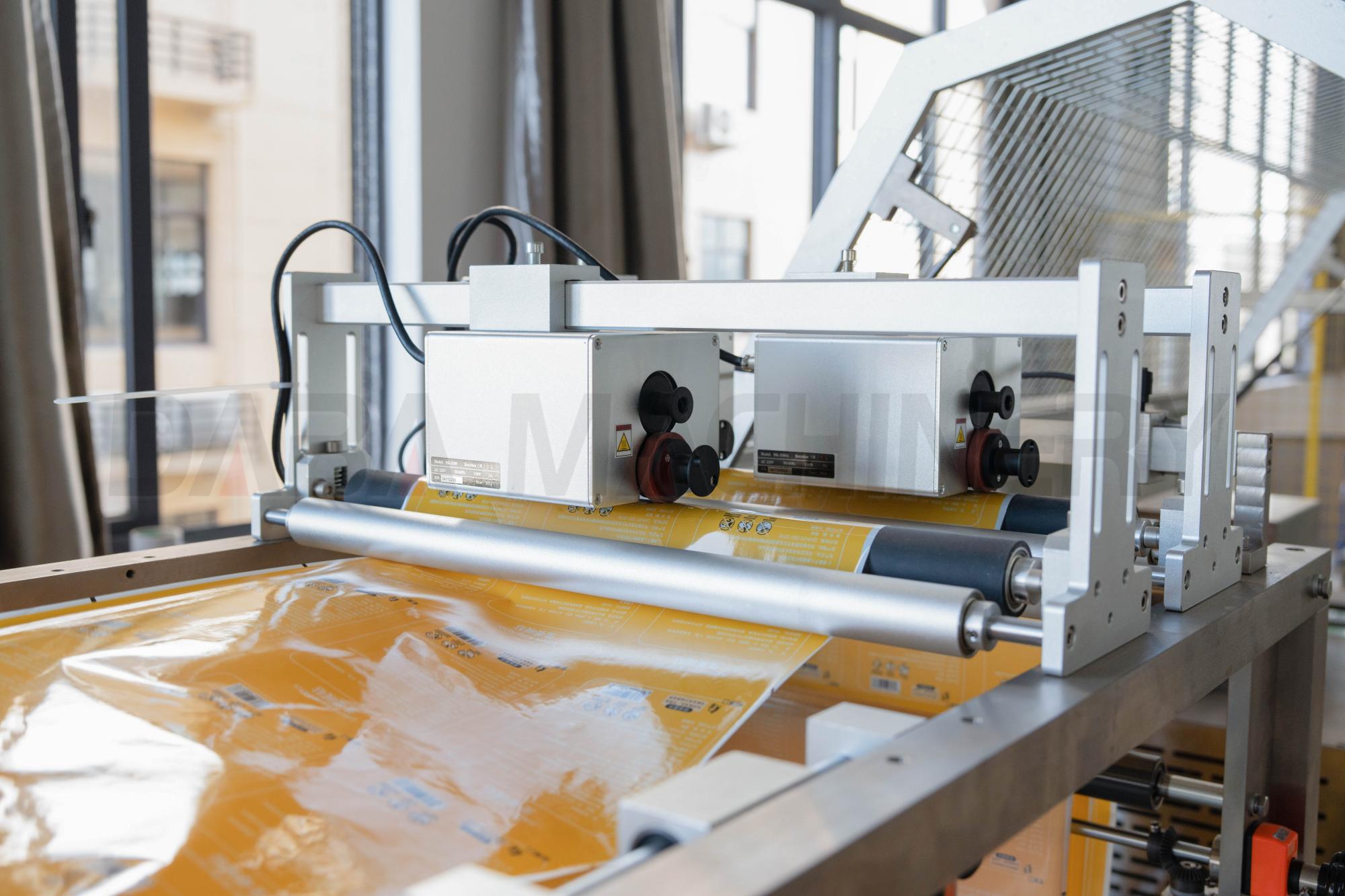

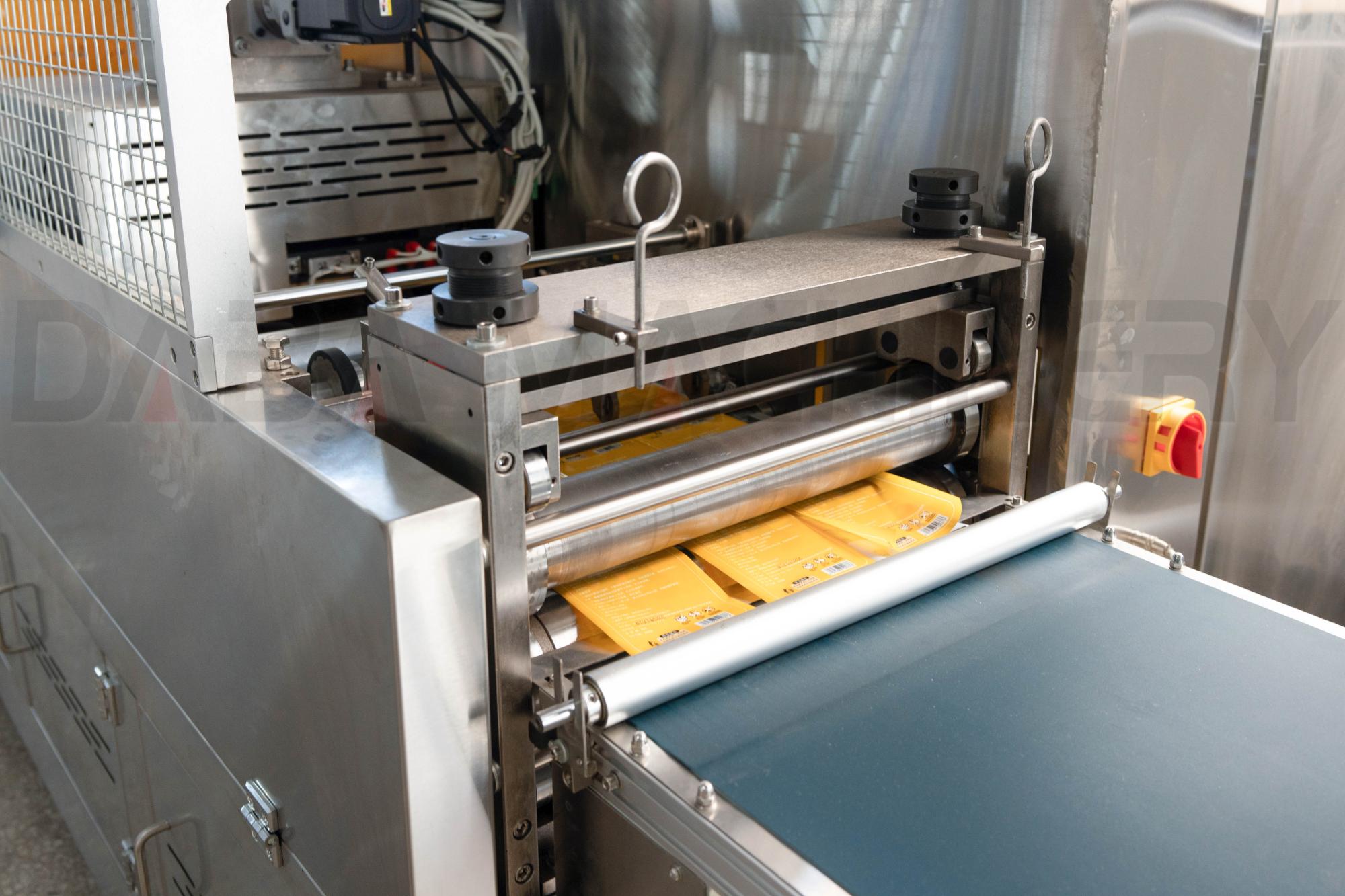

Adjustment is quick and convenient. You only need to replace the plate heat sealing mold to change the packaging size. Other actuators such as horizontal sealing, automatic feeding, batch number printing, cross-cutting and other actuators can be adjusted through data settings in the human-machine interface.

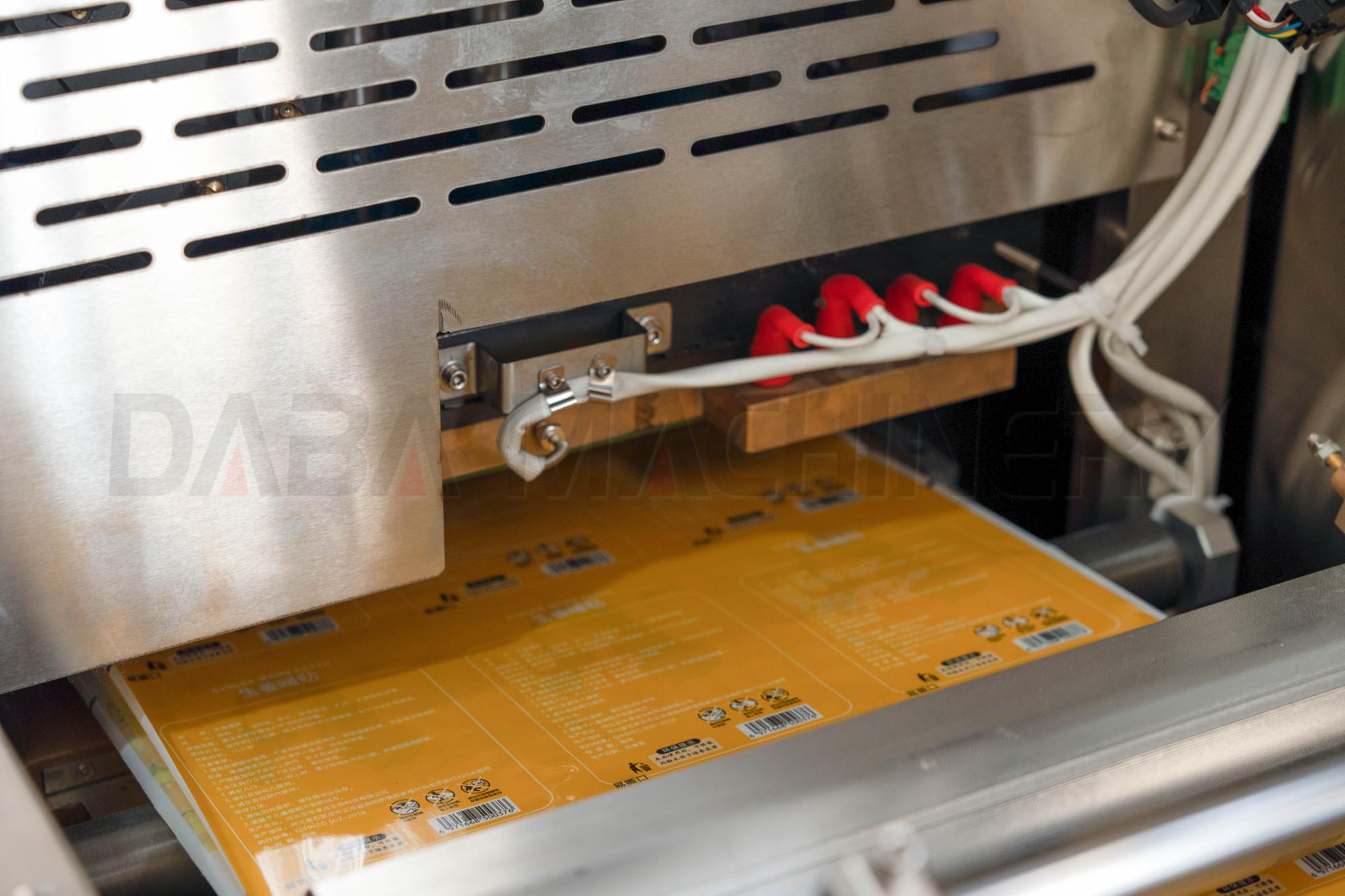

Use plate heating to perform four-sided sealing with constant speed. The sealing pressure is digitally adjusted through the servo-driven connecting rod assembly. The bag-shaped flat seal is firm, delicate and beautiful, and the packaging has good sealing performance and high efficiency, reducing mold costs.

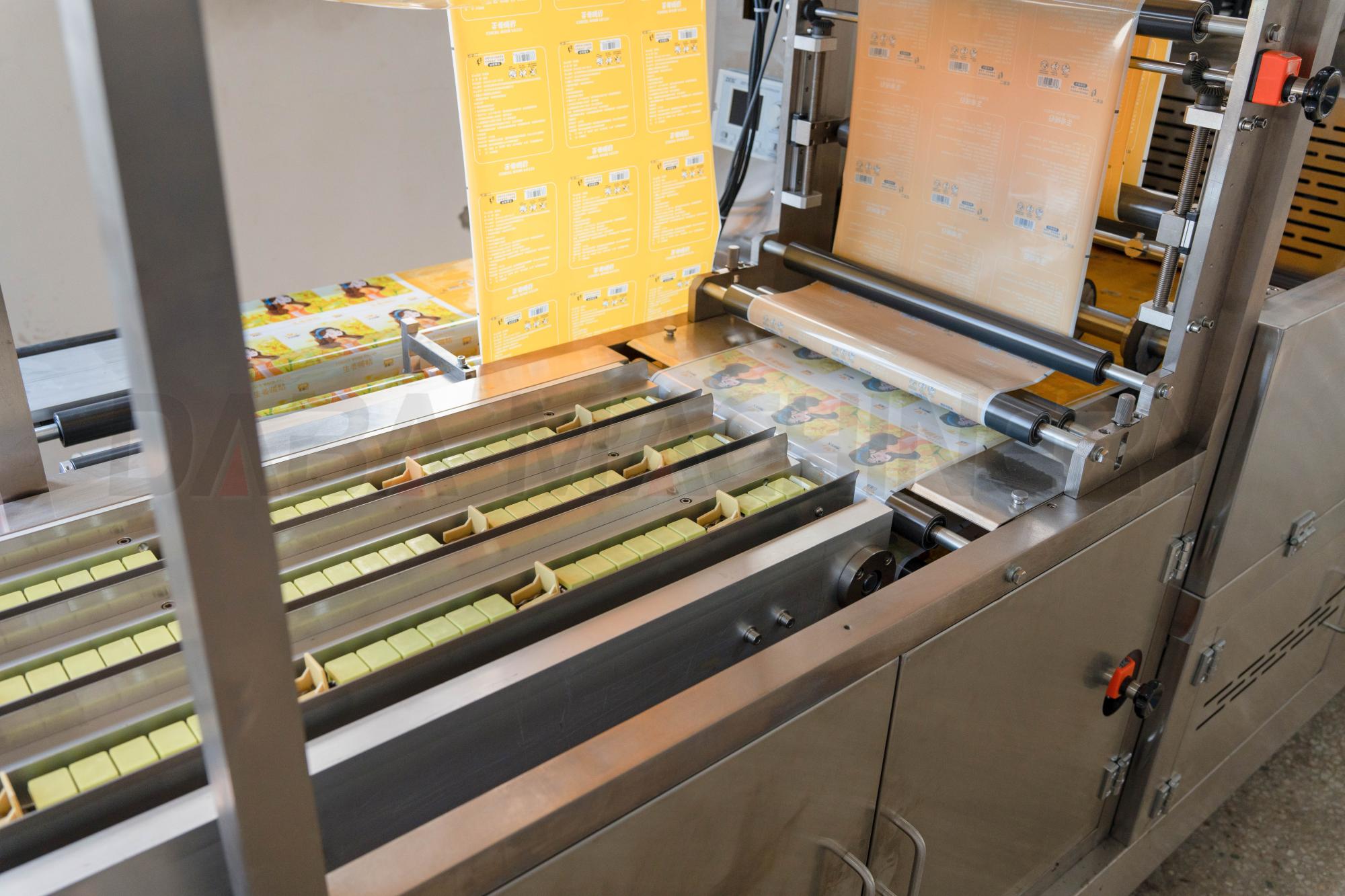

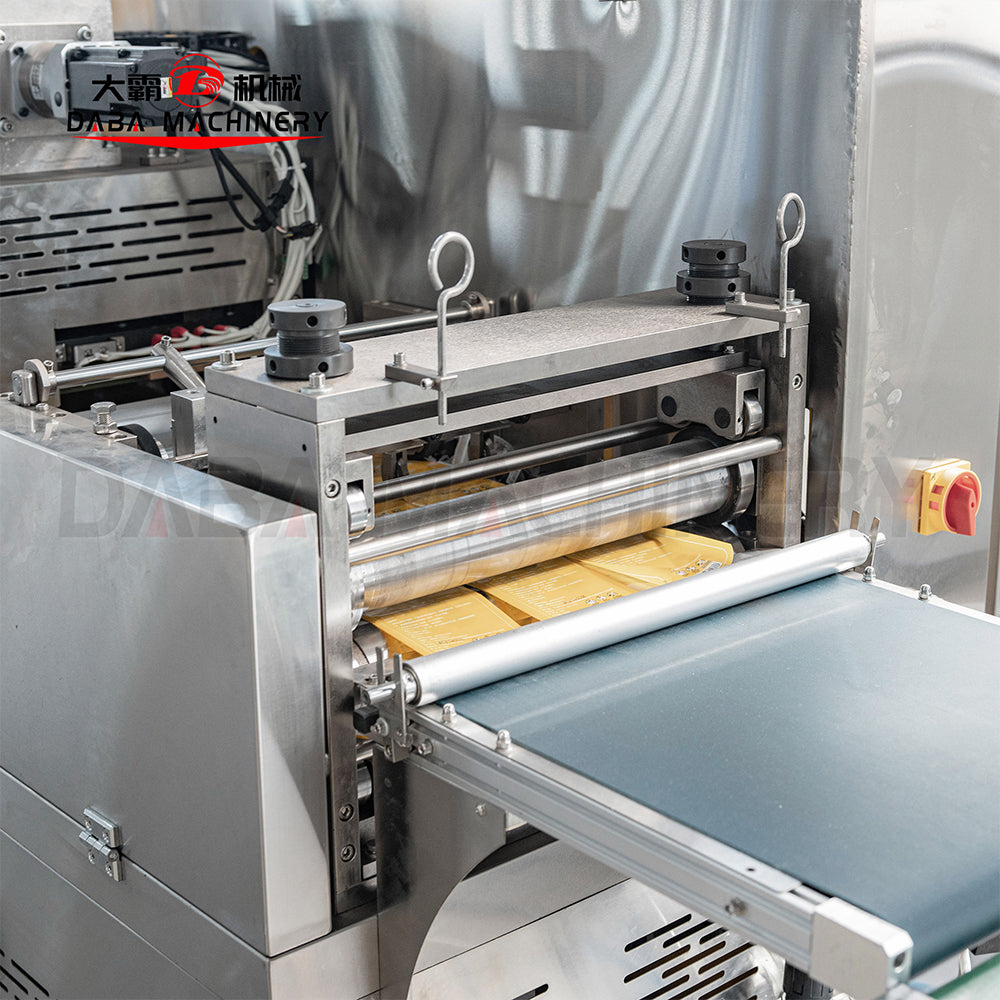

Fast packaging speed and accurate automatic feeding. It adopts servo-driven continuous feeding, and can add or customize a special feeding system according to the packaged items. This structure is easy to clean and maintain.

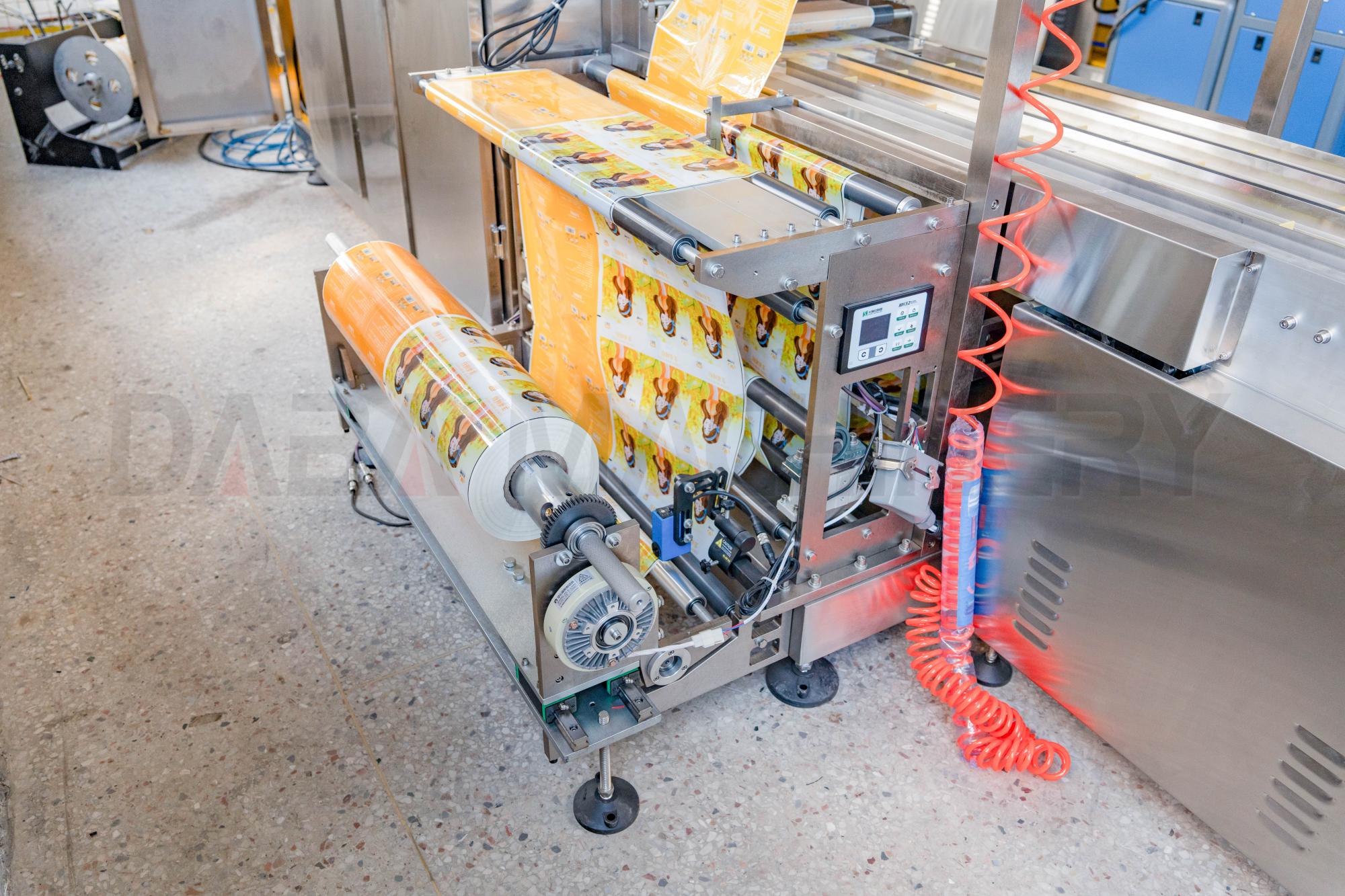

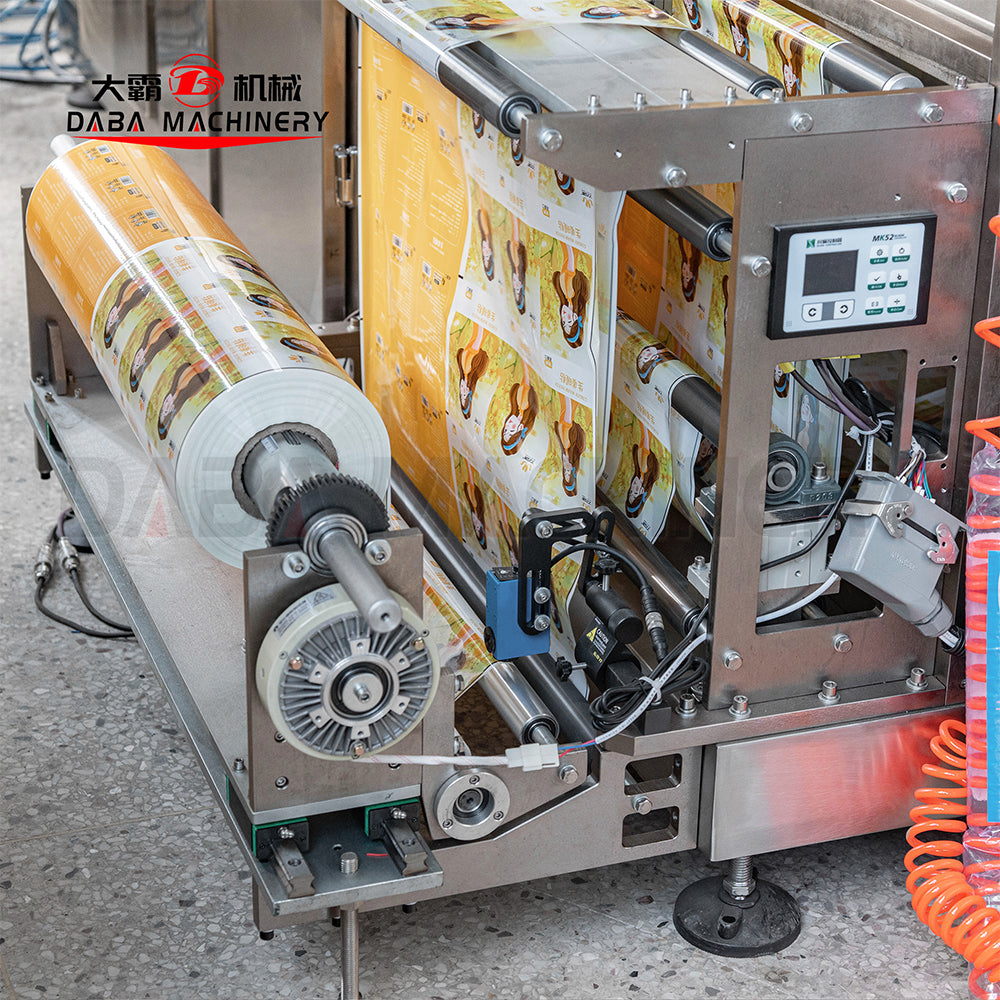

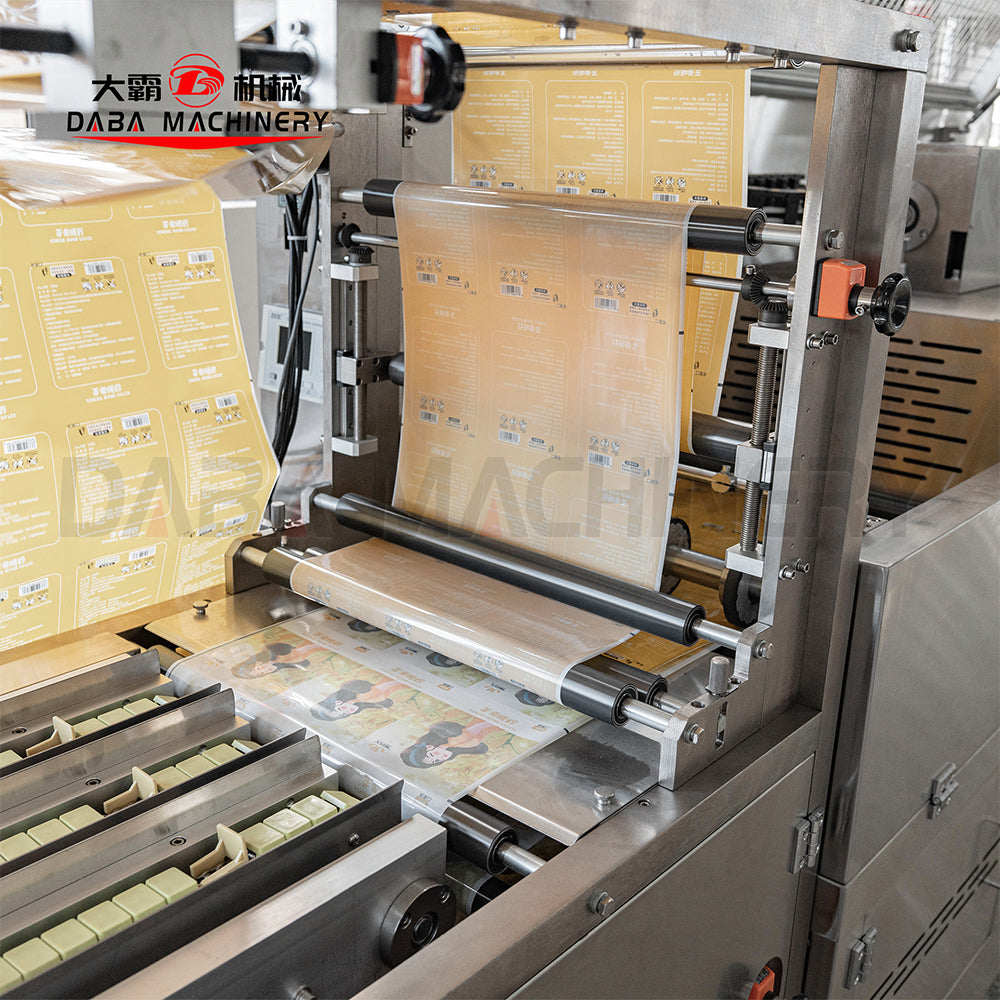

Add an automatic constant tension system and an automatic correction system to ensure the tension of the film and greatly improve the accuracy of benchmarking and the stability of operation.
Strong adaptability to packaging materials. The sealing temperature of this machine has automatic control function and high temperature control accuracy. It can be adapted to a variety of packaging composite films produced at home and abroad.
