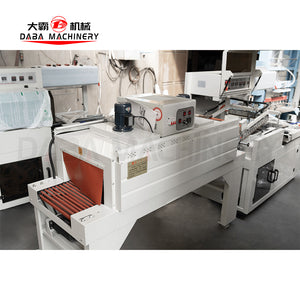

DBLF-450+DBPS-450 Automatic L-Bar Sealing Shrink Wrapping Machine

Vendor: DABA Machine

▶ Fully automatic sealing and cutting machine：

Model: DBLF-450
Power: 220V/1.5kw
Packaging Speed: 20-40 pieces/min
Sealing Blade Size: L550×W450mm
Packaging Dimensions: L+H≤400、W+H≤330、H≤120
Machine Dimensions(L*W*H): 1700×960×1400mm
Air Source: 6-8kg
Machine Weight: 225kg

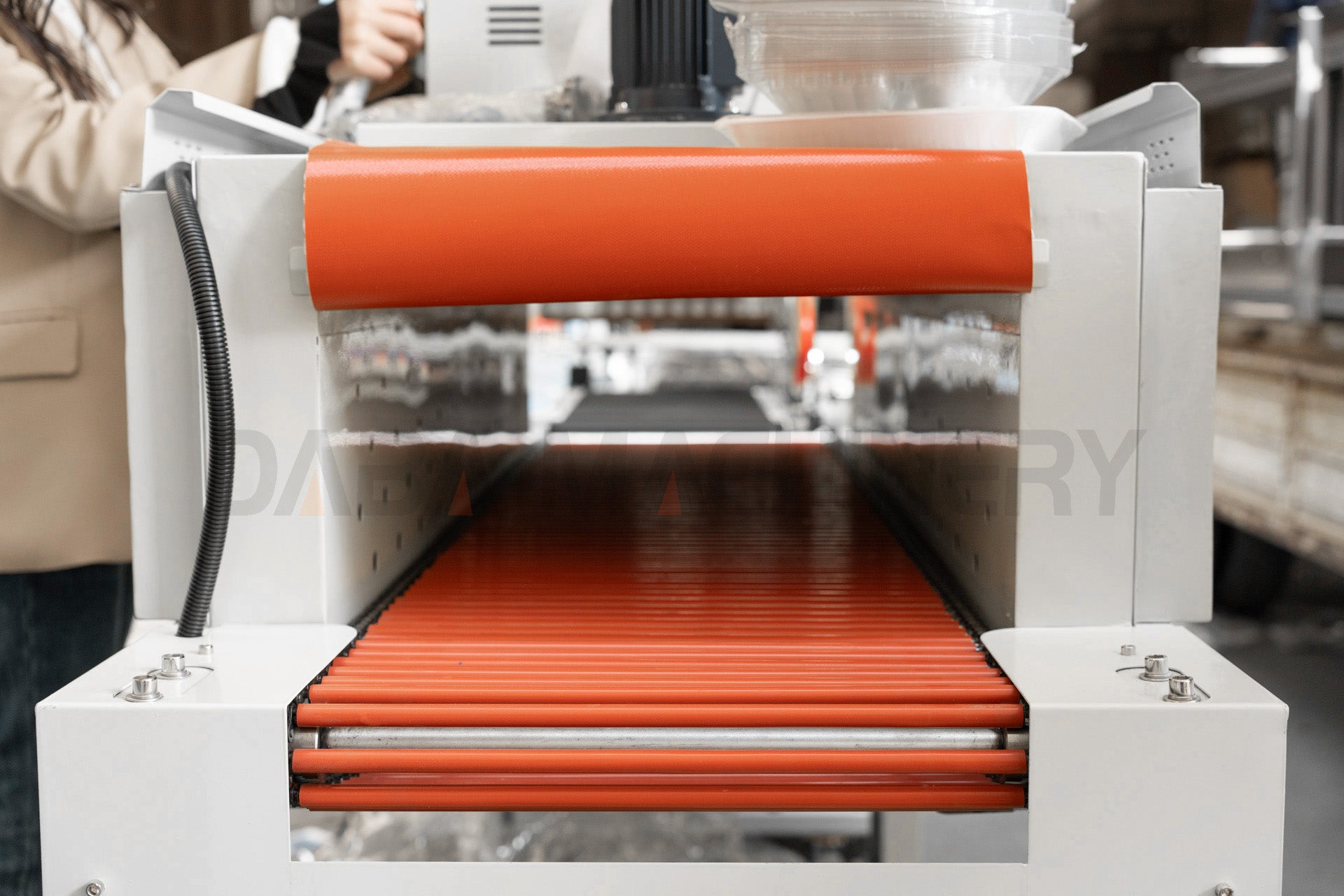

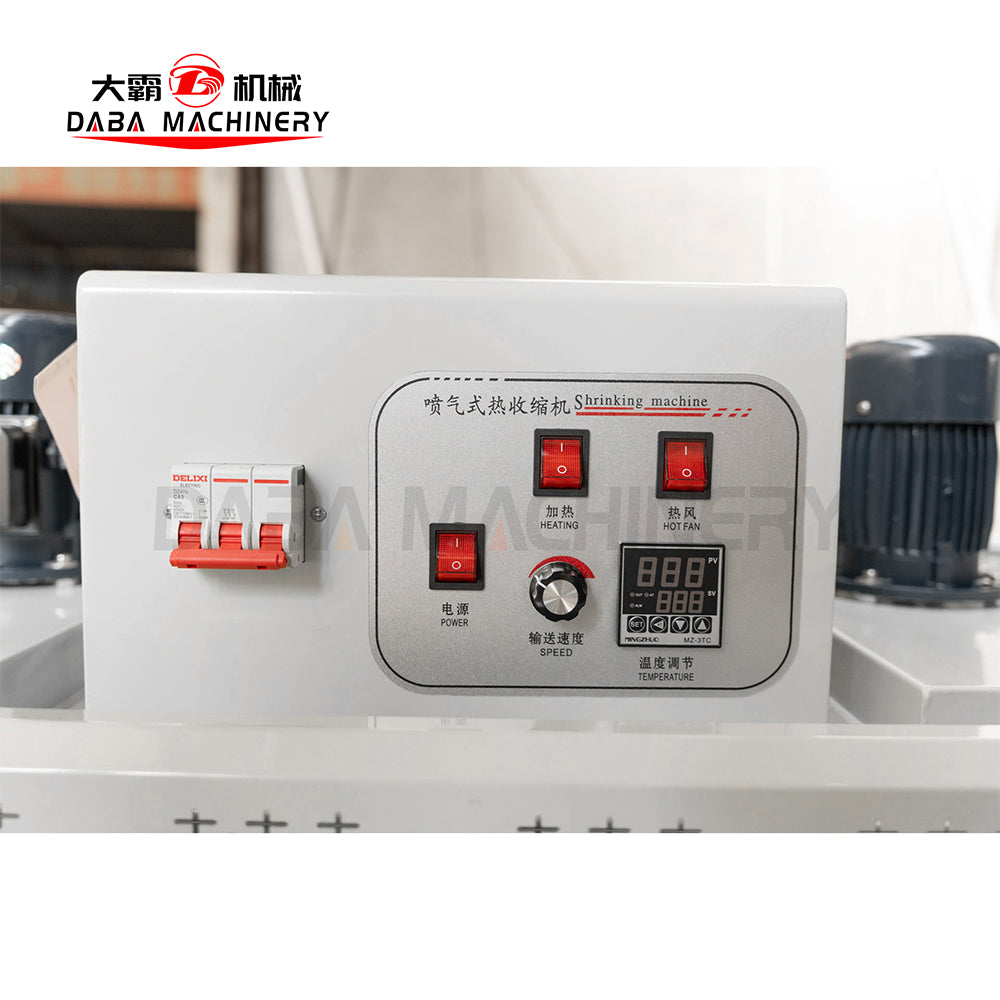

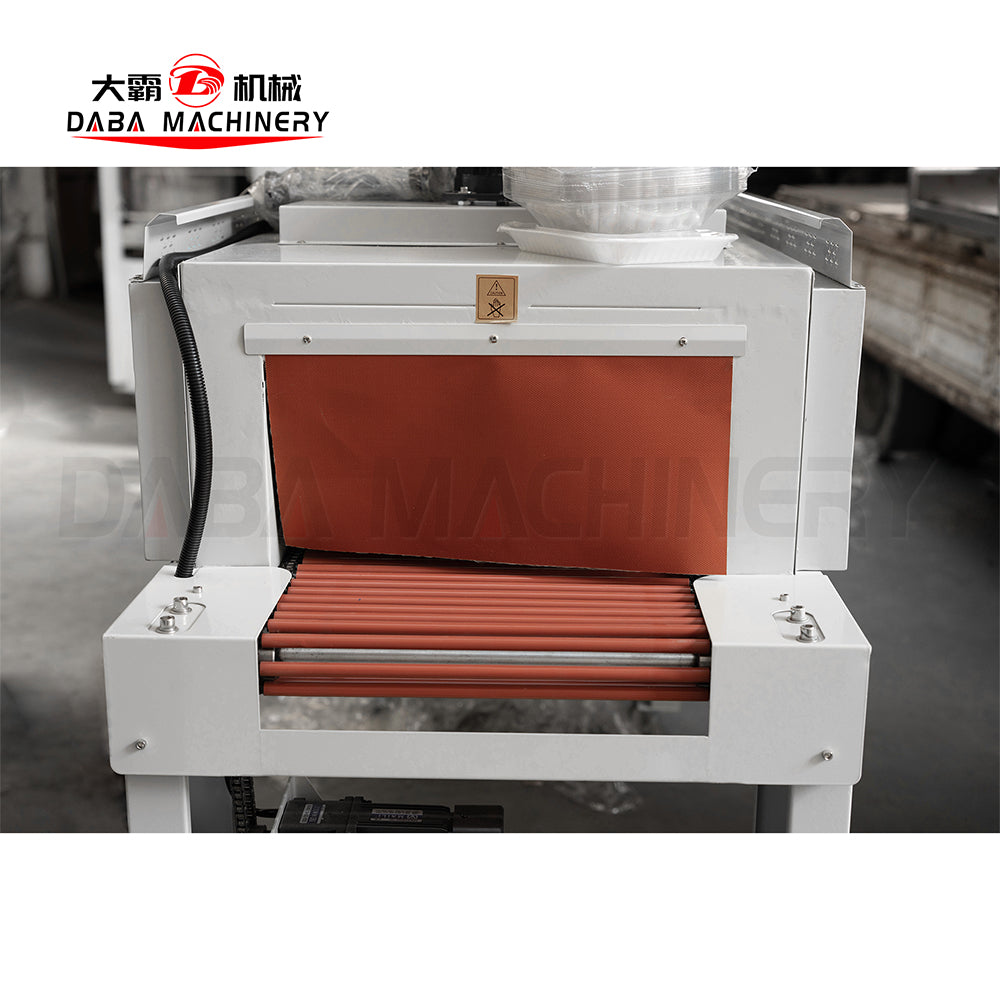

▶ Shrink Packaging Machine

Model: DBPS-450
Power: 380V/10kw
Packaging Speed: 20-40 pieces/min
Cavity Dimensions(L*W*H): 1000×450×250mm
Packaging Dimensions: W≤430×H≤220mm
Machine Dimensions(L*W*H): 1300×715×1455mm
Machine Weight: 180kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

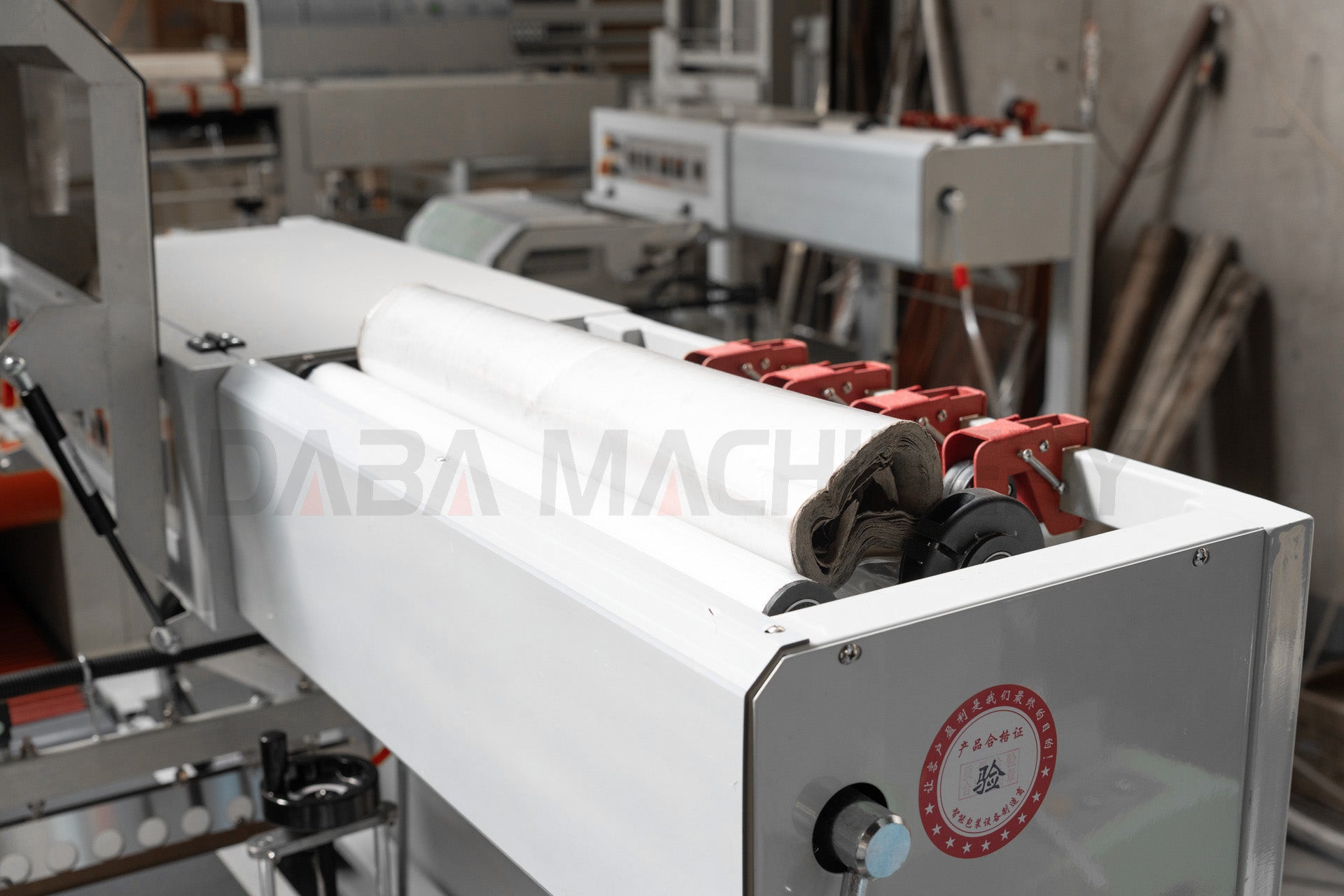

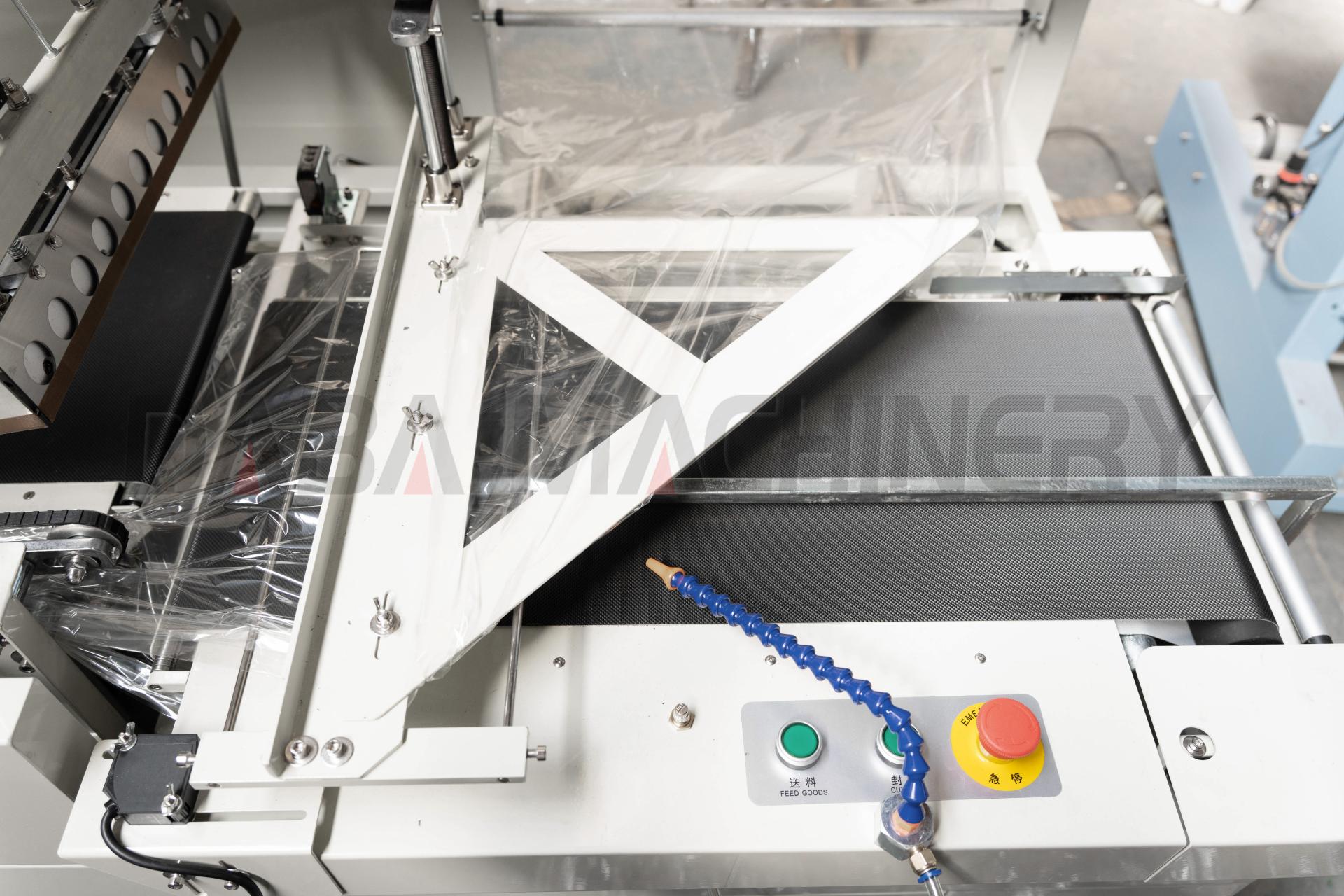

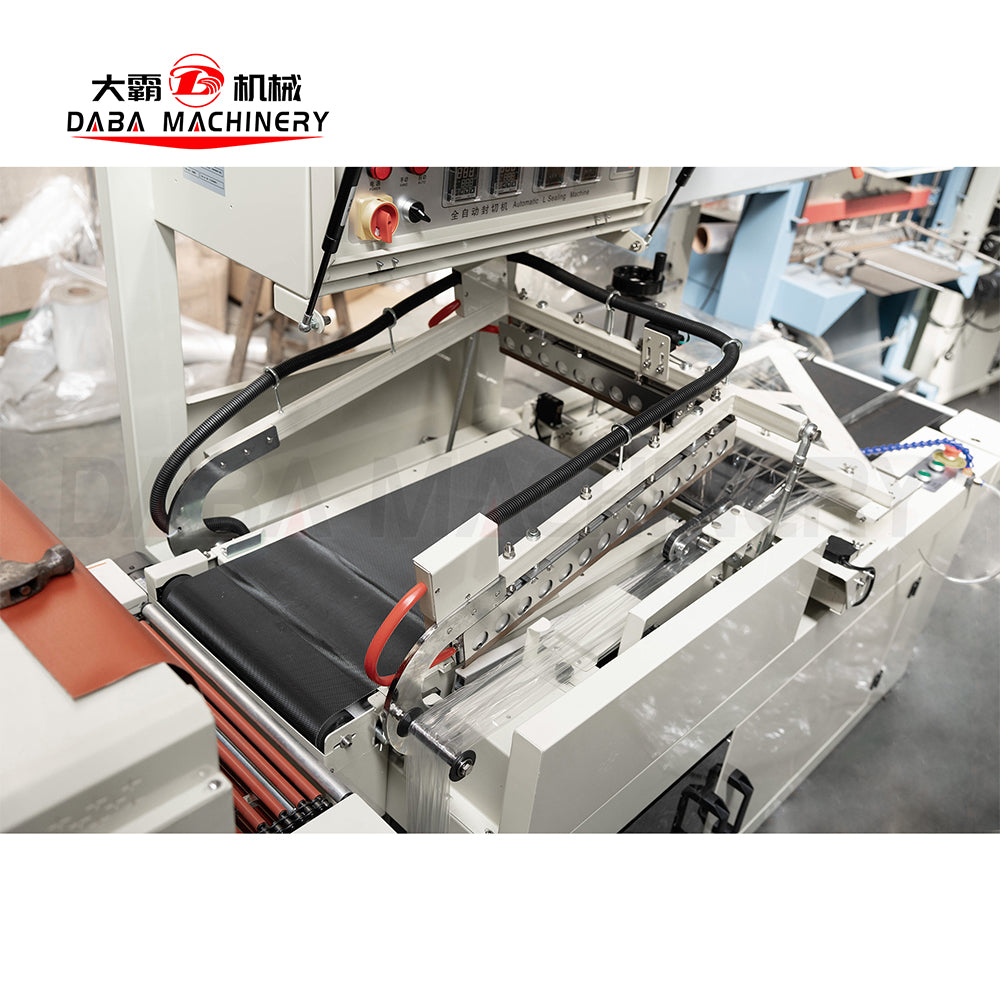

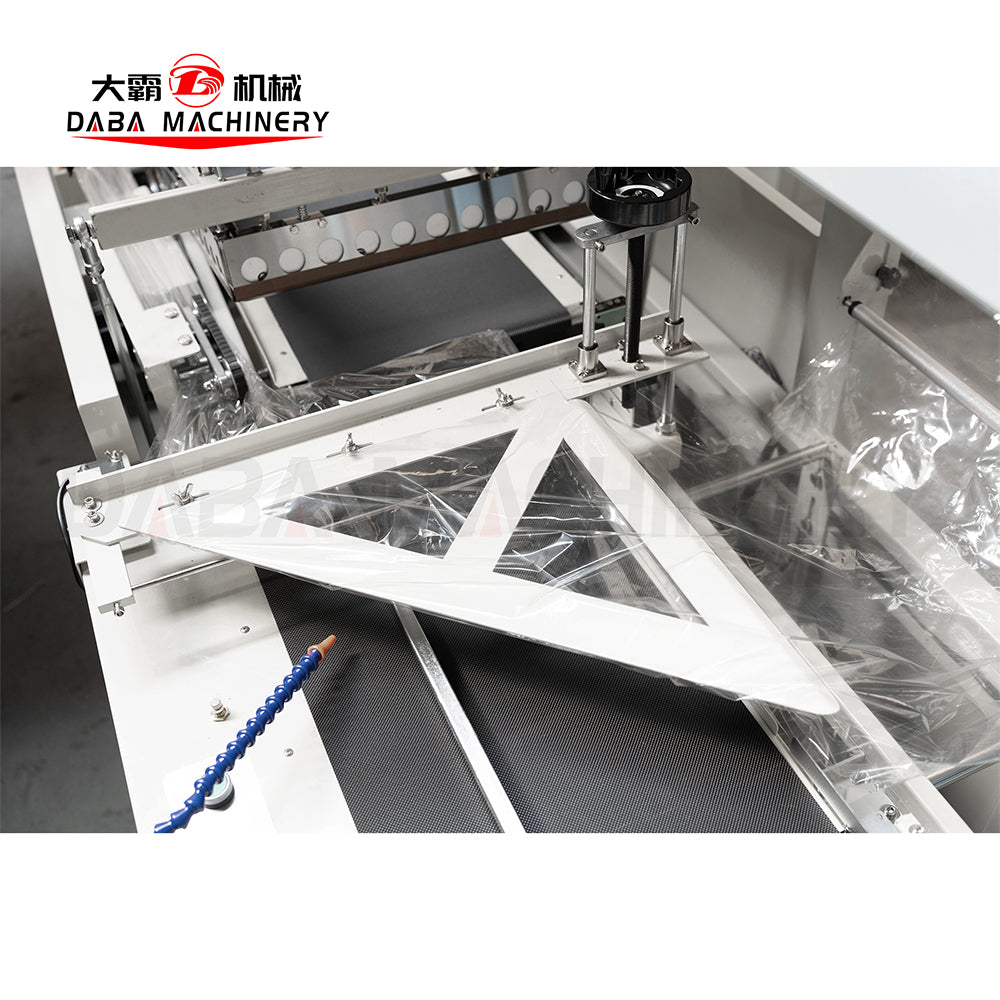

Fully Automatic L-Bar Sealing Packaging Machine is a fully automatic unmanned packaging equipment. It is equipped with an automatic film feeding and perforation device, a manually adjustable film guiding system, and a manually adjustable feeding conveyor platform. The machine can be connected with a production line, automatically completing feeding, bagging, sealing, and shrinking processes.

Features/Functions

The entire machine is designed for fully unmanned operation, seamlessly integrated with the production line.
When the product size changes, adjustment is very simple with no need to replace molds or bag formers.

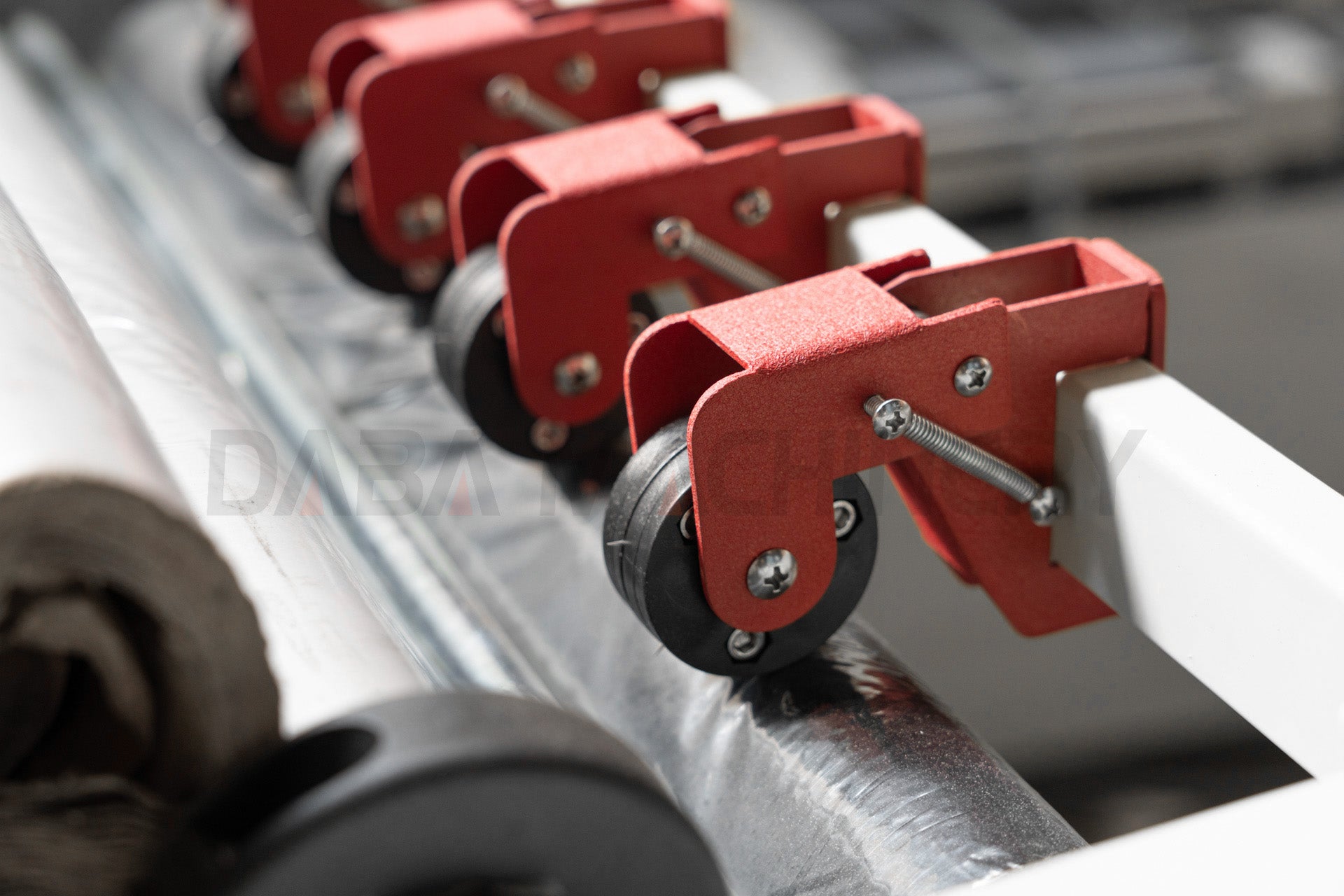

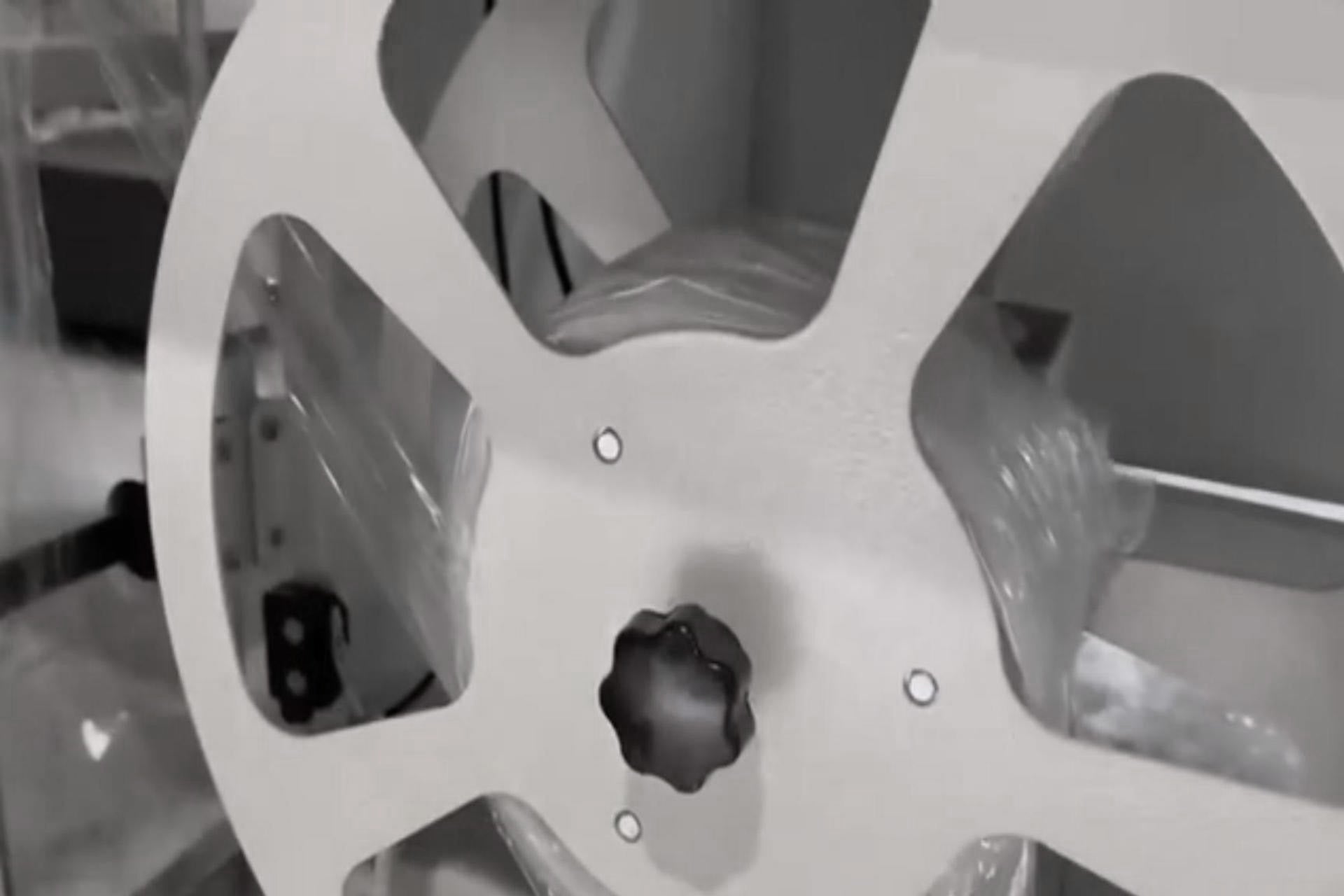

Automatic feeding, with bag length automatically regulated by the combination of photoelectric sensor and timer. Equipped with an induction motor for automatic waste rewinding.

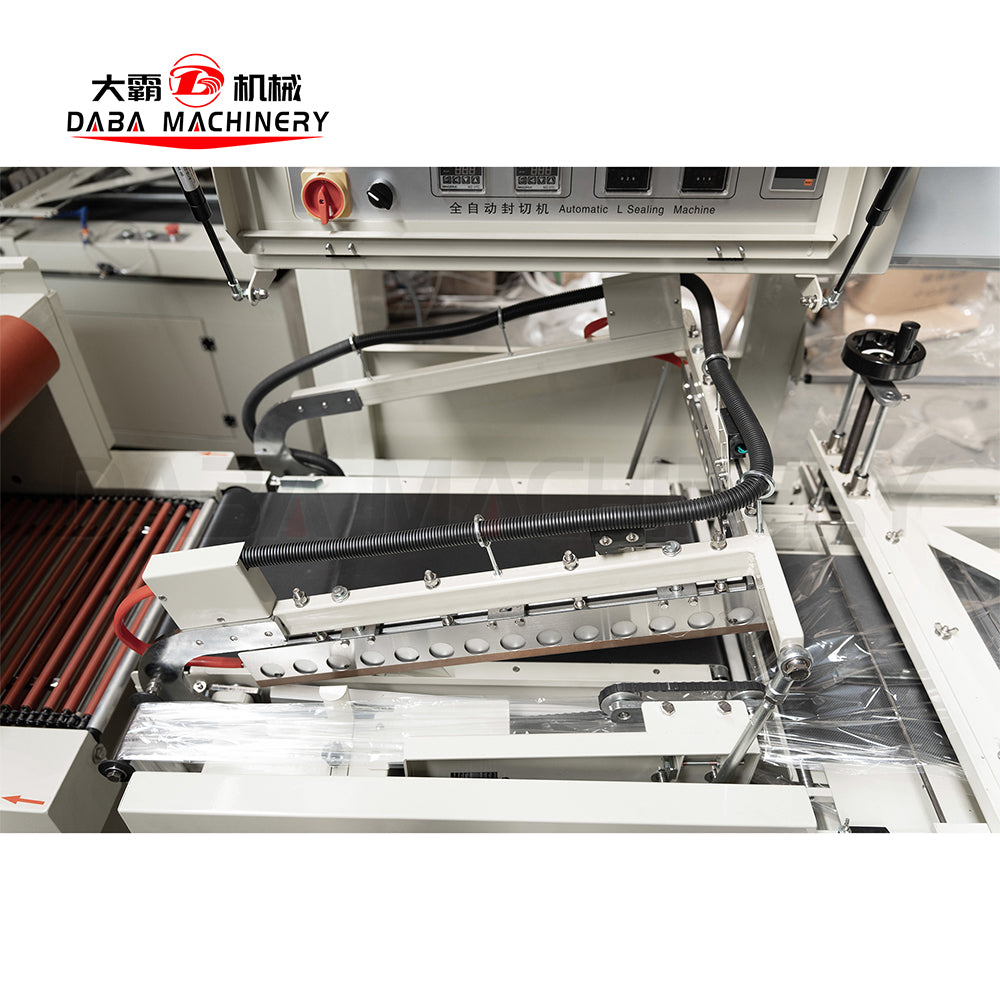

The sealing and cutting knife has an automatic protection function to effectively prevent mis-cutting of products.

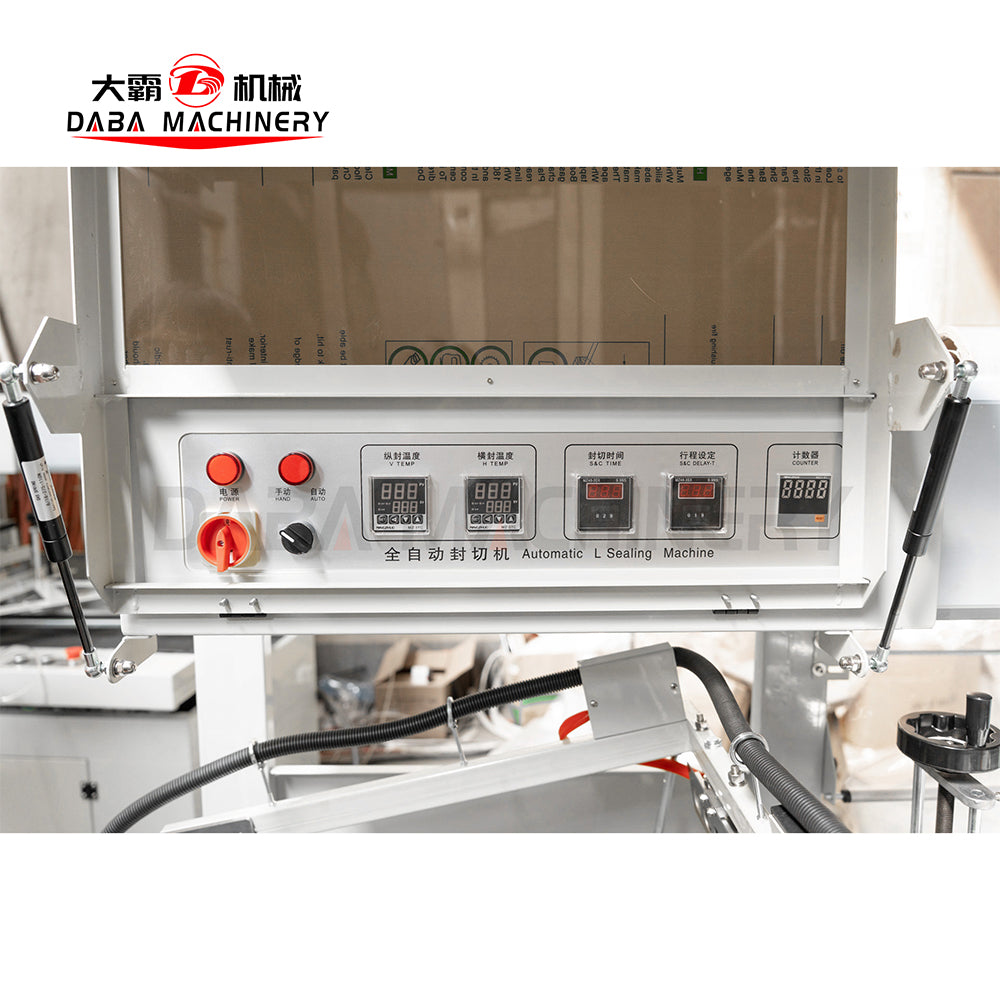

The temperature controller uses an imported digital display with built-in PID function, making the sealing temperature extremely sensitive and precise, adjustable at will, without the risk of inaccuracy damaging the product.

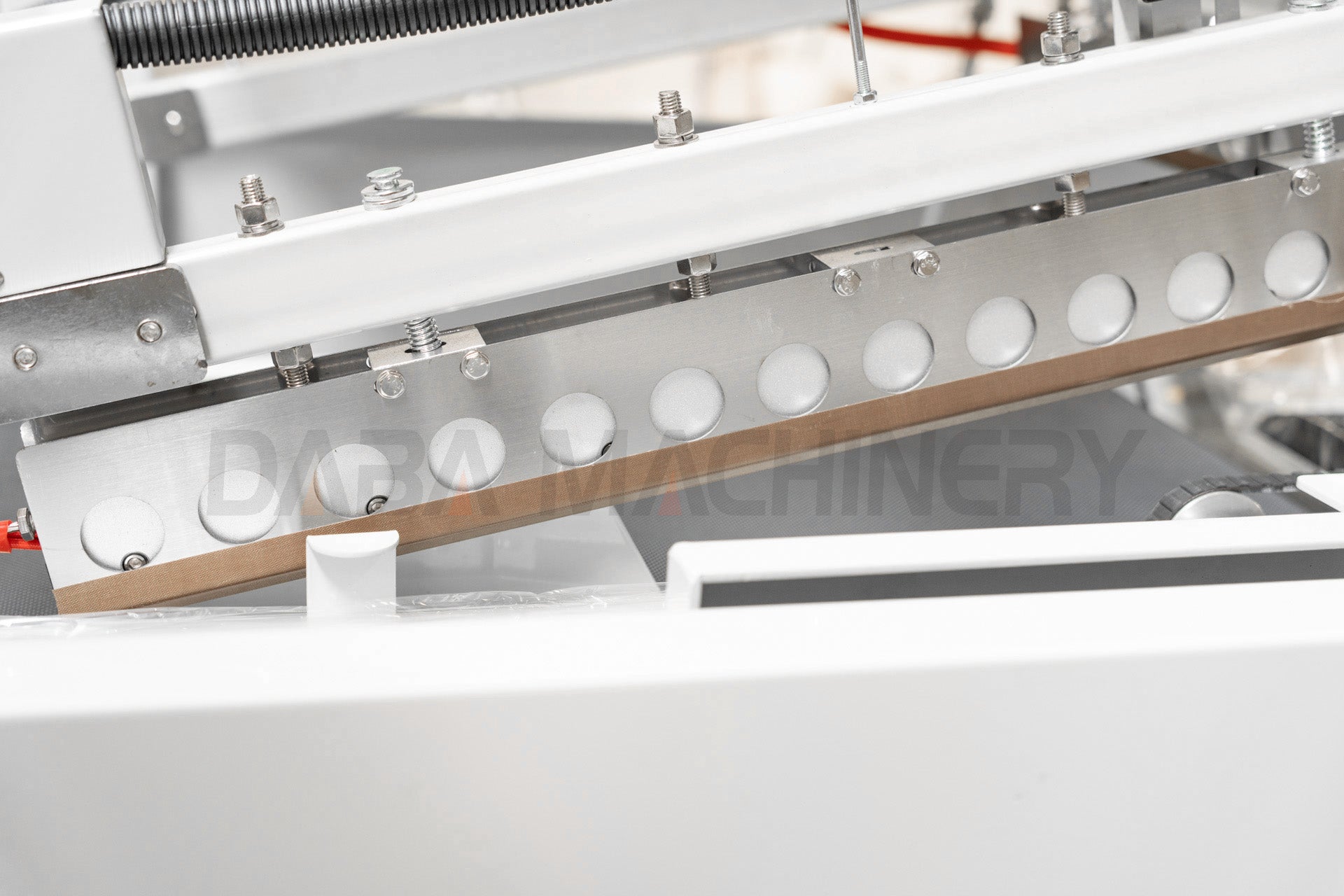

The sealing knife is made of aluminum alloy with DuPont Teflon coating from the USA, featuring anti-stick and high-temperature resistance. The seal is firm, with no cracking, carbonization, smoke, or pollution.

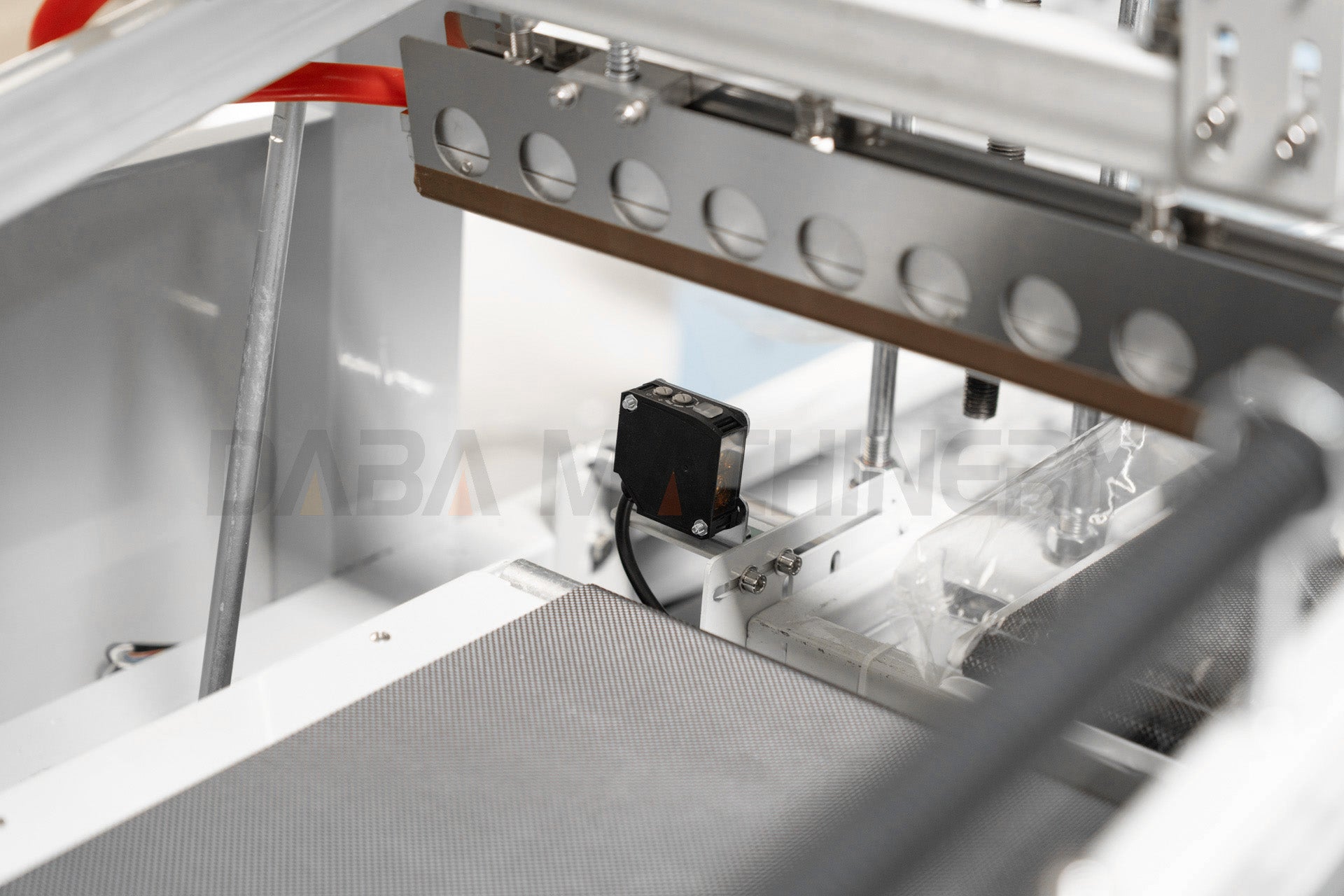

Equipped with imported photoelectric sensors, one set for horizontal detection and one set for vertical detection, allowing flexible switching. Even thin or small products can be sealed easily and reliably.
The sealing and cutting section is equipped with an organic glass protective cover and an automatic alarm system, greatly enhancing operator safety.
