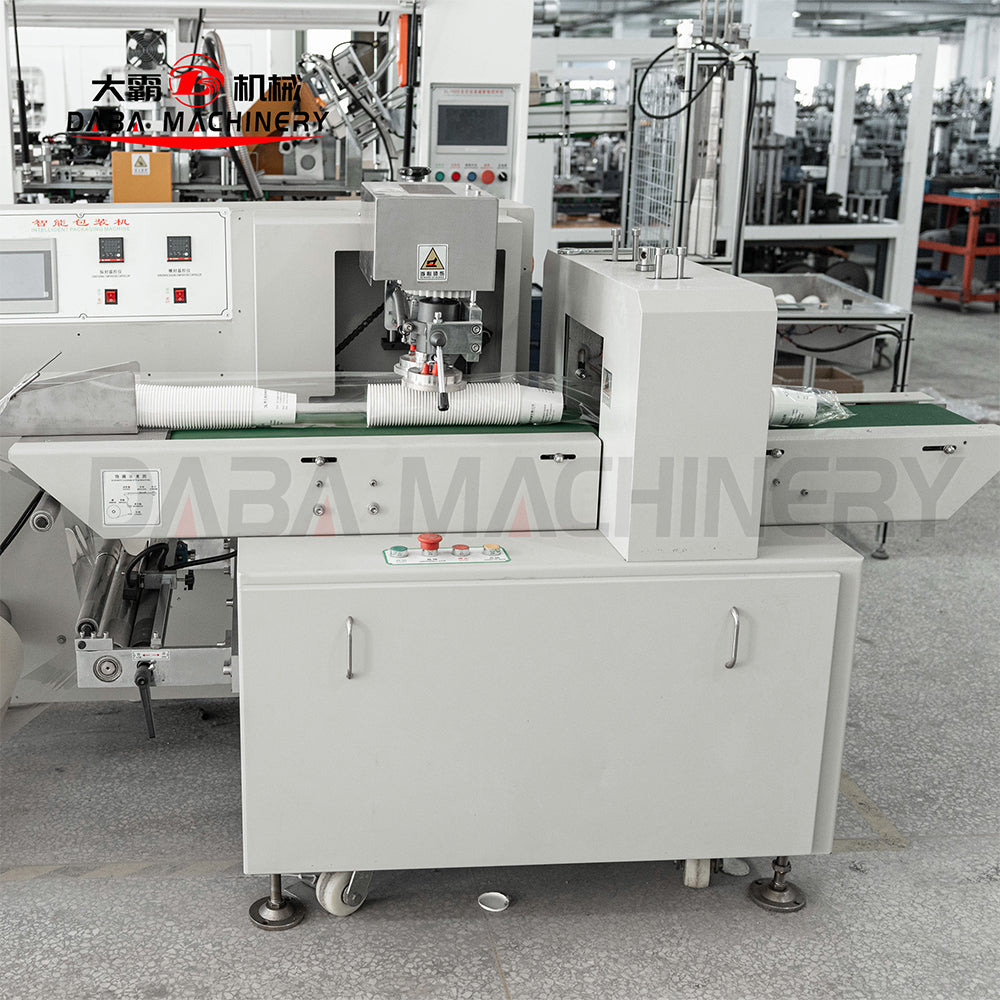

DBZB-ZS120-D Single-Row Pillow Packaging Machine

Vendor: DABA Machine
  • Model: DBZB-ZS120-D
  • Max film width: 450mm
  • Suitable film thickness: 0.03-0.06mm
  • Length of bags: 65-500mm
  • Packaging width: 30-200mm
  • Packaging height: ≤110mm
  • Total power: 4Kw 220V
  • Overall dimensions(L x W x H): 3000*950*1250mm
  • Weight: 500KG

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBZB-ZS120-D Single-Row Pillow Packaging Machine is a versatile solution for packaging a wide range of products into secure, easy-to-handle pillow-style bags. Compact and efficient, it offers stable performance with simple operation, making it suitable for food, daily-use items, and industrial products alike. Its flexible design supports consistent sealing quality and reliable output, helping manufacturers improve productivity while maintaining cost efficiency.
  1. Compact structure, stable function and simple operation.
  2. Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.
  3. It adopts imported electric appliance, touch screen interface, convenient parameter setting.
  4. Self-checking function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.
  5. Dependant temperature PID controlling suitable for various materials of packaging menbrane.Position stop function, no adhesive and no waste of membrane.
  6. Clean rotation system, more reliable operation and more convenient maintenance.
  7. All the controlling operates by the software,convenience for function adjustment and technical up grading.
Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper cup production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into cup fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean cup fans.

7. Cup Fan

Paper segment prepared for cup forming.

8. Paper Cup Machine

Forms cup fans and bottom paper into cups.

9. Bottom Paper

Material used for forming cup bases.

10. Paper Cup

Completed paper cup ready for inspection.

11. Paper Cup Inspection Machine

Ensures each cup meets quality standards.

12. Double Wall Paper Cup Sleeve Machine

Adds insulating sleeve for double-wall cups.

13. Packing Machine

Packs cups for transportation.

14. Packaging Paper Cups

Final packaged products ready for shipment.

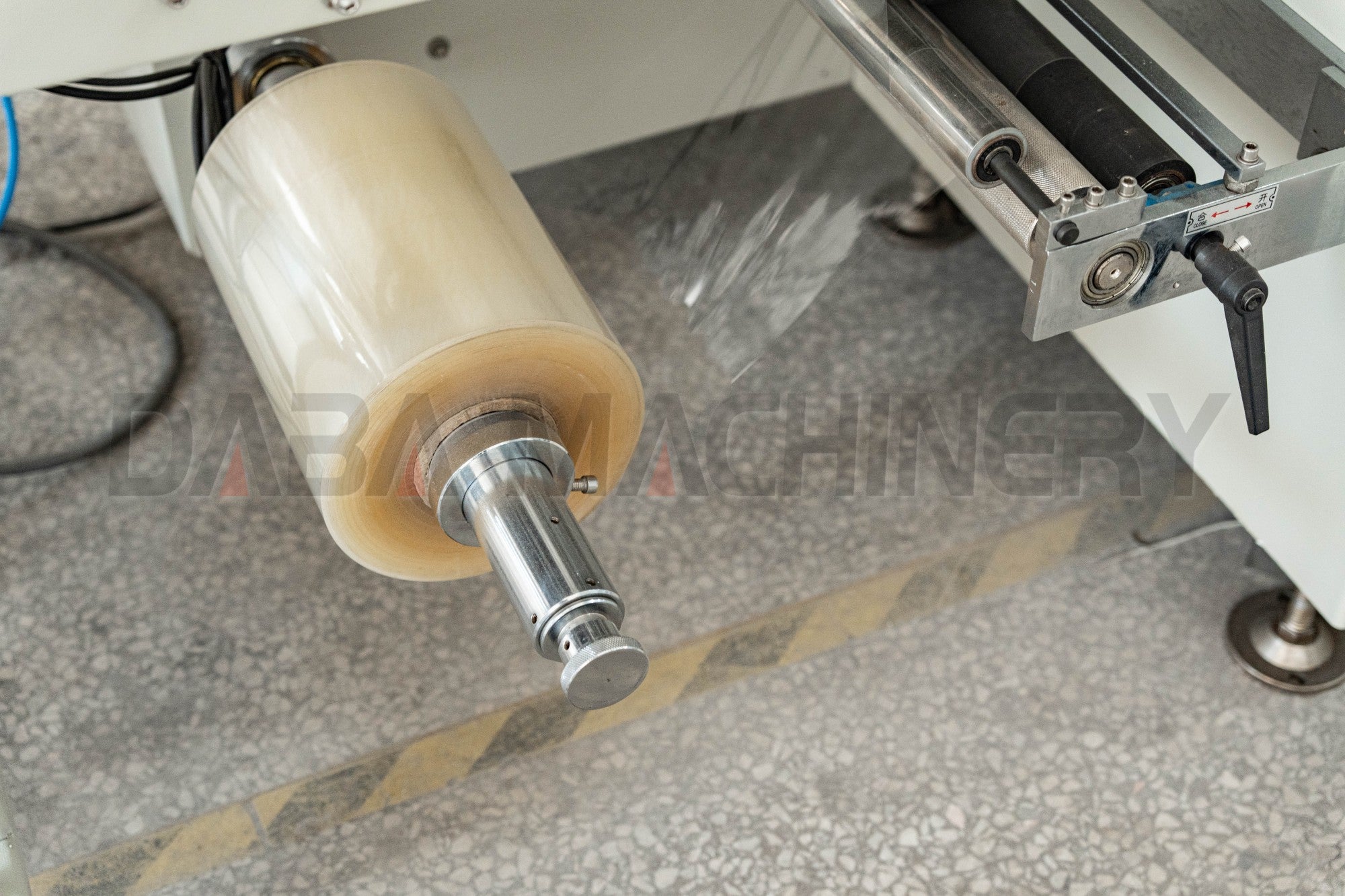

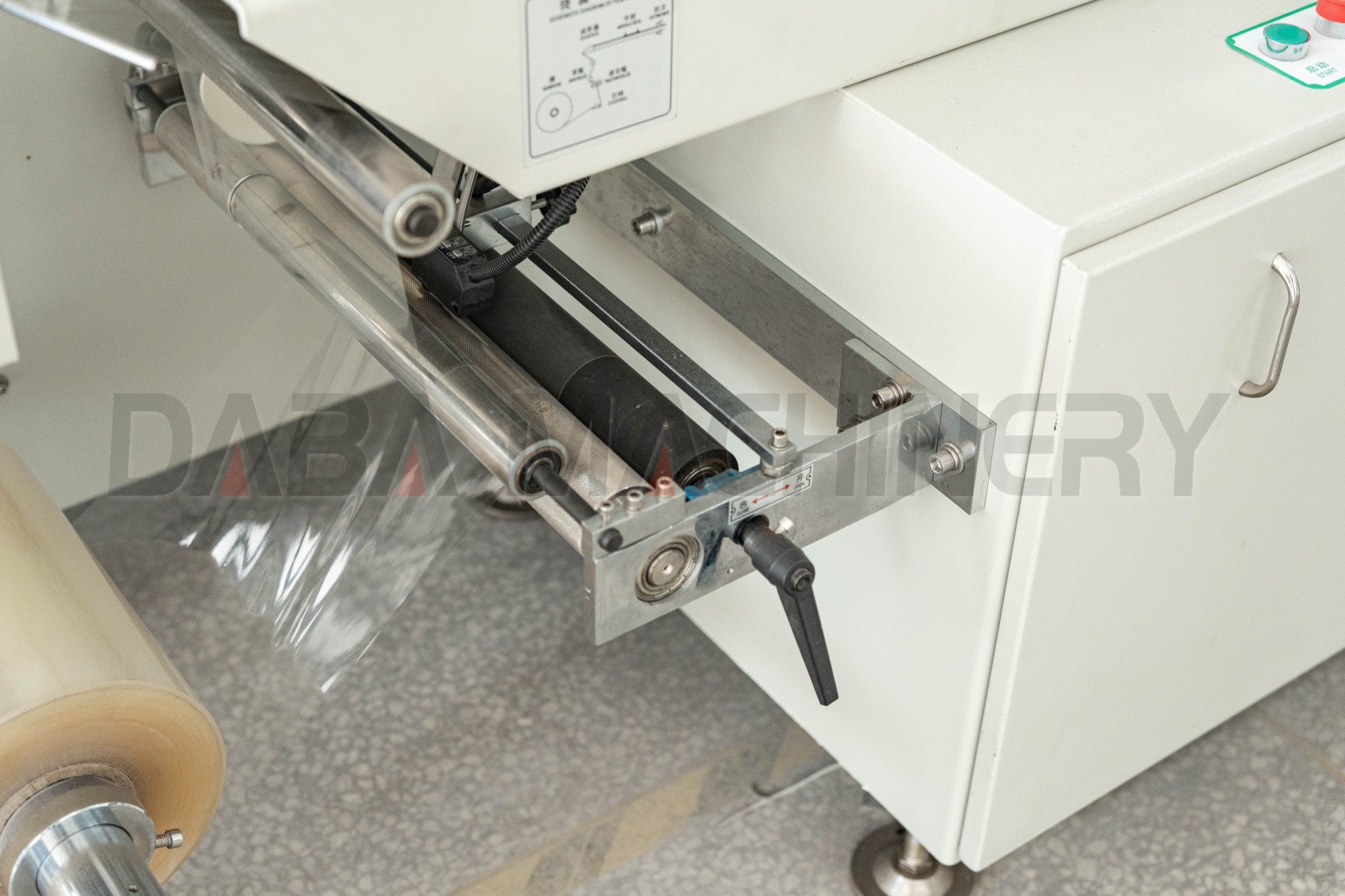

Film Unwinding Unit

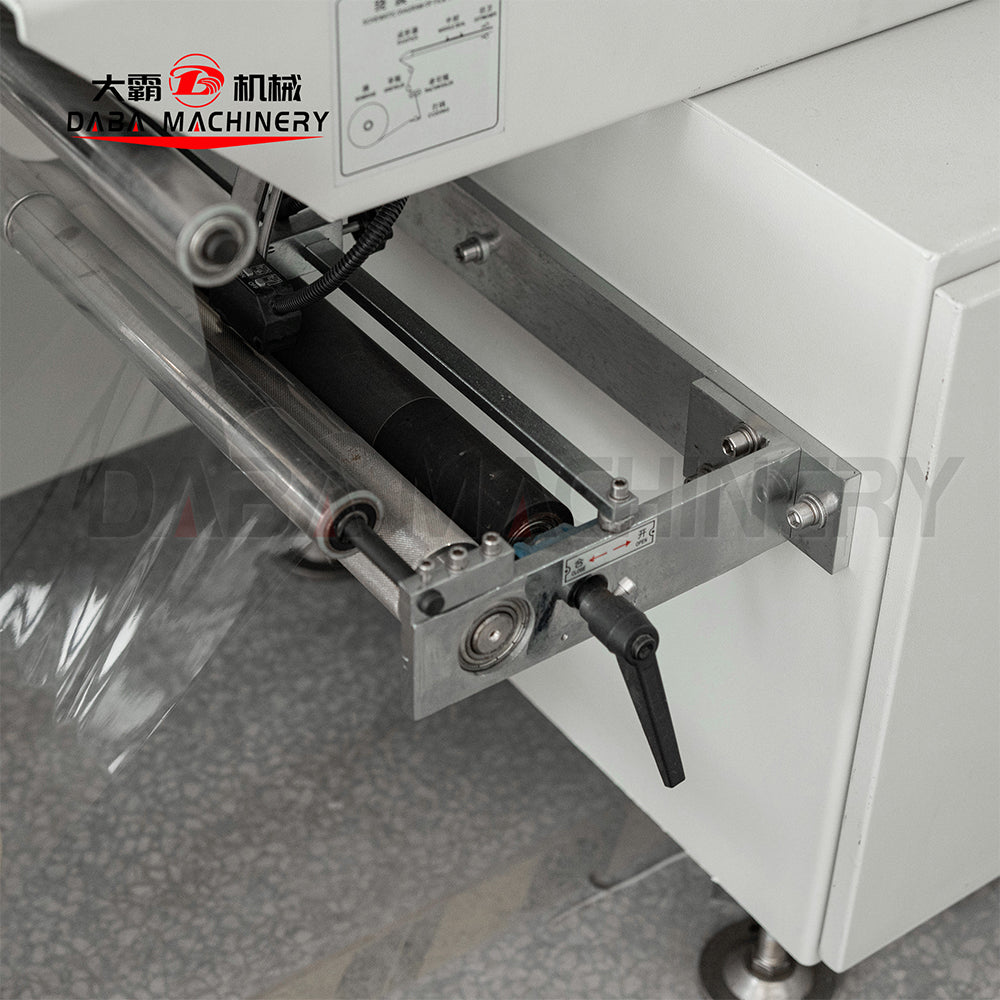

Traction Roller & Guide Roller

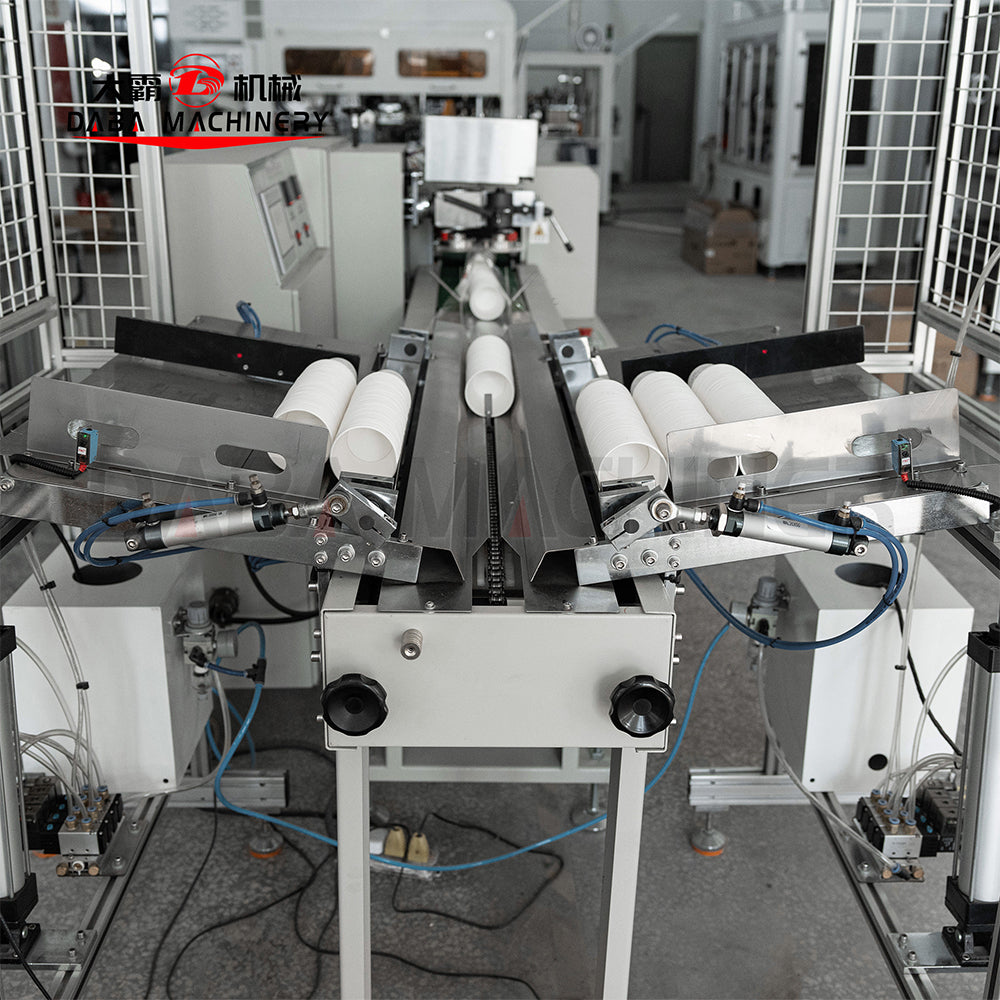

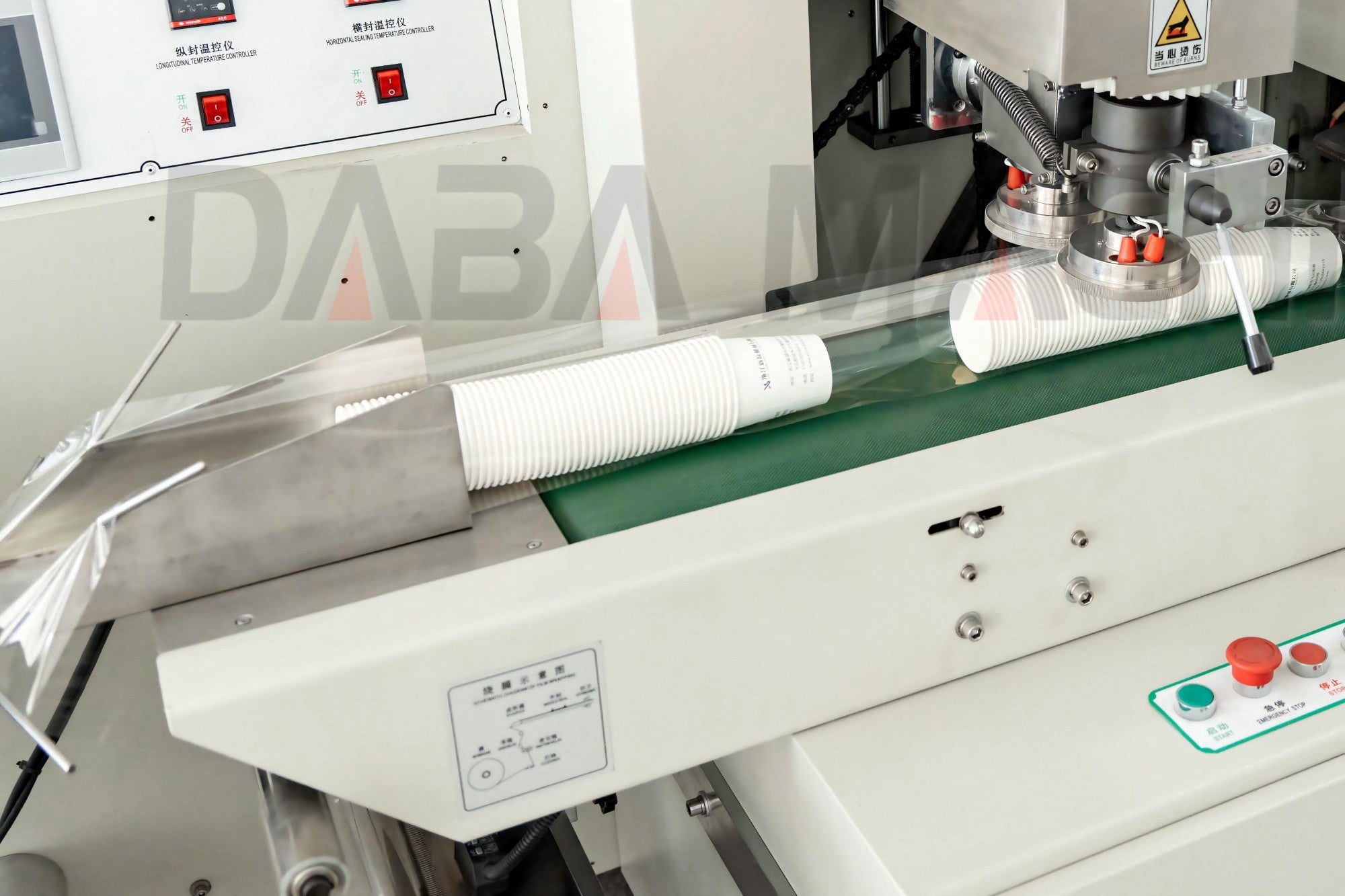

Product Feeding Conveyor

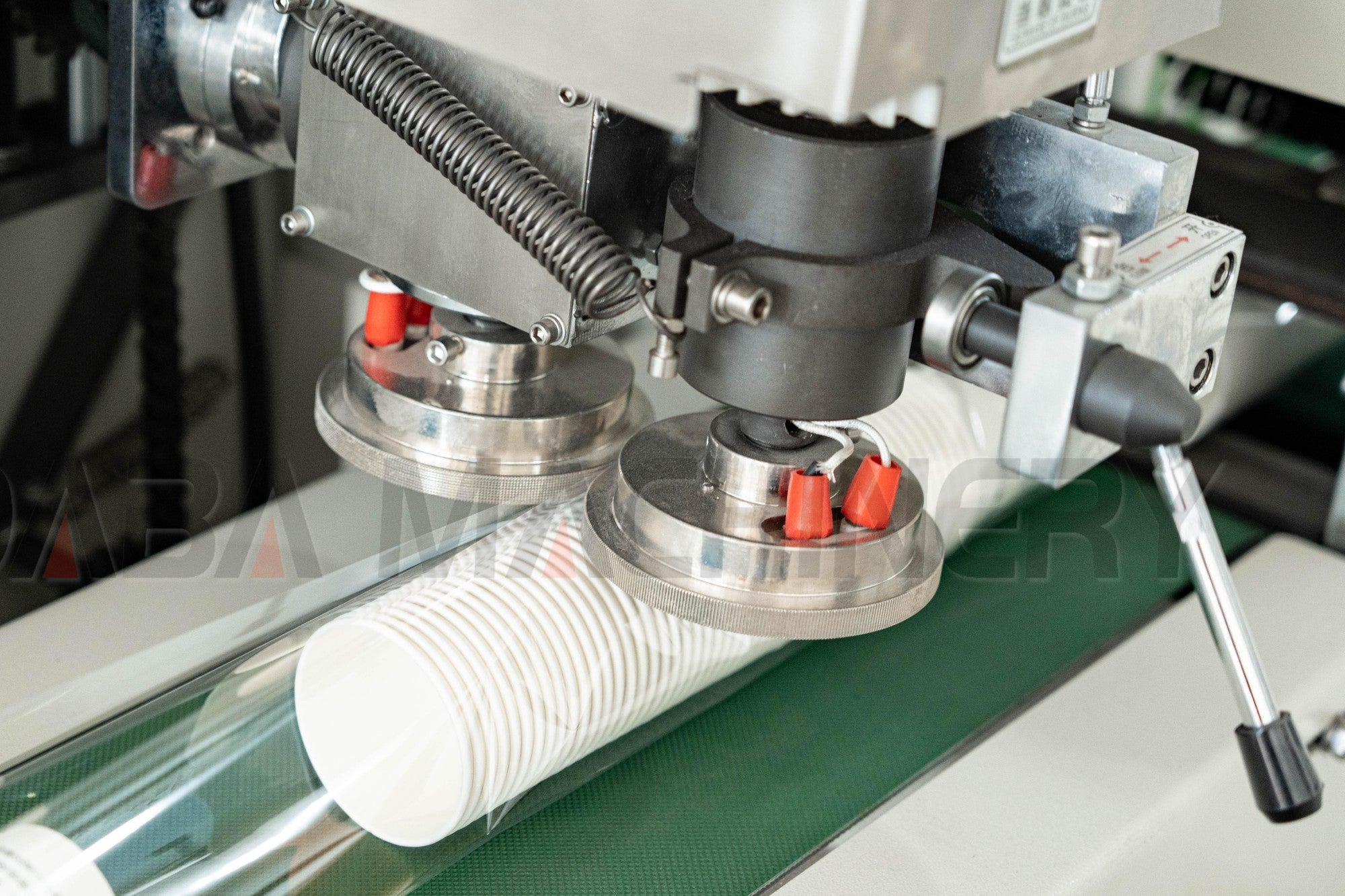

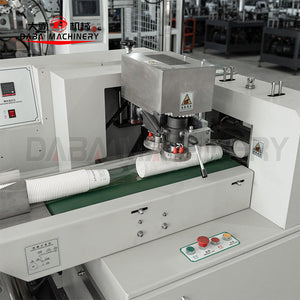

Longitudinal Sealing Unit

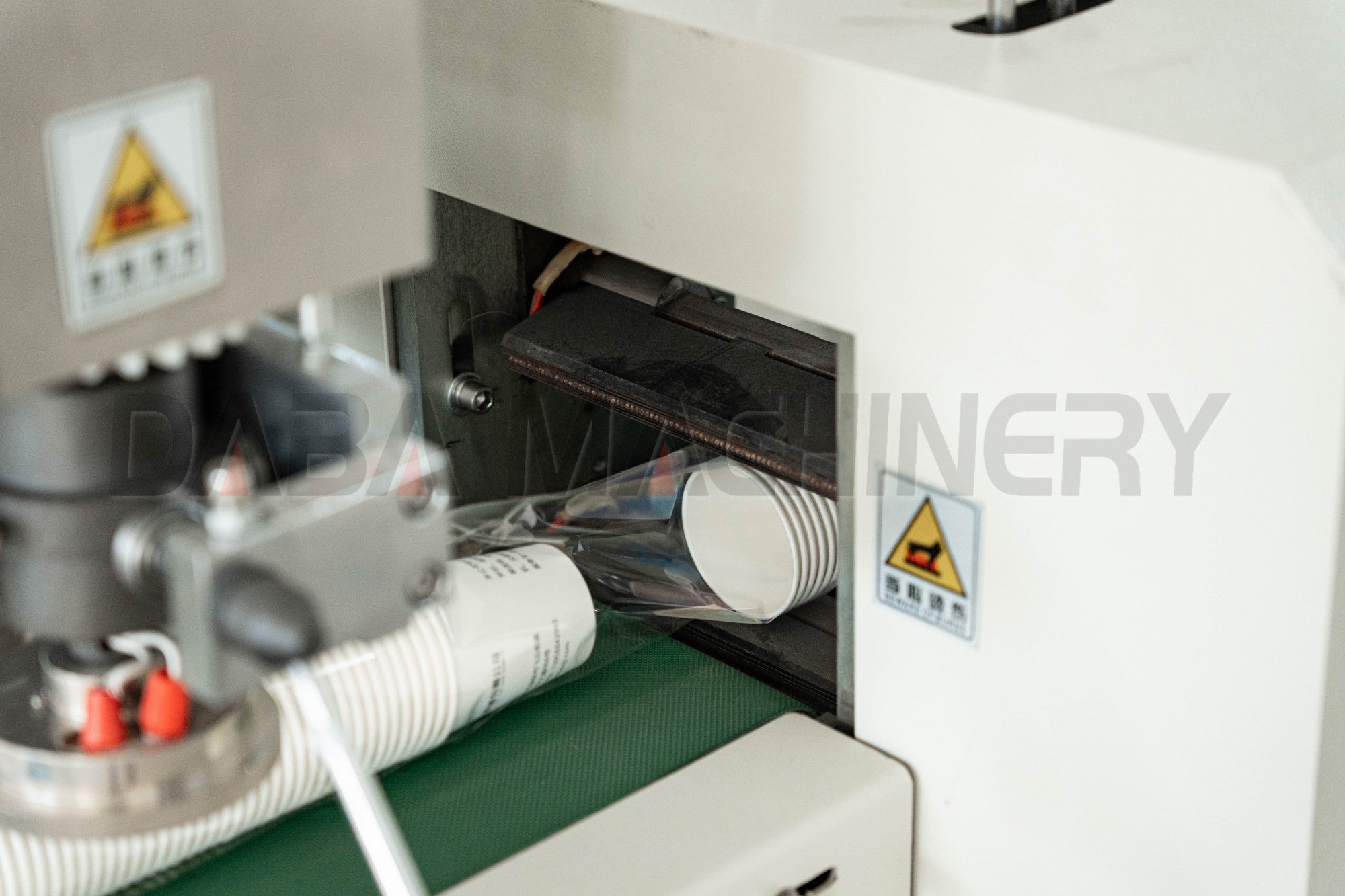

Transverse Sealing Unit

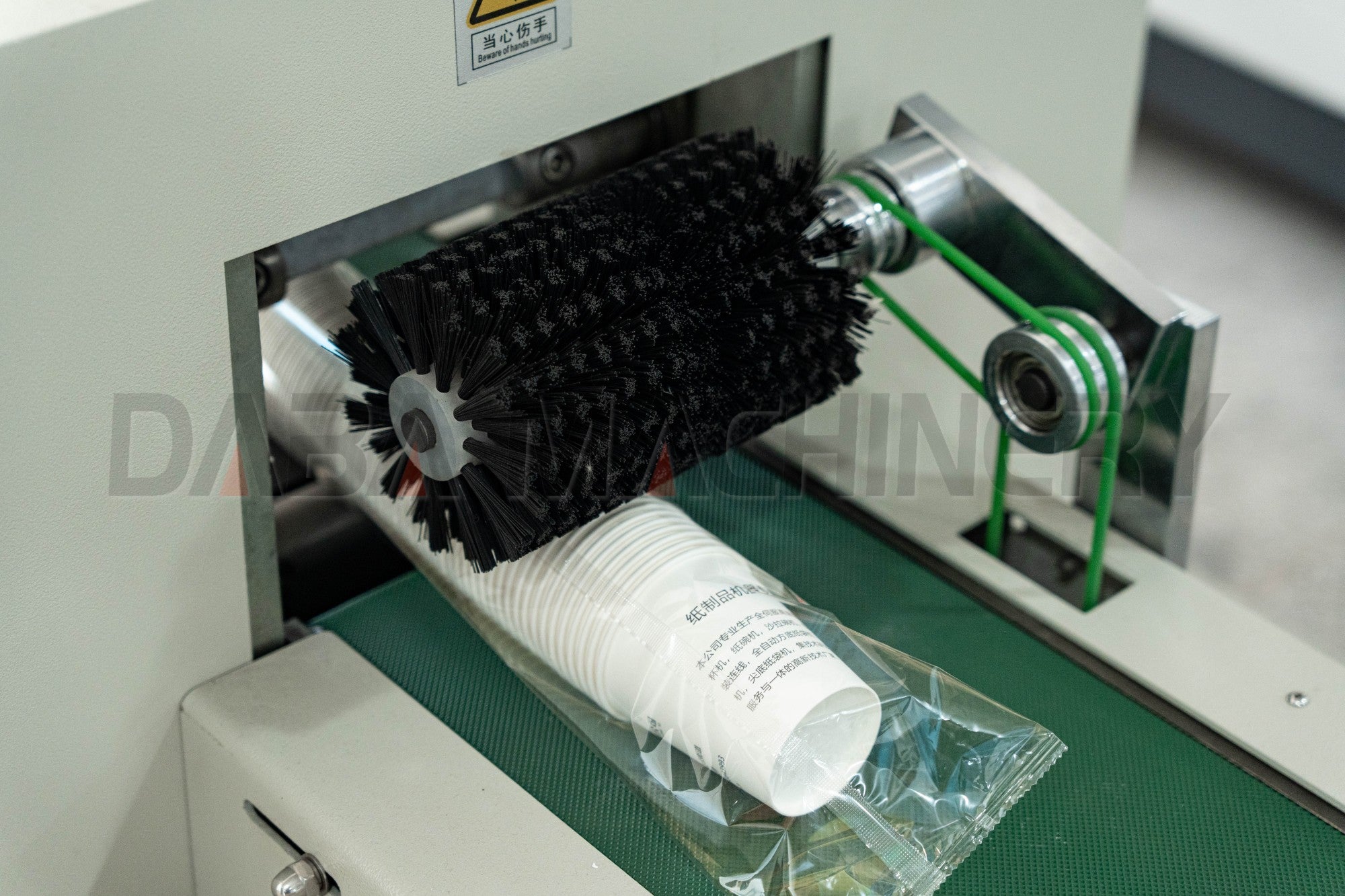

Flattening Brush Roller

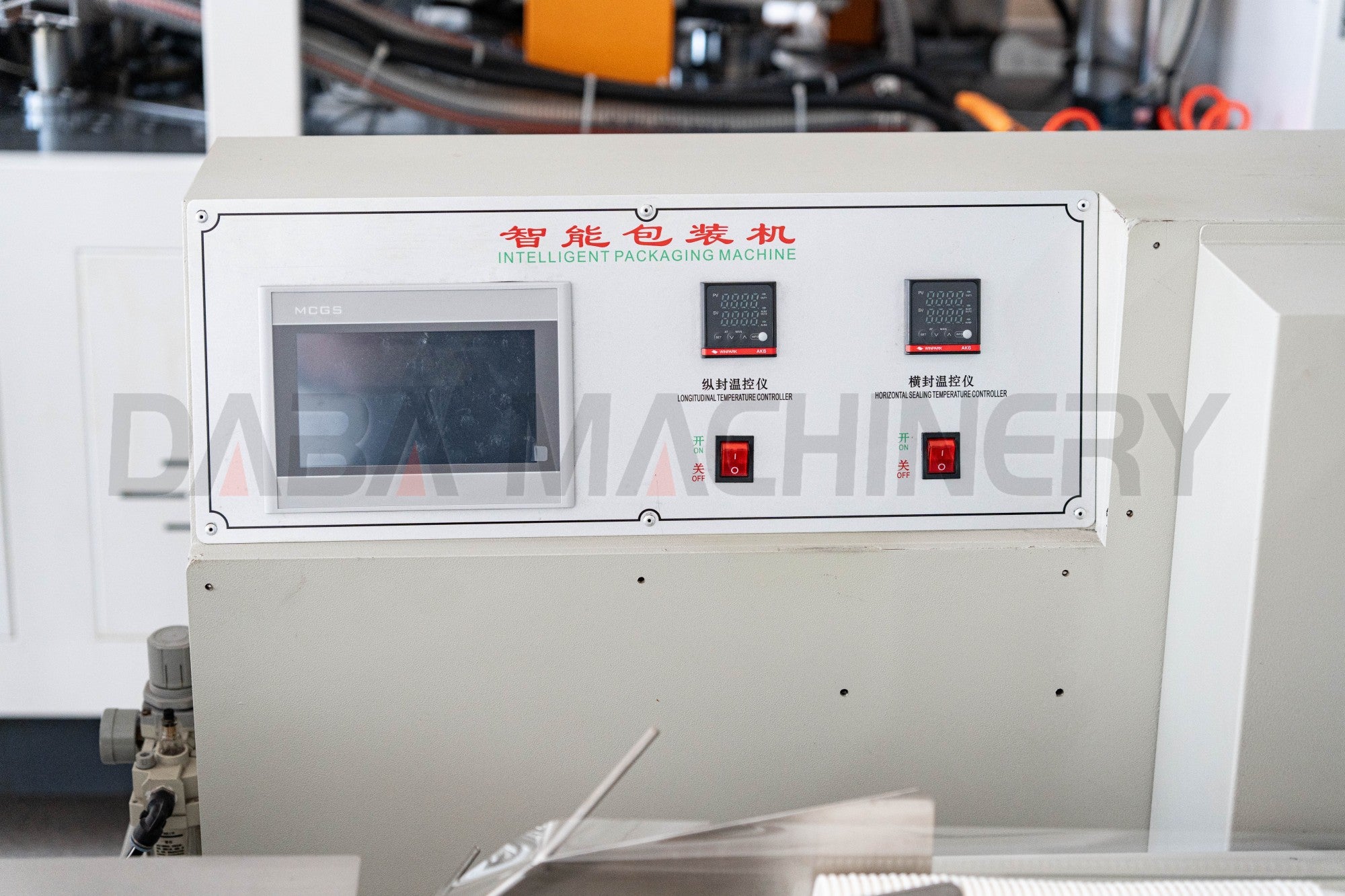

Control Panel

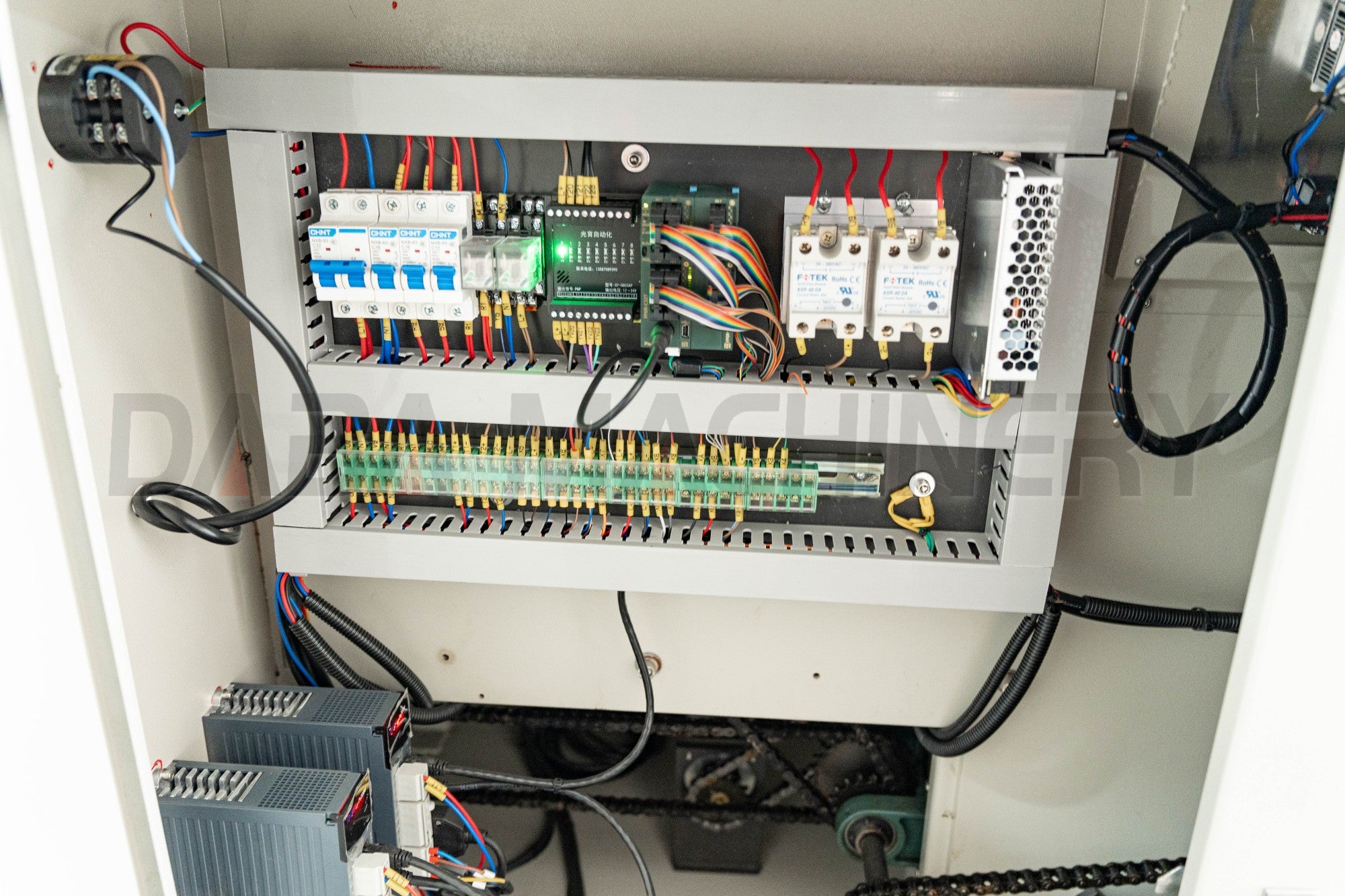

Power System
