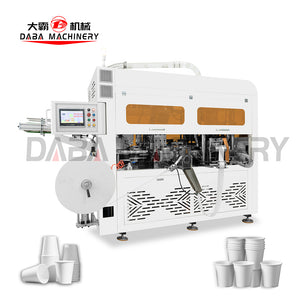

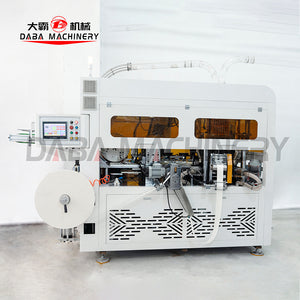

DBSF-B138-180 Fifteen Servo Paper Cup Machine

Vendor: DABA Machine

Model: DBSF-B138-180
Paper Cup Size: 6-16oz
Raw Material: single double PE coated paper, PLA coated, kraft paper
Paper thickness requirements: 190-320g/㎡
Production Capacity: 160-200pcs/min
Top Diameter: 60-90mm
Cup Height: 60-138mm
Bottom Diameter: 45-65mm
Dimension(l*w*h): 2800*1450*2000mm
Weight: 4200KG
Air Pressure: 0.6-0.8 Mpa
Power: 8KW
Warranty: 1 Year
Automation: Fully Automatic paper cups for hot cold drinks

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

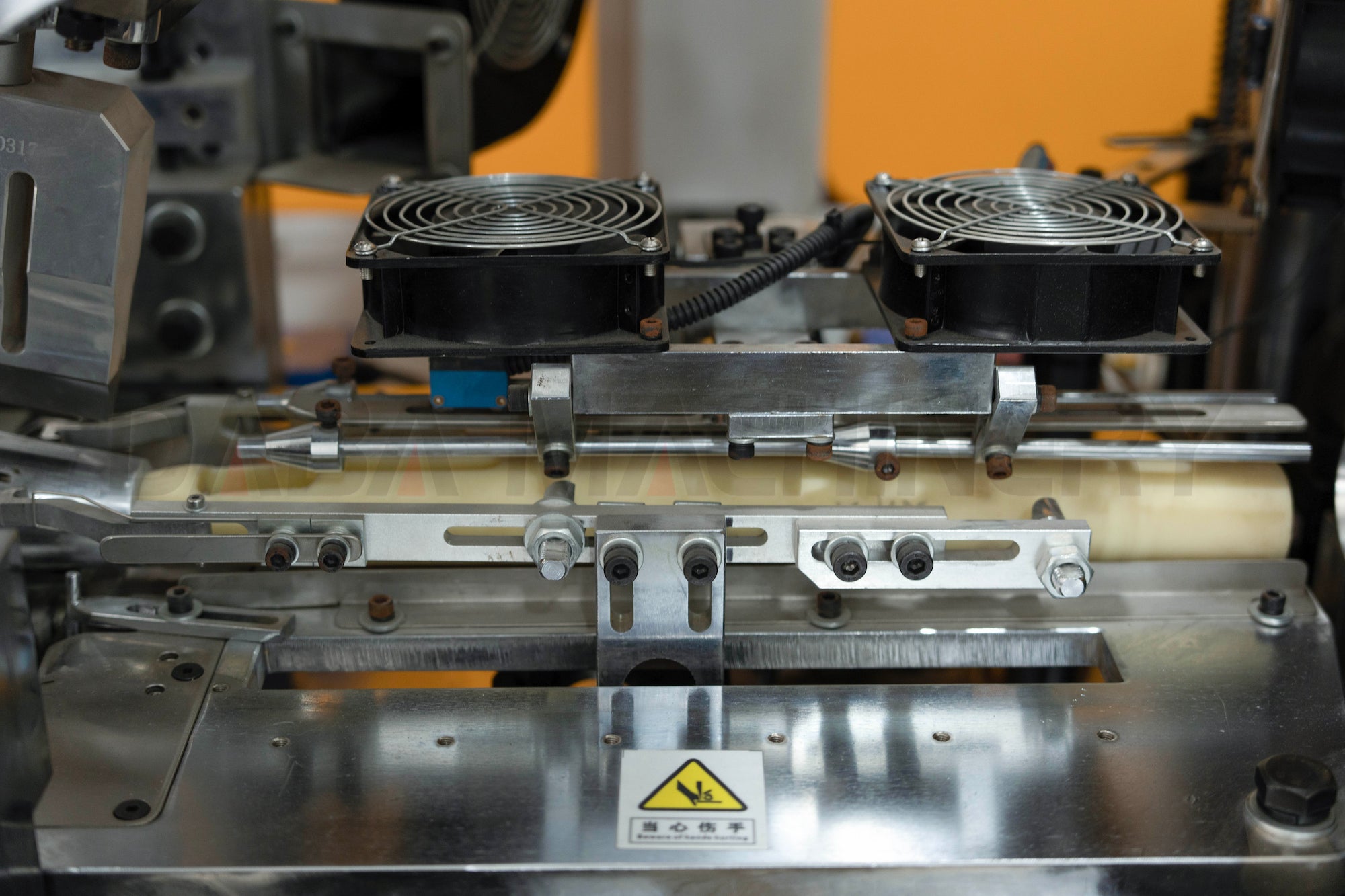

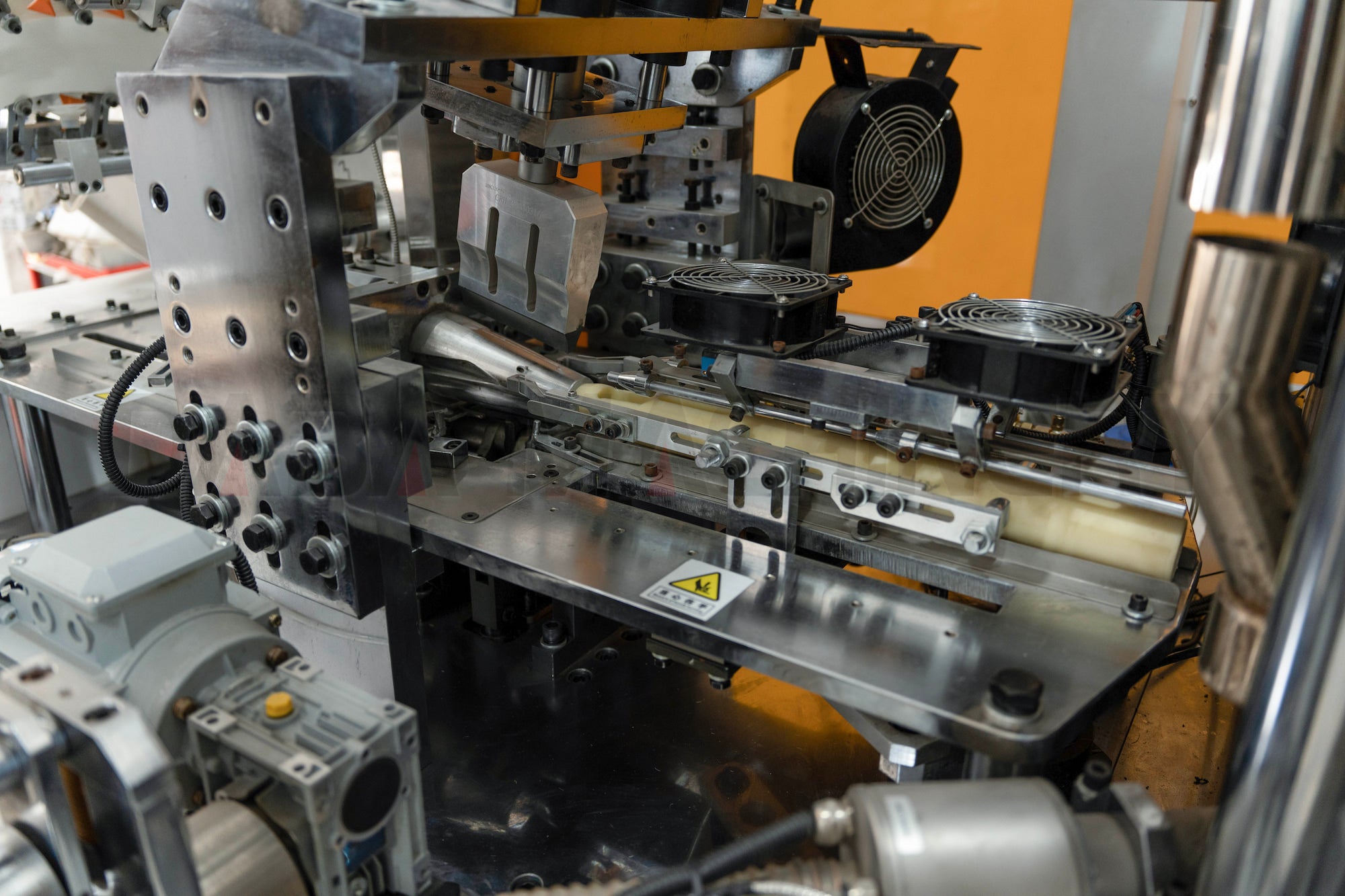

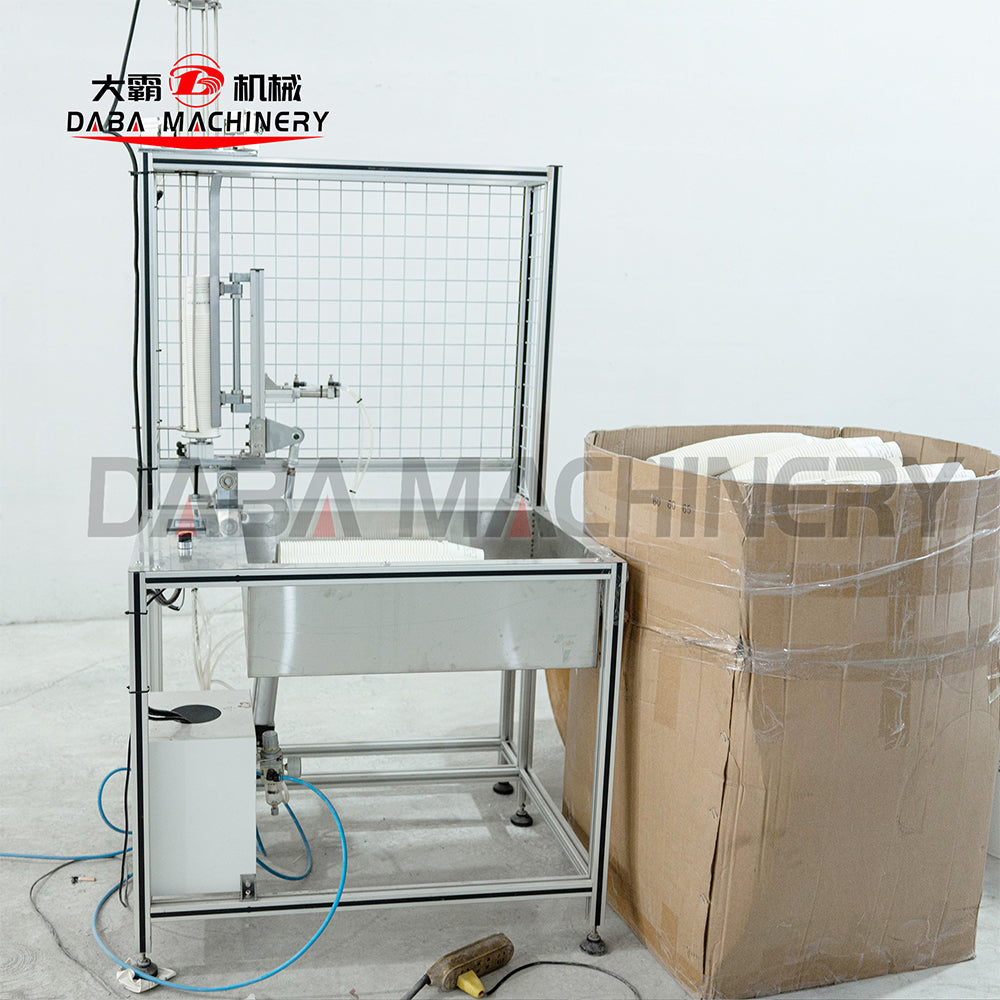

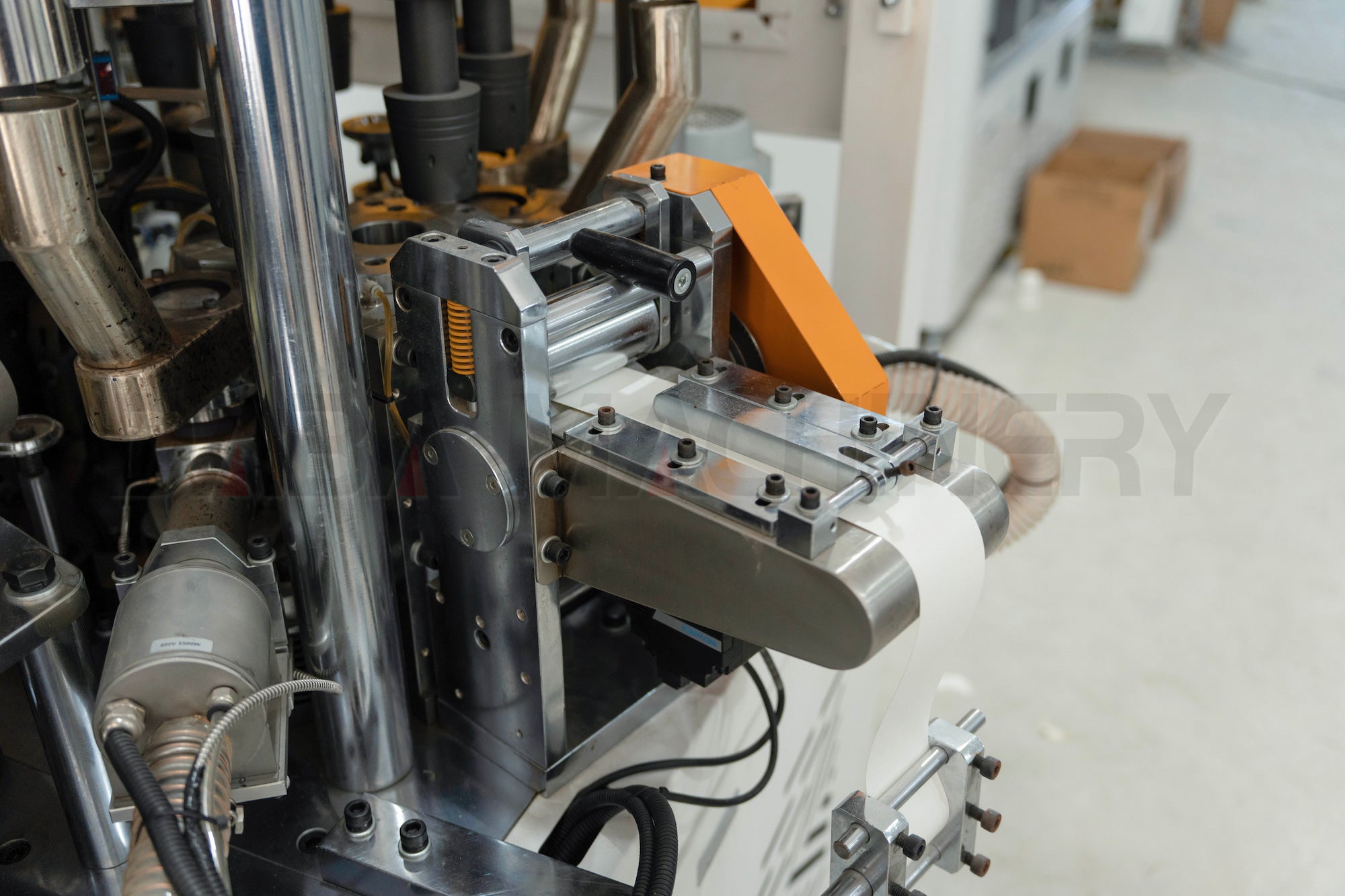

Machine Description

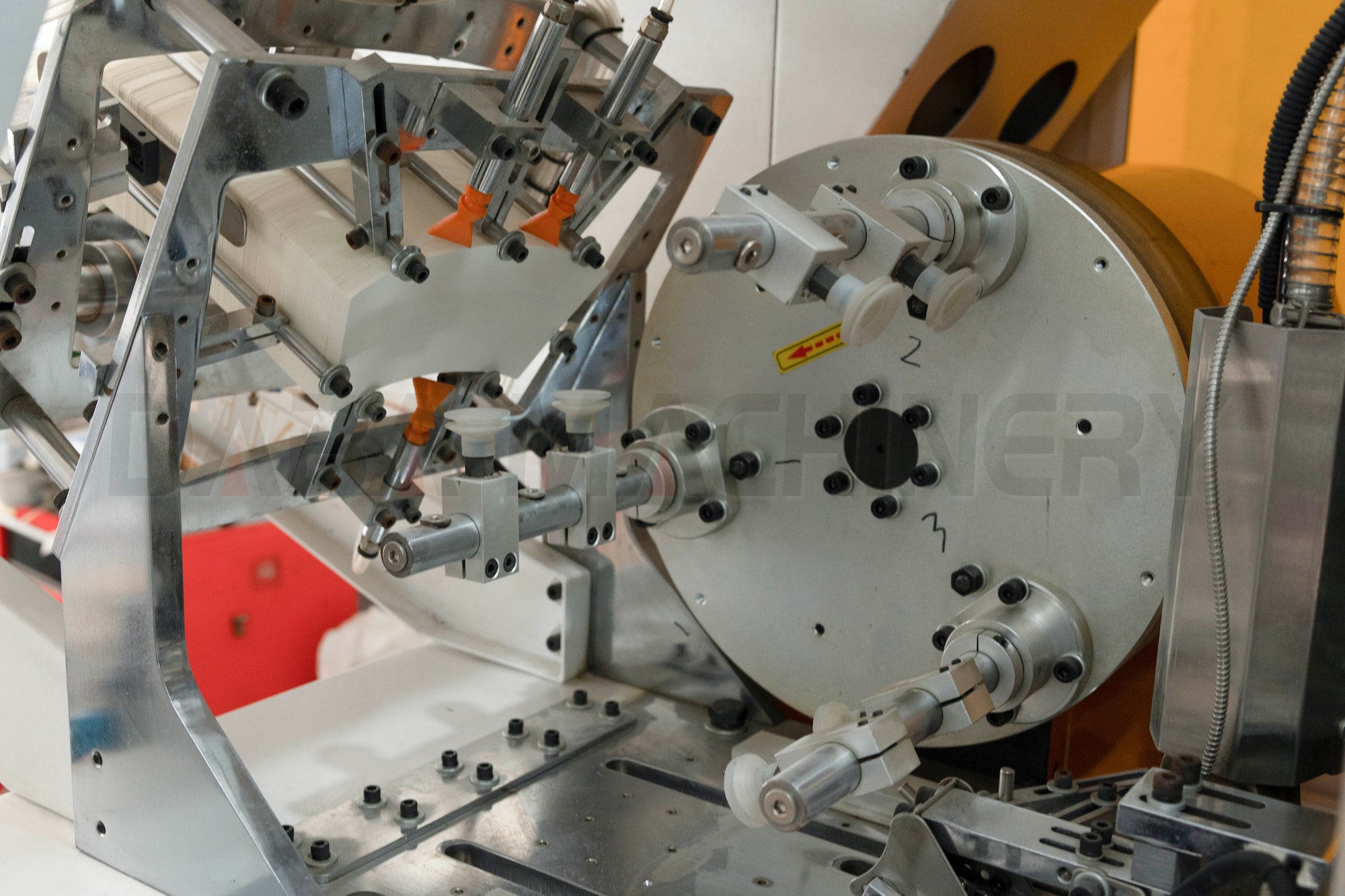

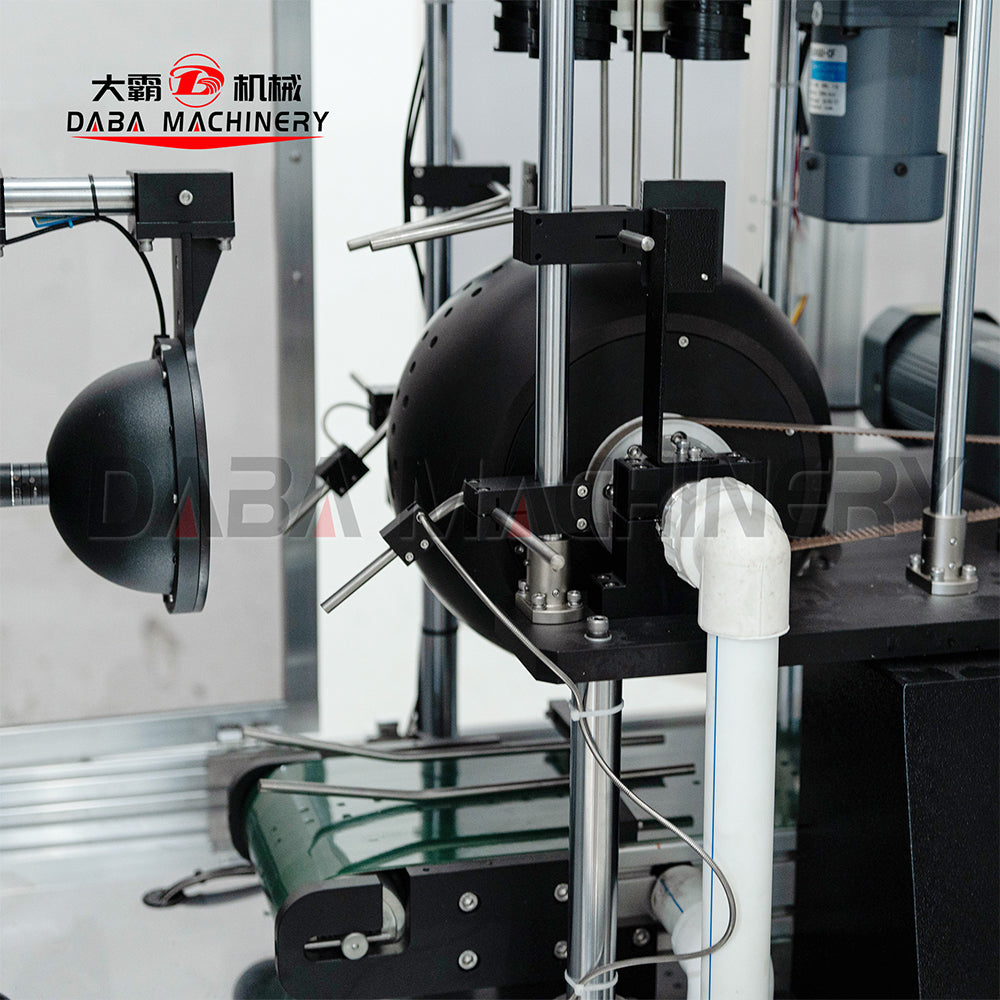

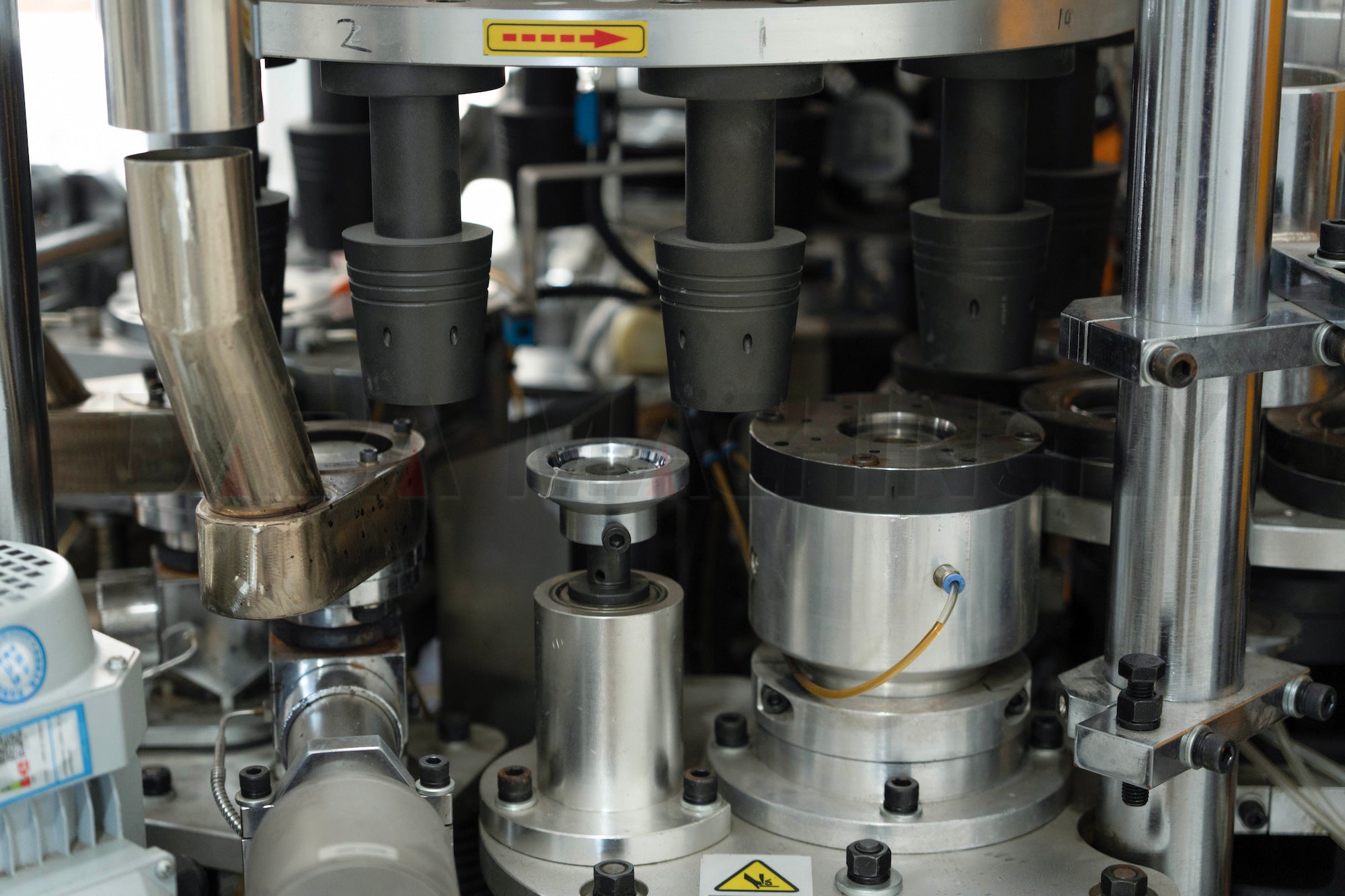

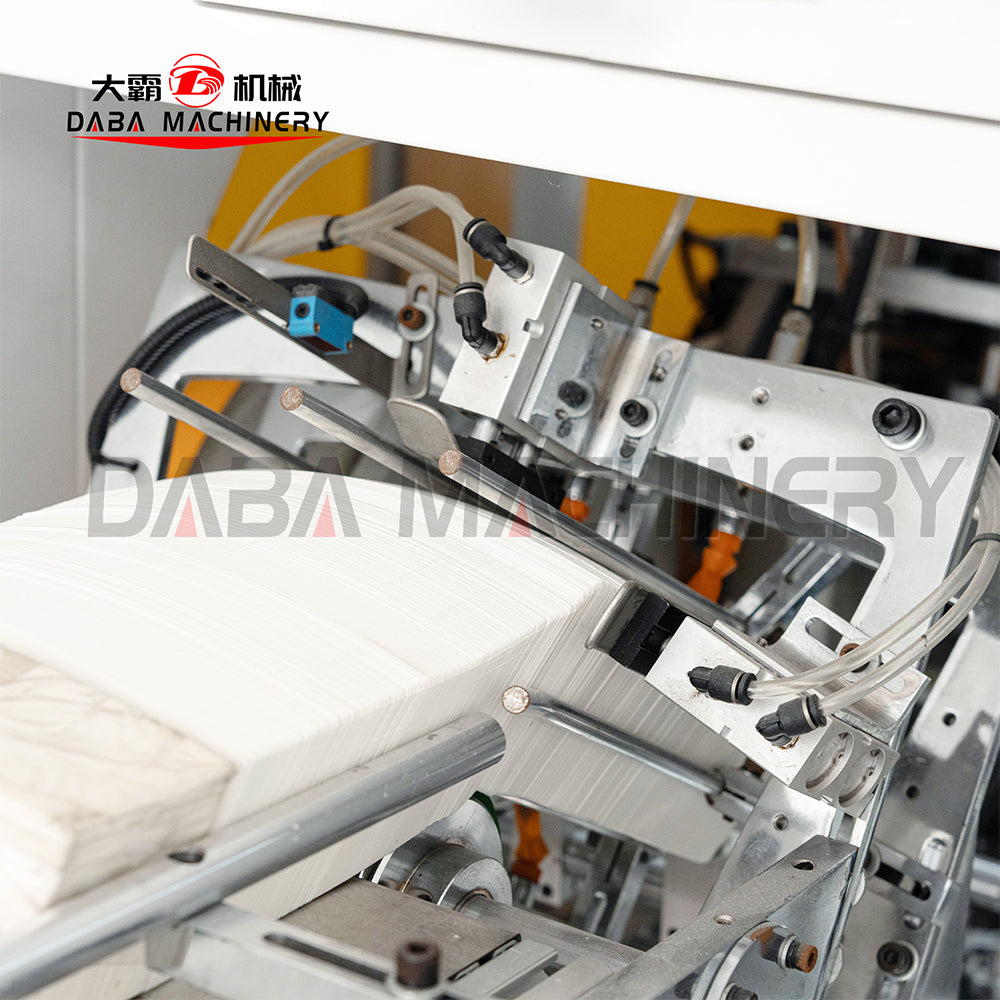

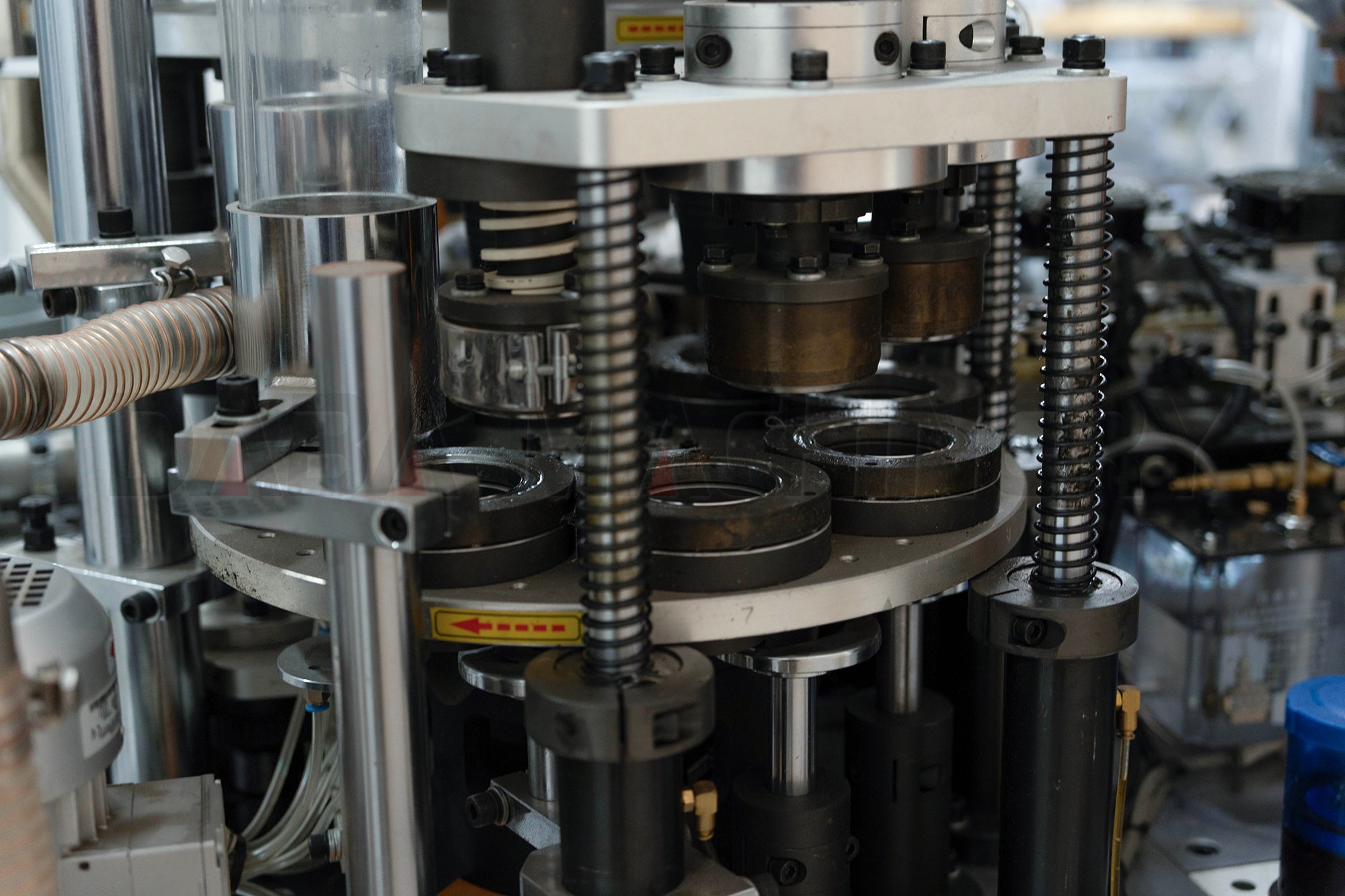

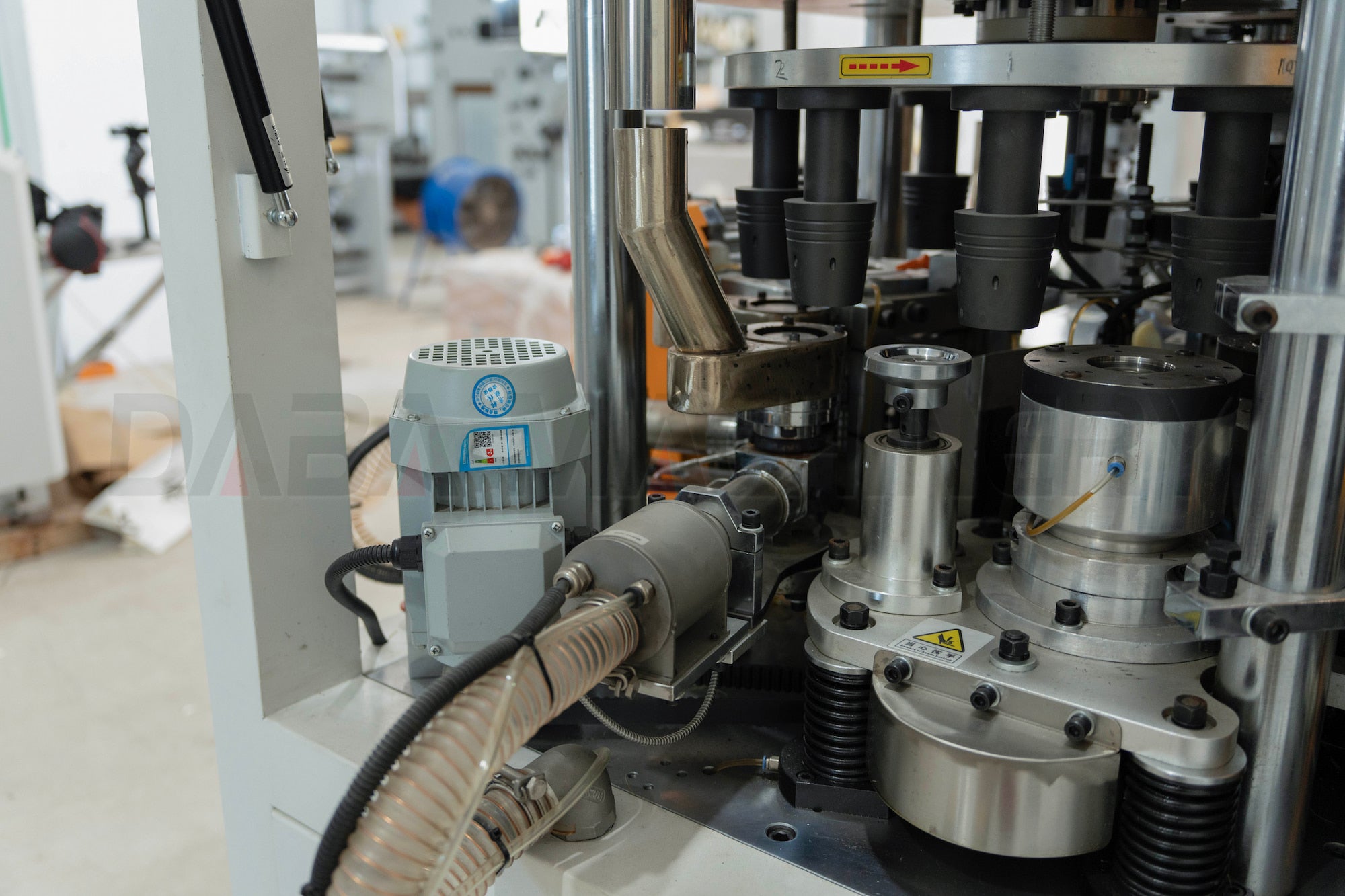

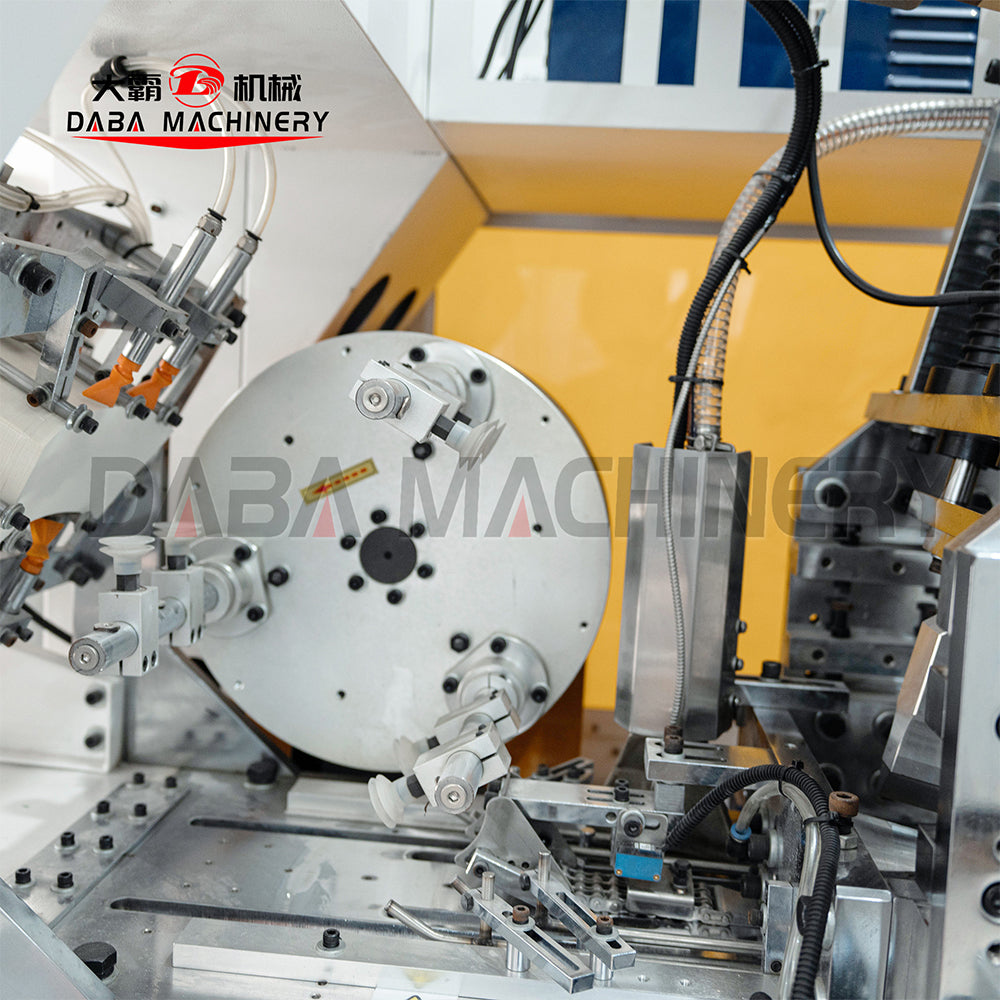

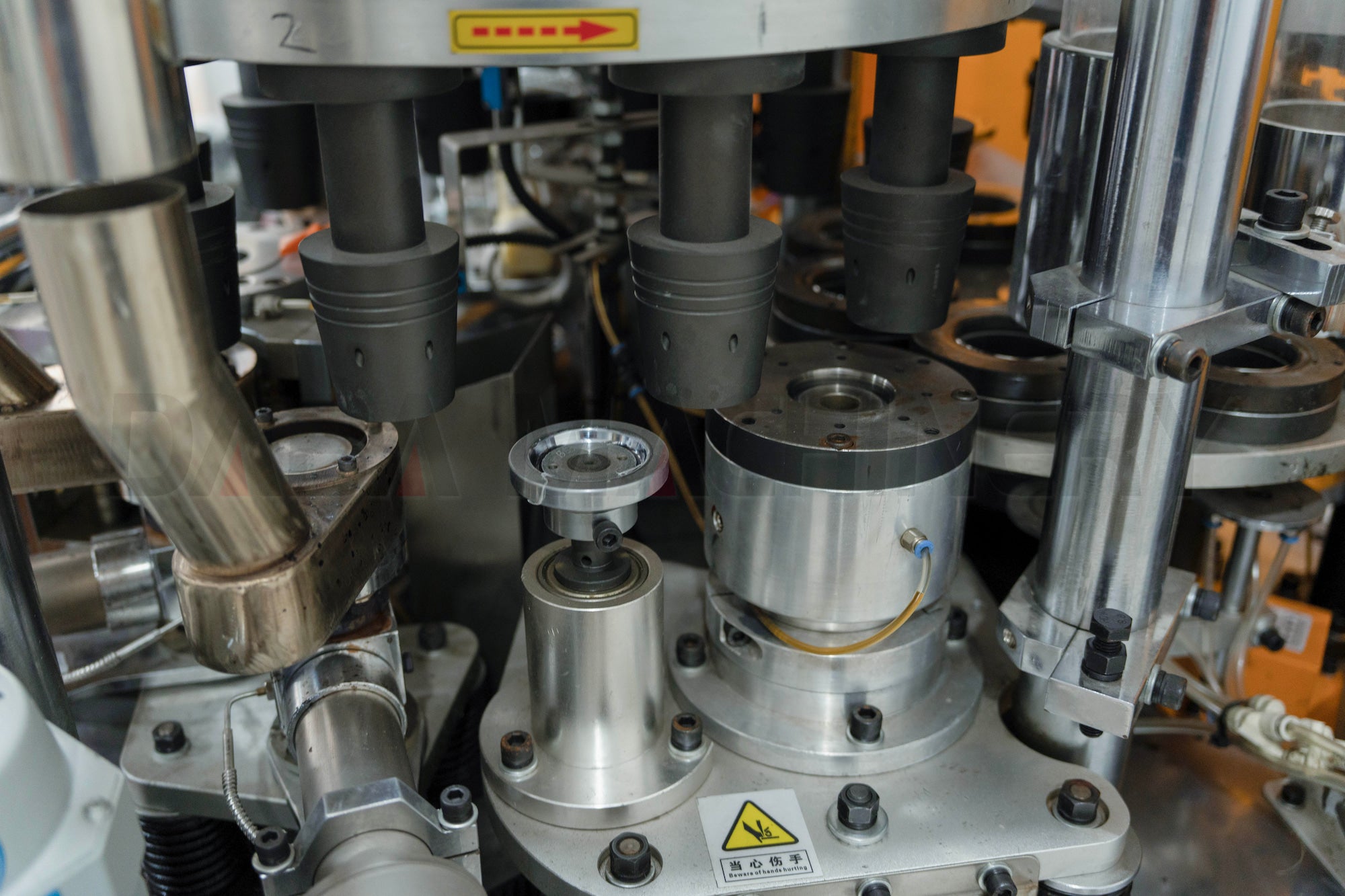

High Speed Intelligent Servo Paper Cup Machine DBSF-B138-180 The Intelligent Paper Cup Machine has a table top layout that isolates the transmission parts and the mold. The transmission parts are under the table plate of the machine and the molds are on the table plate, this layout is easy to clean and maintain. The machine adopts automatic spray lubrication, new servo transmission structure, removing the old style indexing groove wheel structure, improving the stability of the overall transmission structure of the machine, reducing the transmission build on the original basis, and using servo control for each part, which reduces the basic transmission build and makes it easier for the operating workers to master. Ensure the stability and quality of the whole machine. For electrical parts, PLC, photoelectric tracking and servo feed are used to control the operation. The production capacity of these machines is up to 160-200 / min for the production of cold / hot cups from 6-16 ounces.

Machine Structure

Product Size

Features/Functions

Multiple Model Modules – Guided by simple on-screen prompts, allowing you to select and configure the desired model easily.
Flexible Parameter Settings – You can back up, restore, or reset parameters to factory defaults. Detailed parameters can also be manually adjusted.
Flexible Encoder Zero Point and Auto-Direction Setting with Self-Diagnosis – Encoder installation position does not require mechanical alignment; configuration can be completed via software.
Automatic Parking Position Configuration with Quick Stop in Less Than One Revolution – After configuration, the machine automatically calculates its inertia distance, ensuring the deceleration stop point is at least one step faster.
Automatic Calculation and Recognition of Key Station Sensor Signals – With simple operation of the start button, the system detects forming failures via sensors, automatically tracking signals to stop the mold precisely between the two heaters.
Automatic Cup Removal on Emergency Stop – When the machine stops abnormally, to prevent heater damage or poor adhesive bonding, the system automatically removes the heater and bracket from position.
Automatic Cup Removal on Emergency Stop – When the machine stops abnormally, to prevent heater damage or poor adhesive bonding, the system automatically removes the heater and bracket from position.
(Optional) Vision System Defect Detection – Automatically detects defects in cup shape, interior, and bottom, and removes defective products. The unique algorithm ensures accurate detection of light gray stains with stable performance. One-click quick parameter setup is available, and each parameter can be fine-tuned. The system supports internal network monitoring and report output.
Hardware Monitoring System – Real-time monitoring of PLC output points, relays, contactors, PLC-to-touchscreen, PLC-to-computer connections, and extended circuit status. Abnormal alarms on the touchscreen indicate the cause of the fault. Detailed hardware and software fault information allows users to troubleshoot easily based on prompts.
