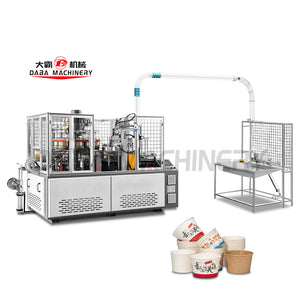

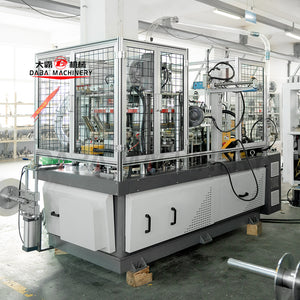

DBDP-W110-80 Paper Bowl Forming Machine

Vendor: DABA Machine

Model: DBDP-W110-80
Paper Bowl Size: 20-35oz
Raw Material: single double PE coated paper, PLA coated, kraft paper
Suitable Paper Weight: 150-350 gsm
Production Capacity: 80-90pcs/min
Top Diameter: 50-150mm
Height: 50-110mm
Bottom Diameter: 35-125mm
Dimension(l*w*h): 2600*1300*1600mm
Weight: 3000KG
Air Pressure: 0.4Mpa
Power: 8.5KW
Warranty: 1 Year
Automation: Fully Automatic paper bowl

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

DBDP-W110-80 single plate paper bowl forming machine, a newly developed from turn-plates old type bowl machine, achieves a manufacturing speed of 80-90 pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage bowls, ice cream bowls. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting.

Product Size

Features/Functions

HMI touch screen & PLC, more intelligent operation control, easy to operate.
Use well-known brand inverter of China, step less speed regulation.

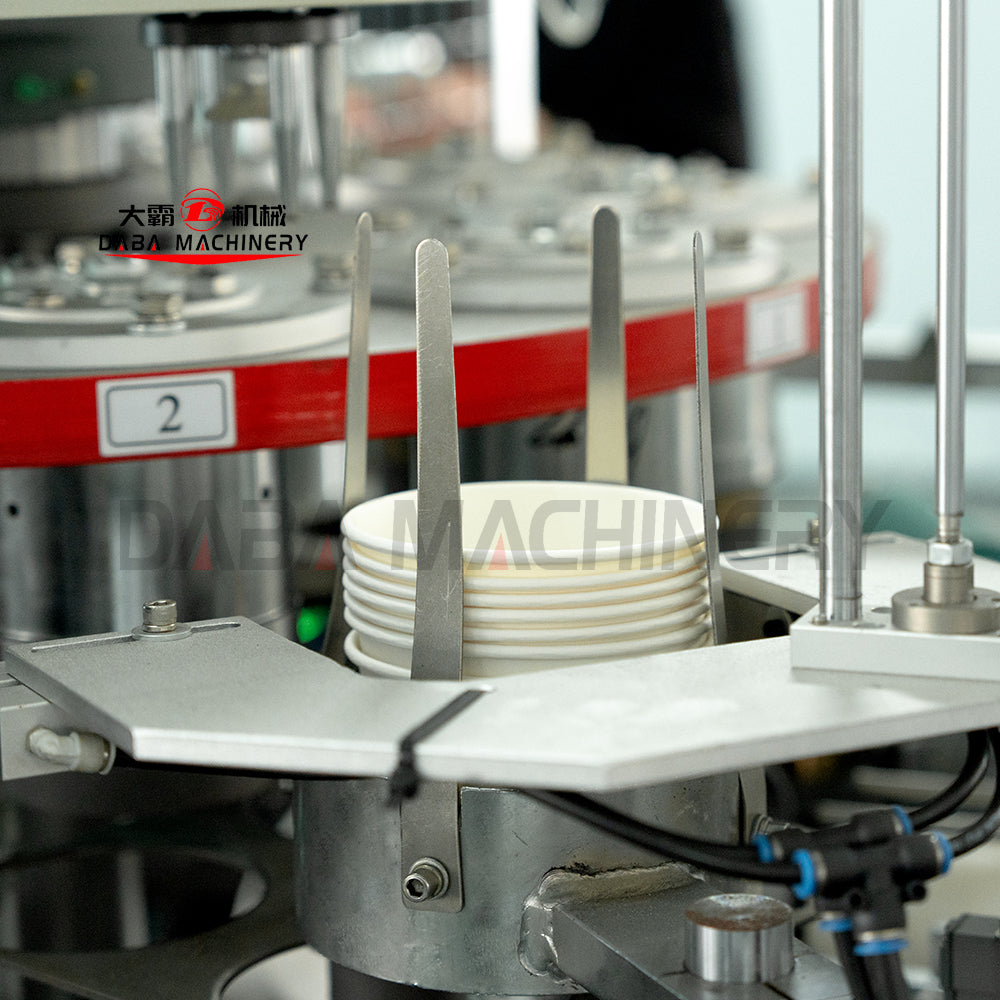

Use servo motor driven paper cup bottom feeding, more precise, save paper.

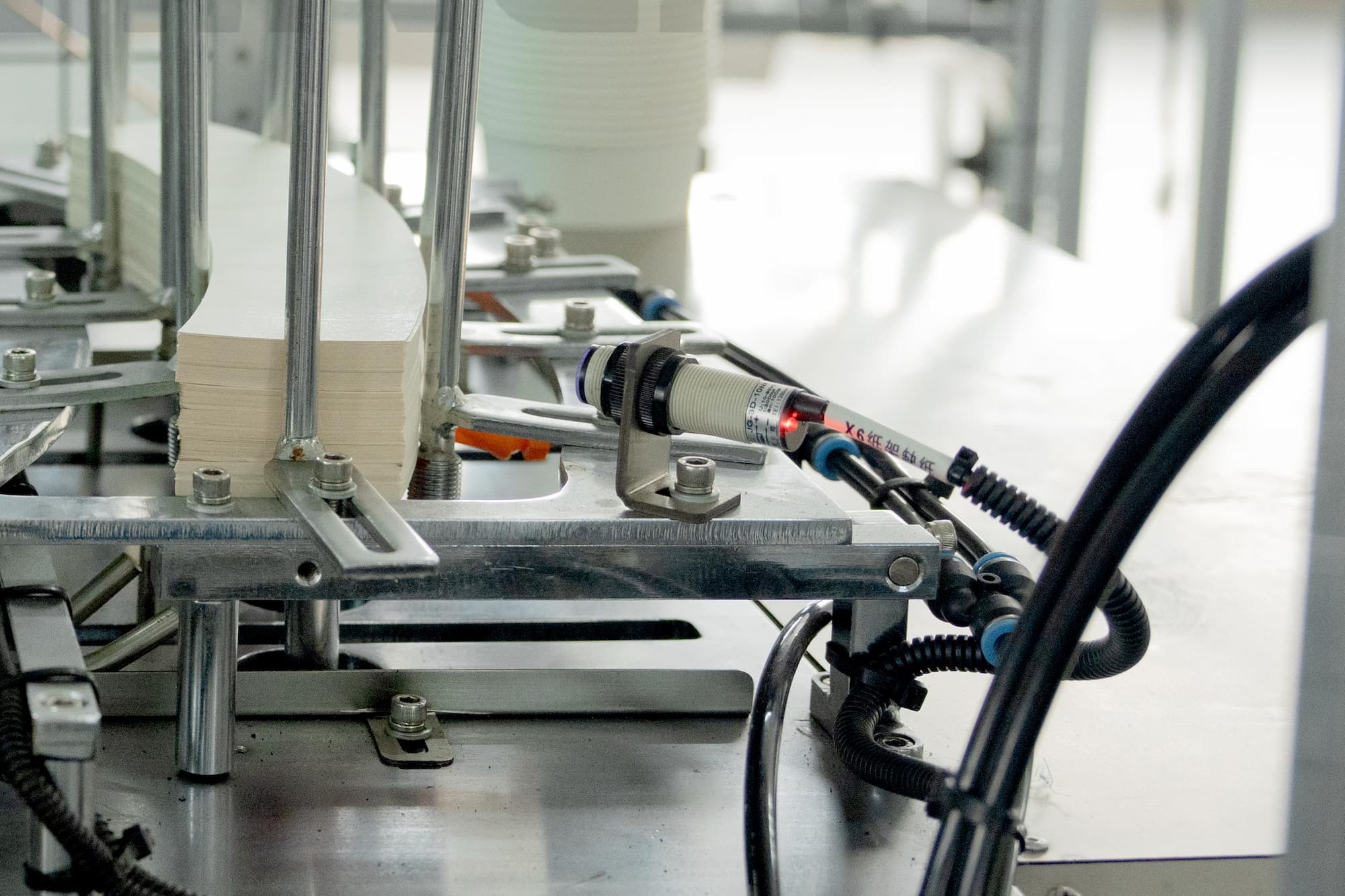

About 11 sensors on 1 machine to monitor the whole cup making process.

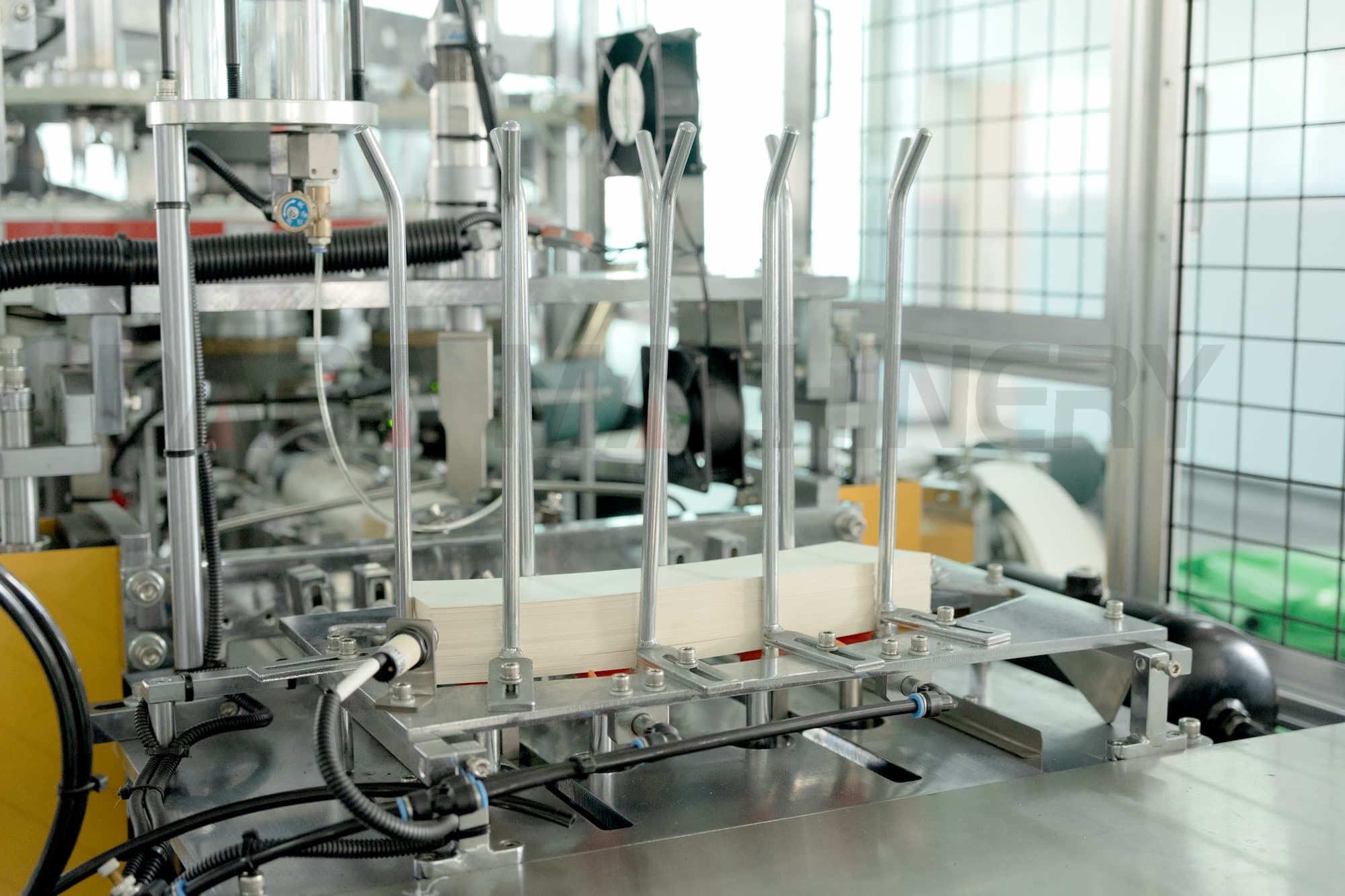

Silicone sucker for paper fan sucking.

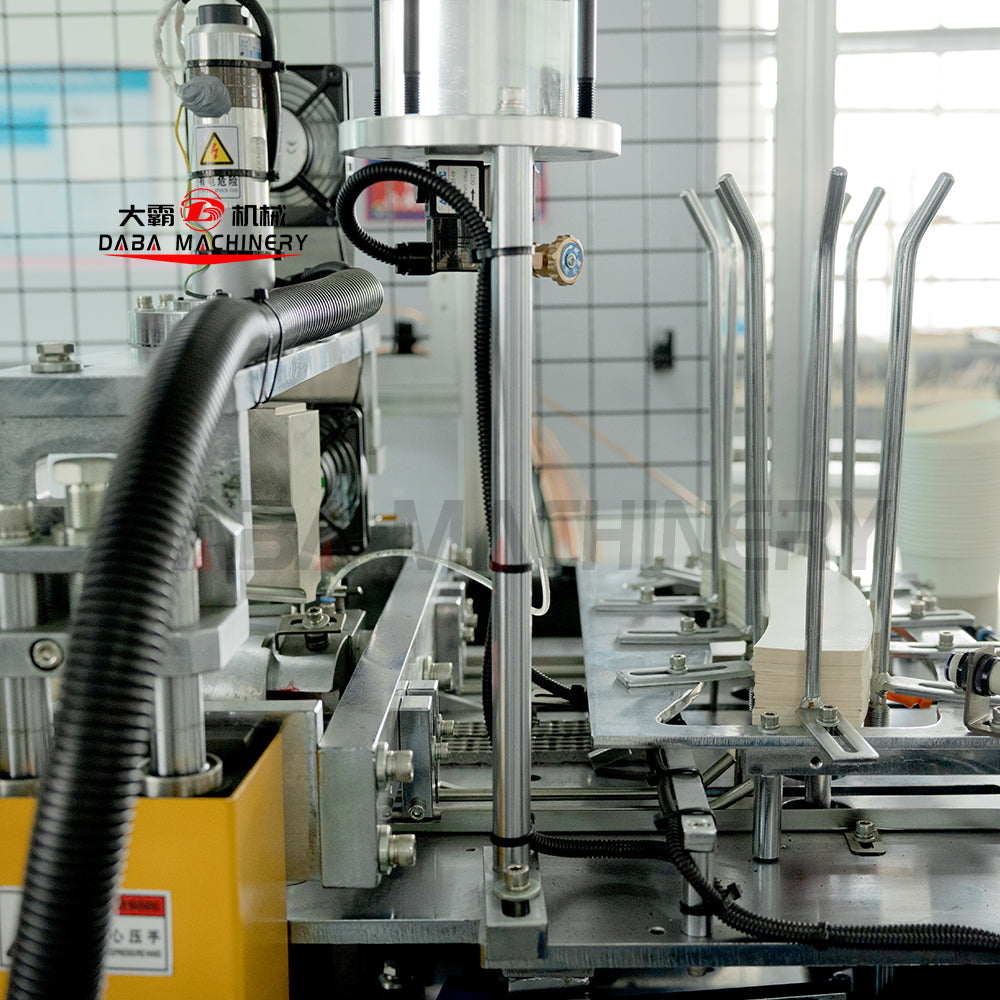

Linear slider for paper fan feeding.

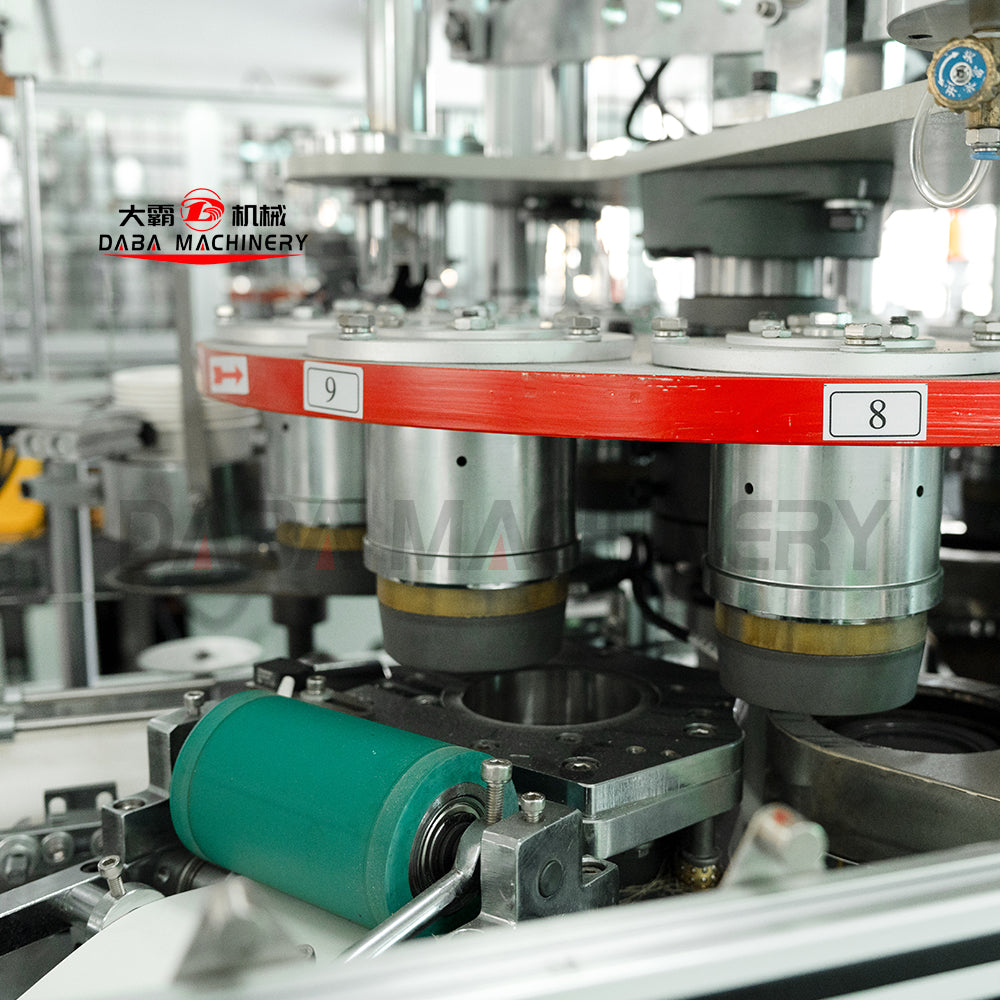

Single rotating turntable, fewer working stations, more compact and efficient.
Servo-driven direct bottom punching, accurate punching and save paper.

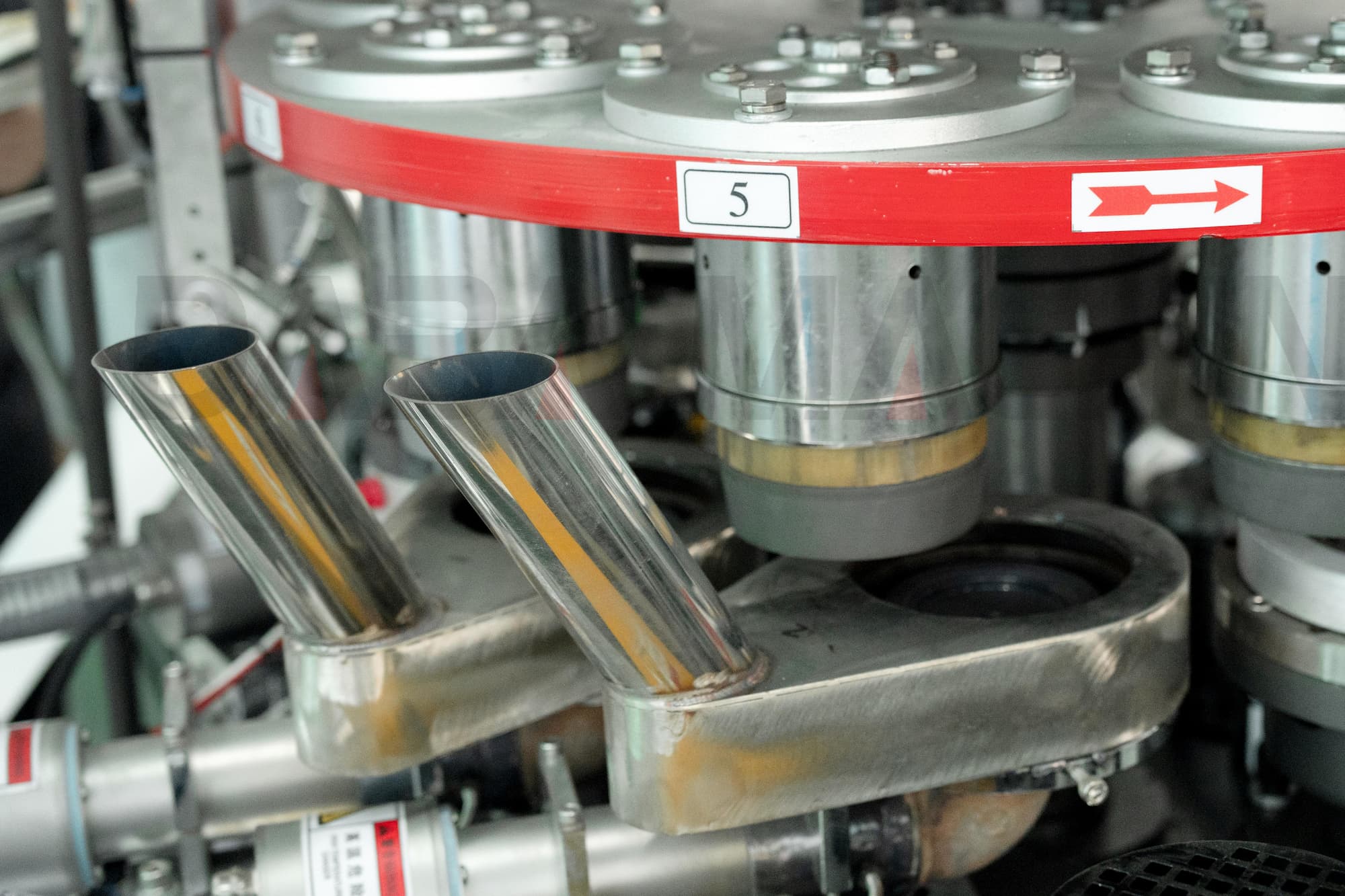

2 sets hot air heater for bottom inward folding.

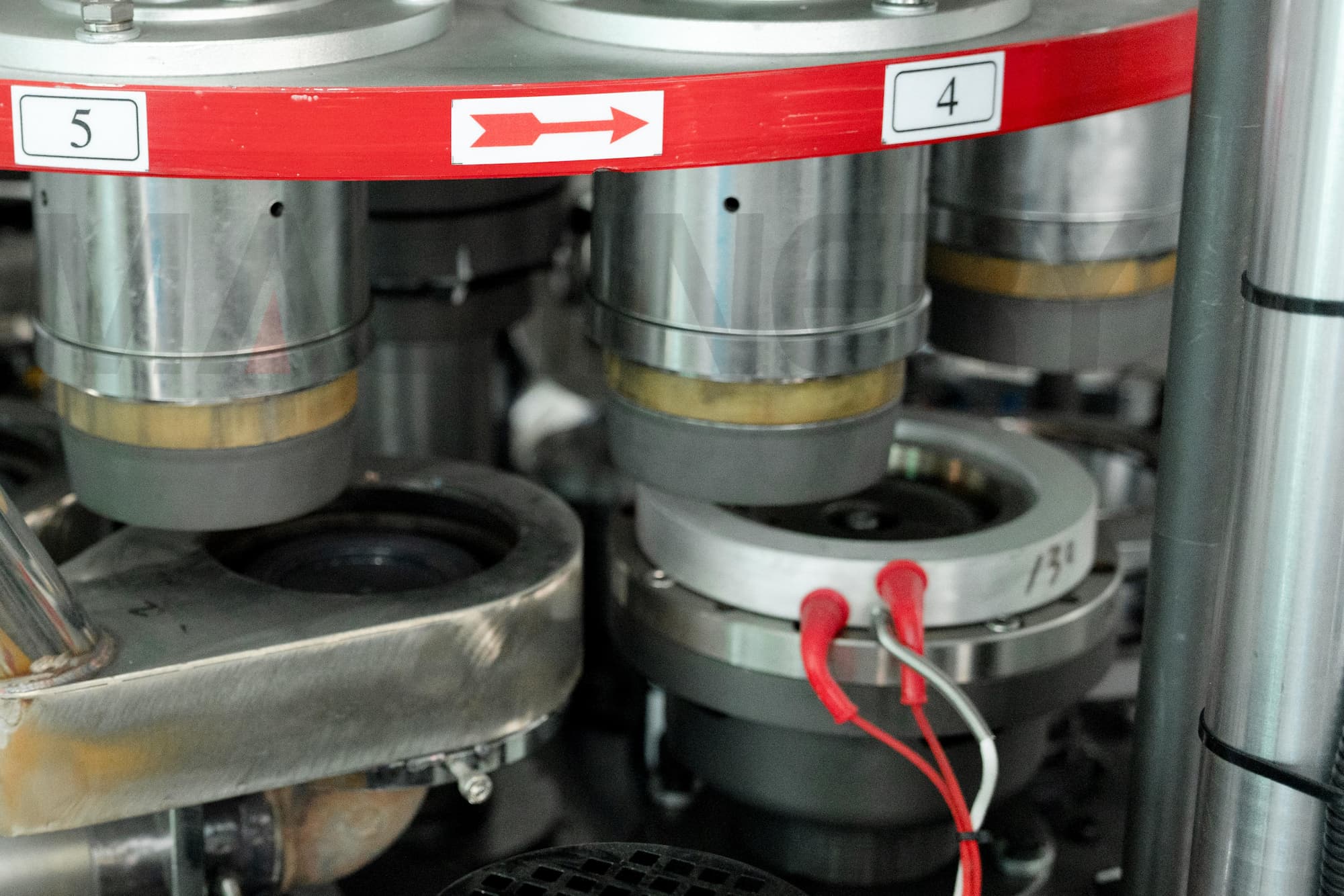

For single-PE-coated paper bowls, the bottom embossing uses an aluminum alloy heater. For double-PE-coated paper bowls, the bottom knurling is equipped with a water-cooling ring (no water chiller required, and easy to replace).
Accurately processed cup top curling system, tight, smooth and beautiful bowl top rim.

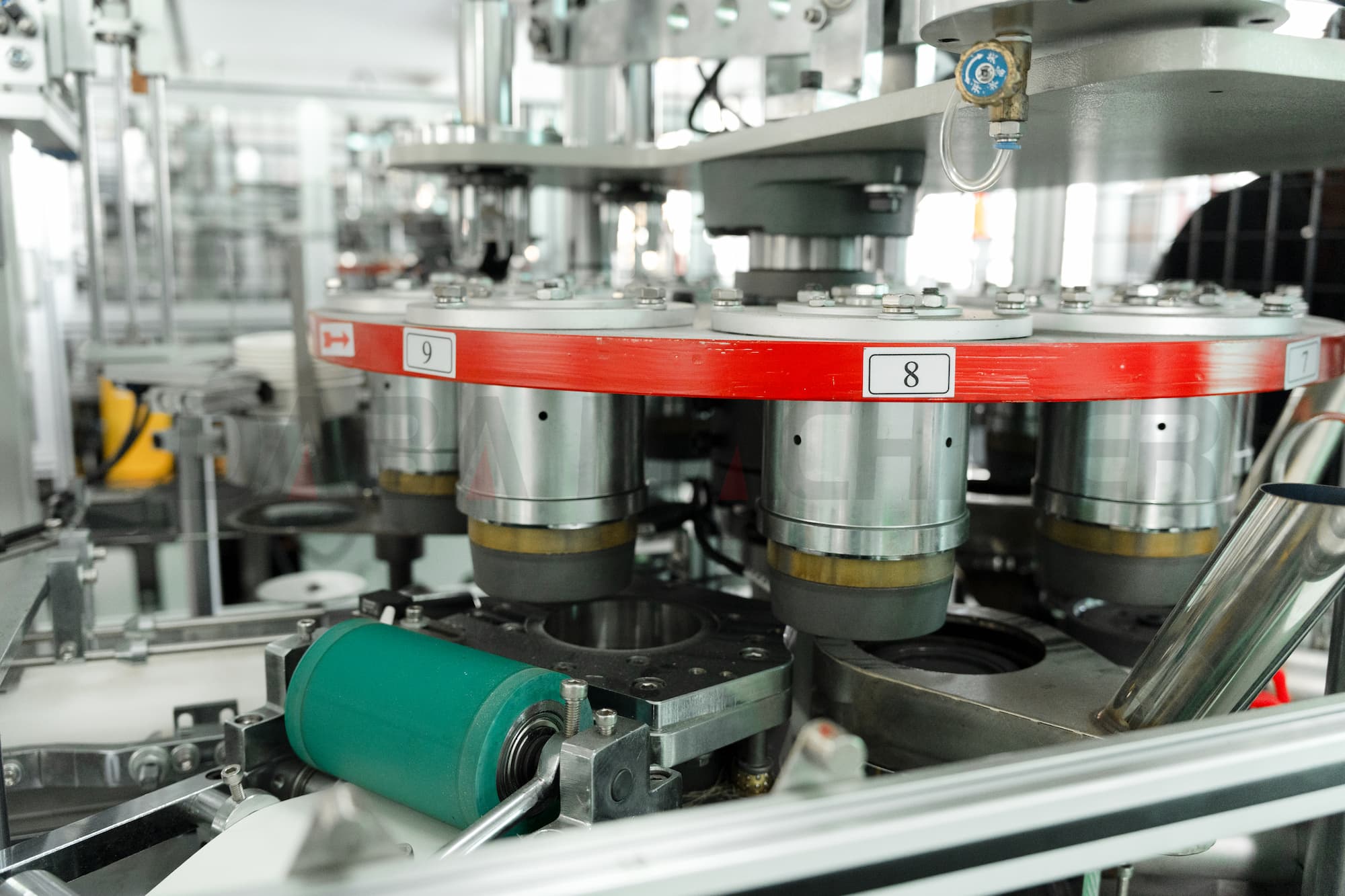

Top curling, bottom forming system adopts integrated lifting design, cam disc drive, consistent action.

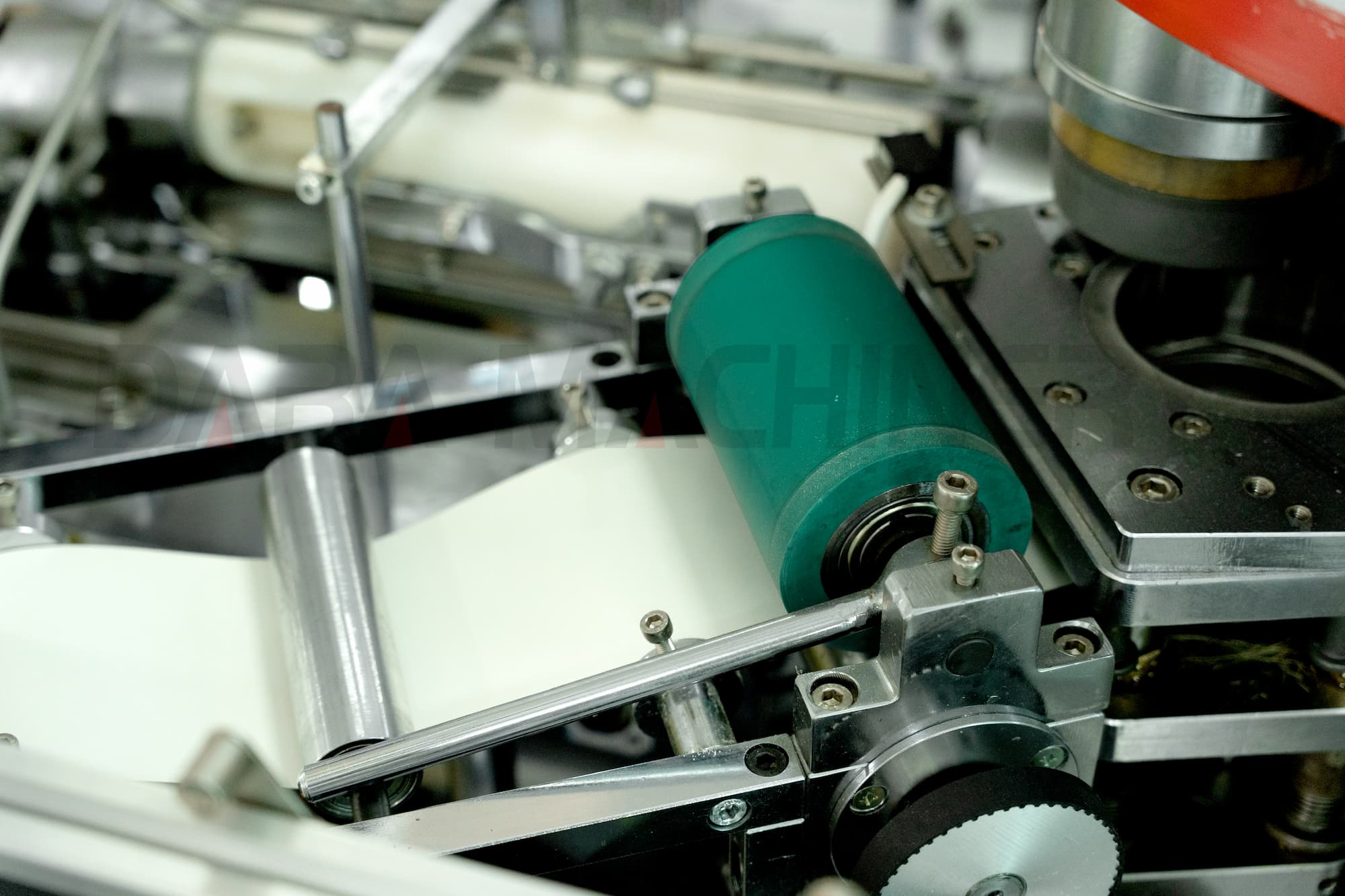

The knurling is equipped with a independent motor,comparing with the previous gear drive, the force is more even and the adhesion is better.
Air blower, acrylic pipe with collection table, automatic counting, automatic stacking, saving time and labor.
Main motor with Gear reducer.
The system adopts intermittent open mark control, sheaves with indexing turntable, helical gears, high-quality bearings and shafts, which are easy to maintain and stable, much better than chain-driven gearboxes.
Automatic continuous shower type lubrication system.

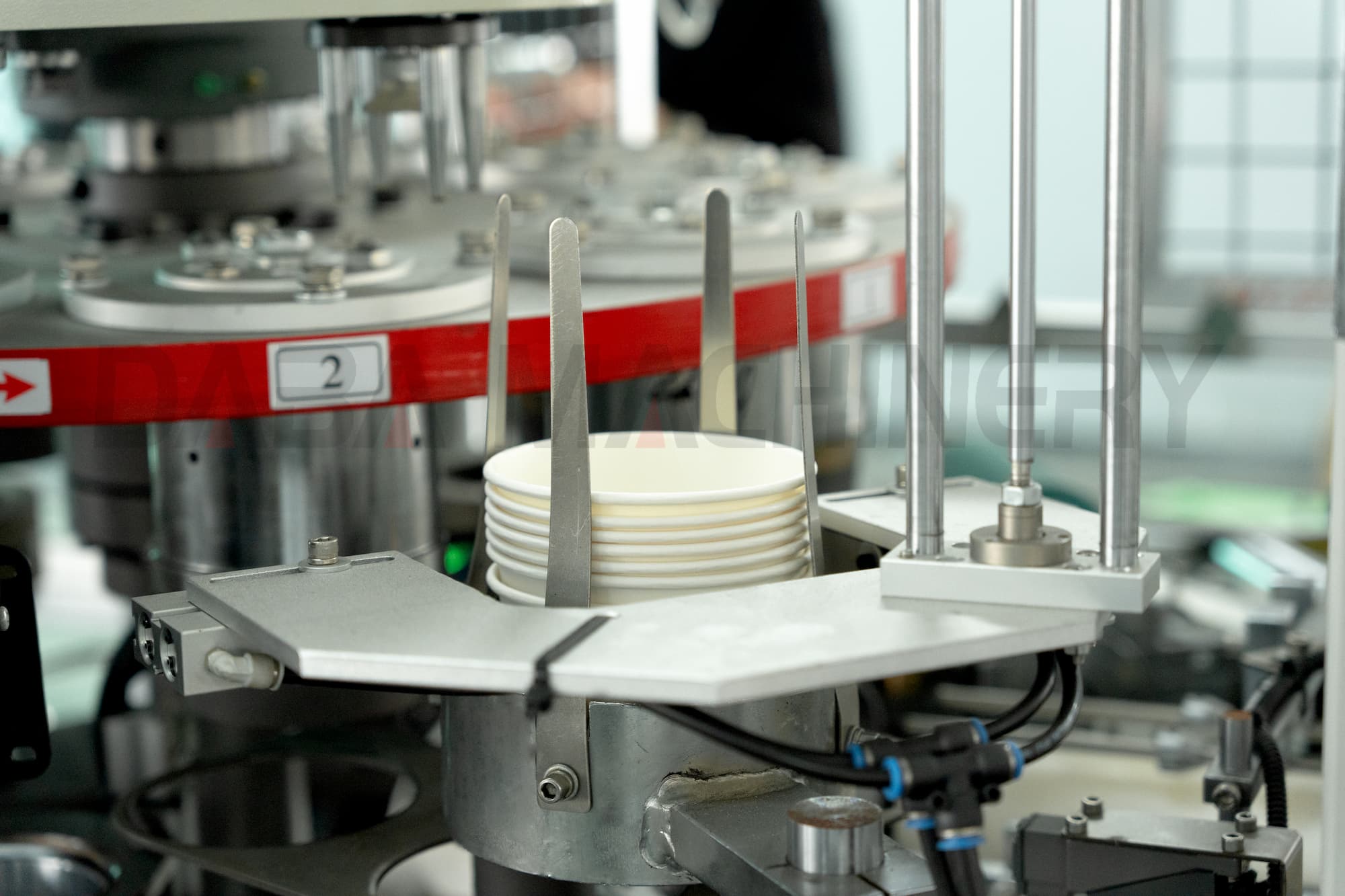

Automatic paper bowl collector.
