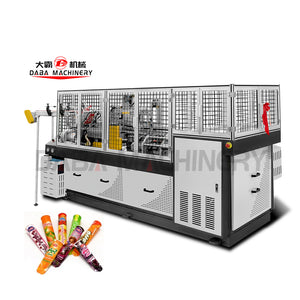

DBJX-JJ200-80 Calippo Paper Tube Machine

Vendor: DABA Machine
  • Model: DBJX-JJ200-80
  • Raw Material: single and double PE/PLA
  • Production Capacity: 60-80pcs/min
  • Min. Top Diameter: 42mm
  • Min. Cup Height: 120mm
  • Min. Bottom Diameter: 50mm
  • Dimension(l*w*h): 2800*1500*1700mm
  • Weight: 4500KG
  • Air Pressure: 0.45-0.6 Mpa
  • Power: 10KW
  • Warranty: 1 Year

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

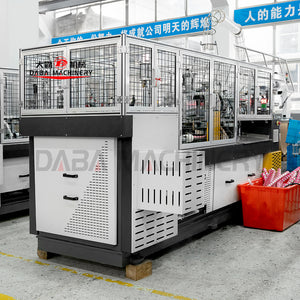

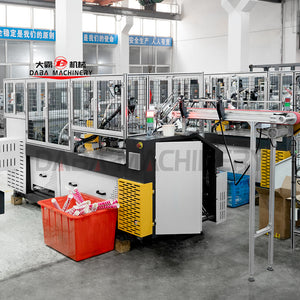

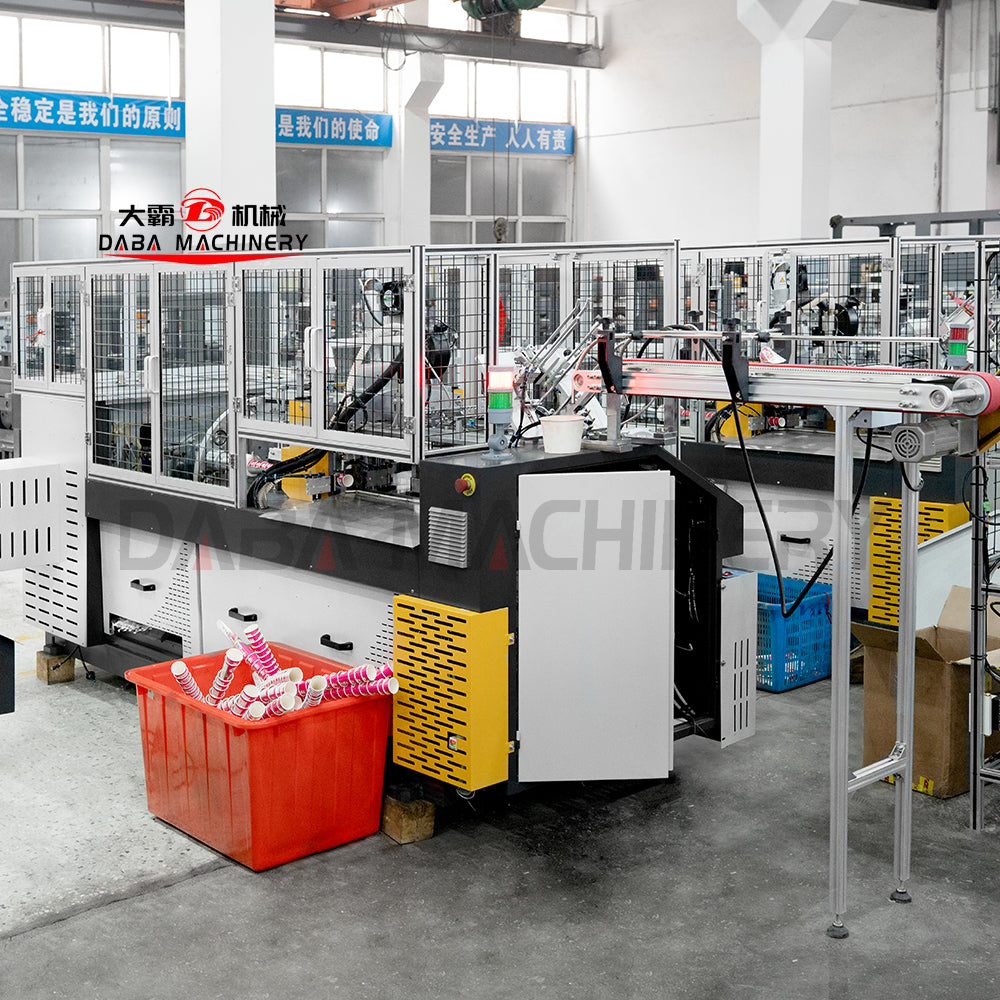

DBJX-JJ200-80 Ice Tube (Calippo) Forming Machine is a forming machine developed for ice cream paper tubes commonly found in the market. The machine adopts an innovative vertical turntable, which will not send the cup body falling during operation, saving working space; a new type of curling unit ensures the quality of the finished curling; each part is equipped with optical eye detection, which is convenient for machine maintenance and repair; The special bottom embossing unit and bottom cutting unit ensure the bottom sealing of the Ice tube. It is the first new type of ice tube forming machine in China.

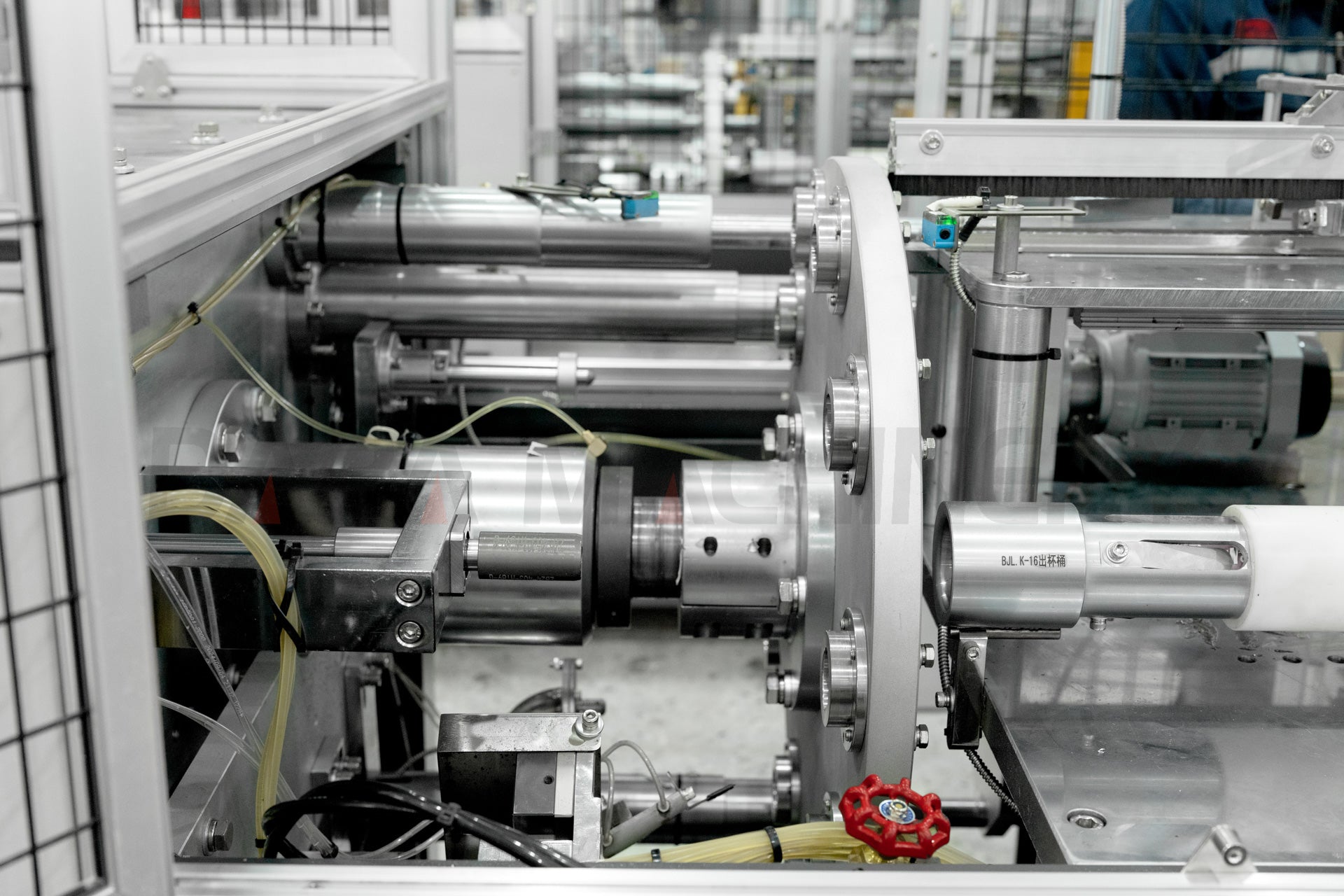

  1. Straight-shaft transmission, simple and efficient structure, stable operation of the machine, low noise.
  2. The whole machine uses automatic spray lubrication system, reducing the wear of machine parts, support the machine to work for a long time without interruption.
  3. About 13 sensors on 1 machine to monitor the whole cup making process.
  4. The body of tube and the bottom of cup portion bonded by Swiss (Leister brand) heater, ensuring the stability of adhesion.
  5. Two times curling, first one is rotating curling, second one is heating stereotypes , which improves the forming strength of tube, tube mouth beauty and tube size stability.
  6. PLC and touch screen control is used in tube forming, photoelectric eye is adopted in the entire failure control process.

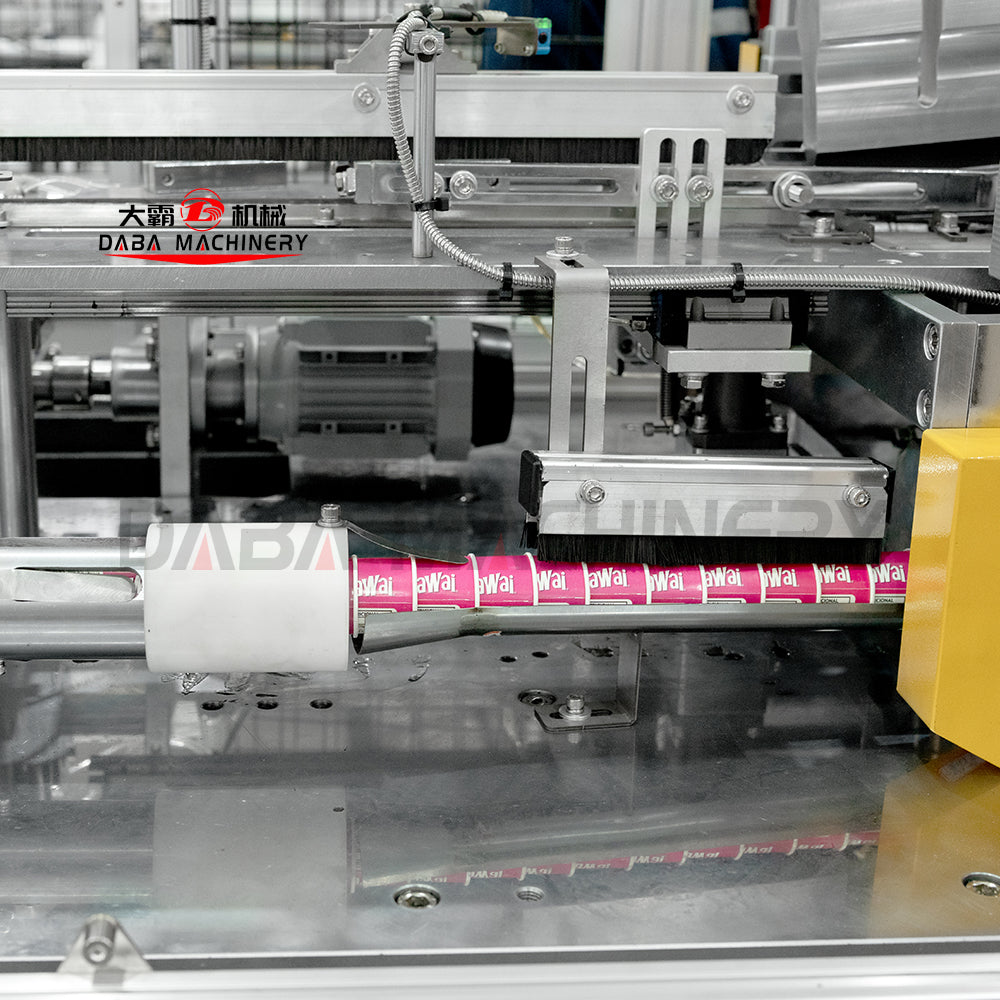

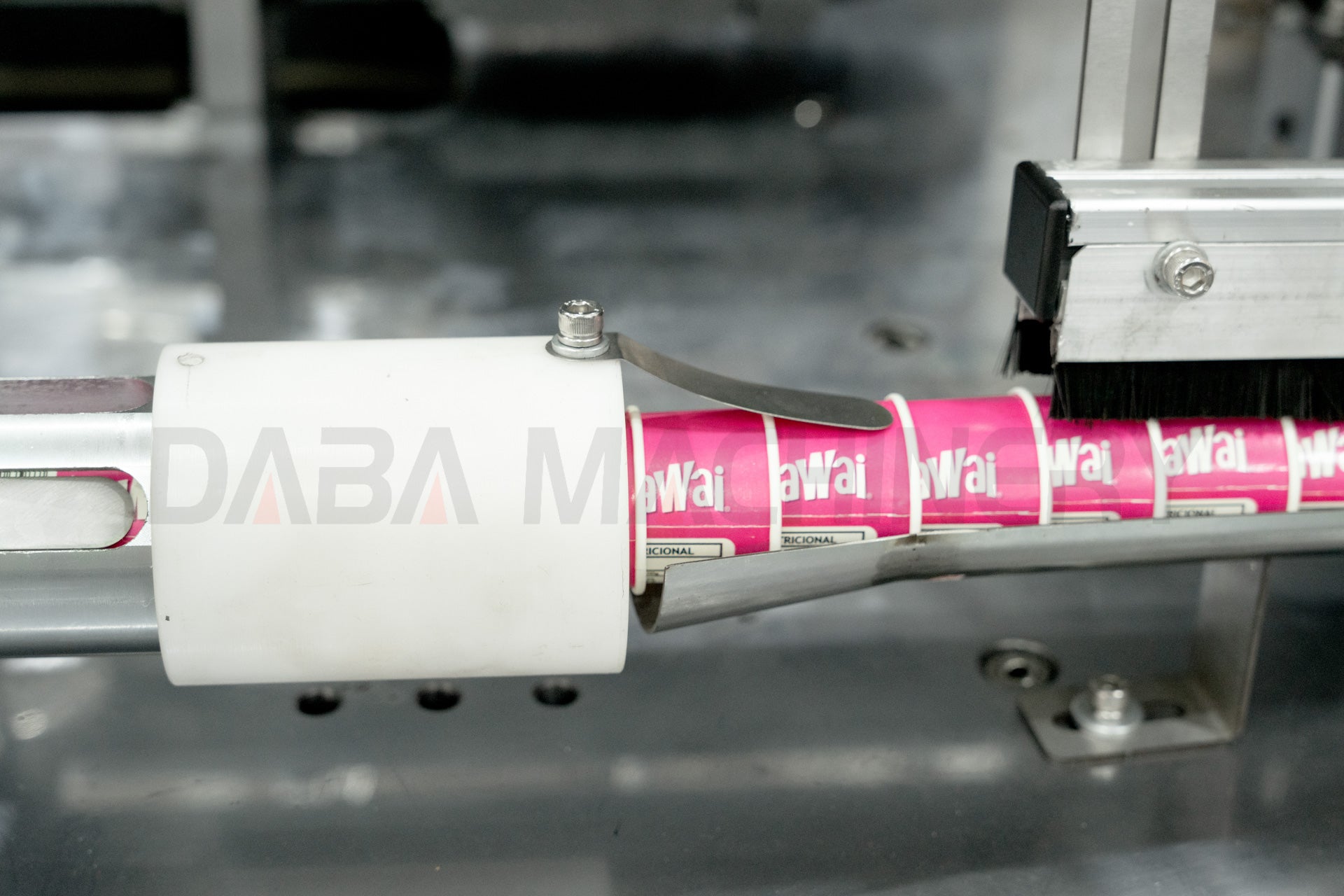

  7. Innovative long tube tyoe cup collection, optical eye counting, convenient for operators to pack.
  8. Bottom waste collection device, easy to recycle waste, save production cost.

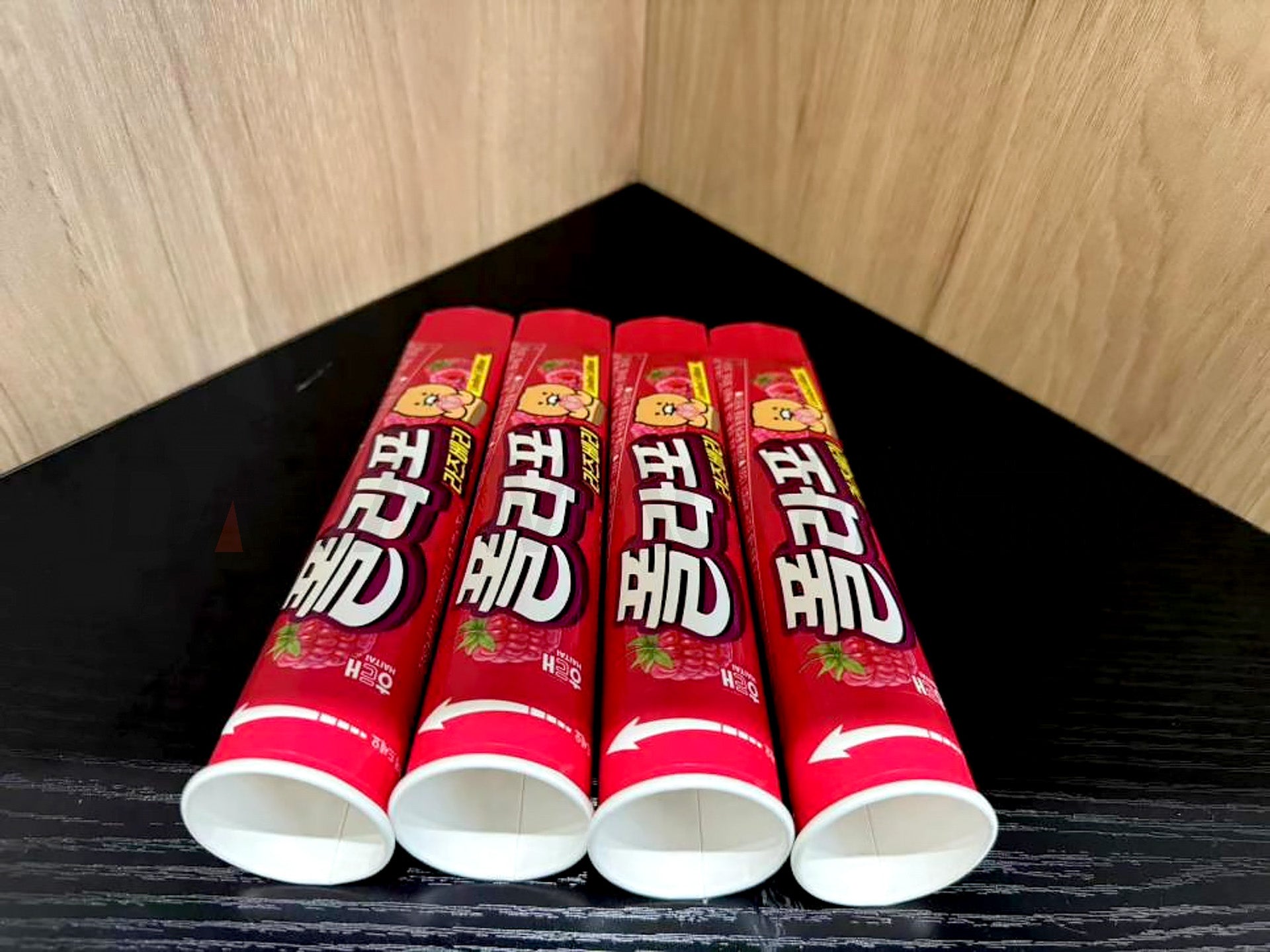

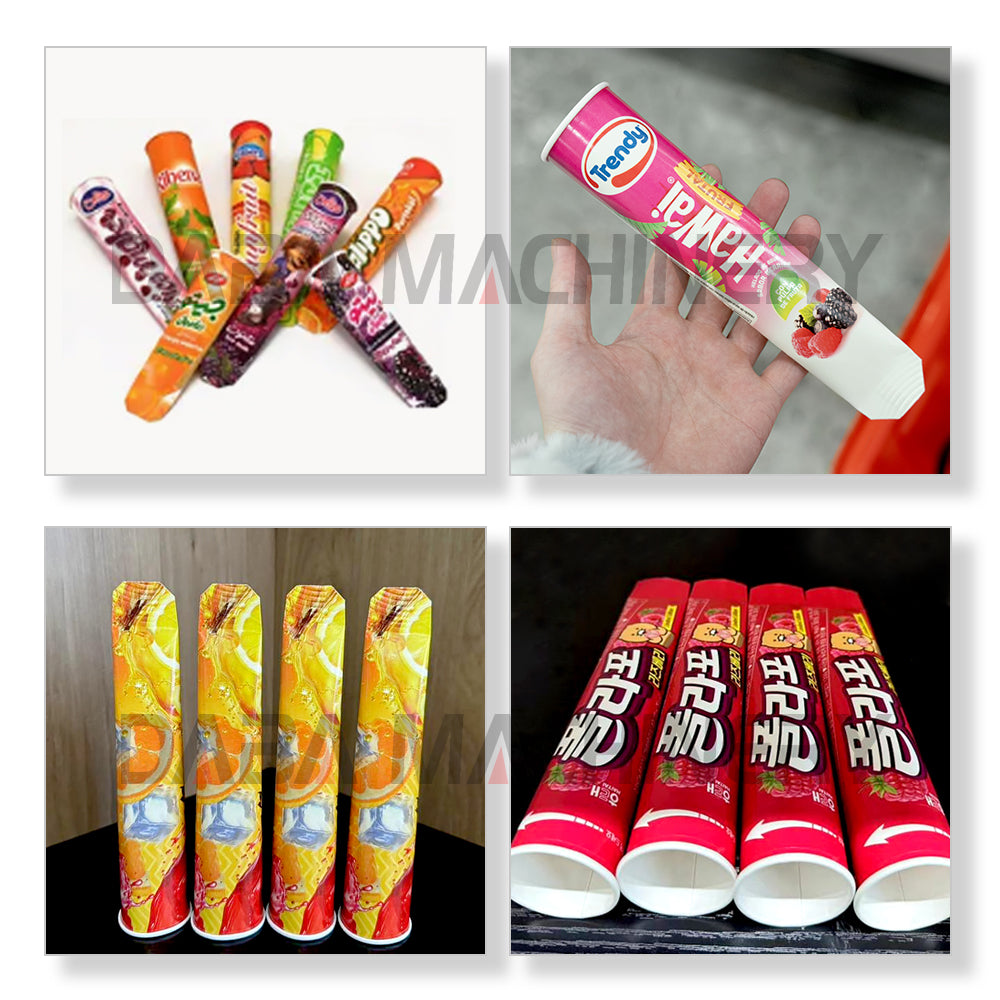

Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper cup production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into cup fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean cup fans.

7. Cup Fan

Paper segment prepared for cup forming.

8. Paper Cup Machine

Forms cup fans and bottom paper into cups.

9. Bottom Paper

Material used for forming cup bases.

10. Paper Cup

Completed paper cup ready for inspection.

11. Paper Cup Inspection Machine

Ensures each cup meets quality standards.

12. Double Wall Paper Cup Sleeve Machine

Adds insulating sleeve for double-wall cups.

13. Packing Machine

Packs cups for transportation.

14. Packaging Paper Cups

Final packaged products ready for shipment.

Paper Feeding Rack – Holds More Sheets

Loading Rack with Side Suction Feeding

Tilting Worktable for Longer Size Products

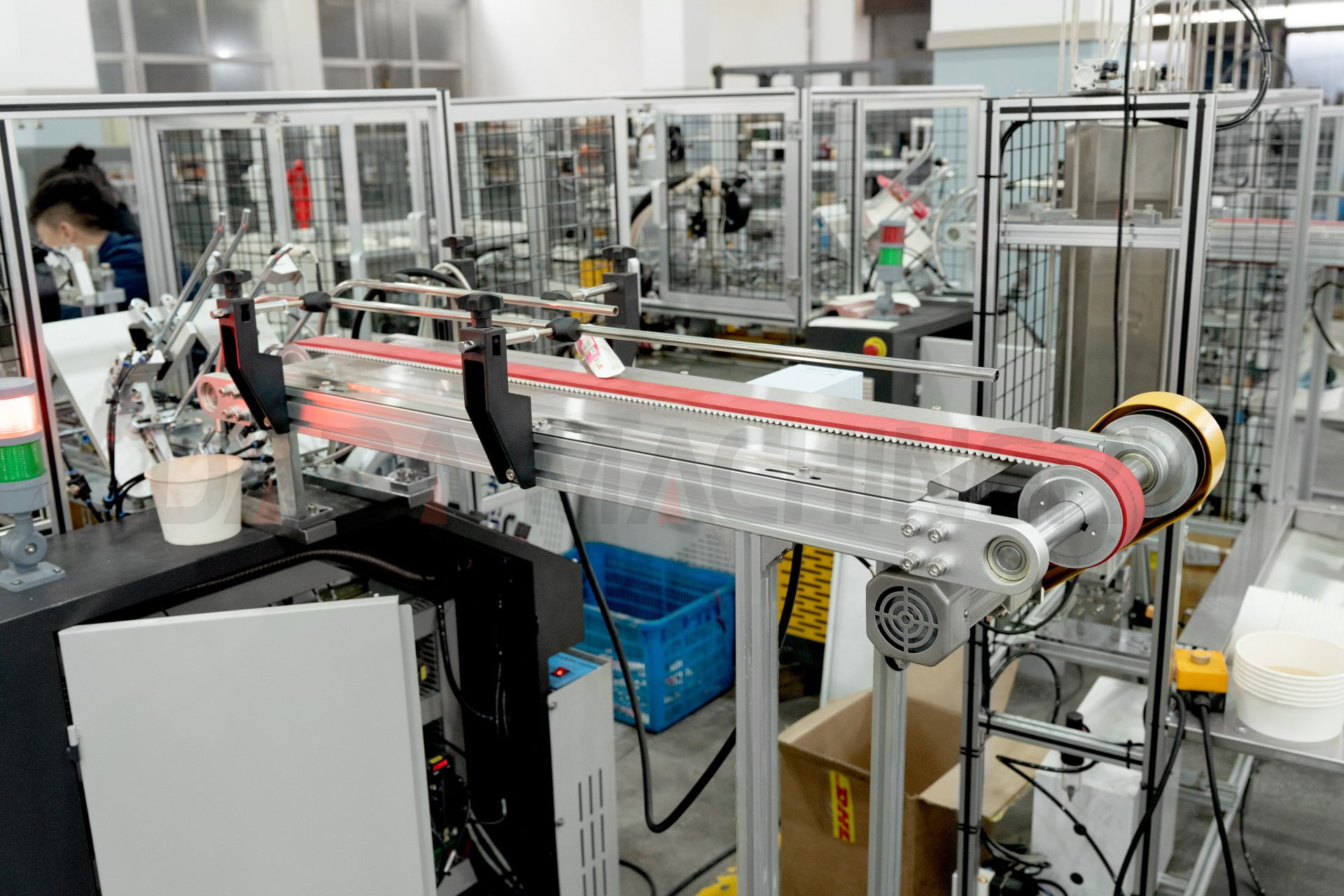

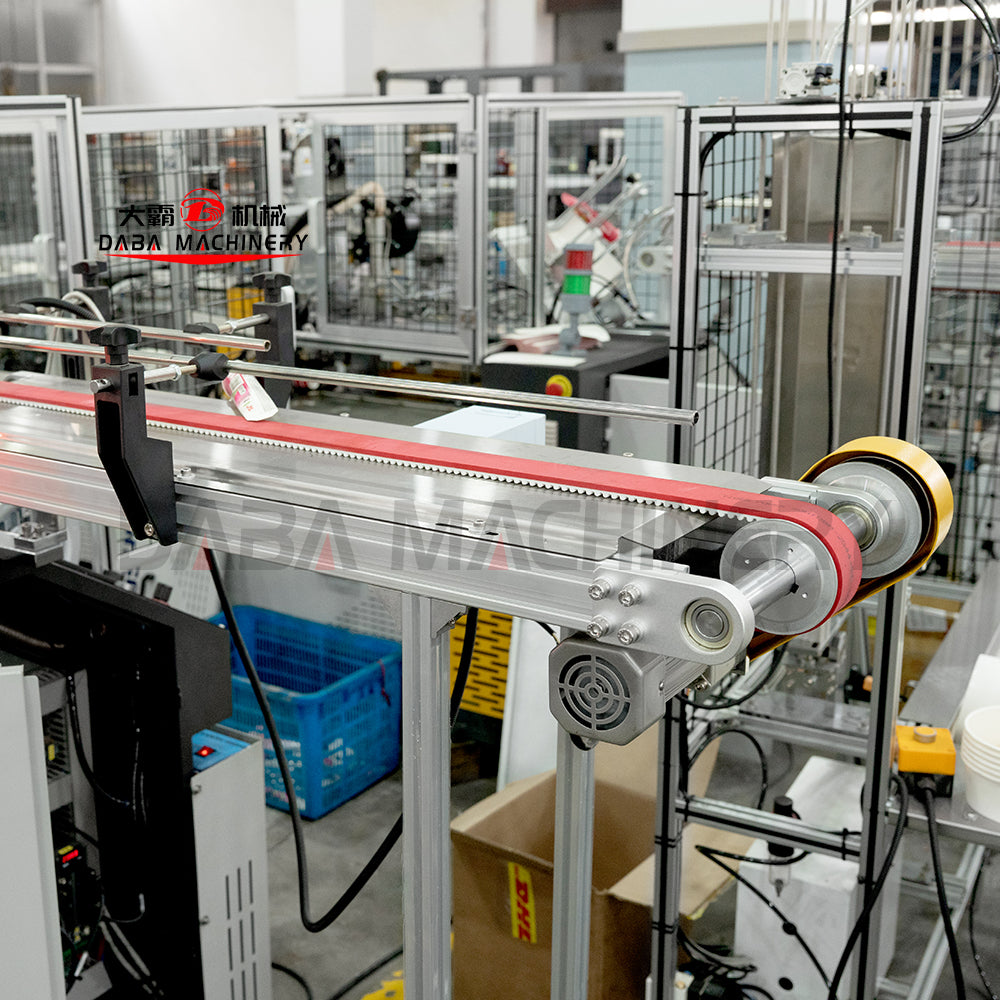

Stacked Cup Discharge
