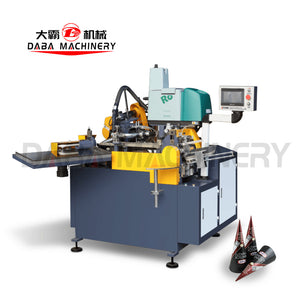

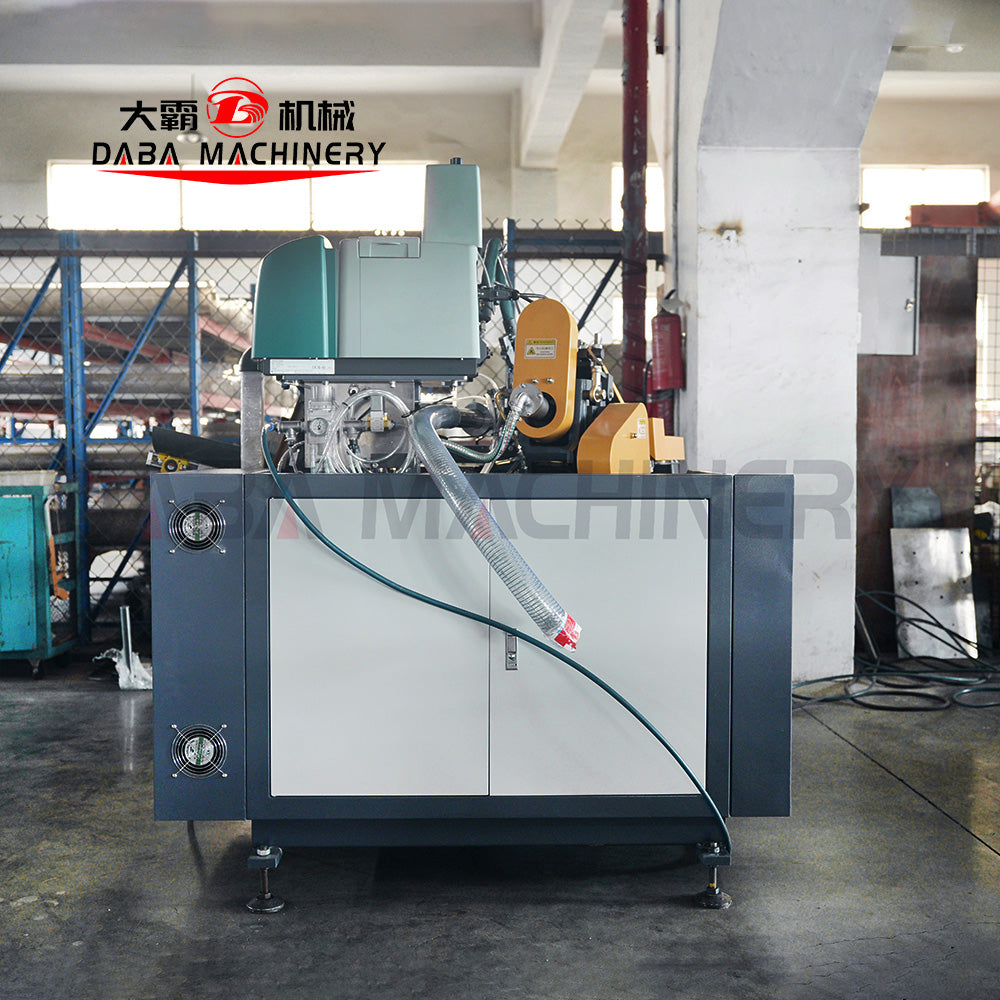

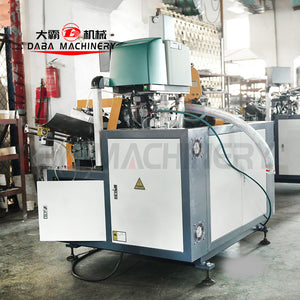

DBTT-J1723-230 Paper Cone Sleeve Machine

Vendor: DABA Machine
  • Model: DBTT-J1723-230
  • Paper Cup Size: 4-10oz
  • Raw Material: art paper aluminized paper etc
  • Paper thickness requirements: 80-170g/㎡
  • Production Capacity: 190-230pcs/min
  • Angle Degree: 17-23°
  • Cone Line: Min110mm-Max250mm
  • Dimension(l*w*h): 1850*1750*1800mm
  • Weight: 1000KG
  • Power: 9KW
  • Warranty: 1 Year

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

DBTT-J17*23-230 automatic paper cone sleeve machine is made for ice cream and other similar paper cone sleeve.this machine can shape angles from 17-23,(through the way to change the mold），high speed from 190-230pcs/min,can use different paper material like art paper,aluminized paper,offset paper etc.major parts of this machine used famous international brand like Schneider.Panasonic,Robatech etc.

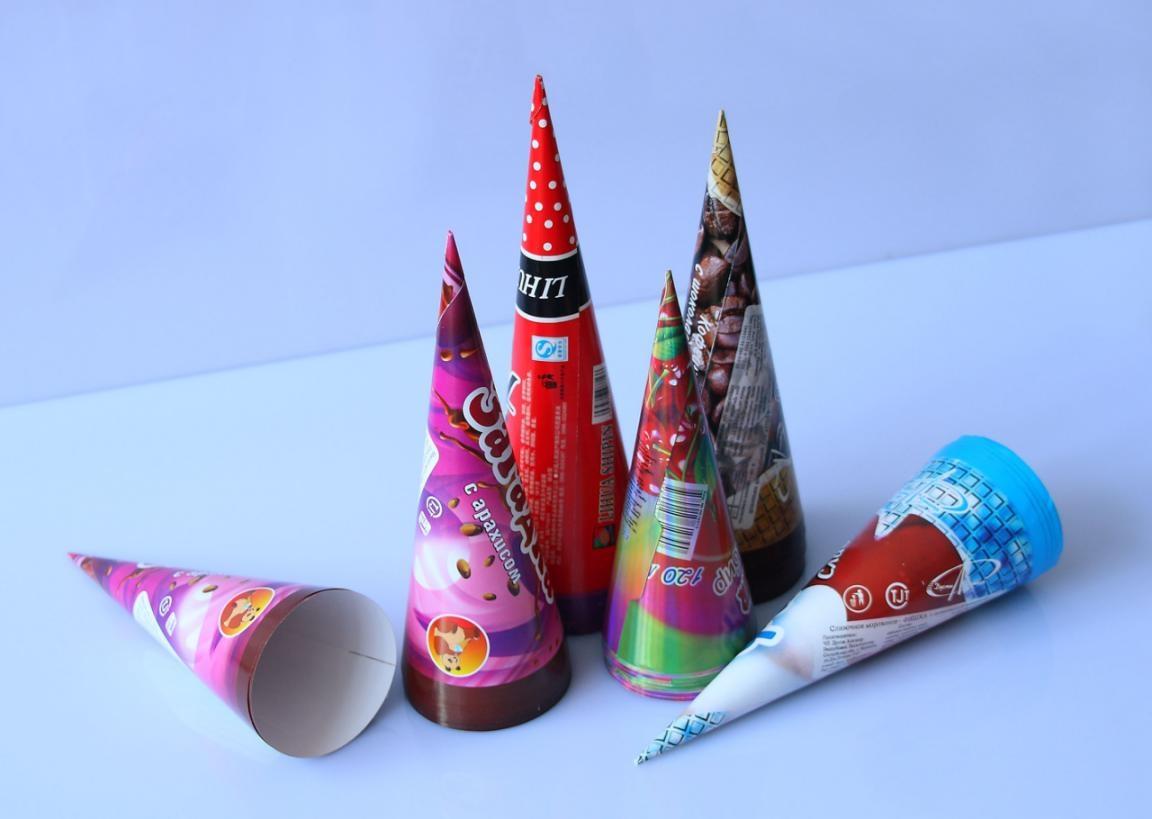

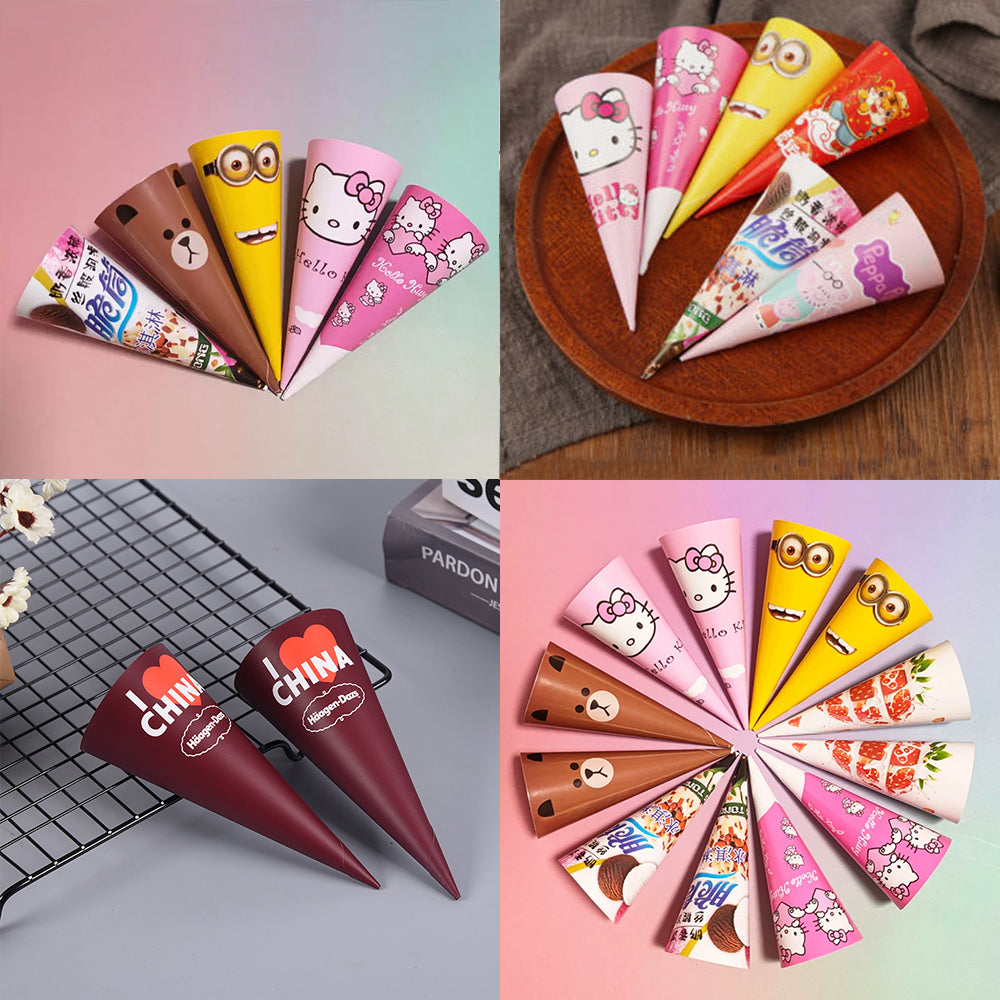

Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper cup production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into cup fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean cup fans.

7. Cup Fan

Paper segment prepared for cup forming.

8. Paper Cup Machine

Forms cup fans and bottom paper into cups.

9. Bottom Paper

Material used for forming cup bases.

10. Paper Cup

Completed paper cup ready for inspection.

11. Paper Cup Inspection Machine

Ensures each cup meets quality standards.

12. Double Wall Paper Cup Sleeve Machine

Adds insulating sleeve for double-wall cups.

13. Packing Machine

Packs cups for transportation.

14. Packaging Paper Cups

Final packaged products ready for shipment.

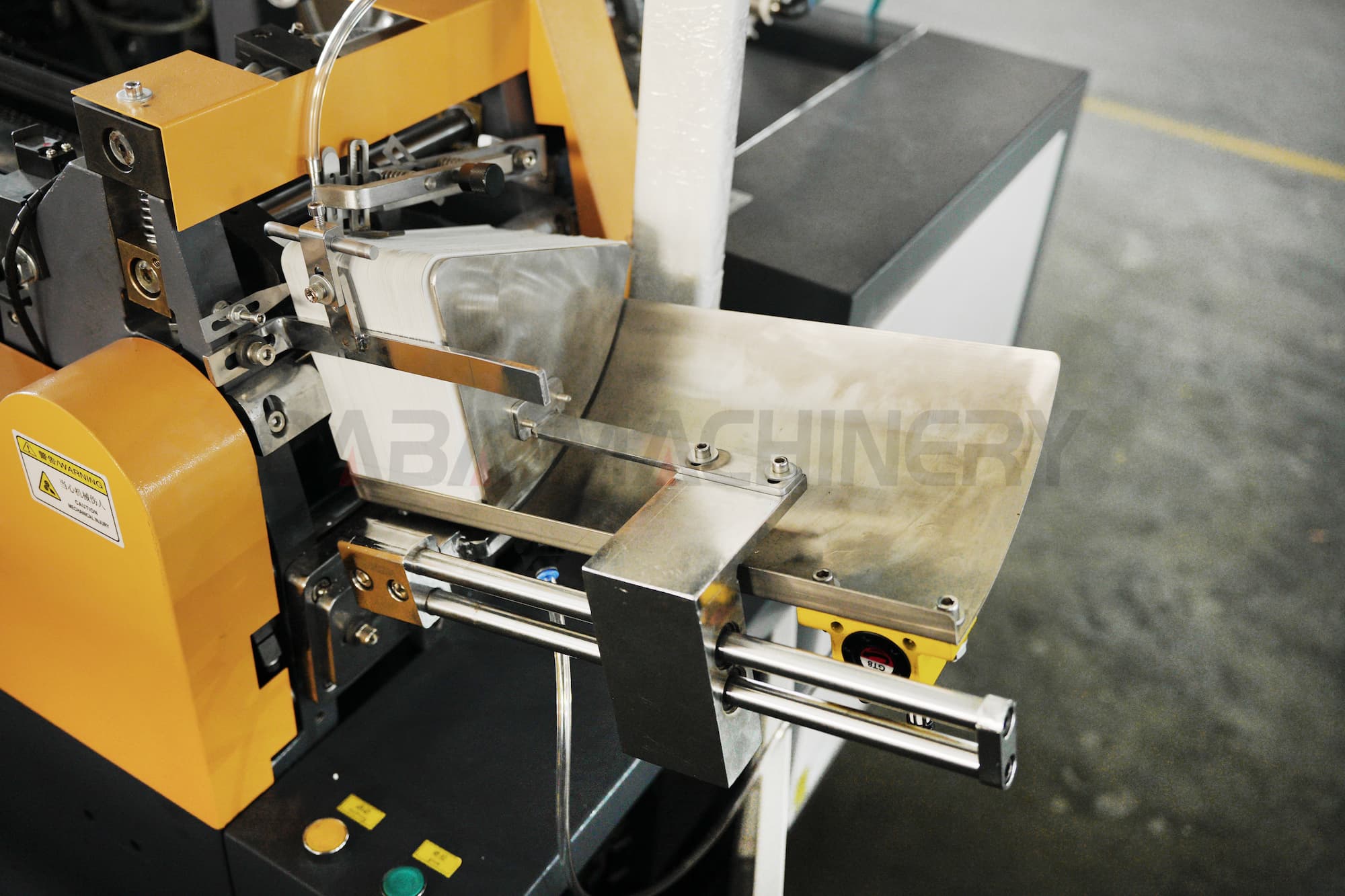

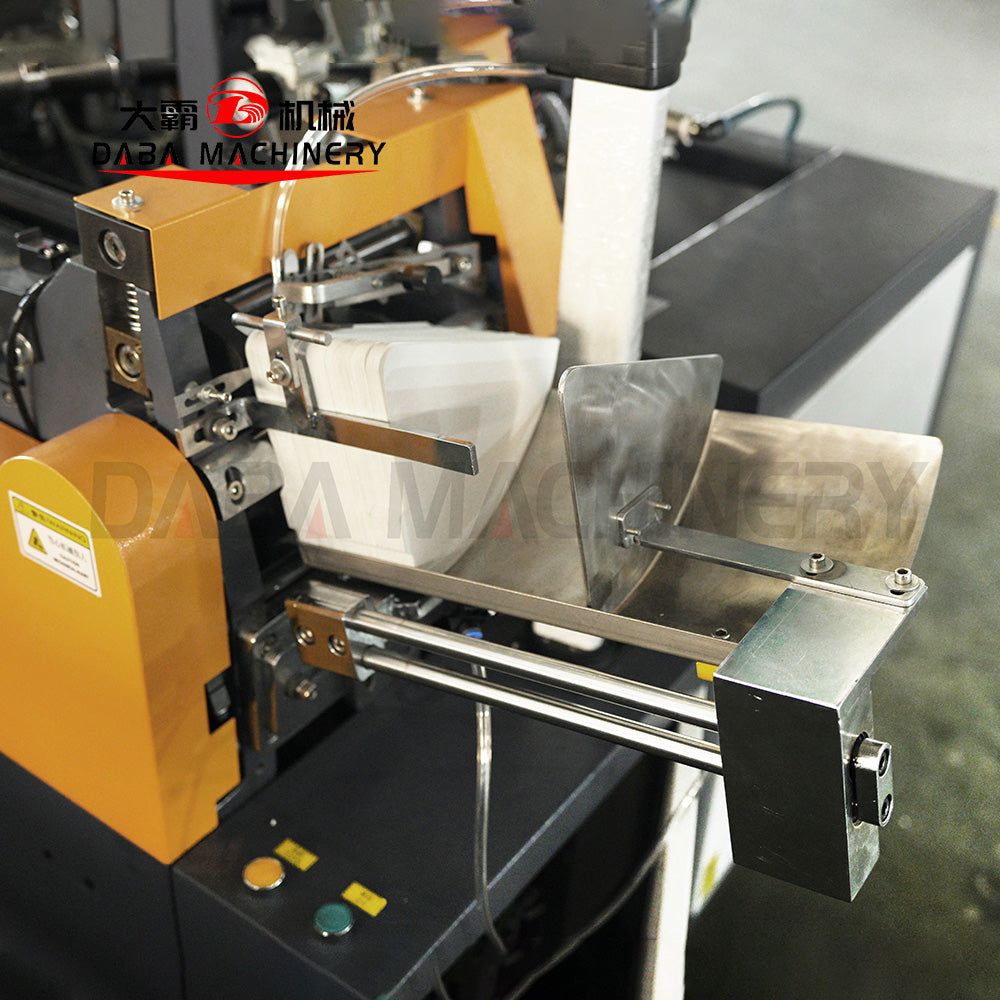

Paper Loading Station

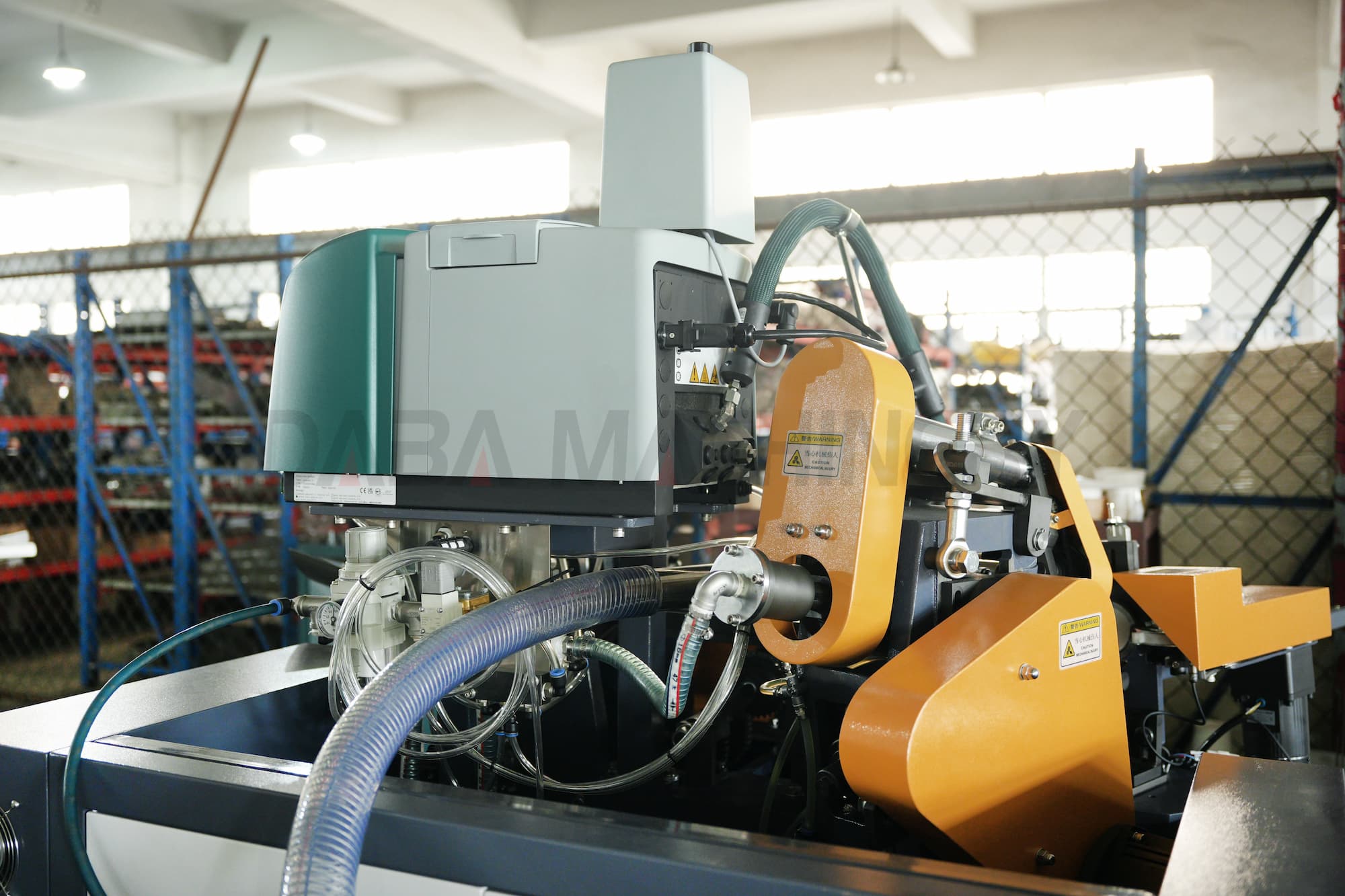

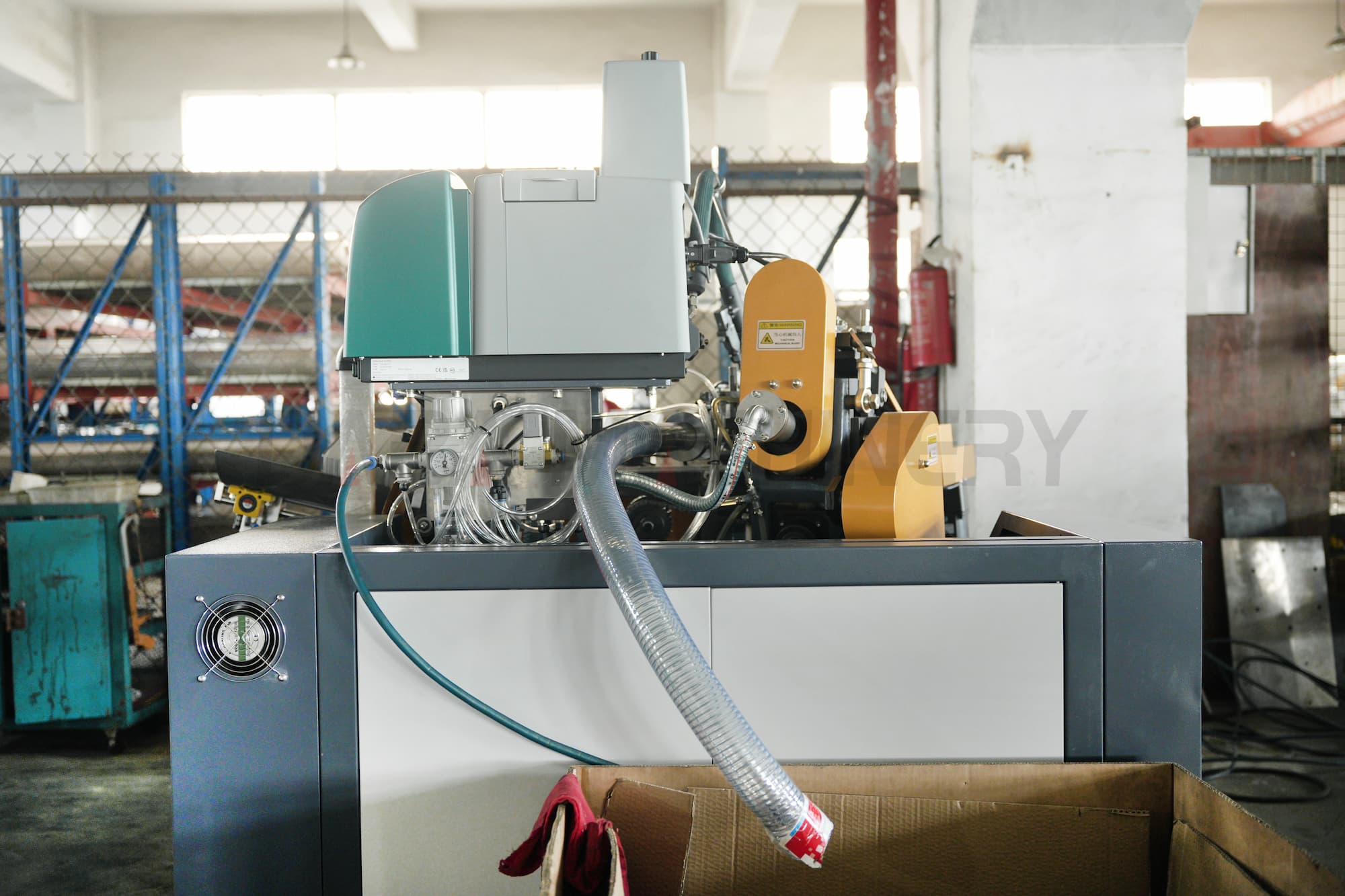

Glue Tank

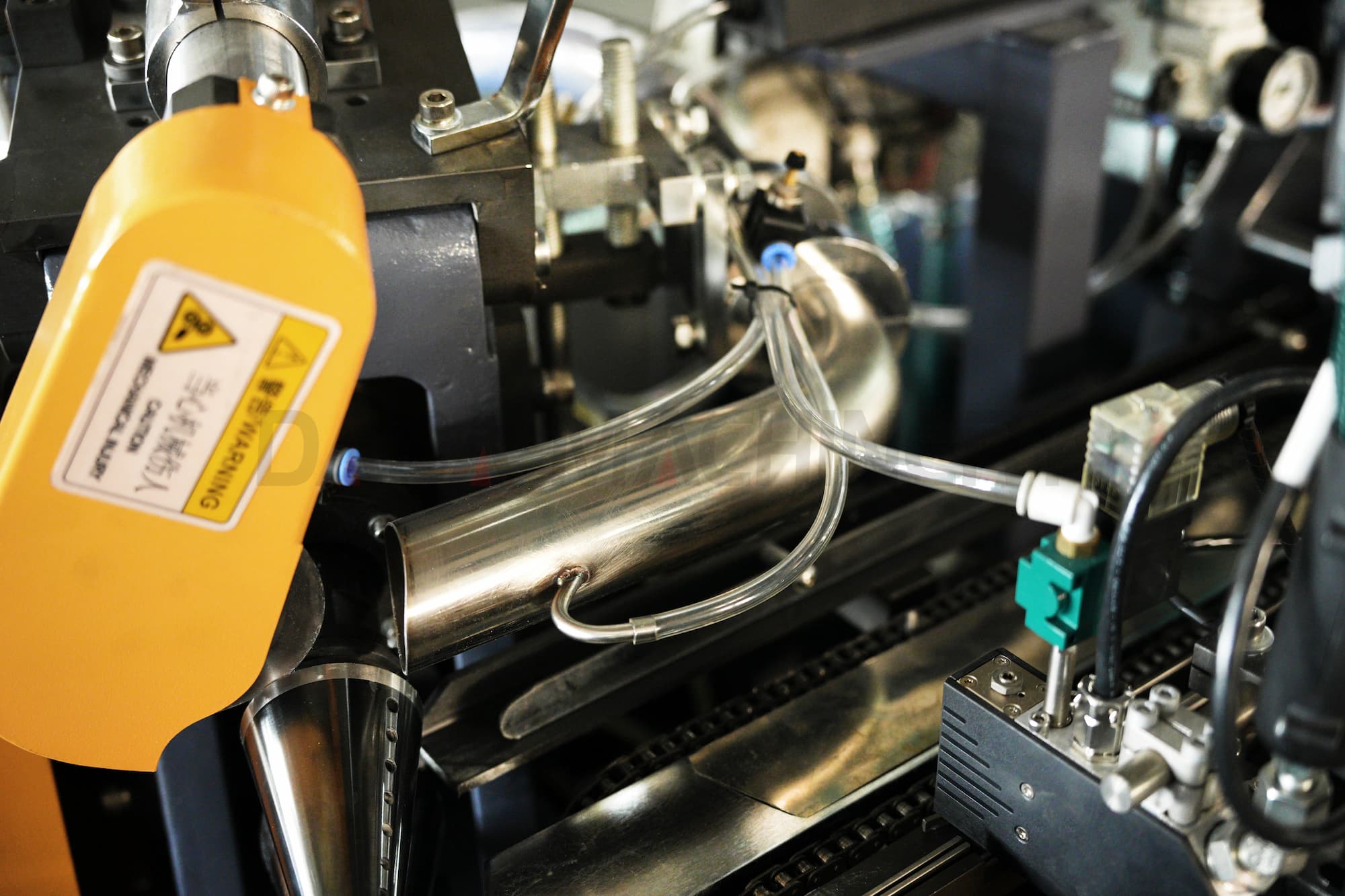

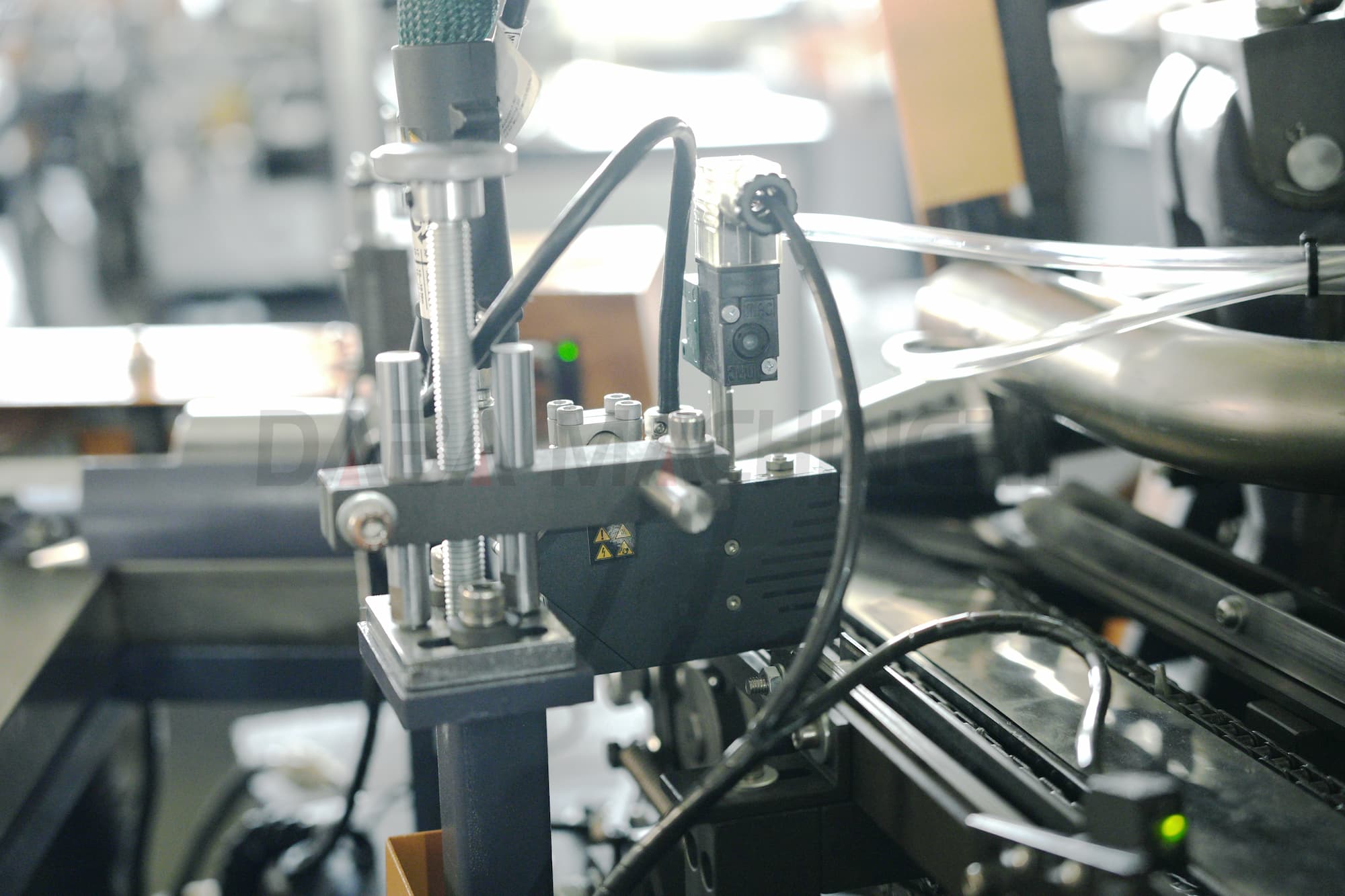

Glue Applicator Head

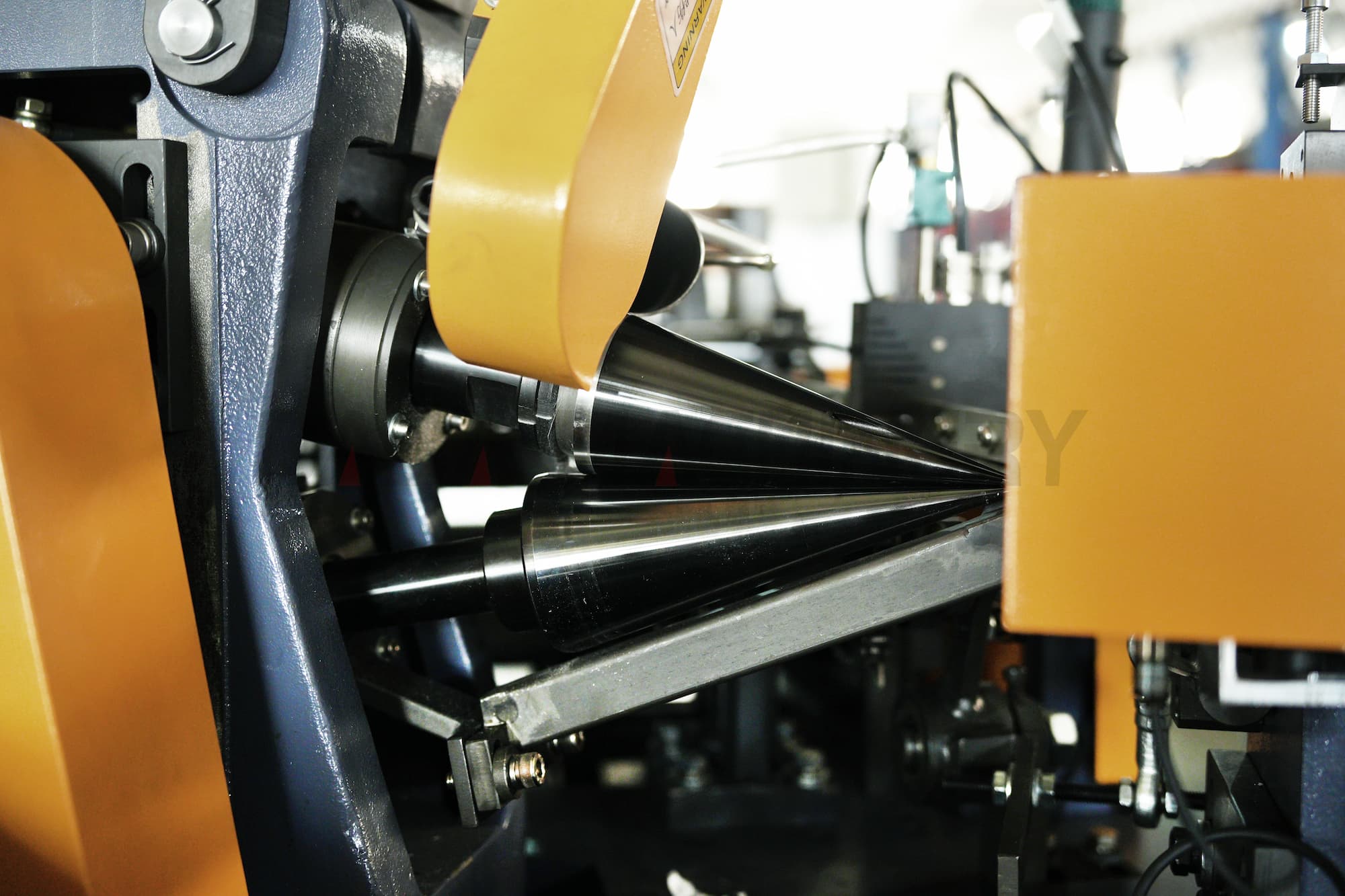

Forming Mold

Paper Cutting Blade

Waste Removal

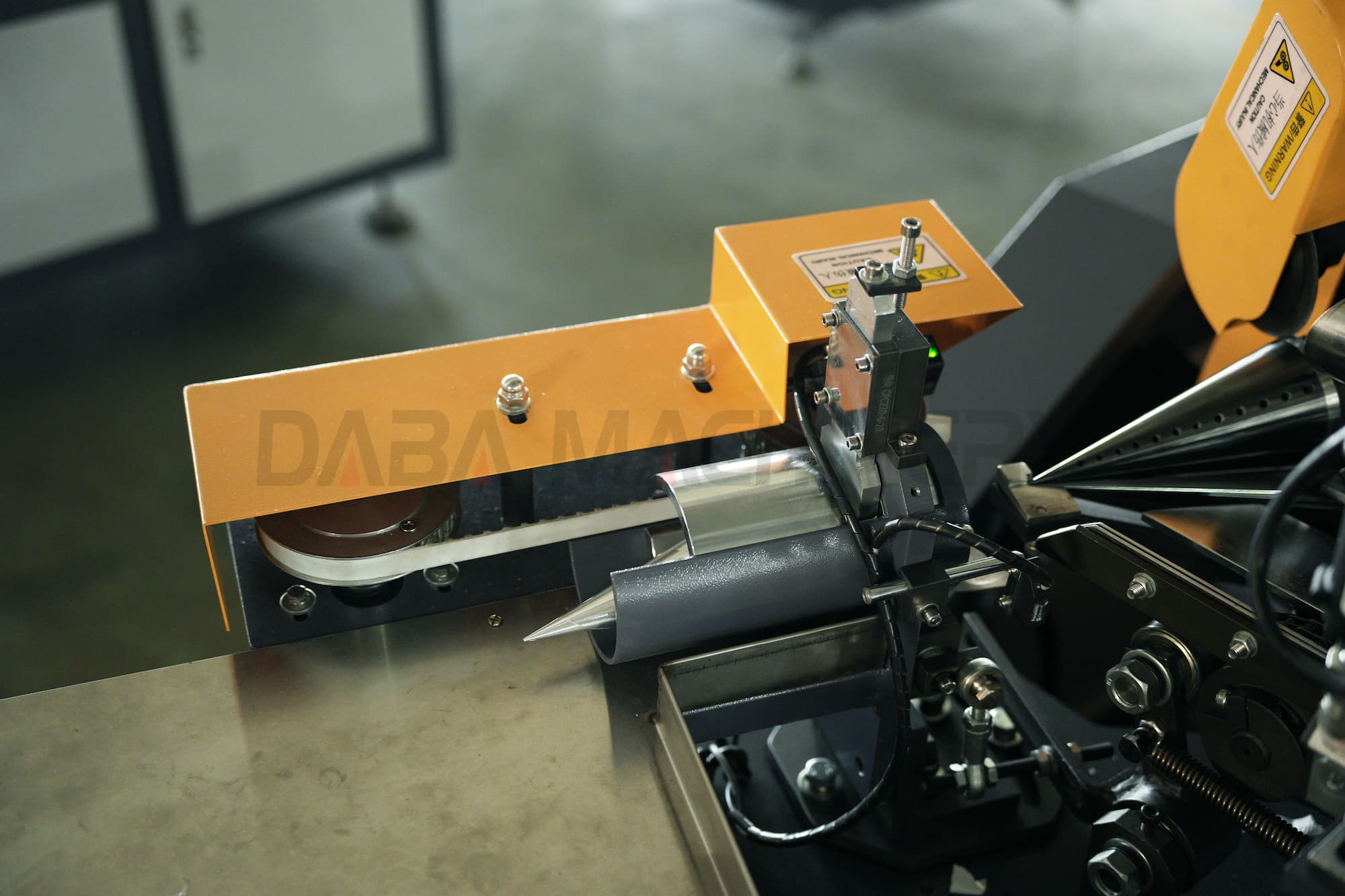

Cup Output

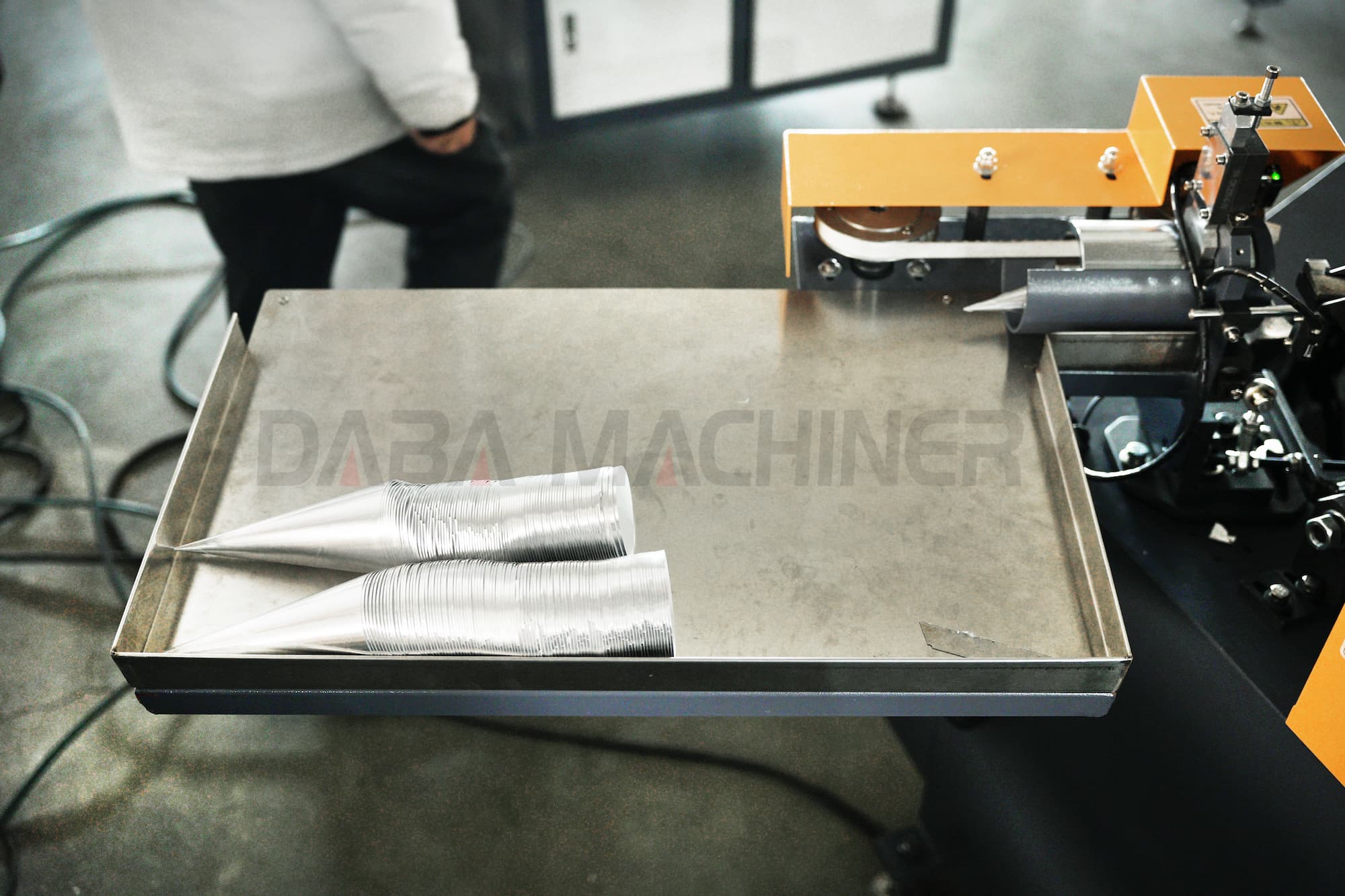

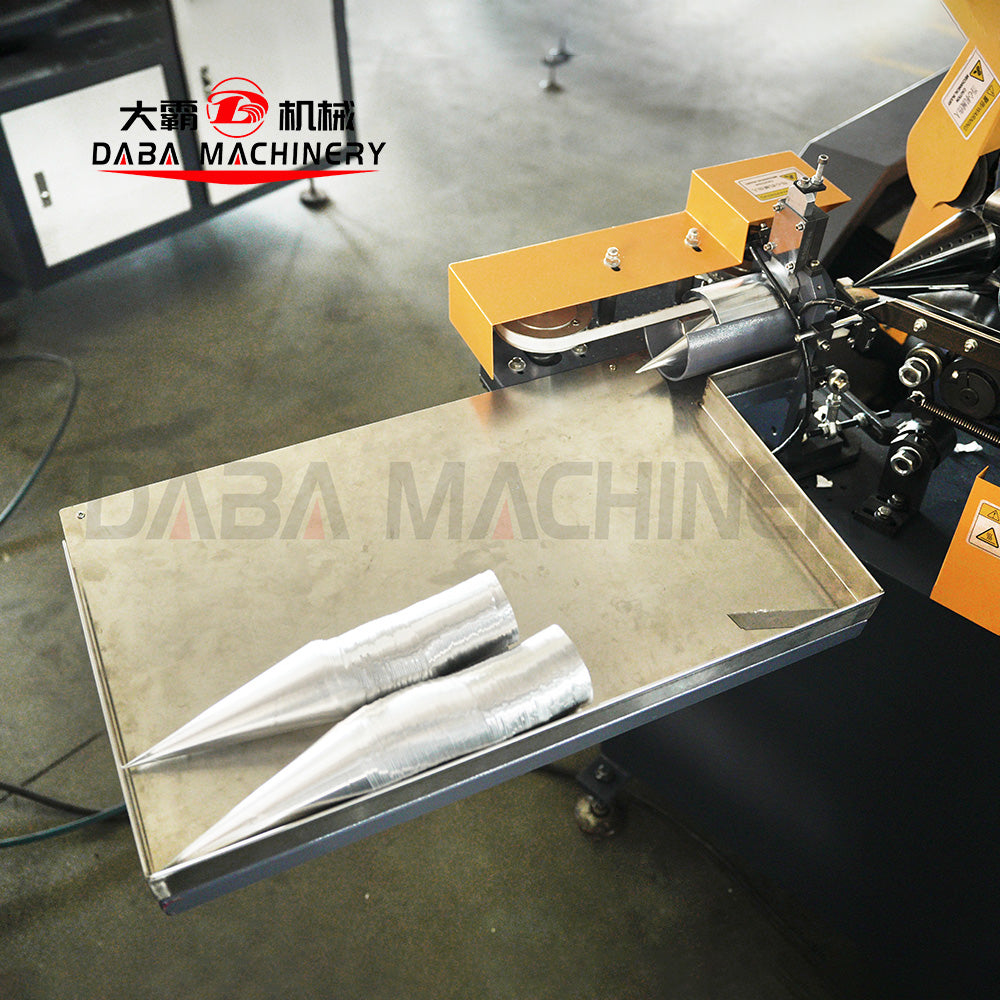

Collection Tray
