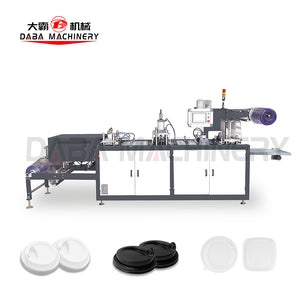

DBBG-S420 Plastic Cup Lid Thermoforming Machine

Vendor: DABA Machine

Model: DBBG-S420
Maximum blanking speed: Standard depth 15-35 times/min
Optional Scope for Feeder Stroke: 130-120mm
Maximum molding width: 450mm
Maximum molding depth: 46mm
Shaping up and down heating power: 2.2 KW(X4)
The motor power: 2.2 KW
Power supply: three-phase four-wire 380V 50HZ(220V 60HZ)6.6KW
Supply pressure: 0.2MPa
Water consumption: 0.3m³/h(tap water or recycling water)
Air consumption: ≥3 m³/min
Air pressure: 0.6-1.0 MPa
Overall dimensions (L*W*H): 2600*900*1700mm
Overall package size (L*W*H): 2650*950*1800mm
Material Width: 465mm
Total weight: 1100KG

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBBG-S420 series fully automatic plastic thermoforming machines can be used for the automated production of plastic products such as PP, PET, HIPS, and GPPS. These include plastic cup lids, plastic bowl lids, plastic lunch boxes, medical trays, disposable trays, and packaging for food, cosmetics, hardware, and stationery. Utilizing variable frequency speed regulation and integrated automatic control technology, this fully automatic bottle cap forming machine features adjustable stroke, a modular structure, and functions such as pressure holding, forming, punching, and blanking. These ensure product quality, stabilize production, and improve efficiency.

Product Size

Customizable Opening Holes

Features/Functions

The die is clamped with pressing plate for easy adjustment and installation.
Main motor uses the main motor to adopt frequency conversion speed regulation: The number of blanking is adjustable from 10 to 28 times. According to the length of the trip and the factors such as forming difficulty, the appropriate number of blanking is set.
The machine adopts the machine to hold the machine to the mechanism, and the operation is stable and accurate, and the trip can be adjustable from 30 to 150mm. In this range, the size of the plate can be randomly designed.
The mechanical hand traction of the machine is optional.
The forming heating plate automatically closes and opens, can be switched on after the heating panel is lowered, and the material waste is limited to one trip. The heating power and temperature of the plate are reduced by means of contact plate heating, saving energy and enhancing the stability of the plastic sheet.
The plastic film, the broken piece automatic alarm, stop. It also has a quick stop safety device, which improves the safety of operators in debugging and changing modes.
All parts in contact with plastic parts are made of stainless steel or non-toxic materials, which comply with "QS" requirements.

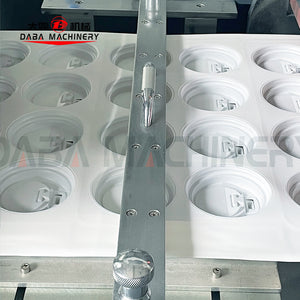

Sample Display
