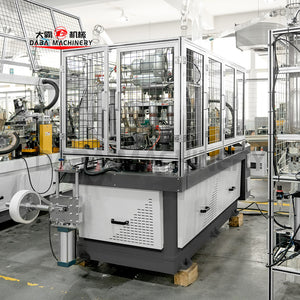

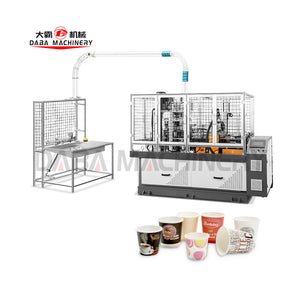

DBDP-B110-90 Paper Cup Machine

Vendor: DABA Machine

Model: DBDP-B110-90
Paper Cup Size: 4-12oz
Raw Material: single double PE coated paper, PLA coated, kraft paper
Production Capacity: 80-90pcs/min
Min. Top Diameter: 65mm
Min. Cup Height: 60mm
Min. Bottom Diameter: 50mm
Dimension(l*w*h): 2450*1460*1850mm
Weight: 2800KG
Air Pressure: 0.6 -0.8 Mpa
Power: 7.5KW
Output: 80~ 90Cups Per Min.
Warranty: 1 Year
Automation: Fully Automatic paper cups for hot cold drinks

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

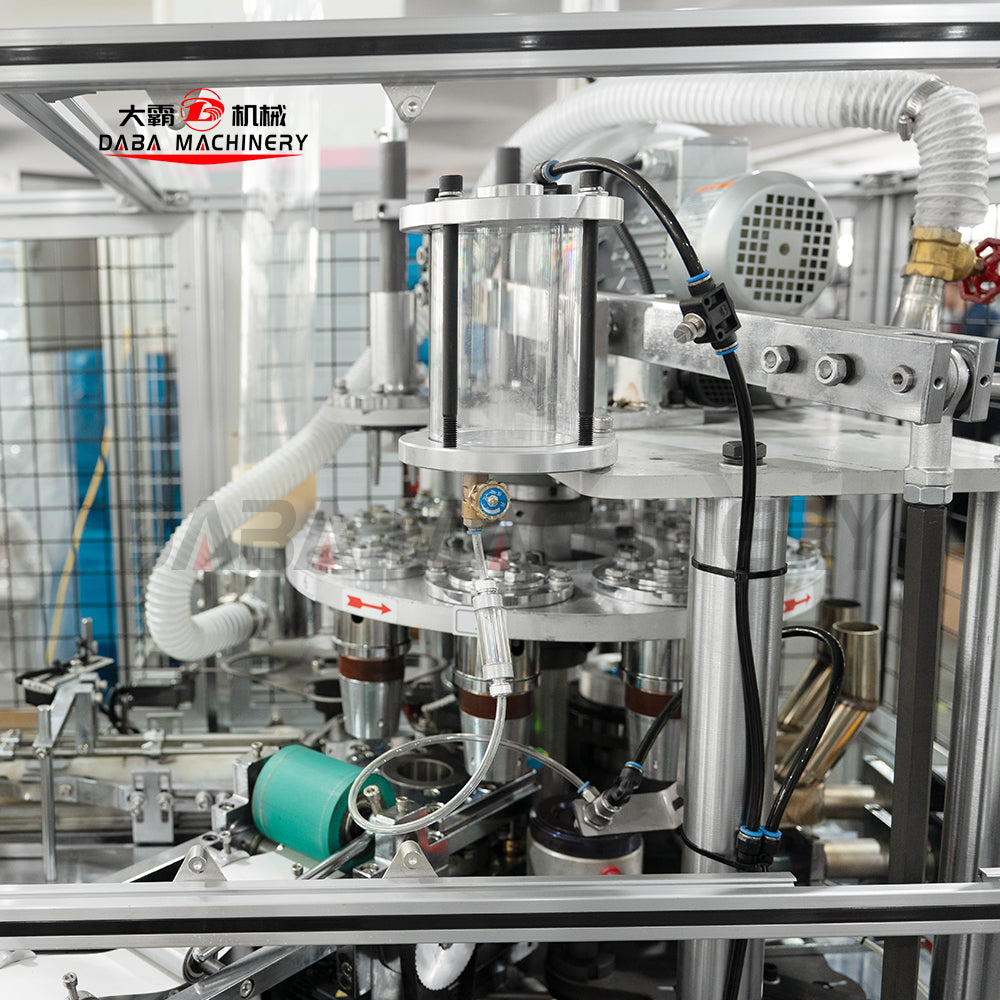

DBDP-B110-90 single-disc medium-speed paper cup molding machine has been upgraded on the basis of the old model, which shortens the overall stroke of the equipment, thus improving the relative time of production efficiency; the whole machine adopts spray lubrication to reduce wear and tear of the machine parts; the use of open intermittent cam system, gear transmission, high precision, high output, greatly increasing the service life, making up for the inherent shortcomings of the chain transmission jerky and unstable transmission. Inherent shortcomings of chain transmission. The cup wall and cup bottom adopt Swiss Lester heater (heater brand is optional); the cup making process adopts PLC control, photoelectric eye fault monitoring and servo control, which improves the performance of the equipment and realizes fast and stable operation. Failure automatic shutdown, greatly reducing the labor intensity of workers, improve the safety and stability of the equipment.

Product Size

Features/Functions

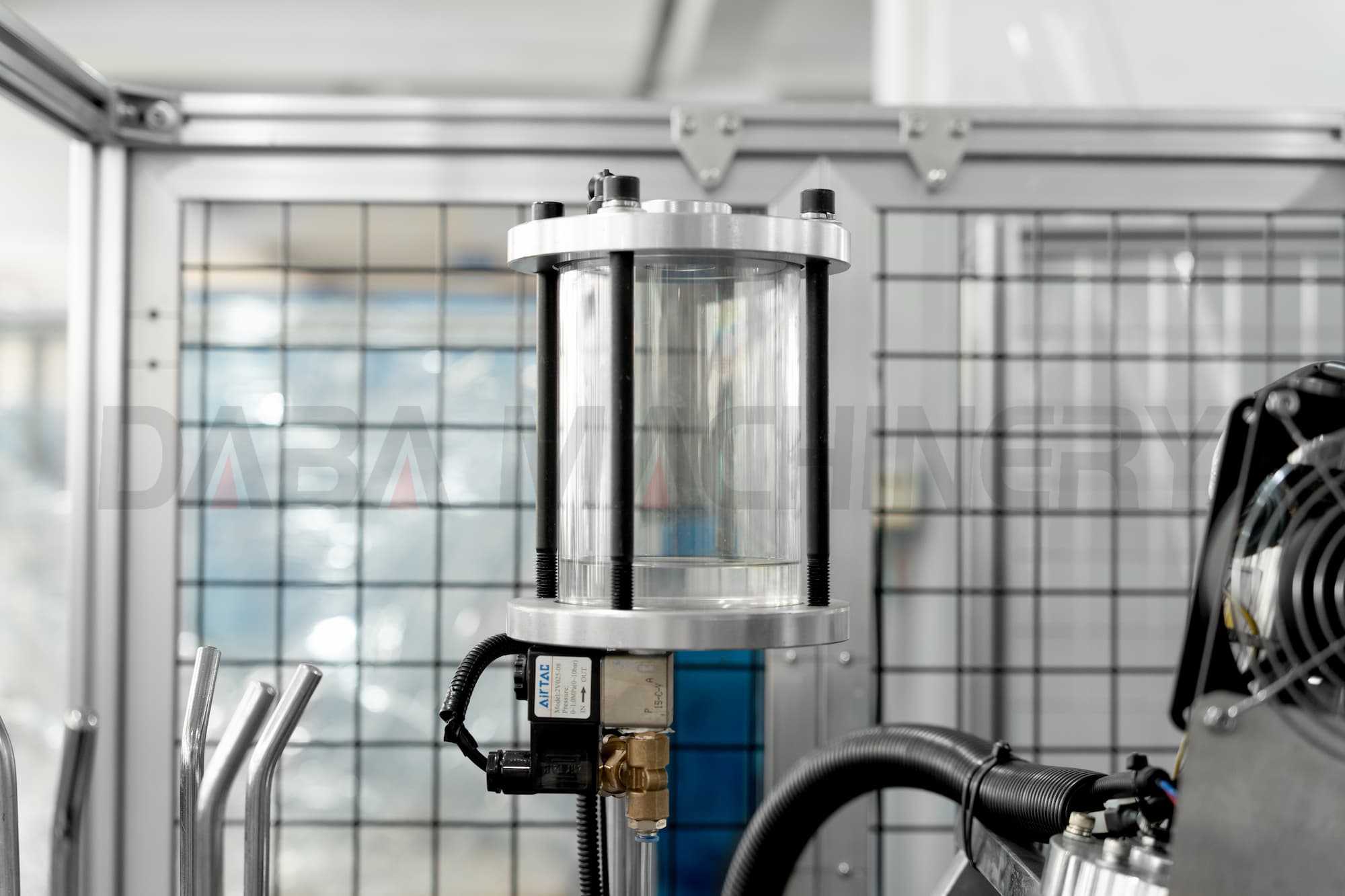

Spray Lubrication: The entire machine uses spray lubrication to reduce component wear.
Open Cam & Gear Drive: Adopts an open intermittent cam system with gear transmission, offering high precision and productivity, significantly extending service life, and eliminating the inherent vibration and instability issues of chain-driven systems.

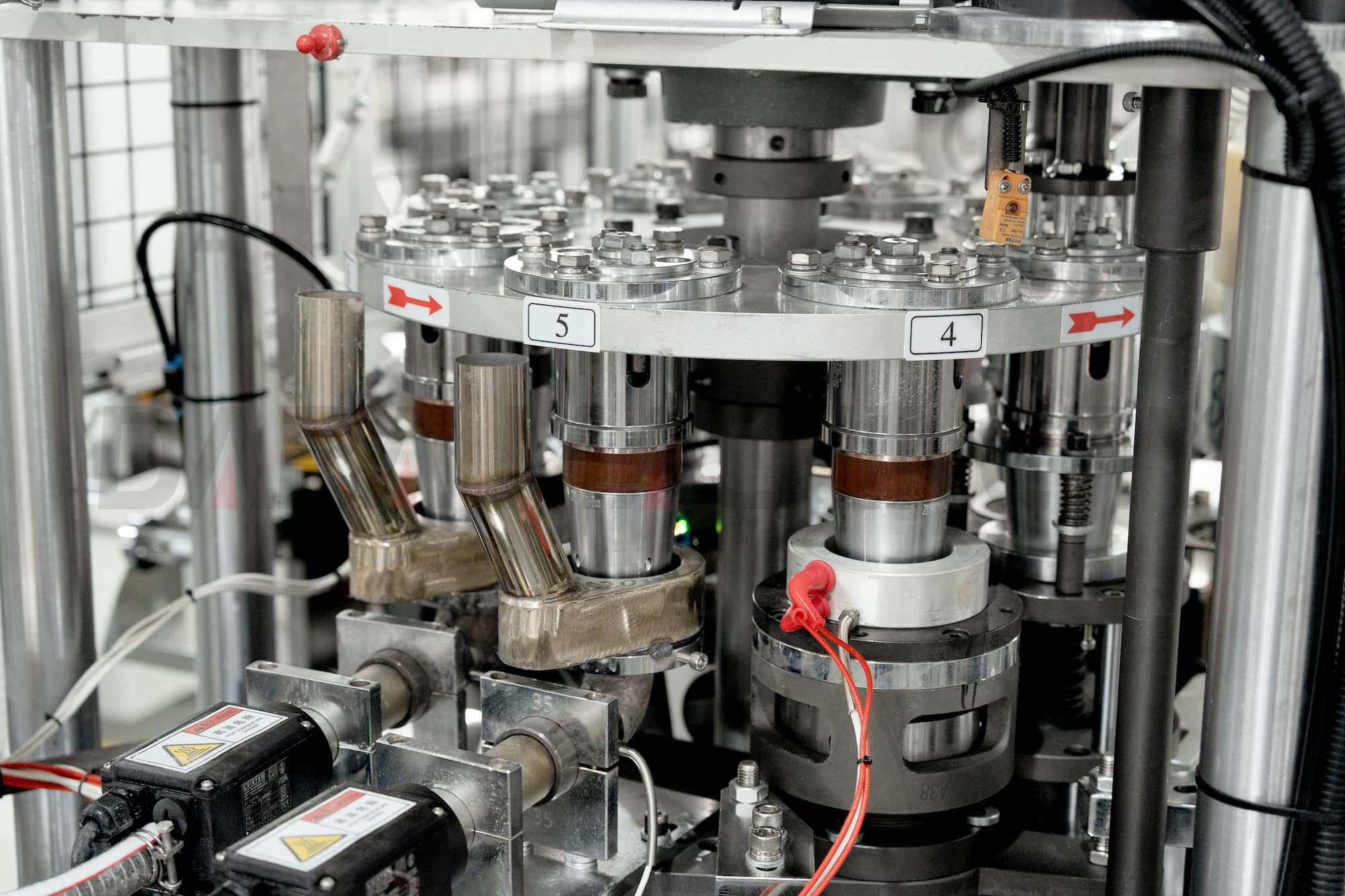

Leister Heaters: The cup wall and cup bottom are heated using Swiss Leister heaters (heater brand optional).

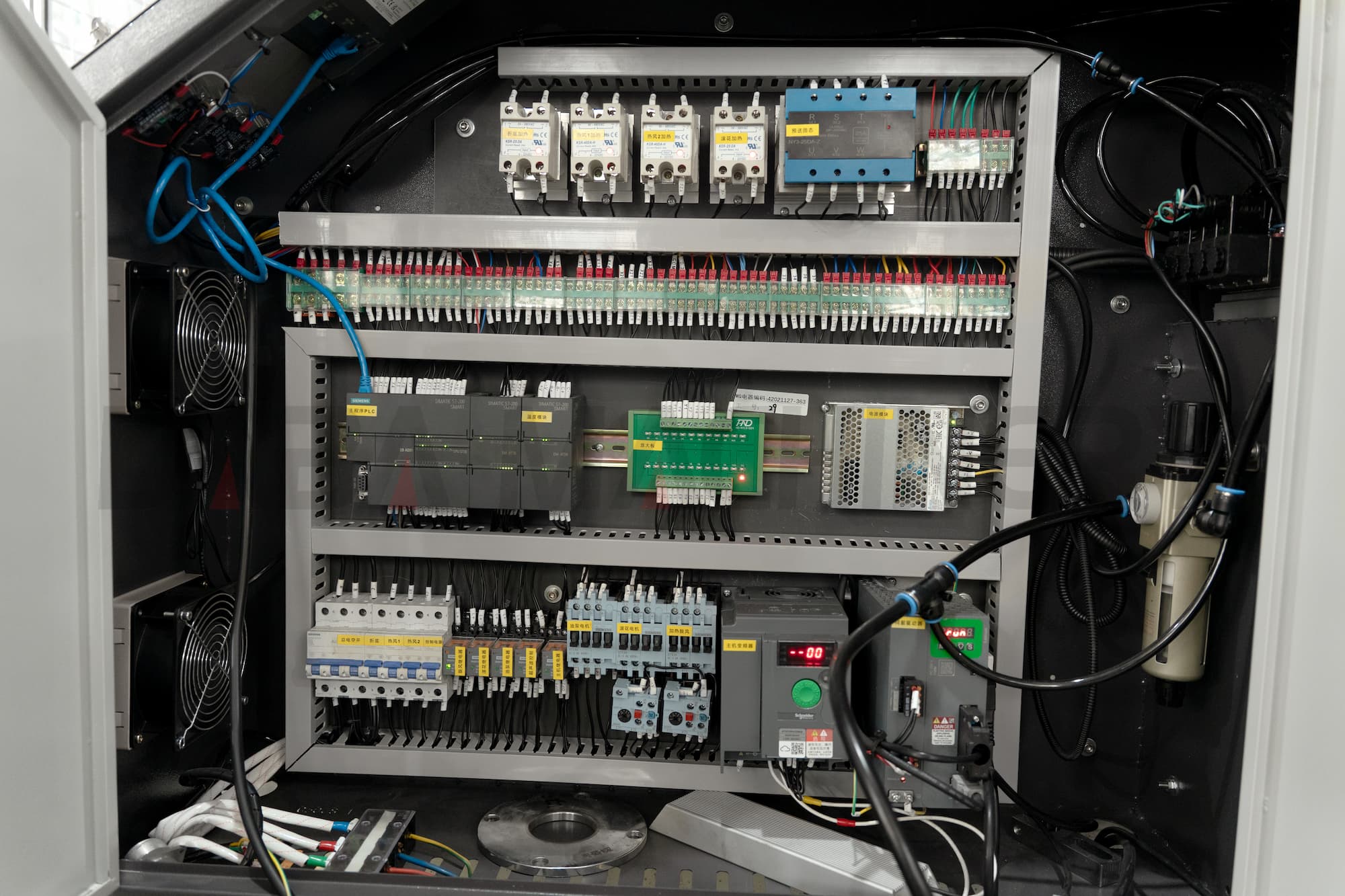

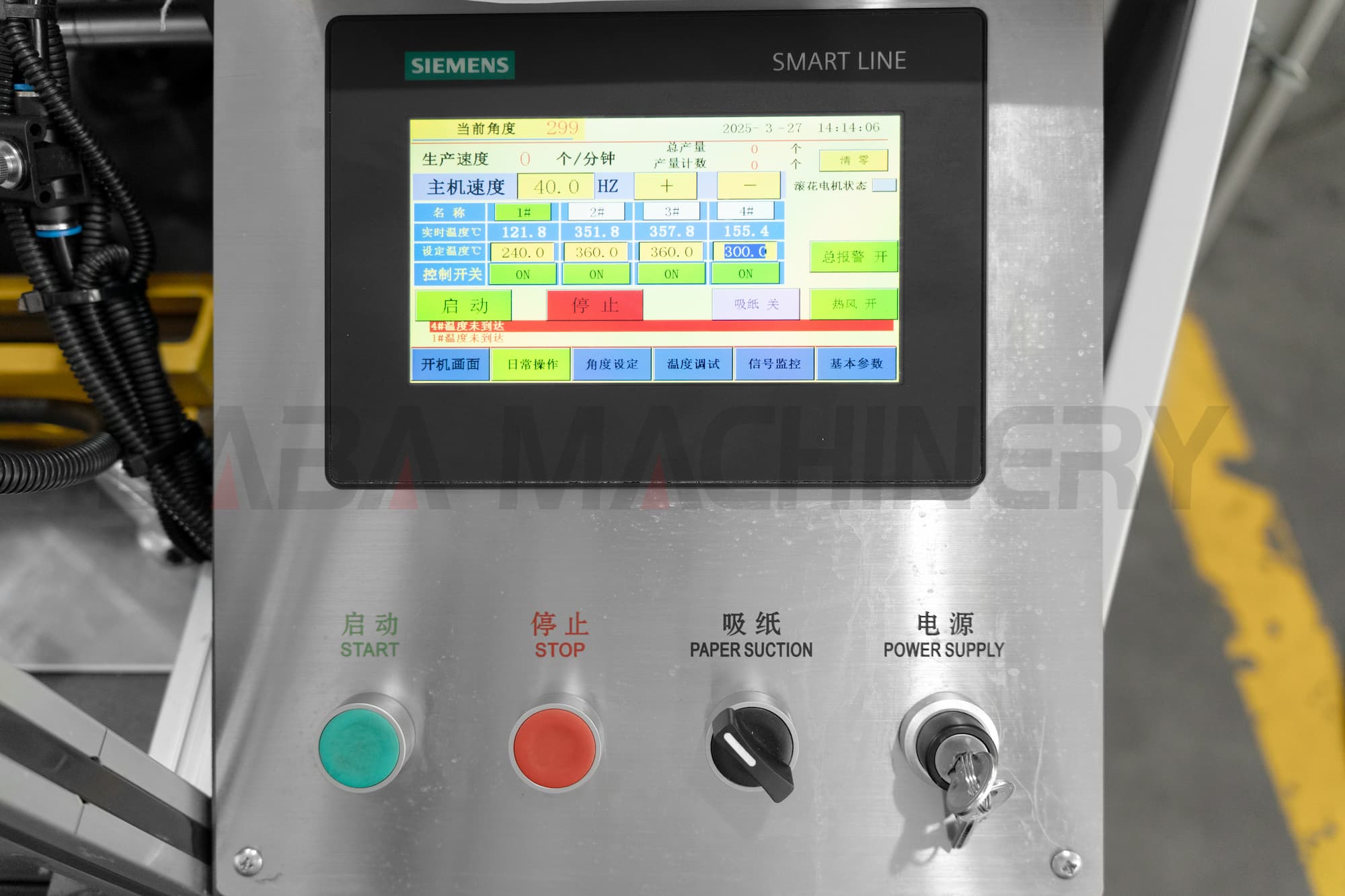

PLC & Servo Control: The cup-making process is PLC-controlled, with photoelectric sensors providing full-process fault monitoring and servo control to enhance performance, enabling fast and stable operation.
Automatic Fault Shutdown: Automatic shutdown in case of faults greatly reduces operator labor intensity while improving equipment safety and stability.
