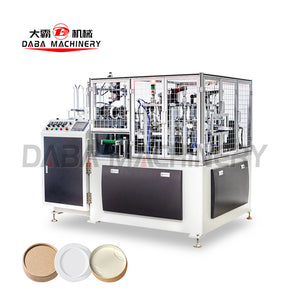

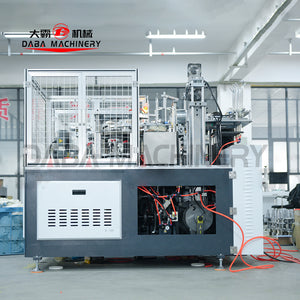

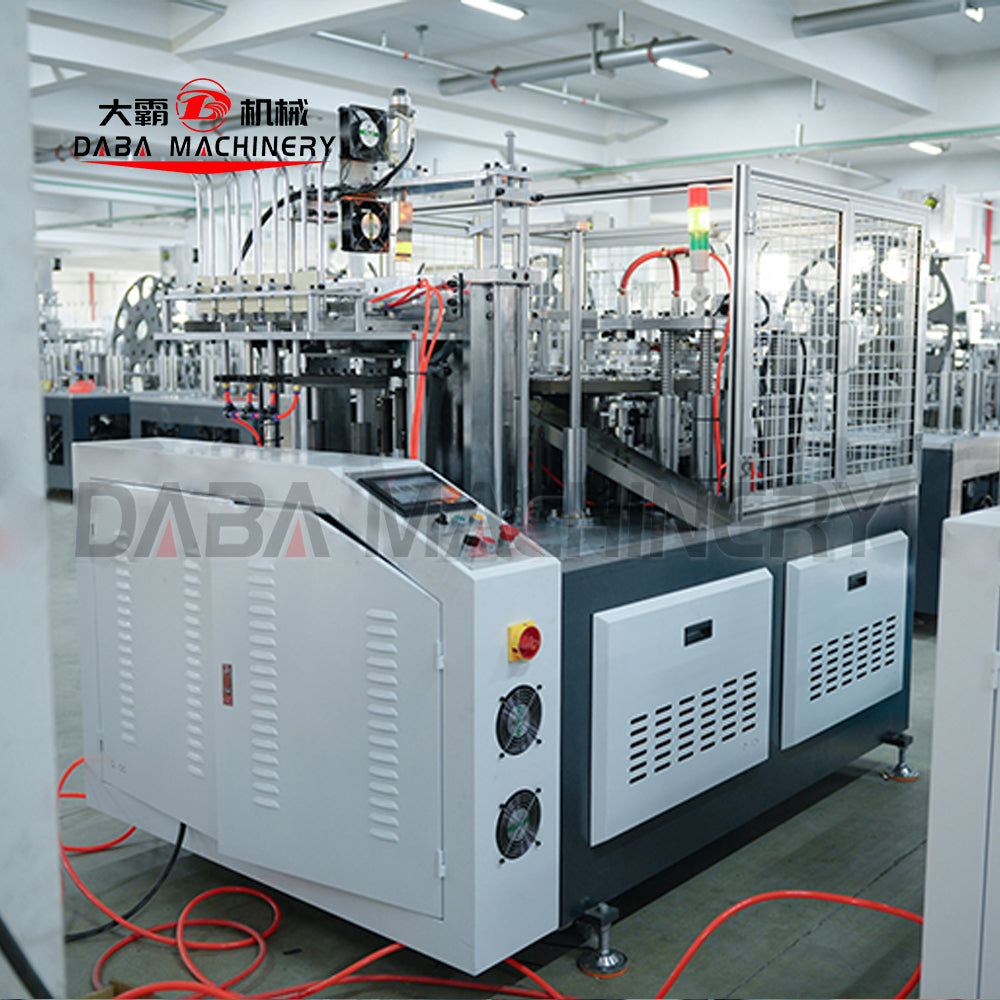

DBCX-S125-75 Double Layer Paper Lid Forming Machine

Vendor: DABA Machine
  • Model: DBCX-S125-75
  • Production Capacity: 60pcs/min
  • Paper thickness requirements: 280-450g/㎡
  • Raw Material: Single/Double PE or PLA coated paper, laminated coated paper, varnished laminated paper
  • Paper Lid Diameter: 65-125mm
  • Paper Lid Height: 14-20mm
  • The motor power: 6.5 KW
  • Power supply: AC 380V, 3-Phase, 50Hz(customizable)
  • Air consumption: 0.12 m³/min
  • Air pressure: 0.4 MPa
  • Overall package size (L*W*H): 2350*1700*1850mm
  • Total weight: 3000KG

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The automatic paper cover forming machine is developed based on the full absorption of the latest Korean and German-style paper cover machines according to the domestic situation. It fully fills the gaps in the domestic paper cover machines and is a patented product of our company. The automatic paper lid forming machine is an ideal equipment for producing paper container lids such as paper soup bowl lids, instant noodle bowl lids, coffee cup lids, and ice cream paper cup lids. The automatic paper cover forming machine is easy to operate, stable in performance, small in area, and high in efficiency. It is the first choice for investment and entrepreneurship. Our company accepts custom paper covers of various specifications from customers.

Product Size

Production Size

Paper Cover Material

Production Size
  1. The machine body is built from high-quality materials, ensuring high strength and durability.

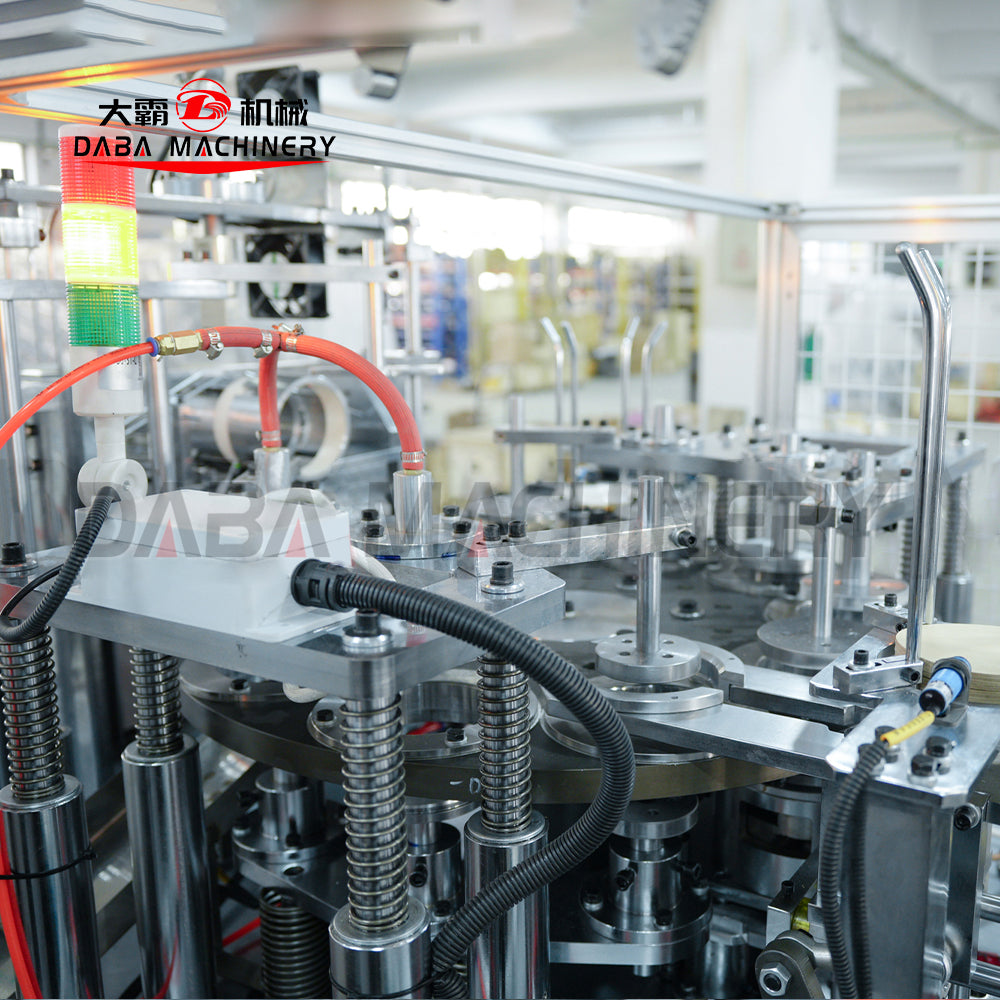

  2. Equipped with a fully automatic lubrication system, the structure runs smoothly with stable forming performance and low noise.

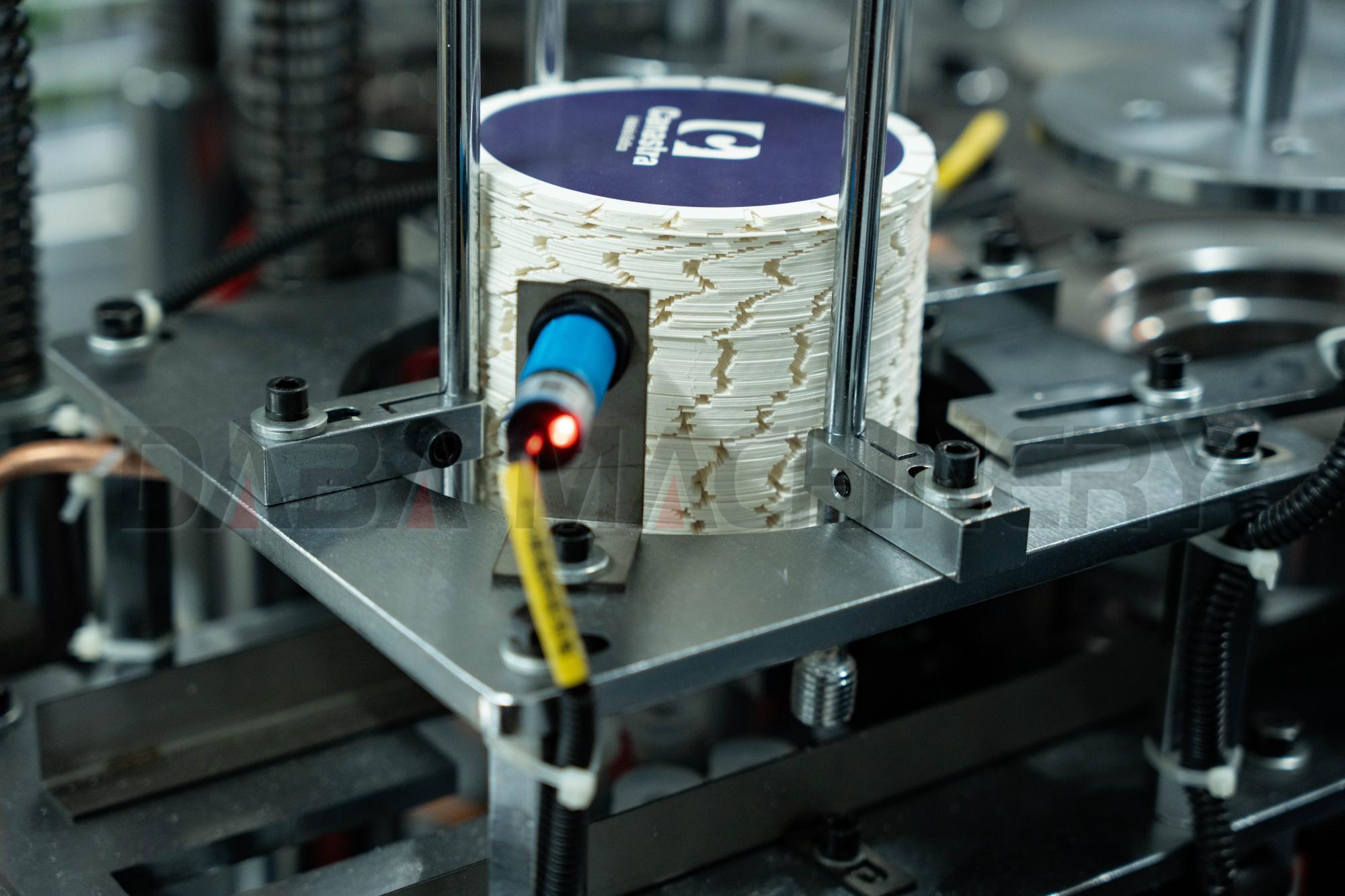

  3. Multiple photoelectric sensors are installed to monitor machine operation, providing a reliable safety protection system.

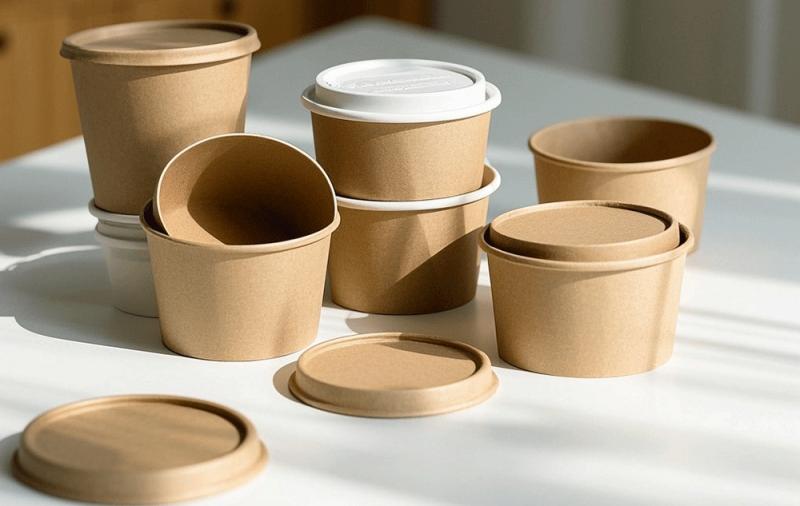

Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper cup production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into cup fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean cup fans.

7. Cup Fan

Paper segment prepared for cup forming.

8. Paper Cup Machine

Forms cup fans and bottom paper into cups.

9. Bottom Paper

Material used for forming cup bases.

10. Paper Cup

Completed paper cup ready for inspection.

11. Paper Cup Inspection Machine

Ensures each cup meets quality standards.

12. Double Wall Paper Cup Sleeve Machine

Adds insulating sleeve for double-wall cups.

13. Packing Machine

Packs cups for transportation.

14. Packaging Paper Cups

Final packaged products ready for shipment.

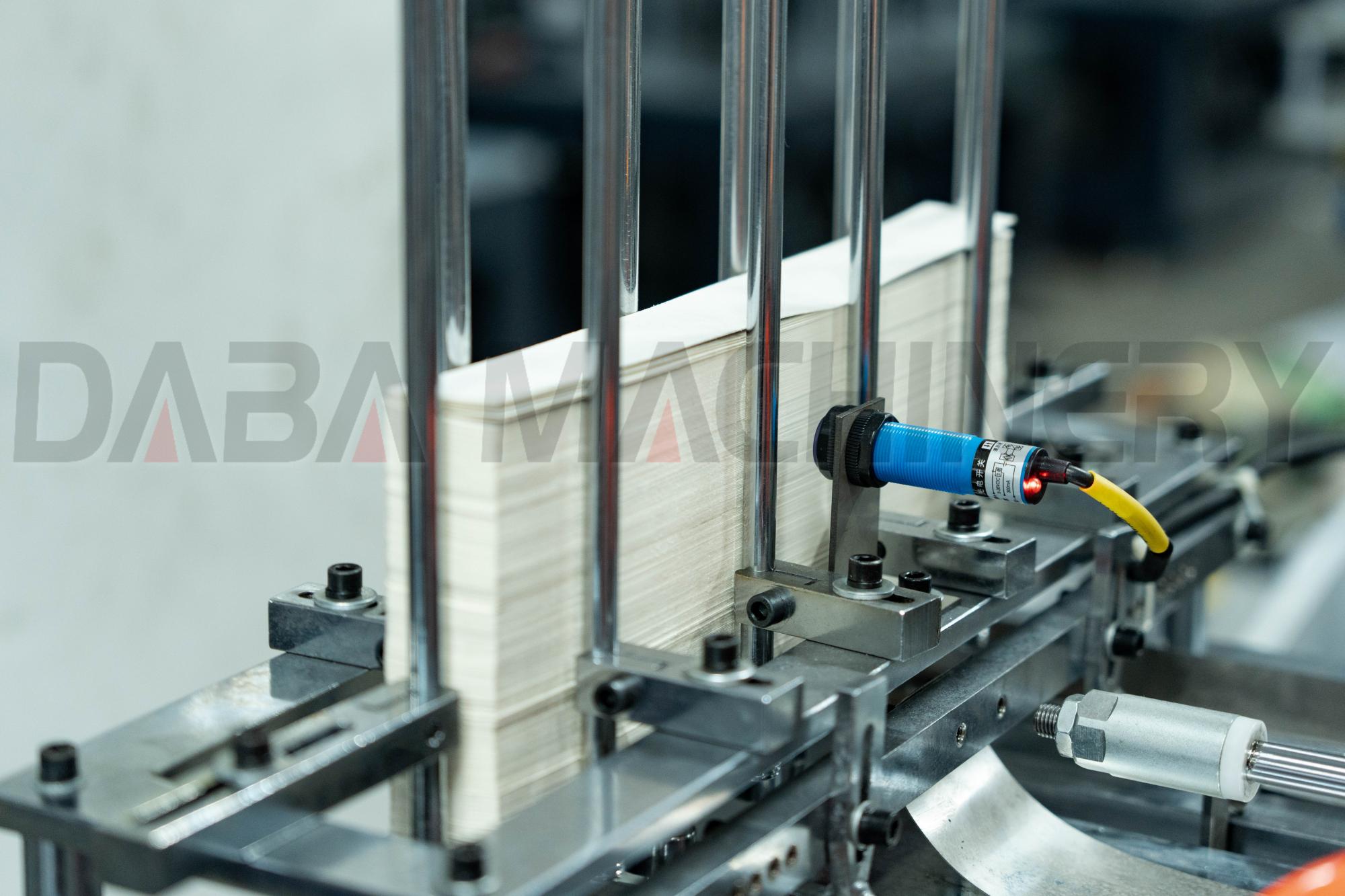

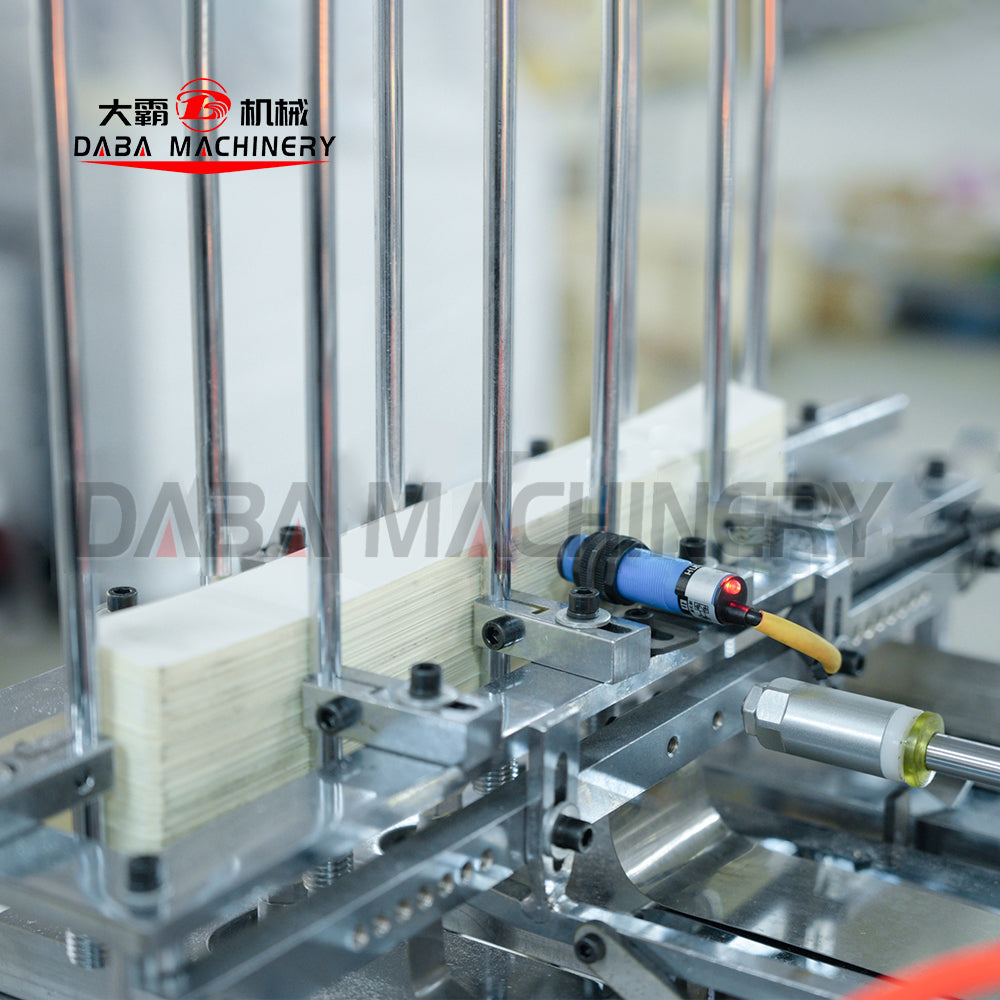

Paper Feeding Rack: Manual paper loading with suction cups for up-and-down feeding

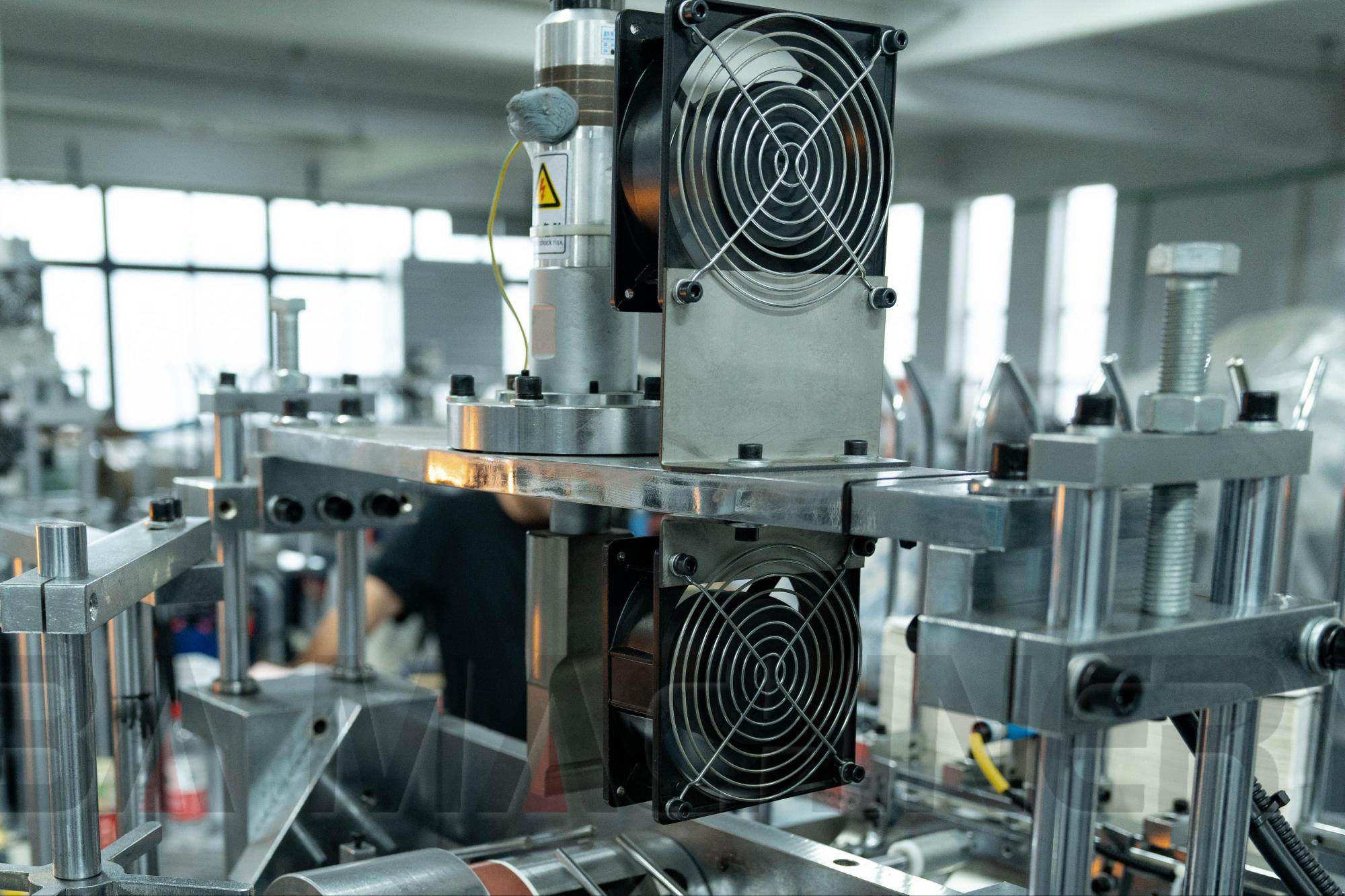

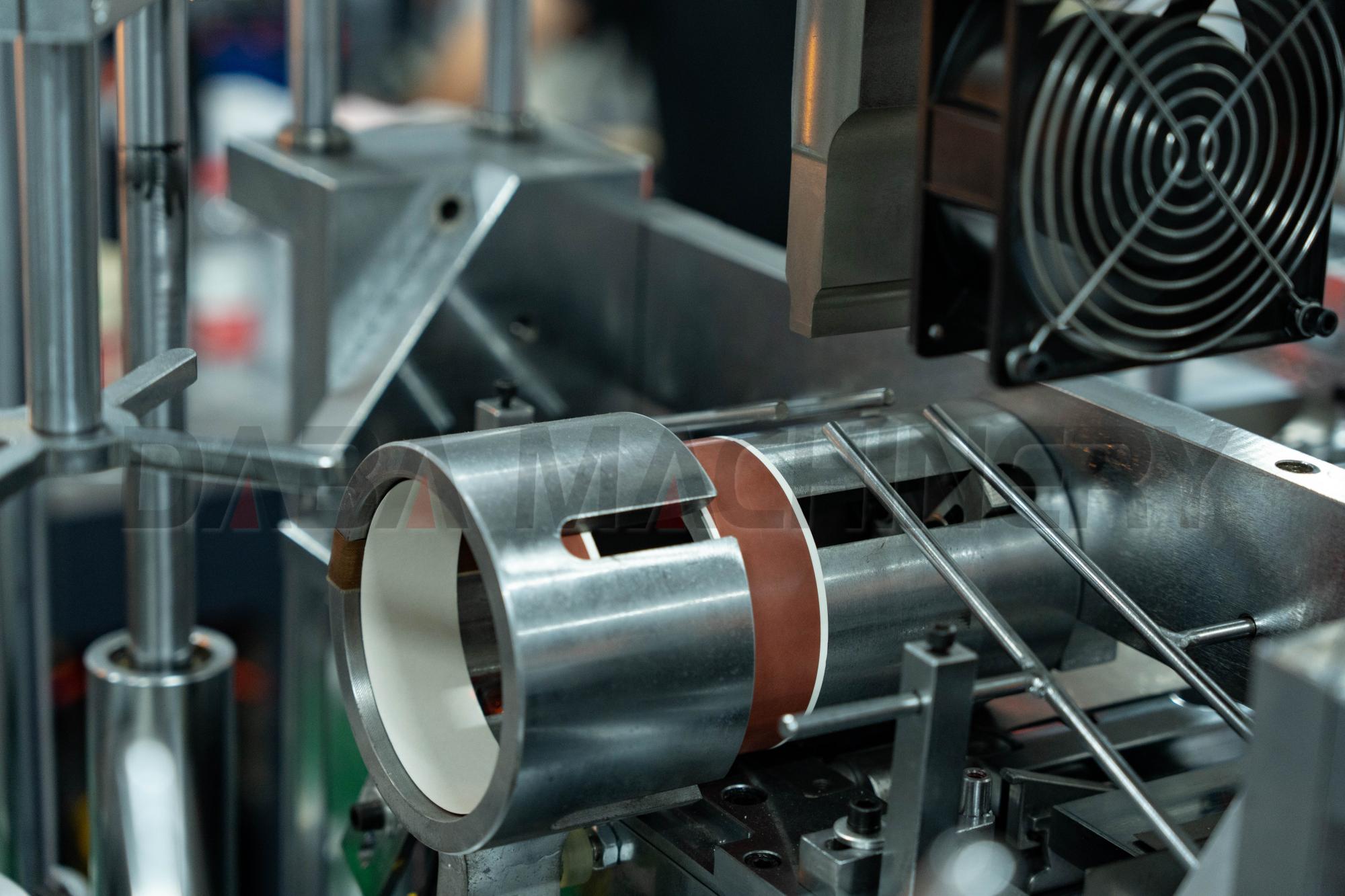

Welding Device: Utilizes ultrasonic heating technology for precise welding

Sidewall Clamping & Bonding: Ensures proper forming of the paper lid sidewall

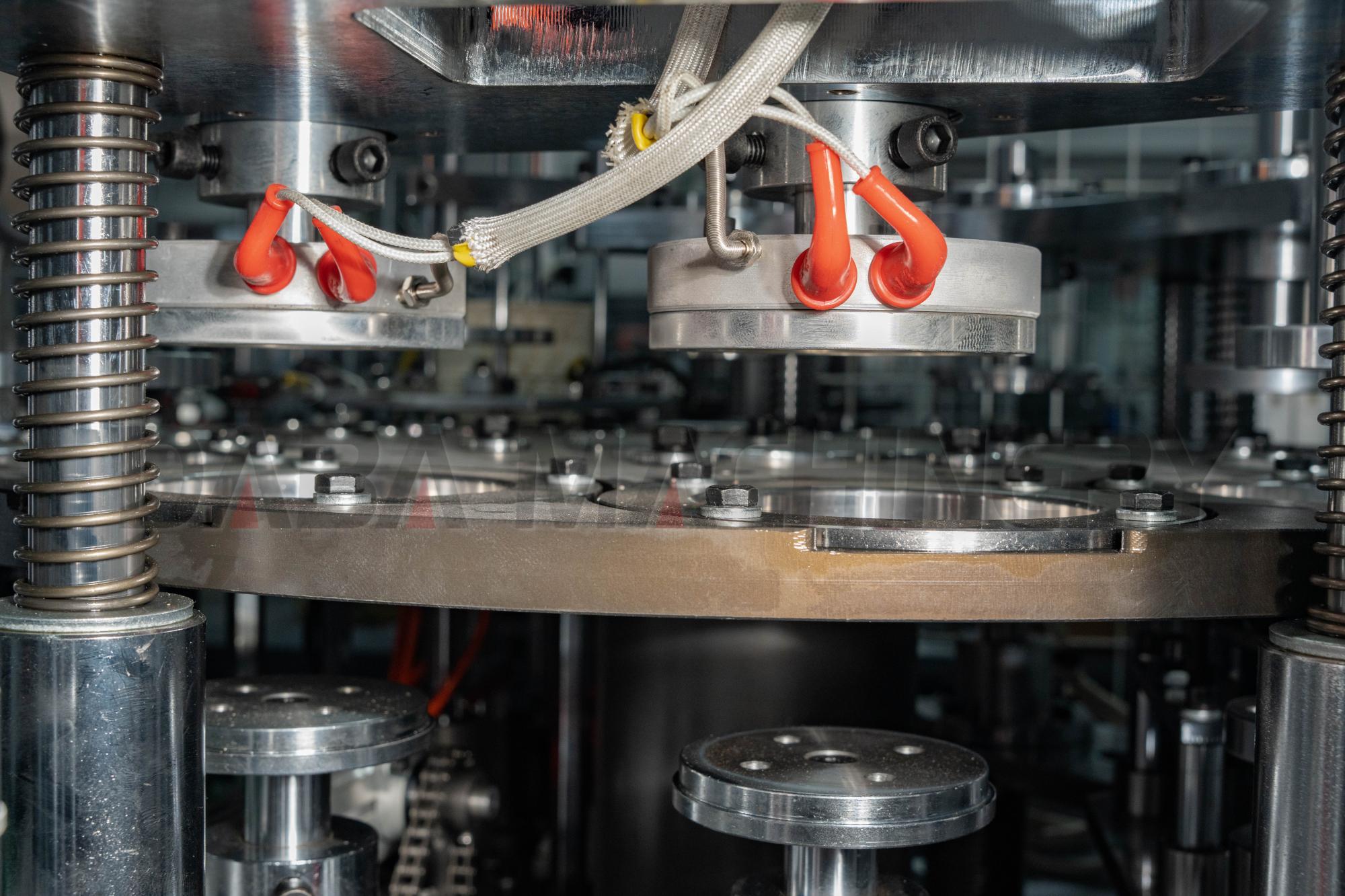

Bottom Punching: Presses the cup bottom onto the top edge of the paper lid sidewall

Curling: Provides both initial curling and final curling processes

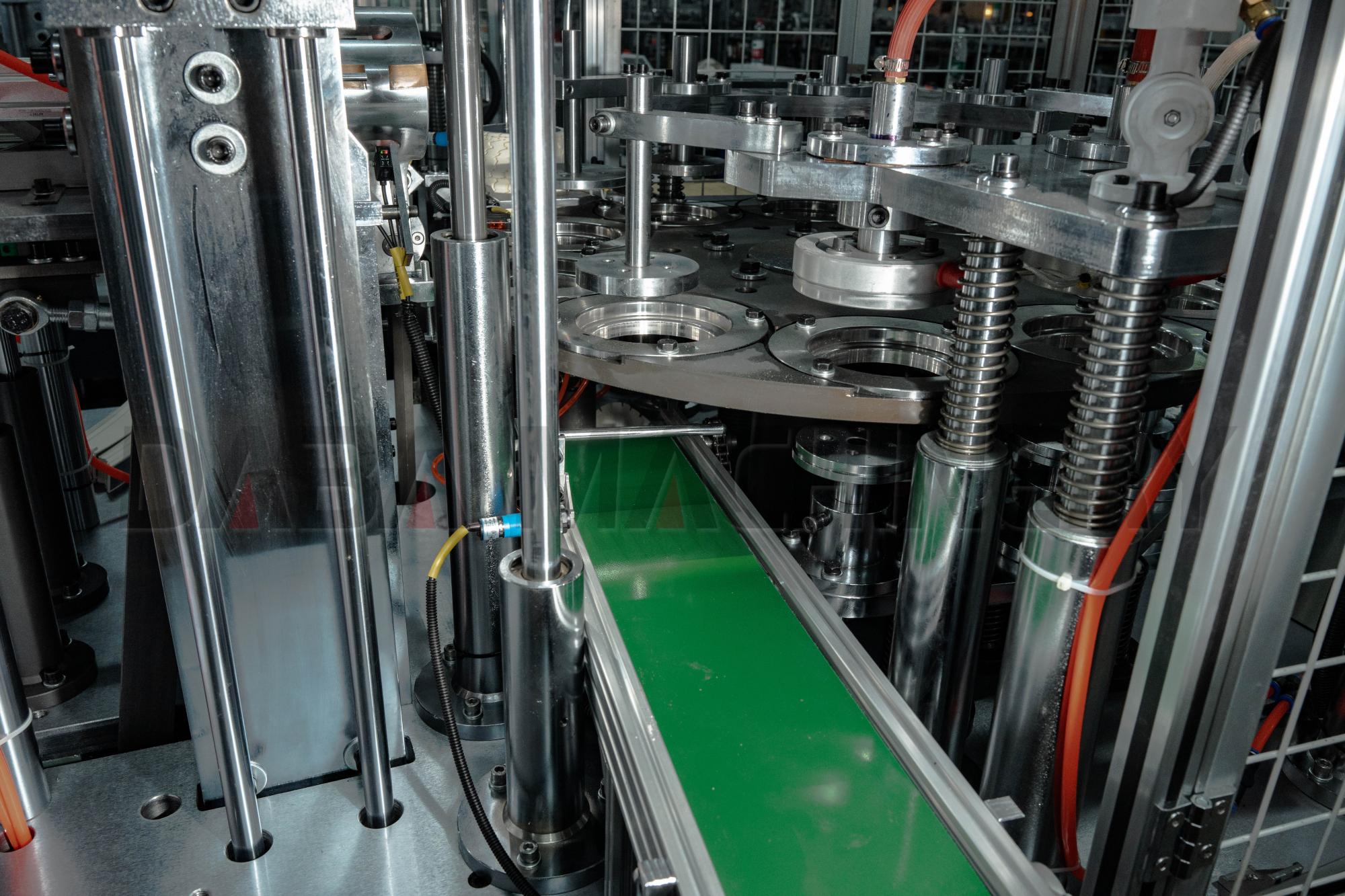

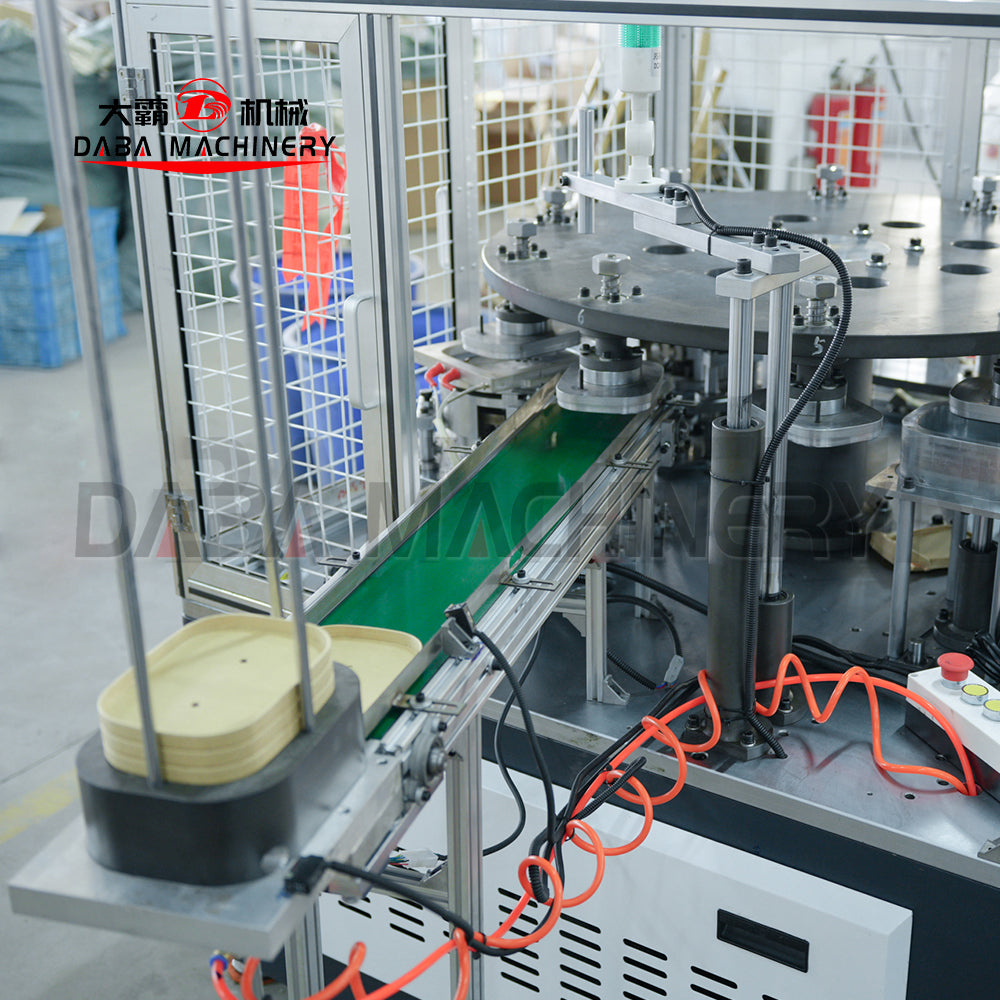

Lid Discharge Station: Lids are delivered through a sloped channel

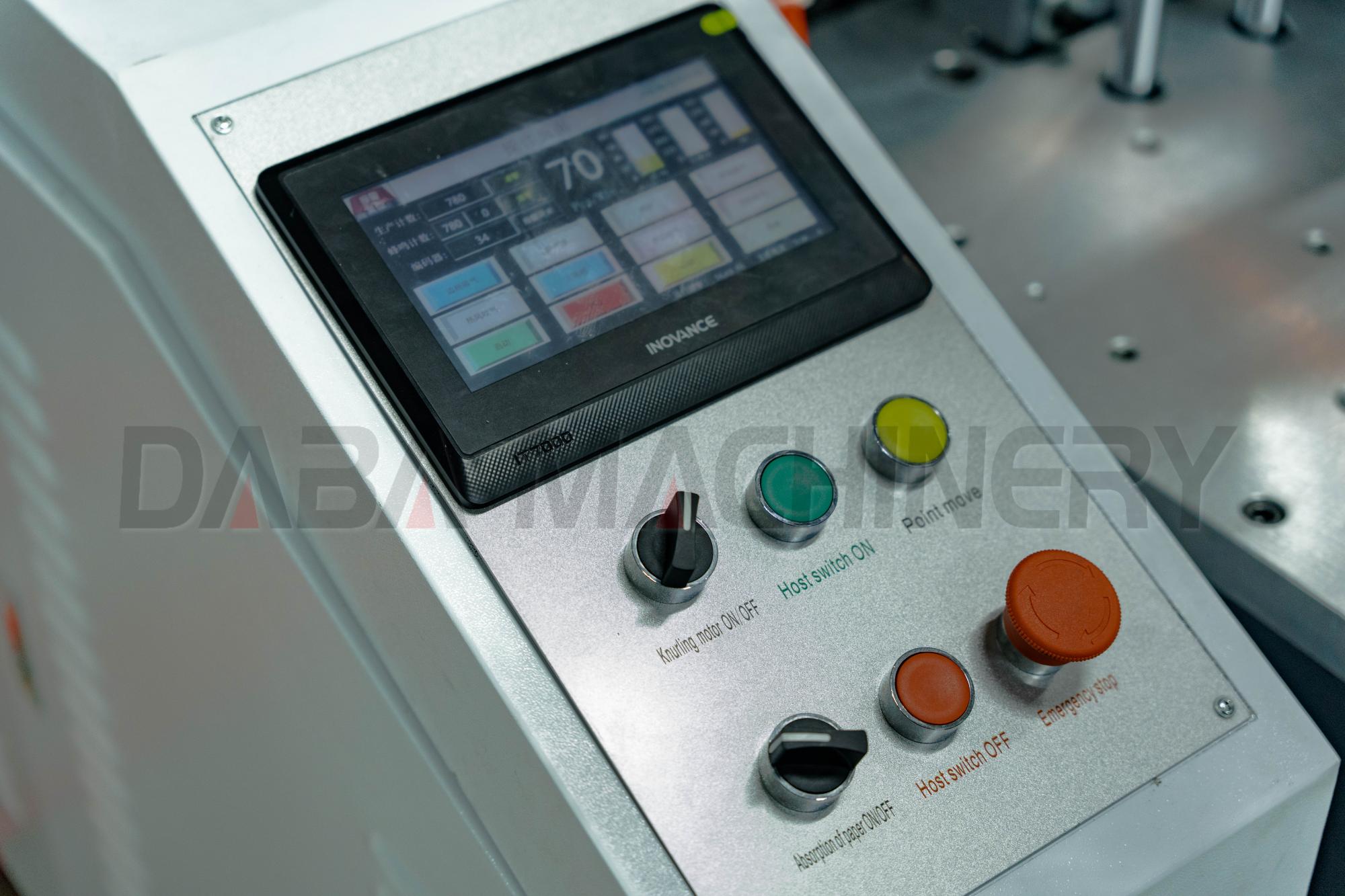

Control Panel: Easy and convenient operation

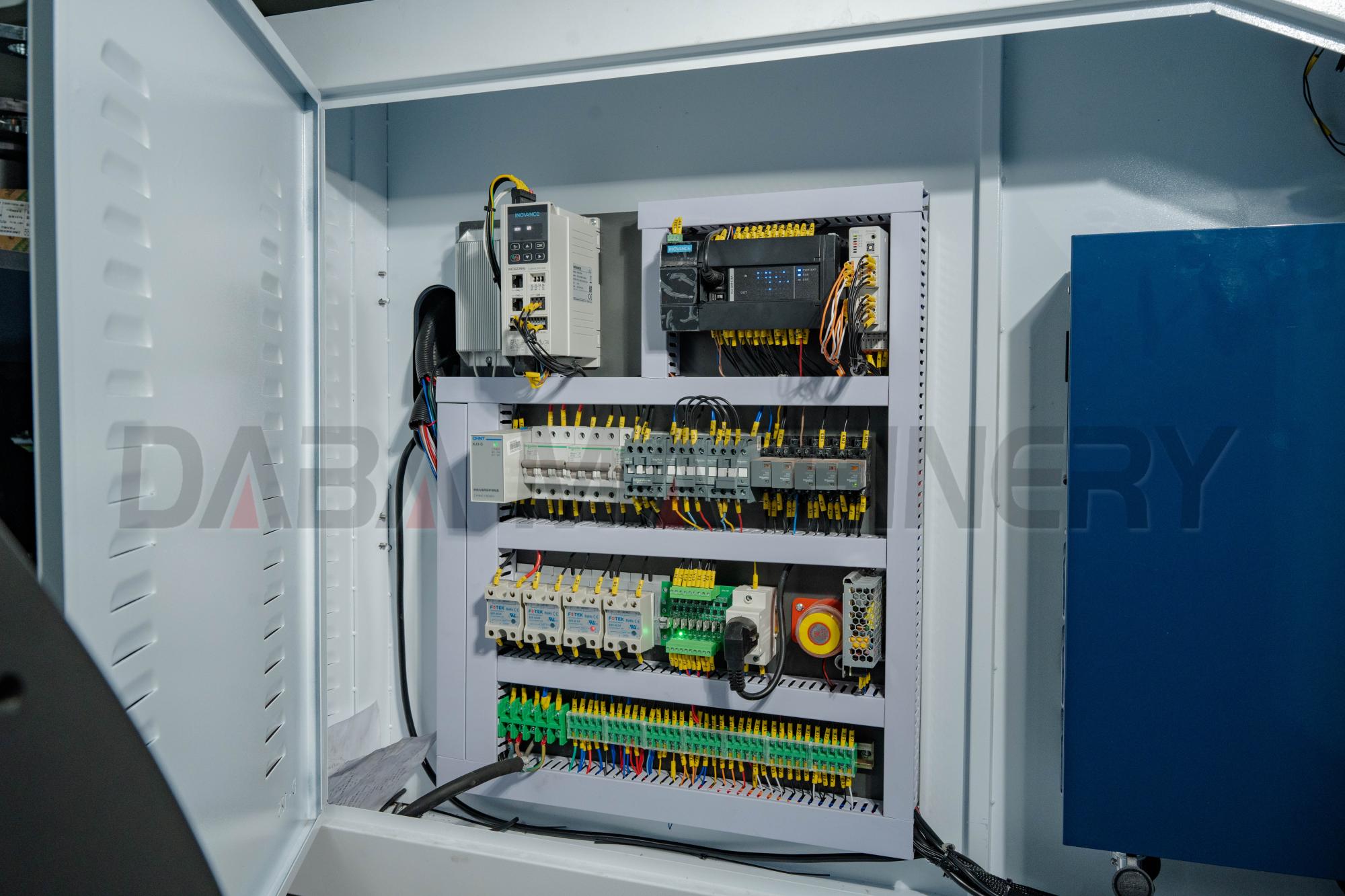

Power System: Ensures safe operation, energy efficiency, and reliability
