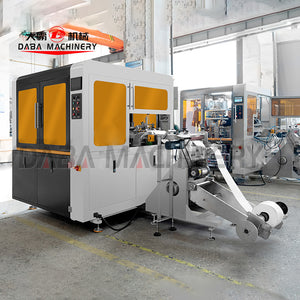

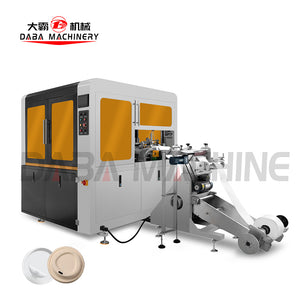

DBCX-J100-110 Single Layer Roll Feeding Cup Lid Forming Machine

  • Model: DBCX-J100-110
  • Production Capacity: 70-100pcs/min
  • Paper thickness requirements: 250-480g/㎡
  • Raw Material: Single/Double PE or PLA coated paper, laminated coated paper, varnished laminated paper
  • Paper Lid Diameter: 60-100mm
  • Paper Lid Height: 8-15mm
  • The motor power: 10 KW
  • Power supply: AC 380V, 3-Phase, 50Hz(customizable)
  • Air consumption: 0.02 m³/min
  • Air pressure: 0.3 MPa
  • Overall package size (L*W*H): 1920*1640*2000mm
  • Total weight: 2100KG

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The single-layer paper cover forming machine series equipment adopts advanced forming technology, which has the advantages of simple operation, easy mold replacement, stable performance, high efficiency, environmental protection and energy saving. According to the different requirements of customers, it adopts automatic roll paper feeding and paper sheet feeding, creasing, embossing, punching, feeding to the mold, heating, crease, knurling, forming and other series of automatic functions. The same mold can achieve different design requirements on the top of the lid by changing the indentation version.The automatic single-layer paper lid forming machine is suitable for lids made of coated paper, ice cream cup lids, coffee cup lids, noodle bowl lids, salad bowl lids, etc. It has largely replaced the plastic cover on the market.

Product Size

Production Size

Customizable Opening Holes

Production Size

Paper Cover Material

Production Size
  1. High speed.
  2. Roll paper/sheet paper (you can choose one of them according to your needs)
  3. Automatic creasing (guide line),
  4. Automatic embossing (the logo and shape on the lid can also be cross-cut),
  5. Automatic punching (cut roll paper into cover),
  6. Cover a piece of paper to save costs.
  7. PLC control + servo motor paper feeding
  8. Open cam + shaft + cam + gear control movement, stable and reliable.
Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper cup production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into cup fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean cup fans.

7. Cup Fan

Paper segment prepared for cup forming.

8. Paper Cup Machine

Forms cup fans and bottom paper into cups.

9. Bottom Paper

Material used for forming cup bases.

10. Paper Cup

Completed paper cup ready for inspection.

11. Paper Cup Inspection Machine

Ensures each cup meets quality standards.

12. Double Wall Paper Cup Sleeve Machine

Adds insulating sleeve for double-wall cups.

13. Packing Machine

Packs cups for transportation.

14. Packaging Paper Cups

Final packaged products ready for shipment.

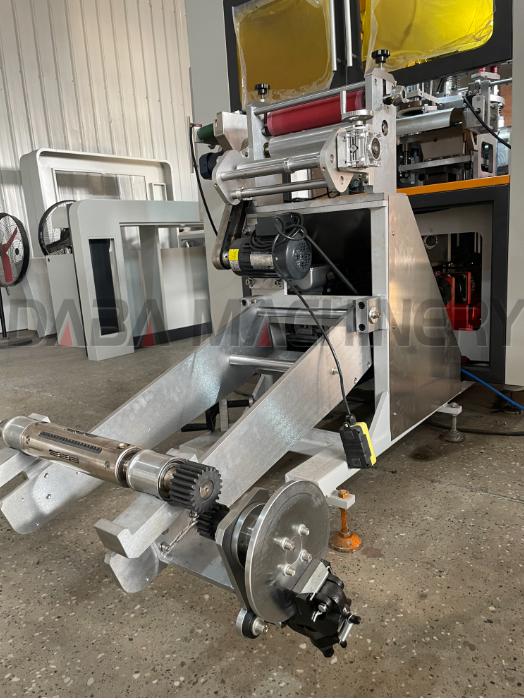

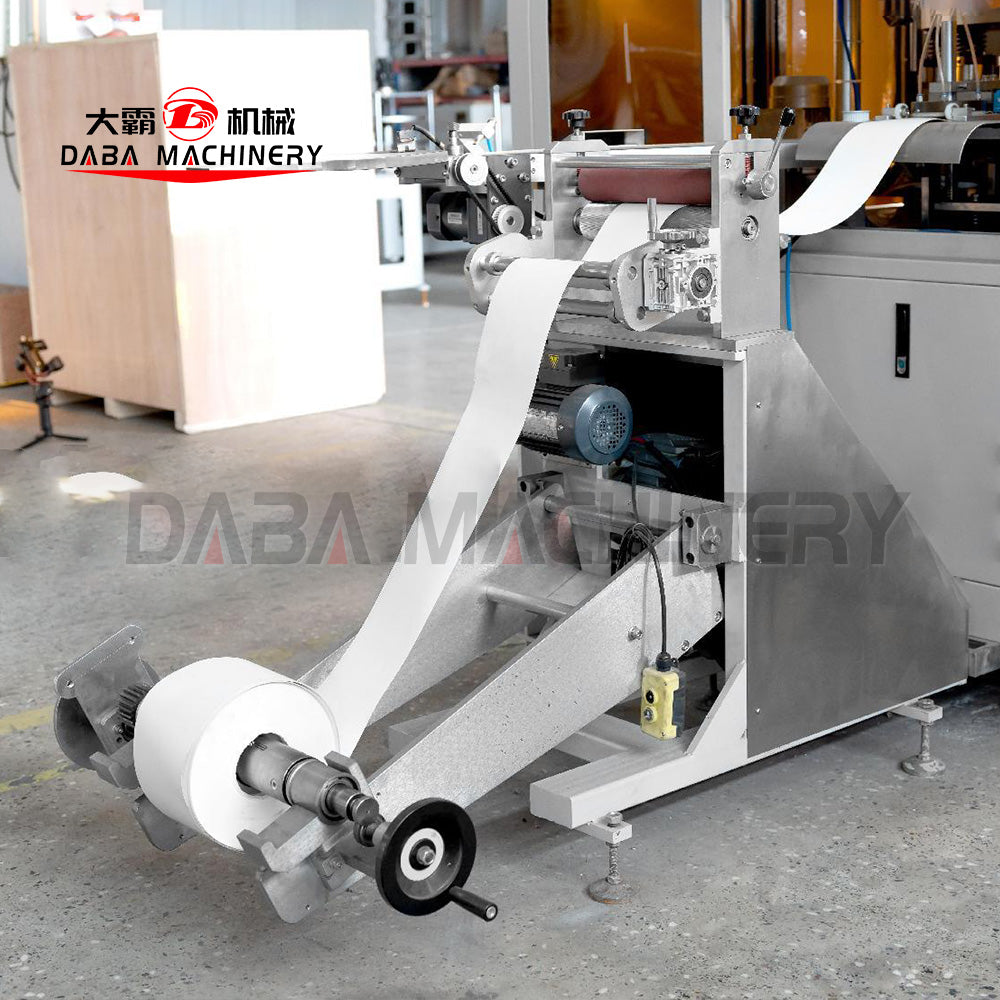

Unwinding paper with air shaft, paper feeding controlled by servo motor

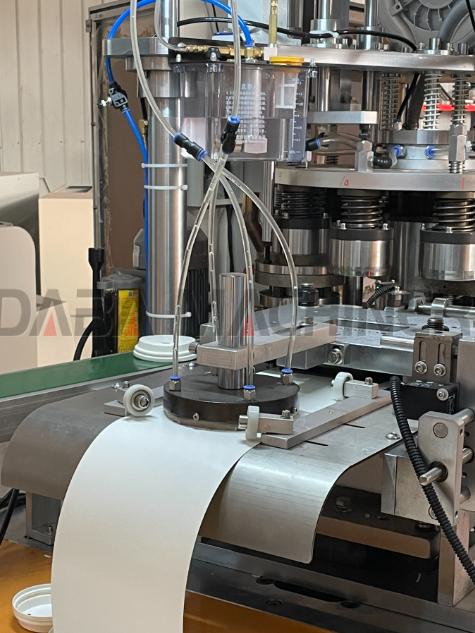

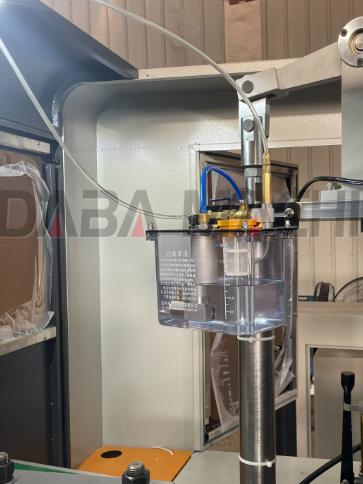

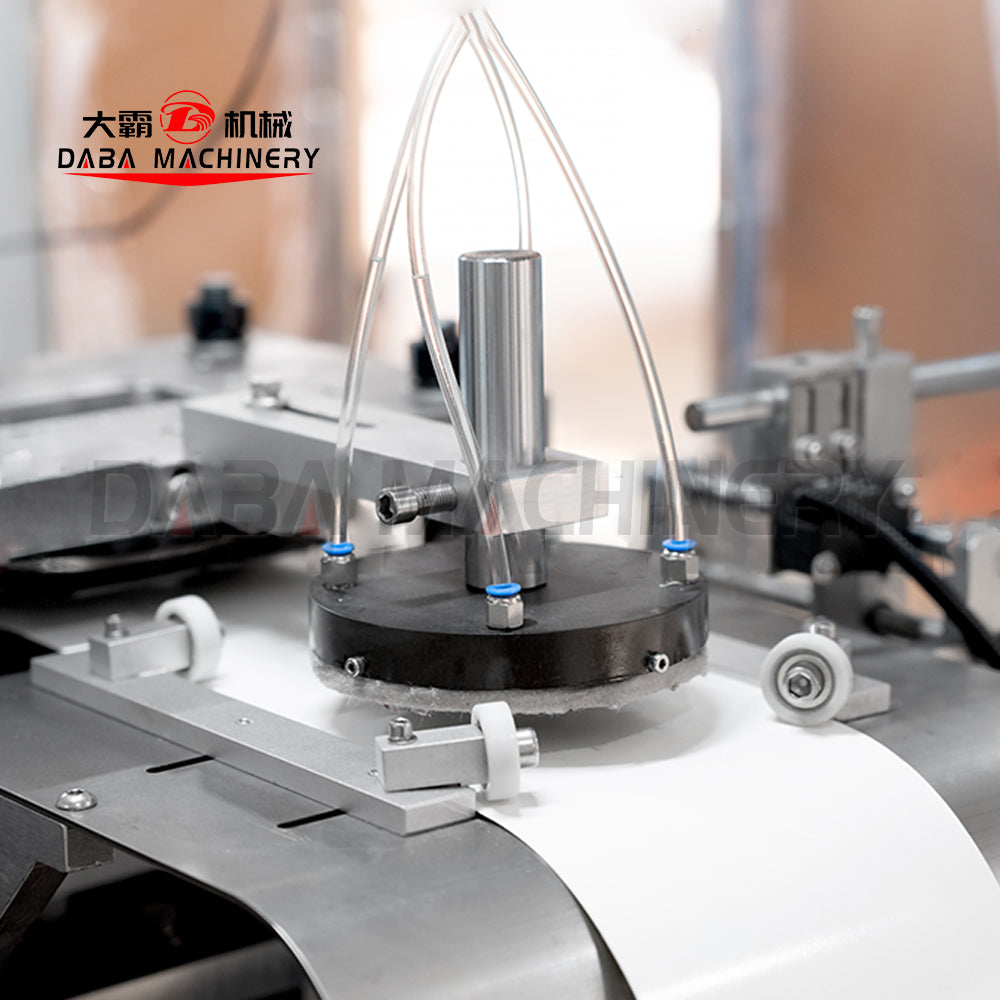

Lubrication device applies lubricant to the paper sheets

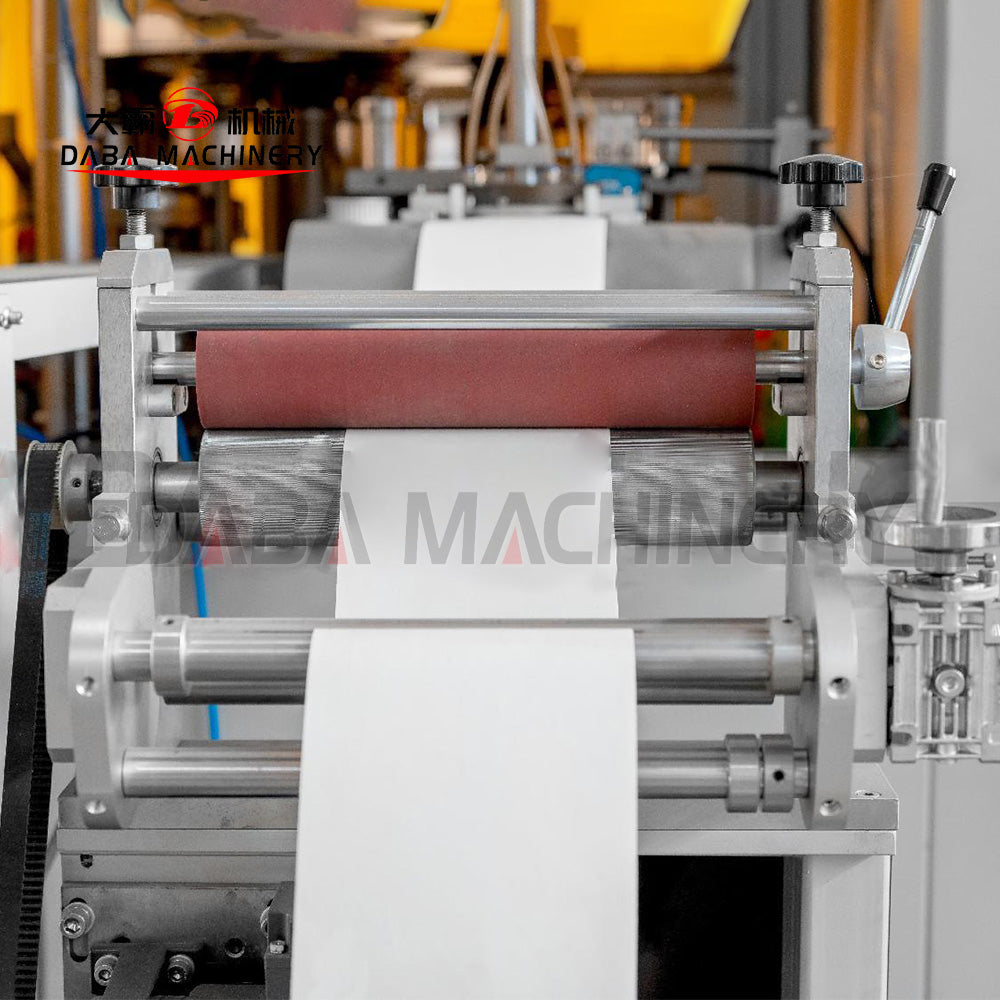

Creasing unit presses groove lines on the paper

Punching and embossing for brand logo or textured patterns

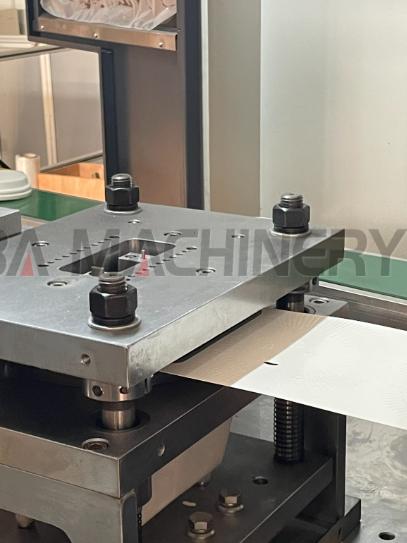

Die-cutting circular cup blanks, with waste discharged through a chute

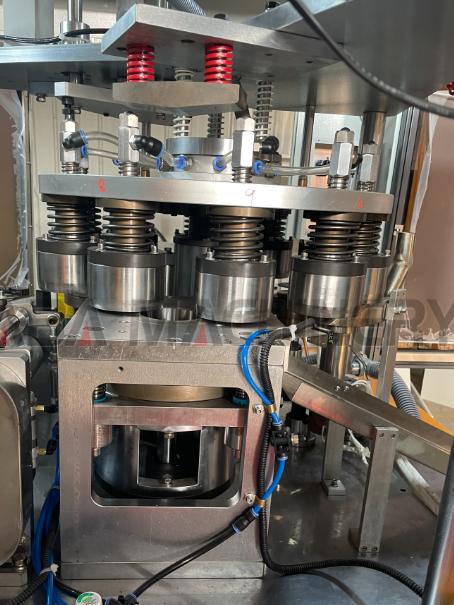

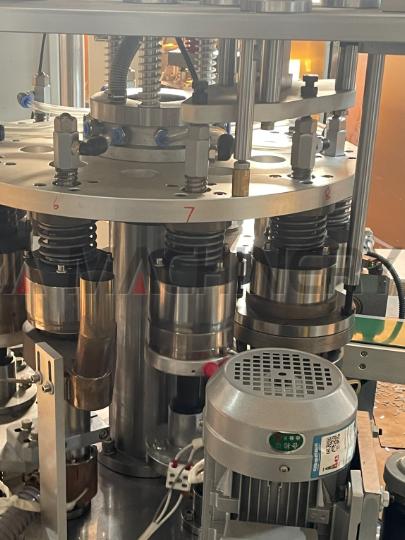

Heating to soften the PE/PLA coating and complete stereoscopic edge folding

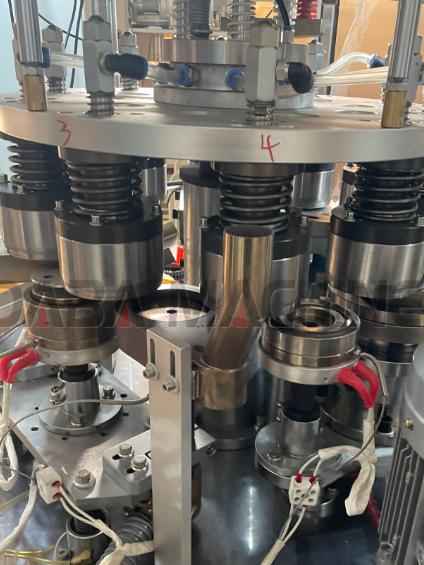

Knurling process to enhance tightness and prevent leakage

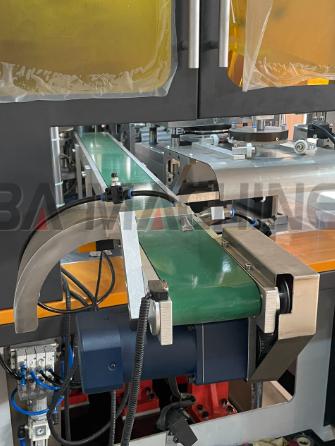

After forming, the lids are conveyed and collected through a conveyor belt.
