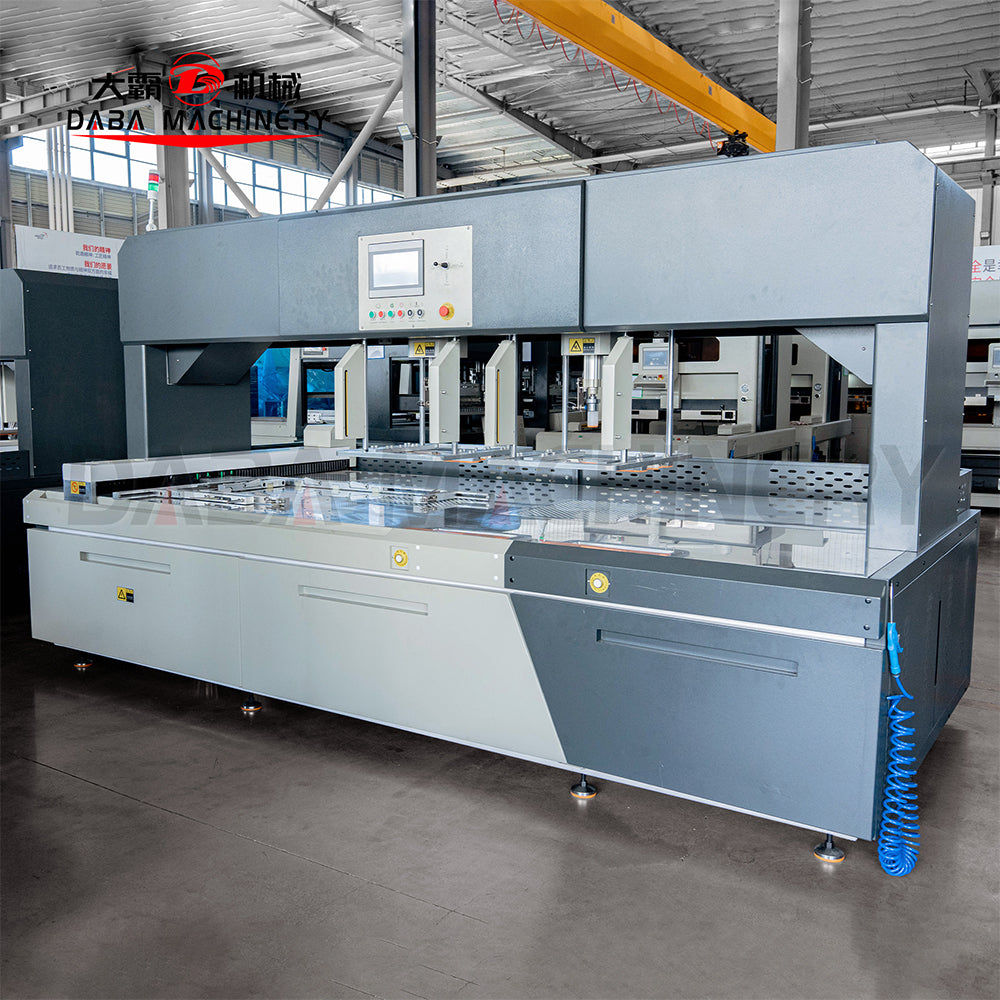

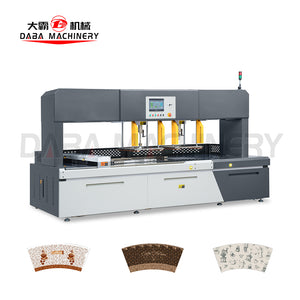

DBQF-T1080 Double Heads Waste Stripping Machine

Vendor: DABA Machine

Model: DBQF-T1080（Double work unit）
Machine Floor Area (L*W*H): 3800×1850×1950 mm
Max Sheet Size: 1080×780 mm
Min Sheet Size: 650X450 mm
Max Pile Height: 40mm-100 mm
Max Blanking Size: 450×450 mm
Min Blanking Size: 30×30 mm
Max Speed: 20 cycles/minute
Pressure: 70 bar
Total Power: 5 kw 380V
Net Weight: 3300 kgs
Gross Weight: 3500 kgs

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBQF-T1080 Dual-head Blanking Machine is engineered for manufacturers who demand efficiency, precision, and durability in paper container production. Designed with a robust gantry structure and advanced dual-head system, it handles large-format sheets with ease while maintaining exceptional cutting accuracy. Its intelligent control system and operator-friendly interface make setup and operation straightforward, reducing downtime and increasing productivity. Built for heavy-duty performance, the DBQF-T1080 ensures consistent output under high workloads and supports customization to meet diverse production requirements. With integrated lubrication and hydraulic systems, this machine delivers long-term reliability and stable operation, making it an ideal choice for large-scale, high-quality blanking processes.

Features/Functions

Fully Automatic.

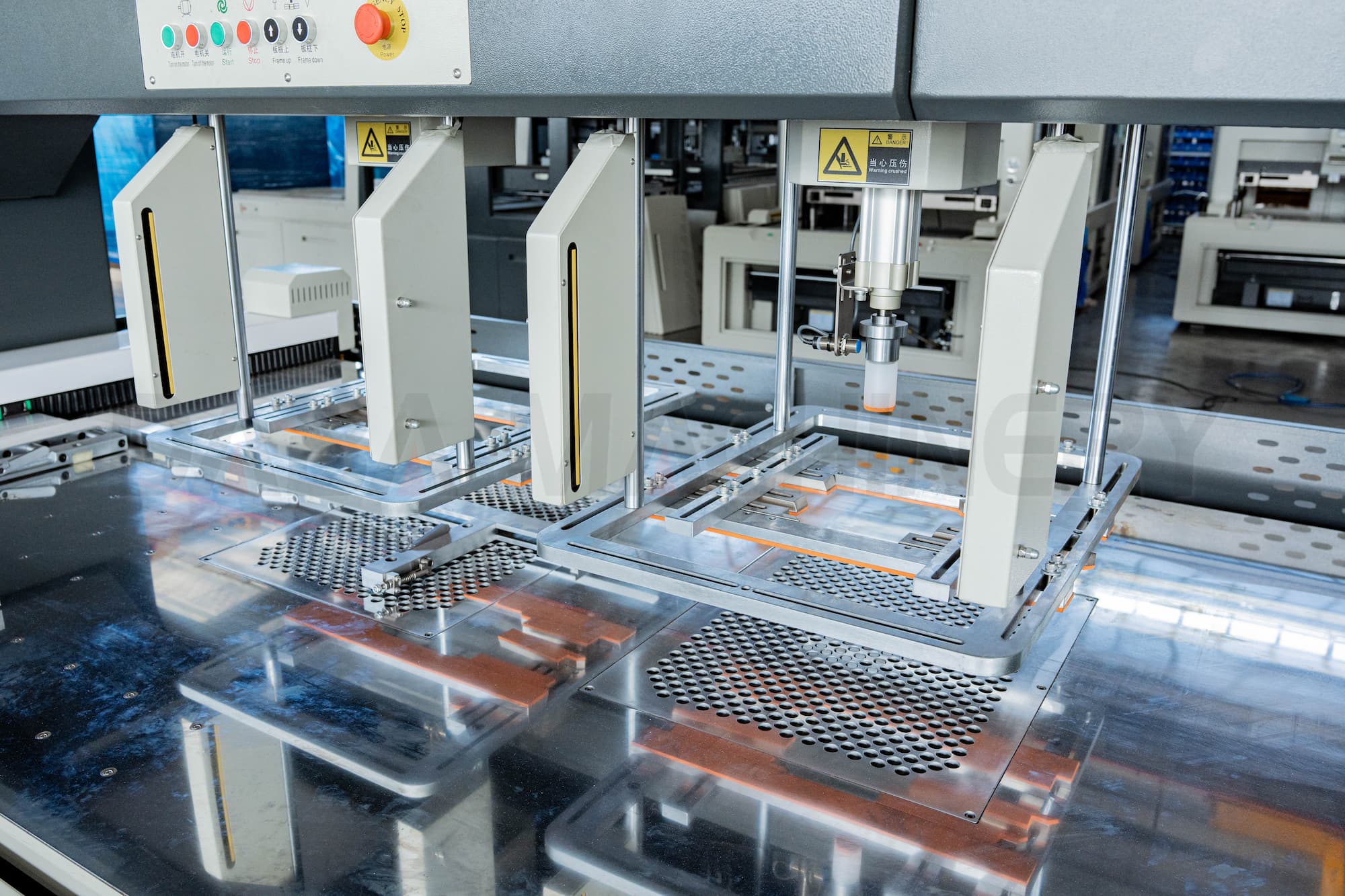

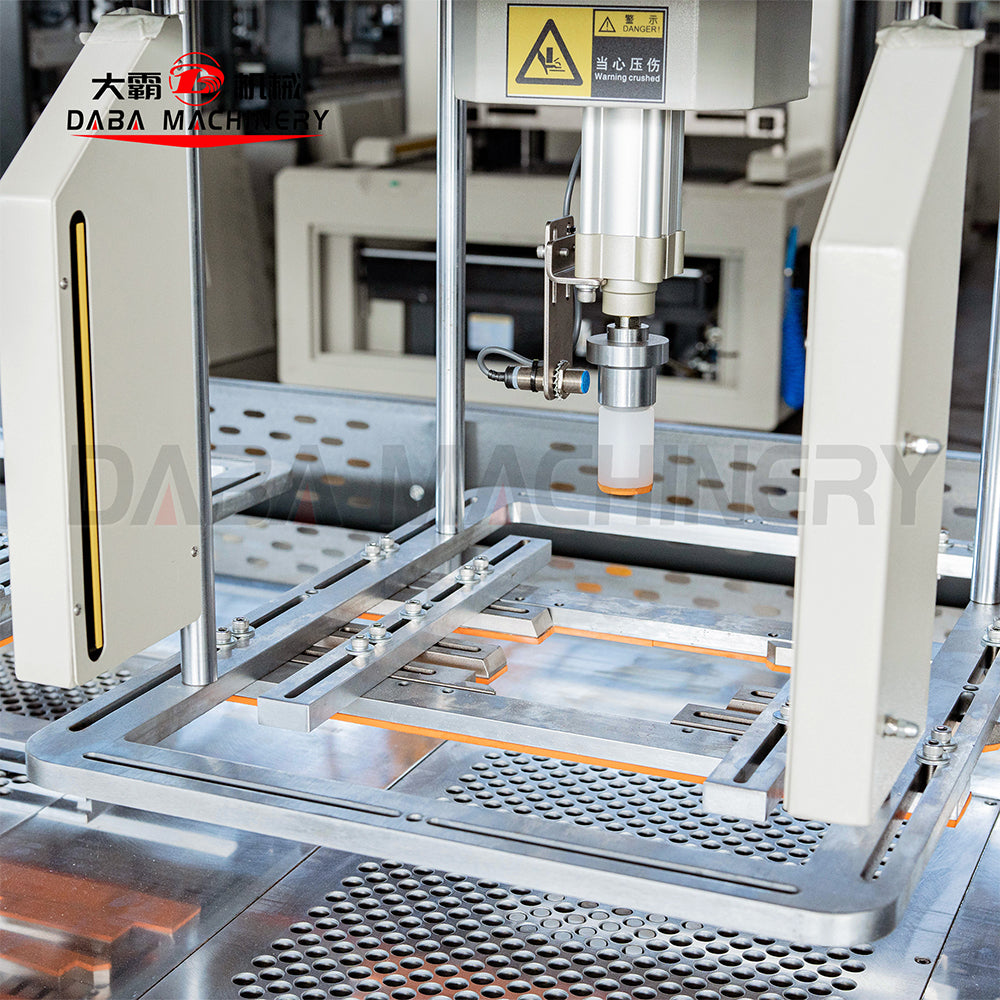

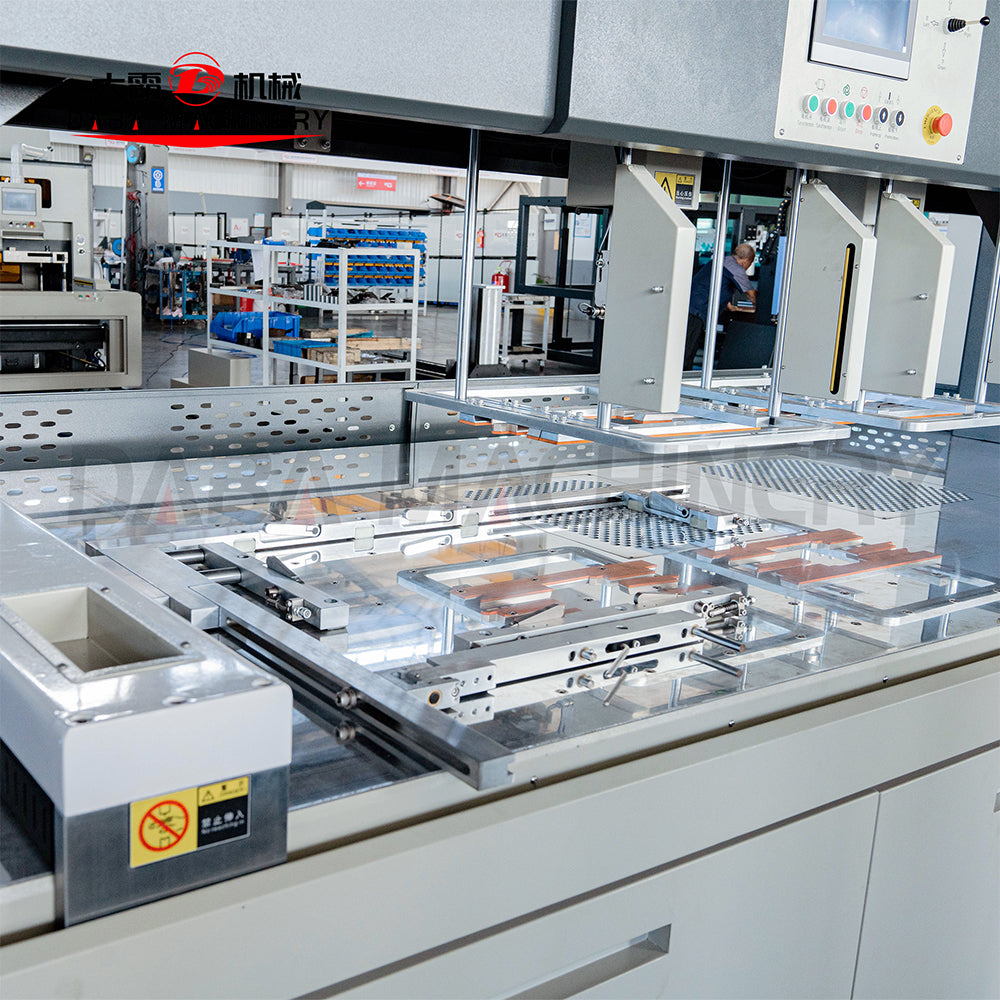

Dual-head blanking system for running sheets with nested blanks.
Heavy-Duty, quality-built gantry structure main frame.

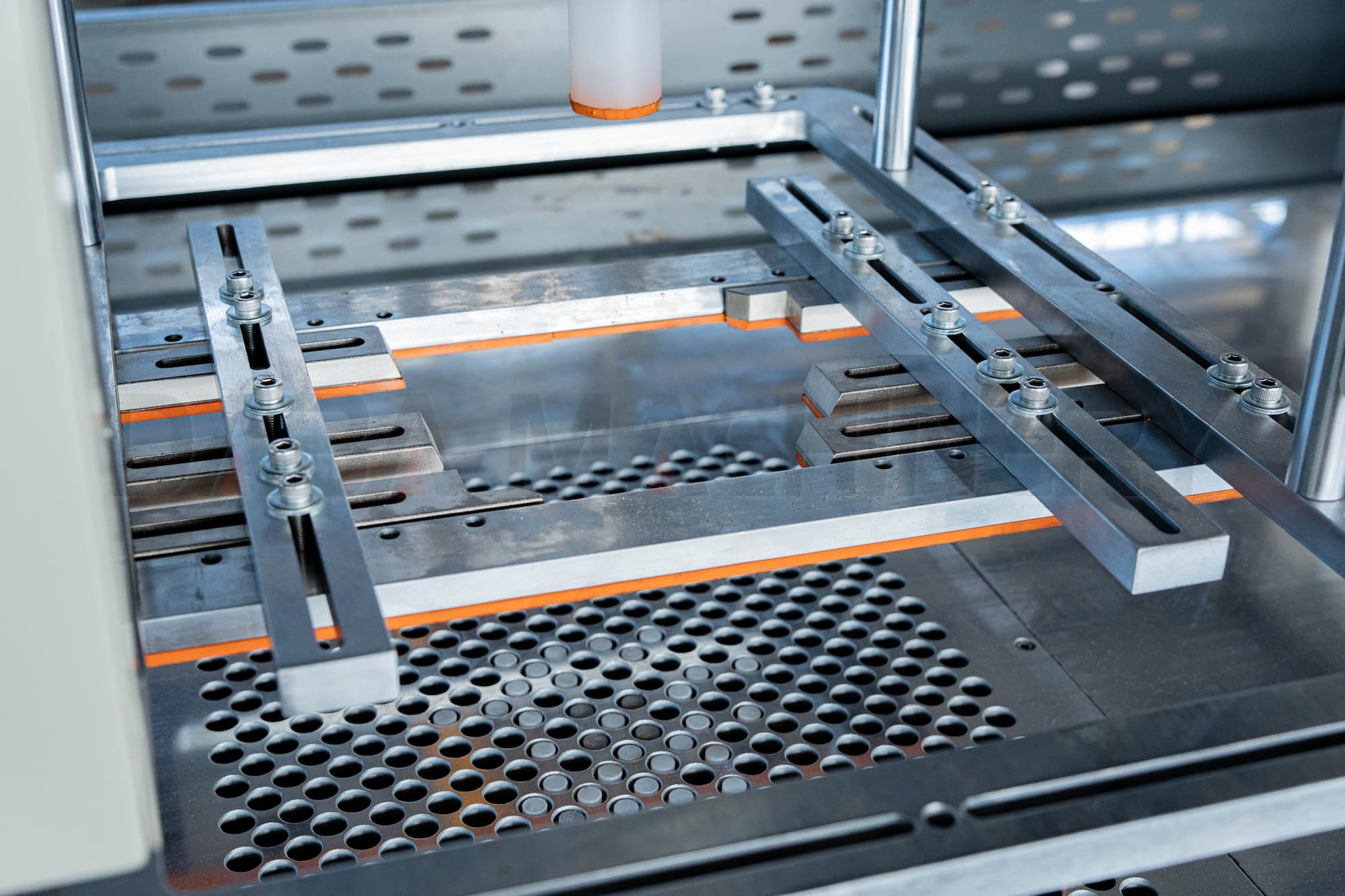

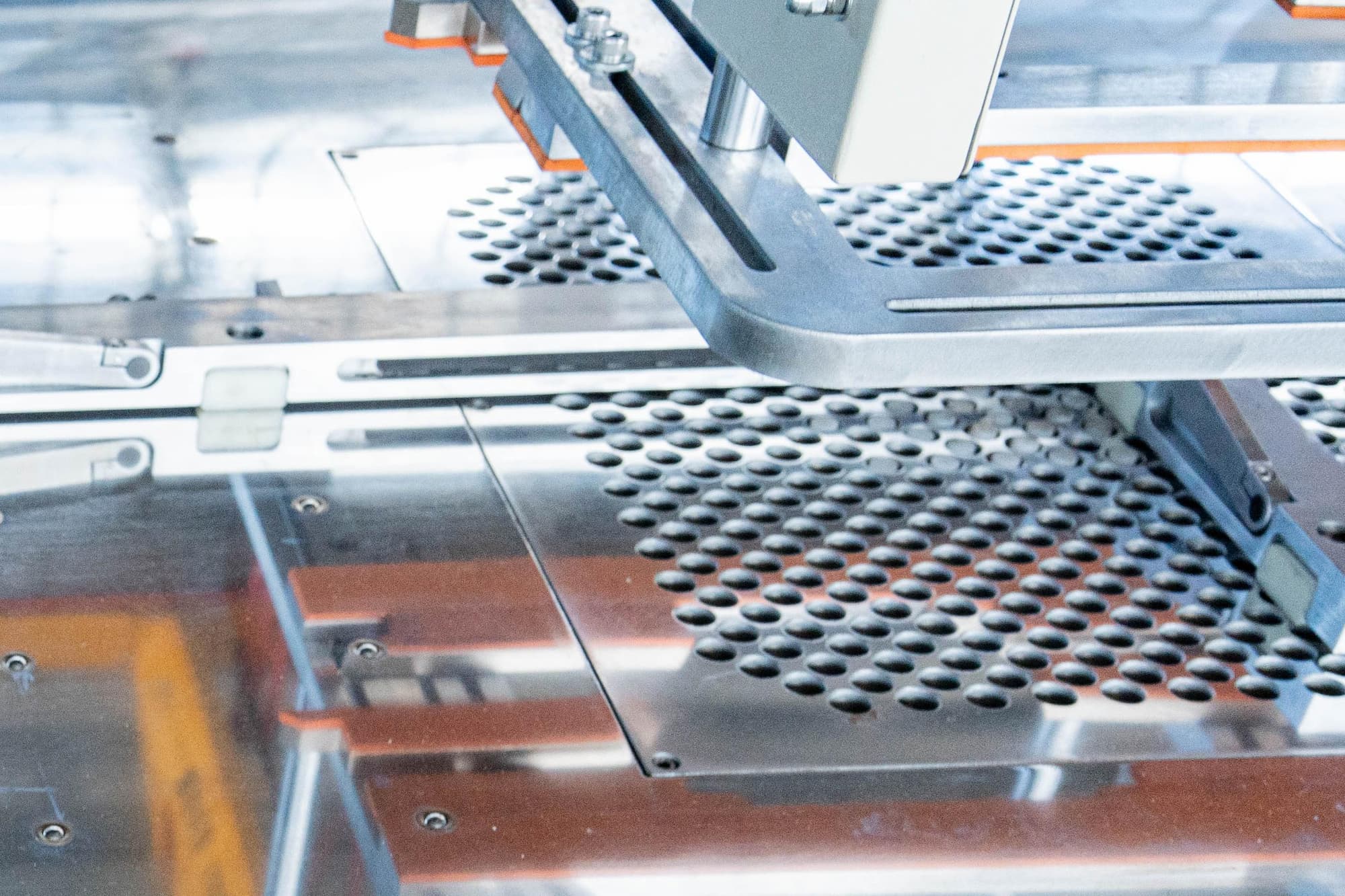

Frame style support base for precision blanking to ensure damage free loads.
Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.

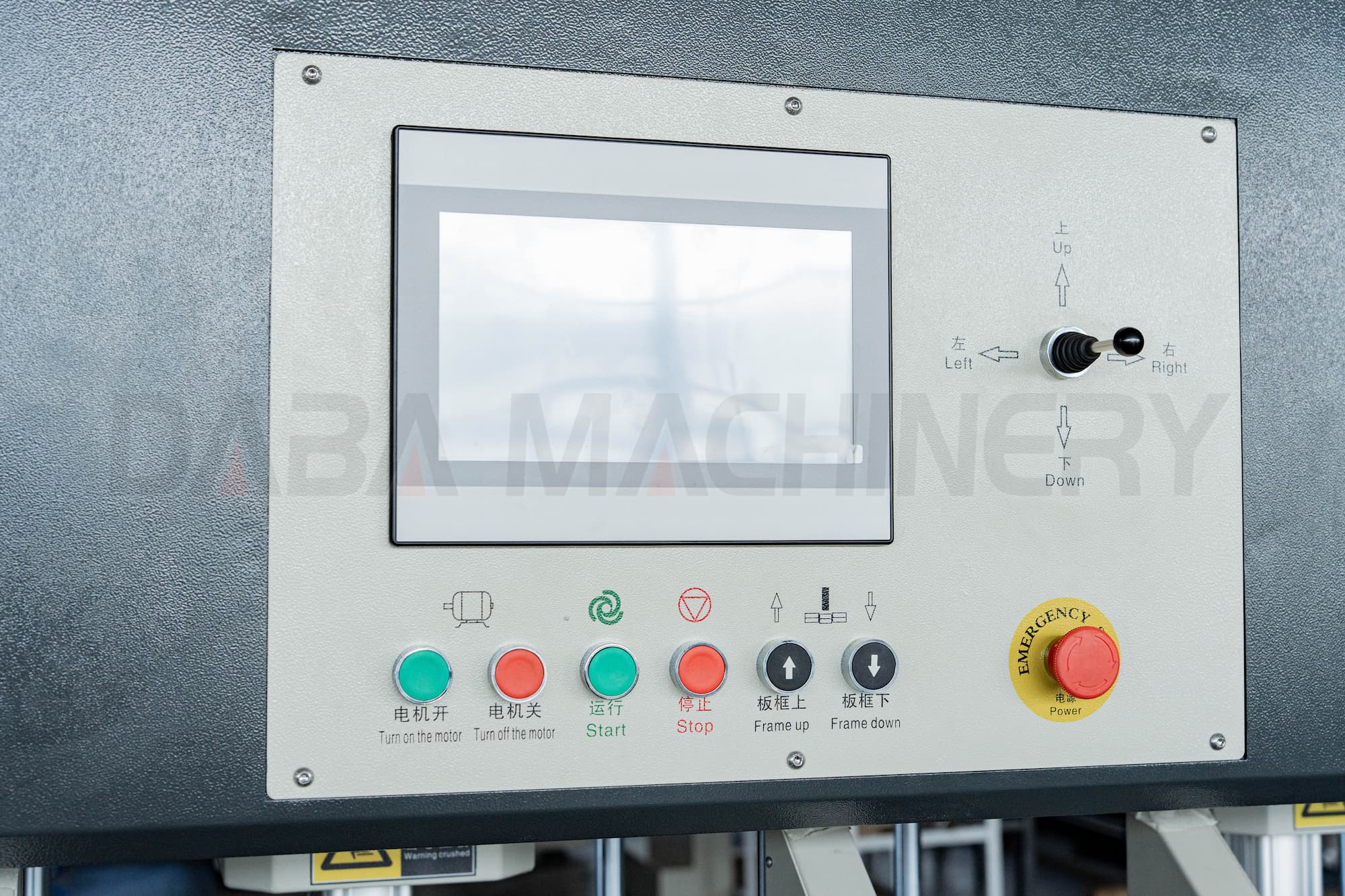

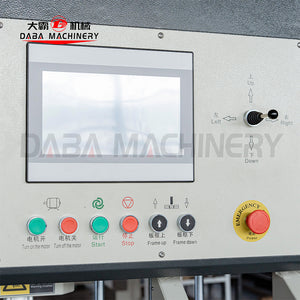

Operator friendly touch screen for quick and simple programing.
Big-size working area easy for doing jobs of big-size blanking, which can be customized according to customers’ demand.
Automatic lubrication system with timely maintenance extends the service life of the machine.
Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
The complete machine is equipped with PLC, and with a touch screen interface in operation.
