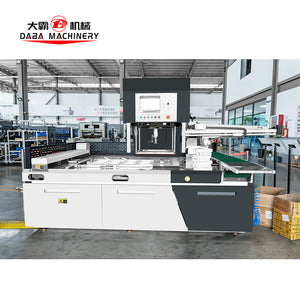

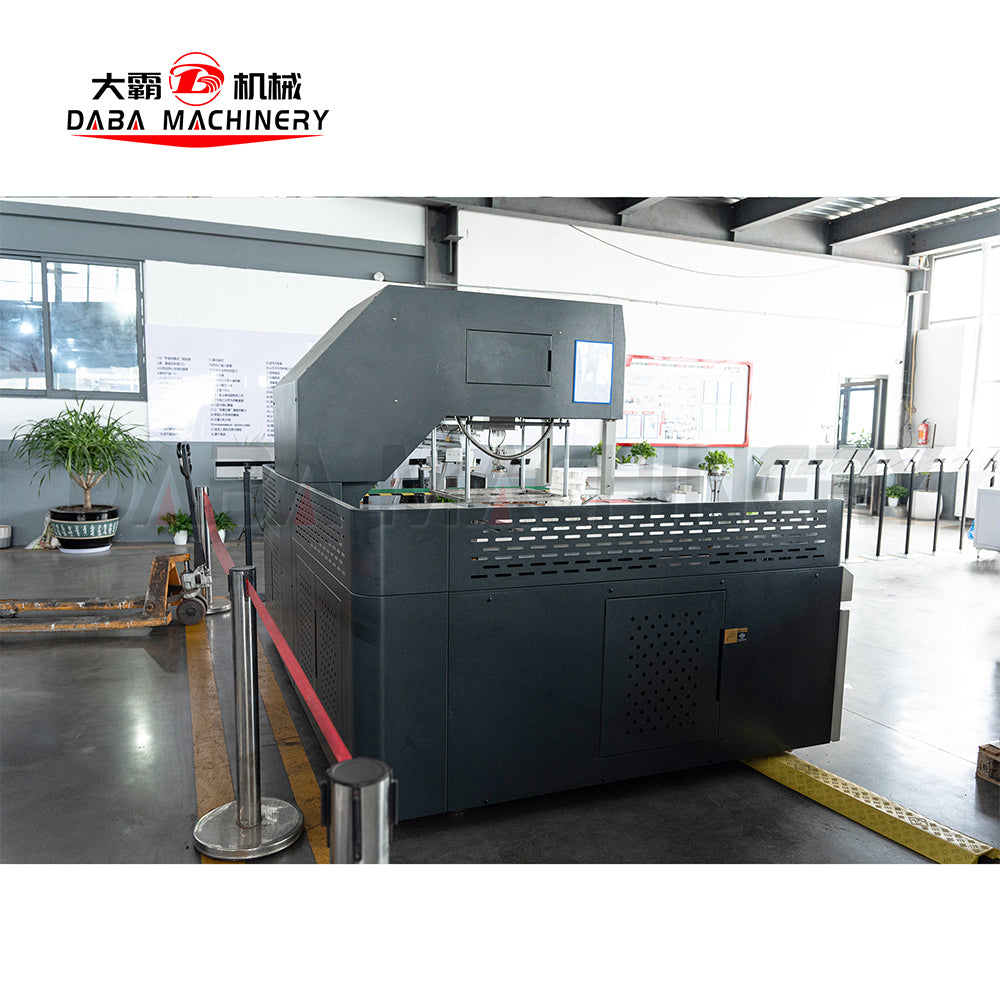

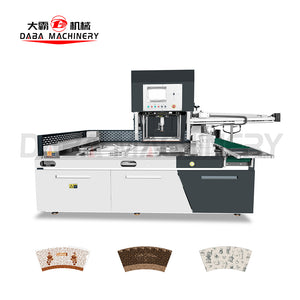

DBQF-D1080-SJ Automatic Waste Stripping Machine

Vendor: DABA Machine

Model: DBQF-D1080-SJ (Rotary Head & Robot Arm)
Machine Floor Area (L*W*H): 3600×2050×1950 mm
Max Sheet Size: 1080×780 mm
Min Sheet Size: 650X450 mm
Max Pile Height: 40mm-100 mm
Max Blanking Size: 450×450 mm
Min Blanking Size: 30×30 mm
Max Speed: 20 cycles/minute
Pressure: 70 bar
Robot arm grip range: 30-300 mm
Robot arm grip weight: 0.05-1.8 kgs
Rotate speed/route: 10-80mm/second; 180 degrees
Total Power: 5.4kw 380V
Net Weight: 2500 kgs
Gross Weight: 2800 kgs

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBQF-D1080-SJ Blanking Machine combines smart automation with a compact design, offering manufacturers a reliable solution for precise blanking operations. Its innovative 180-degree rotary head and integrated robotic arm streamline production by simplifying complex layouts and enabling automatic product collection, reducing manual handling and boosting efficiency. Built with durable components and advanced motion systems, the machine delivers consistent accuracy and smooth performance even under heavy workloads. The space-saving structure and user-friendly interface make it easy to integrate into existing production lines, while customization options ensure it adapts to diverse manufacturing needs. Designed for long-term stability and productivity, the DBQF-D1080-SJ is ideal for businesses seeking high-precision blanking with enhanced automation in a smaller footprint.

Features/Functions

Fully Automatic.

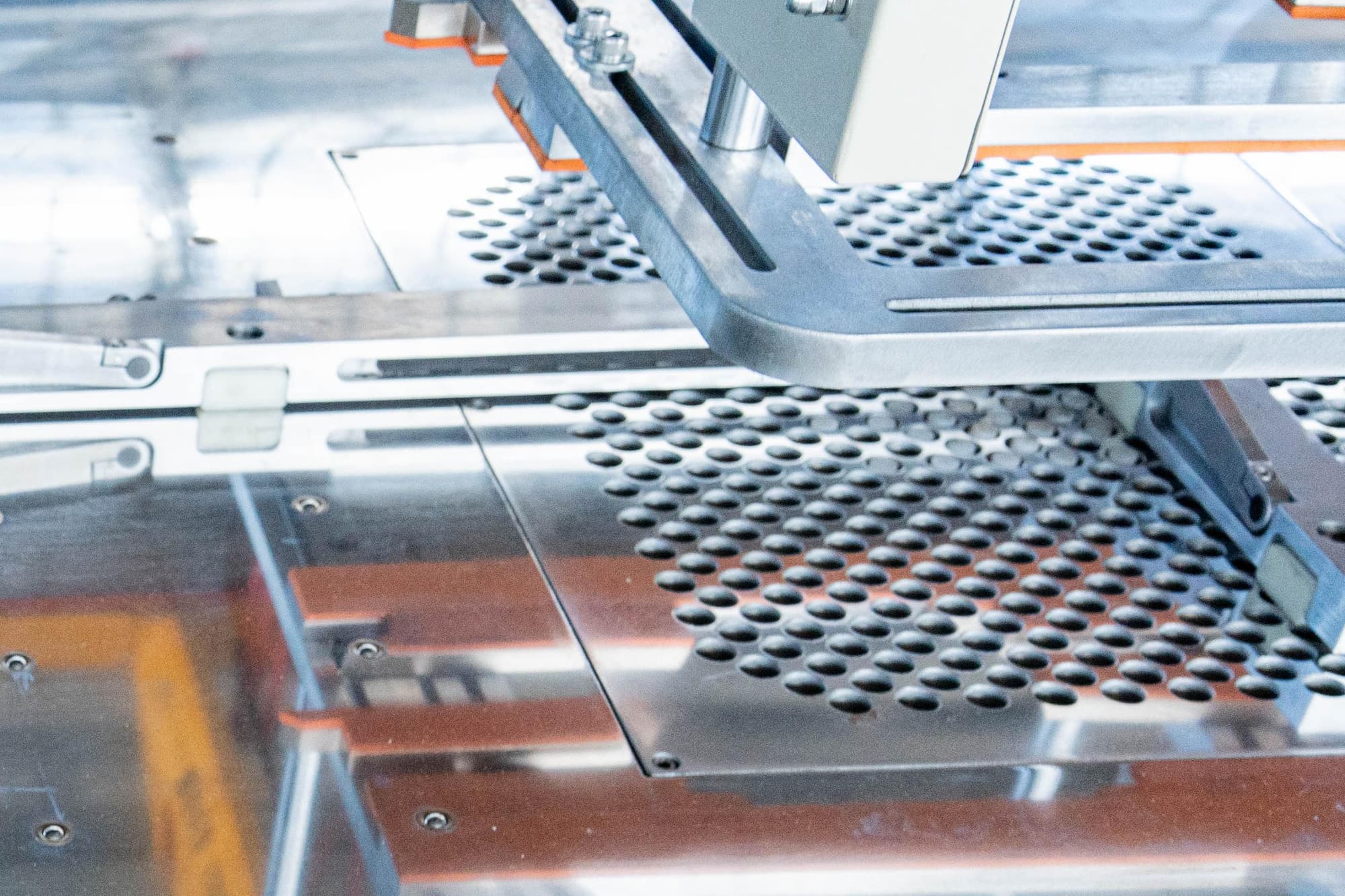

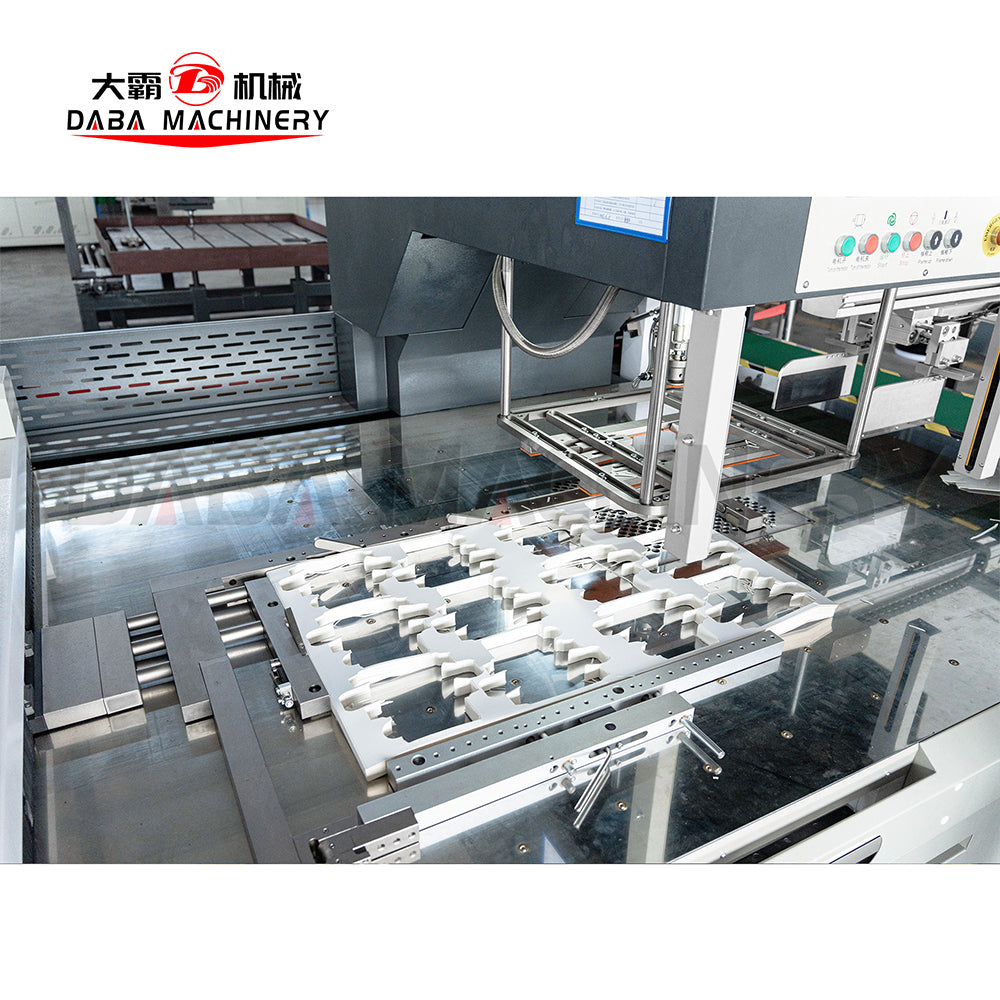

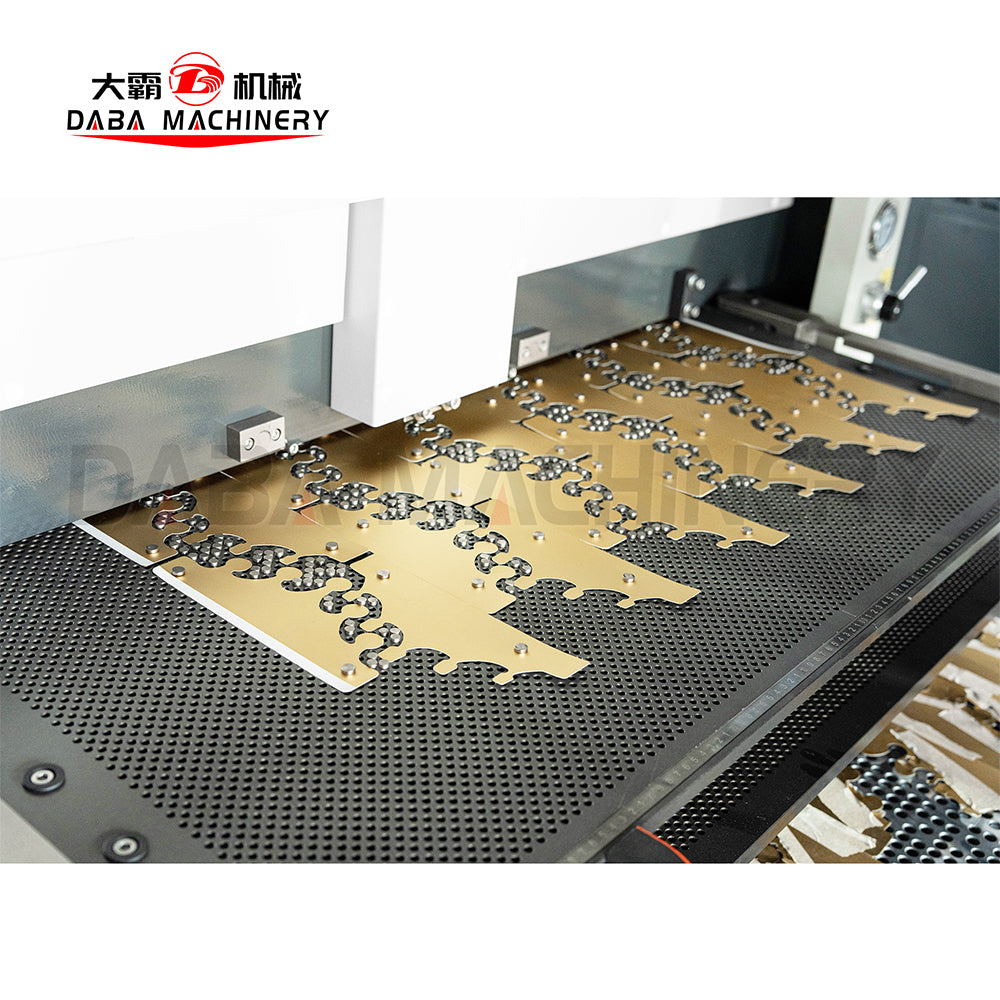

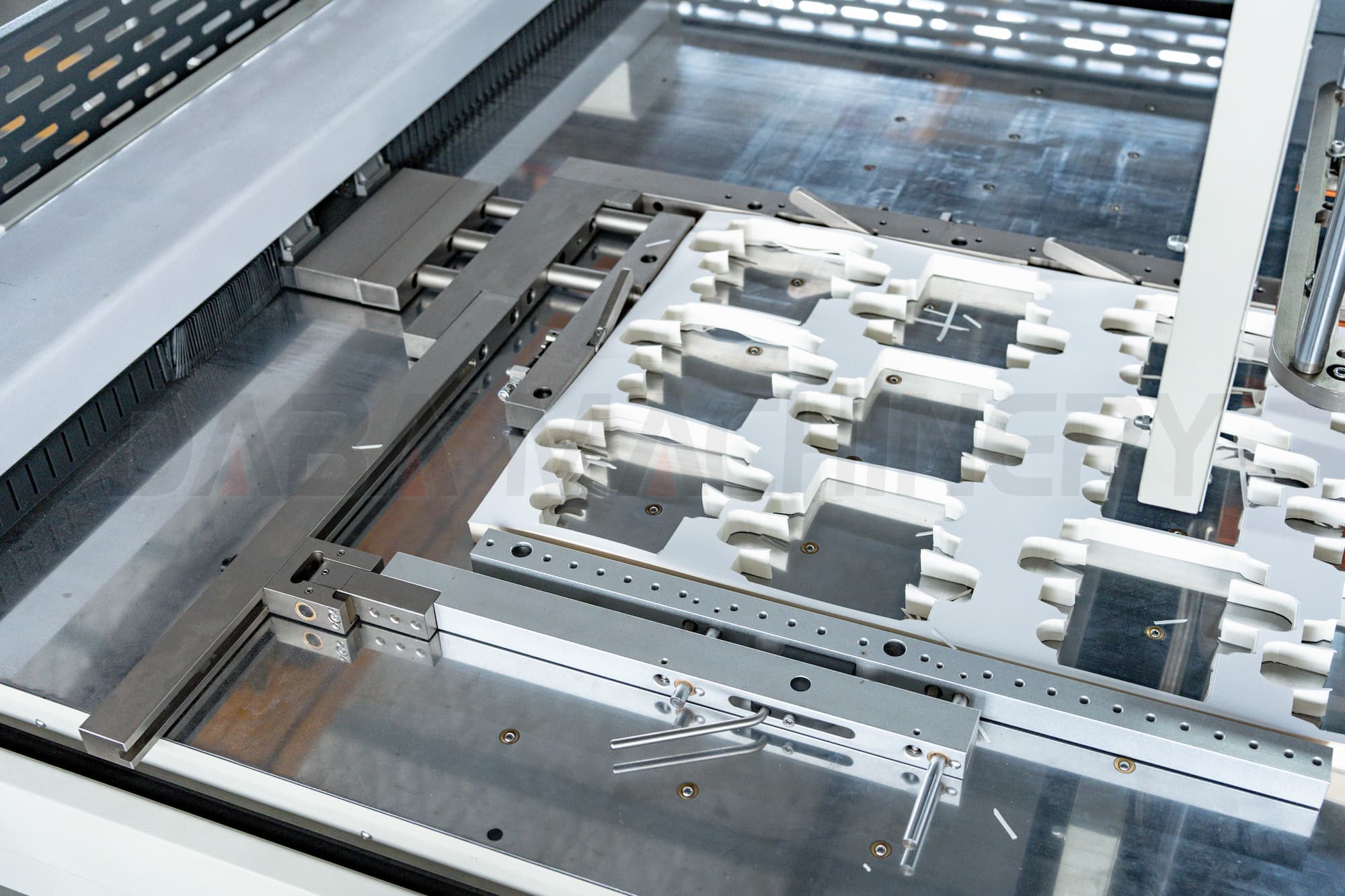

Single head blanking system for running sheets with nested blanks.

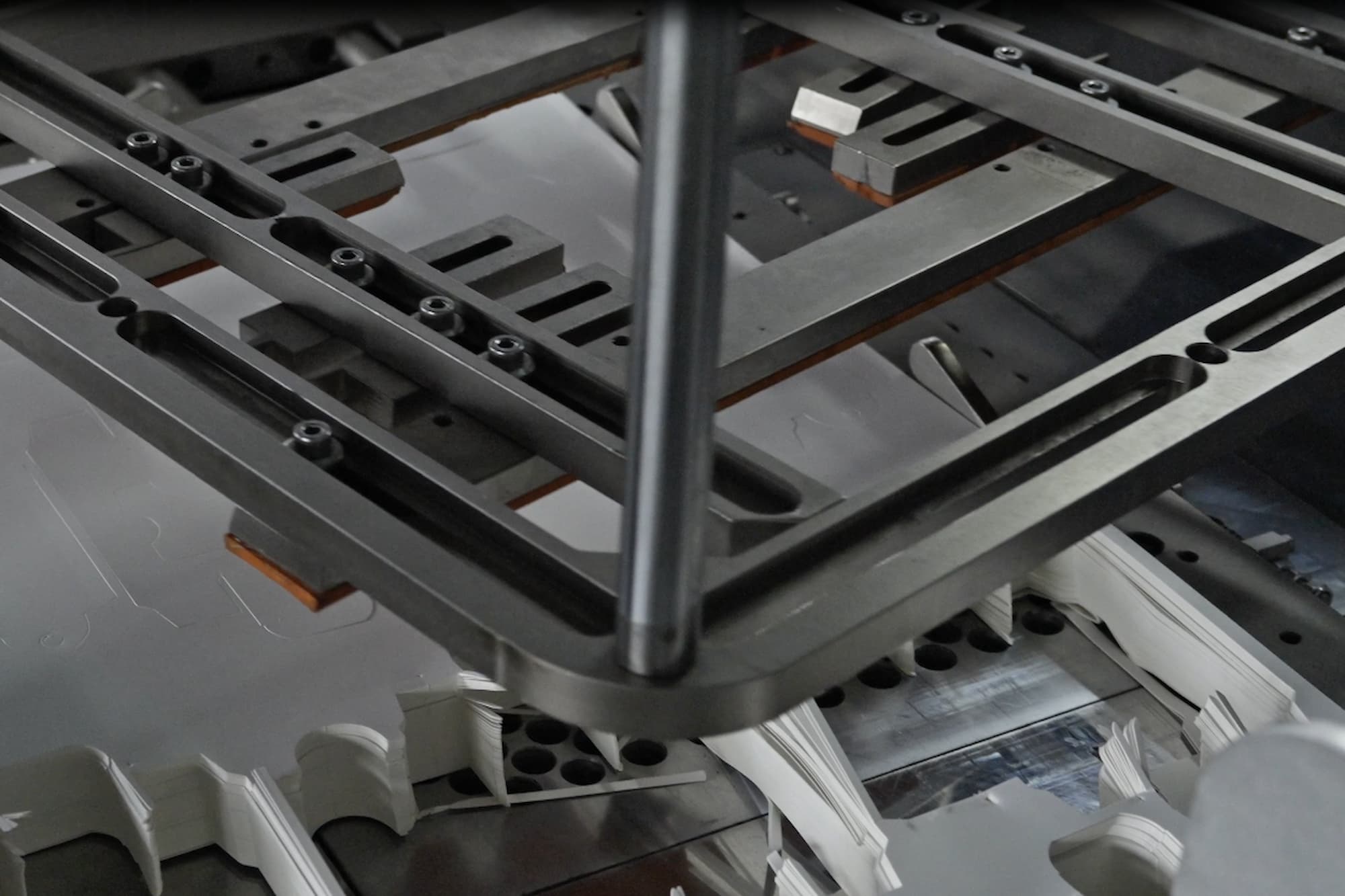

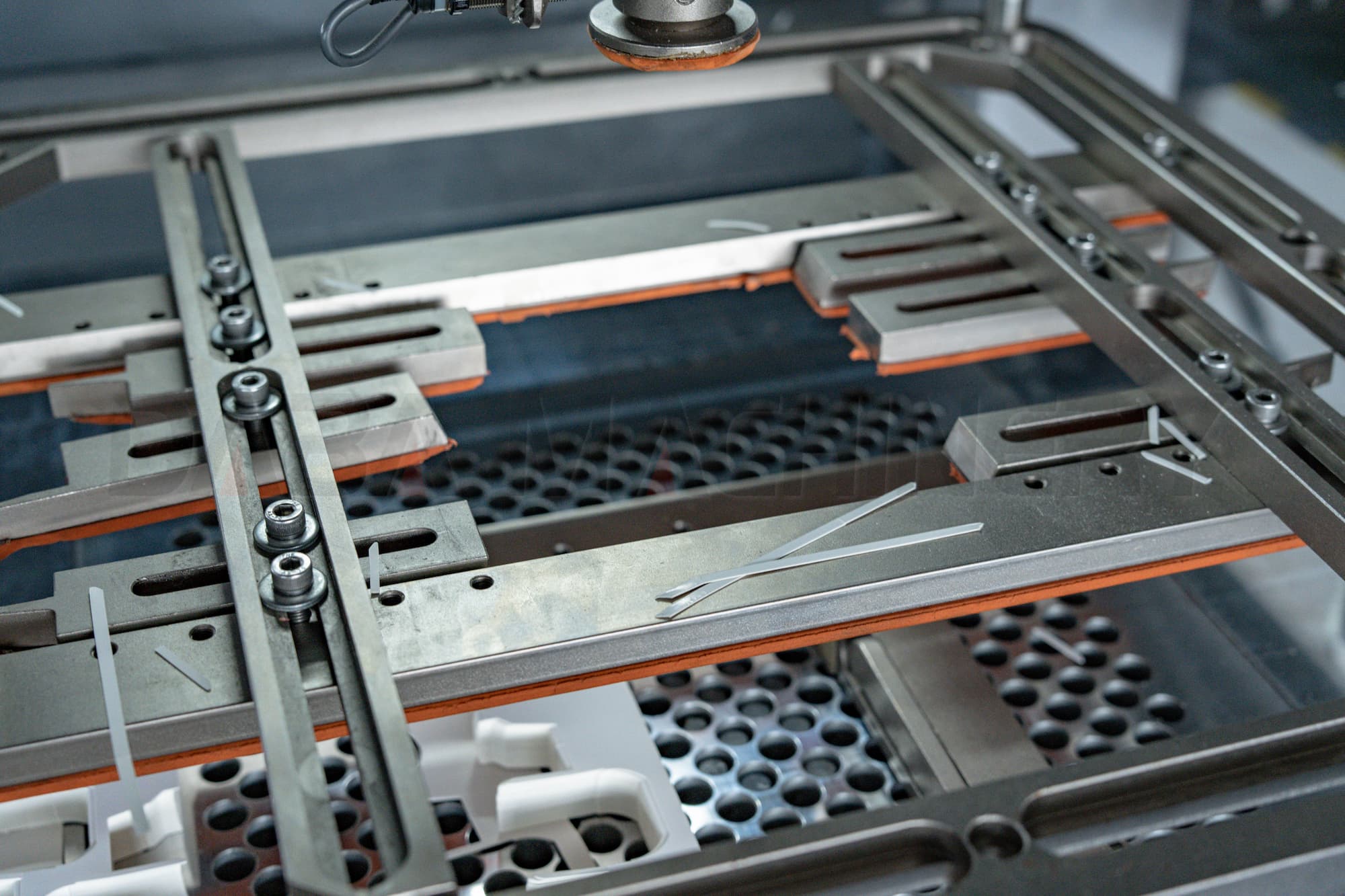

180-degree rotating frame to blank the products of opposite layout easily.

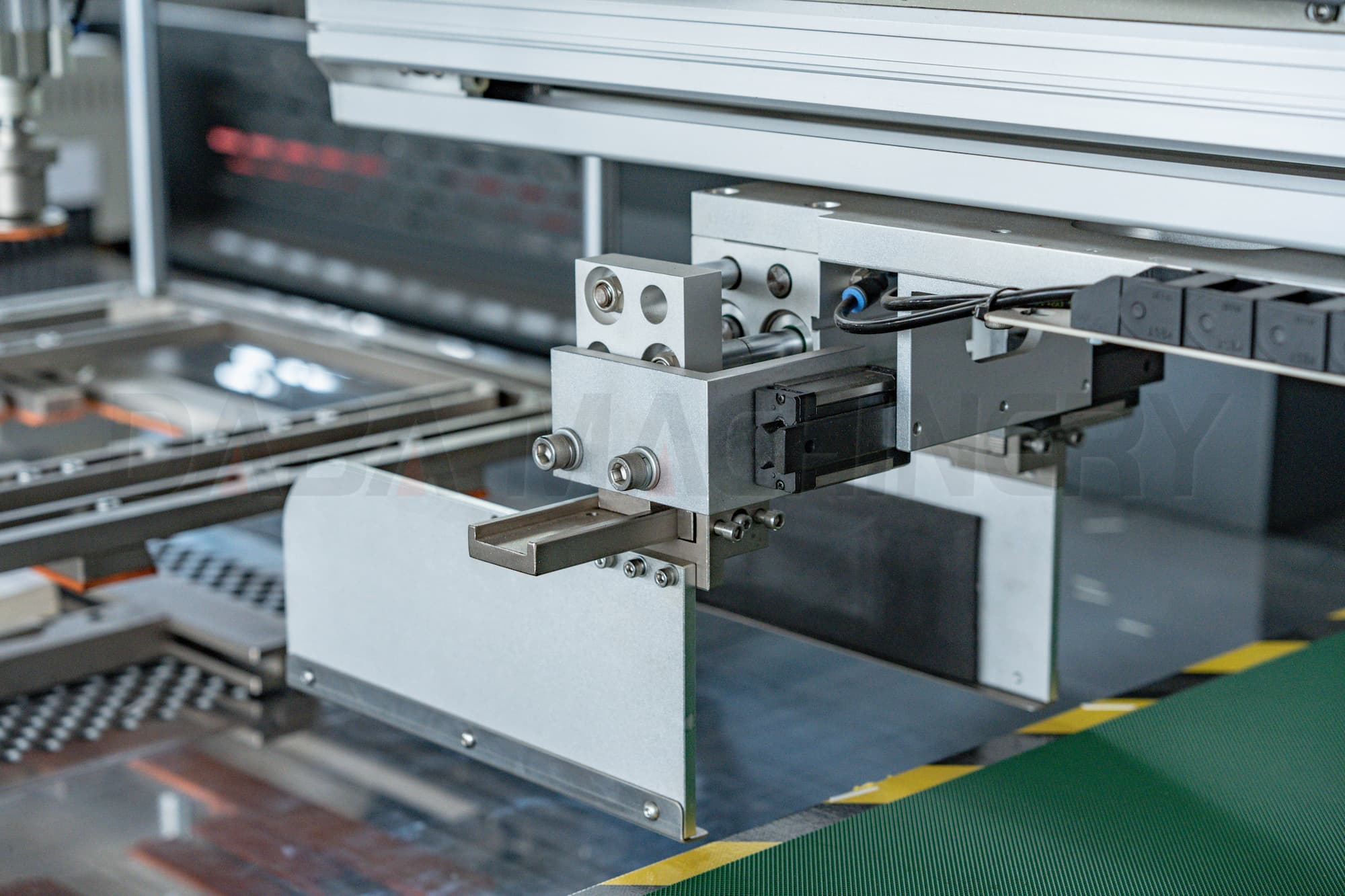

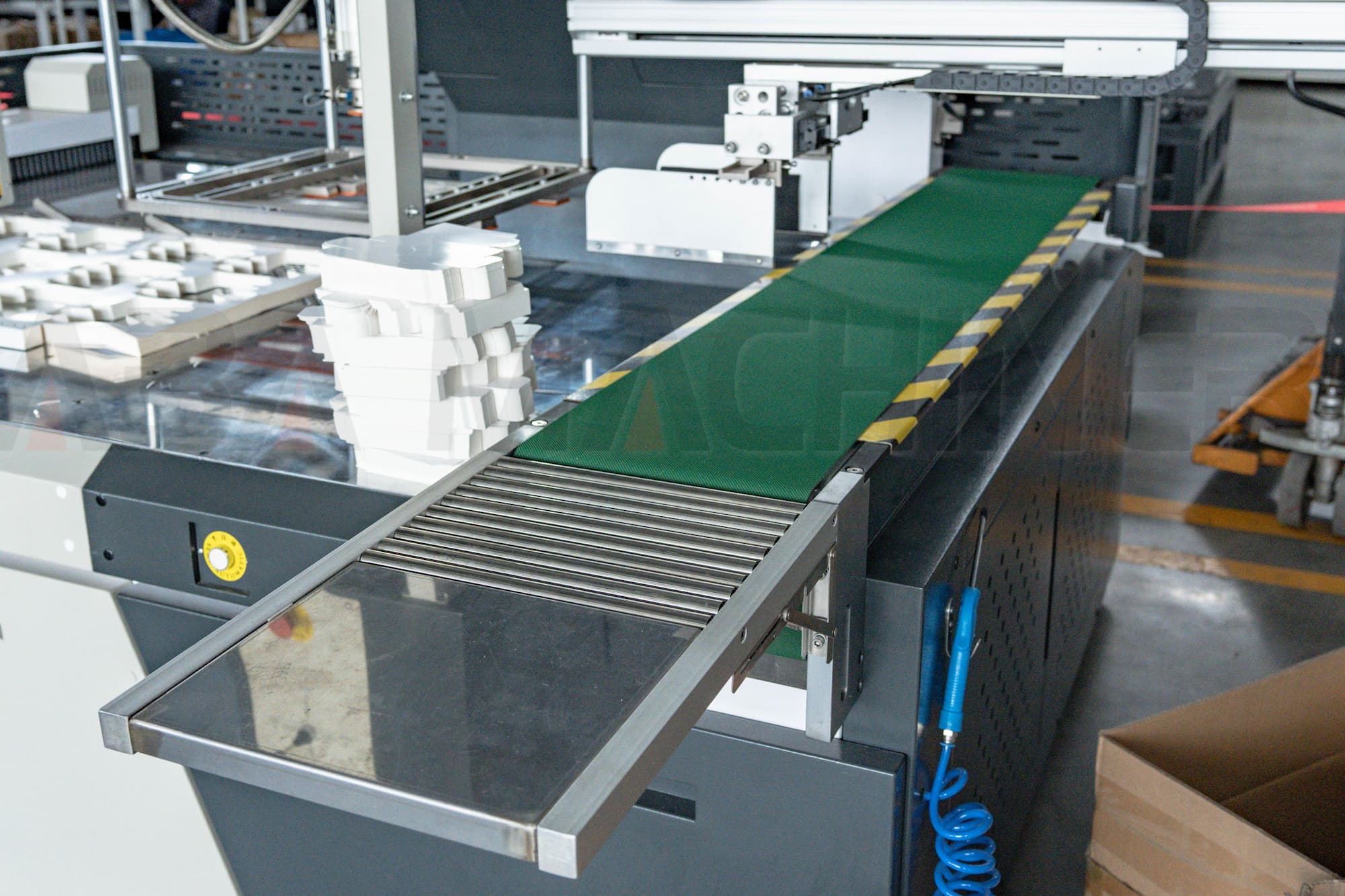

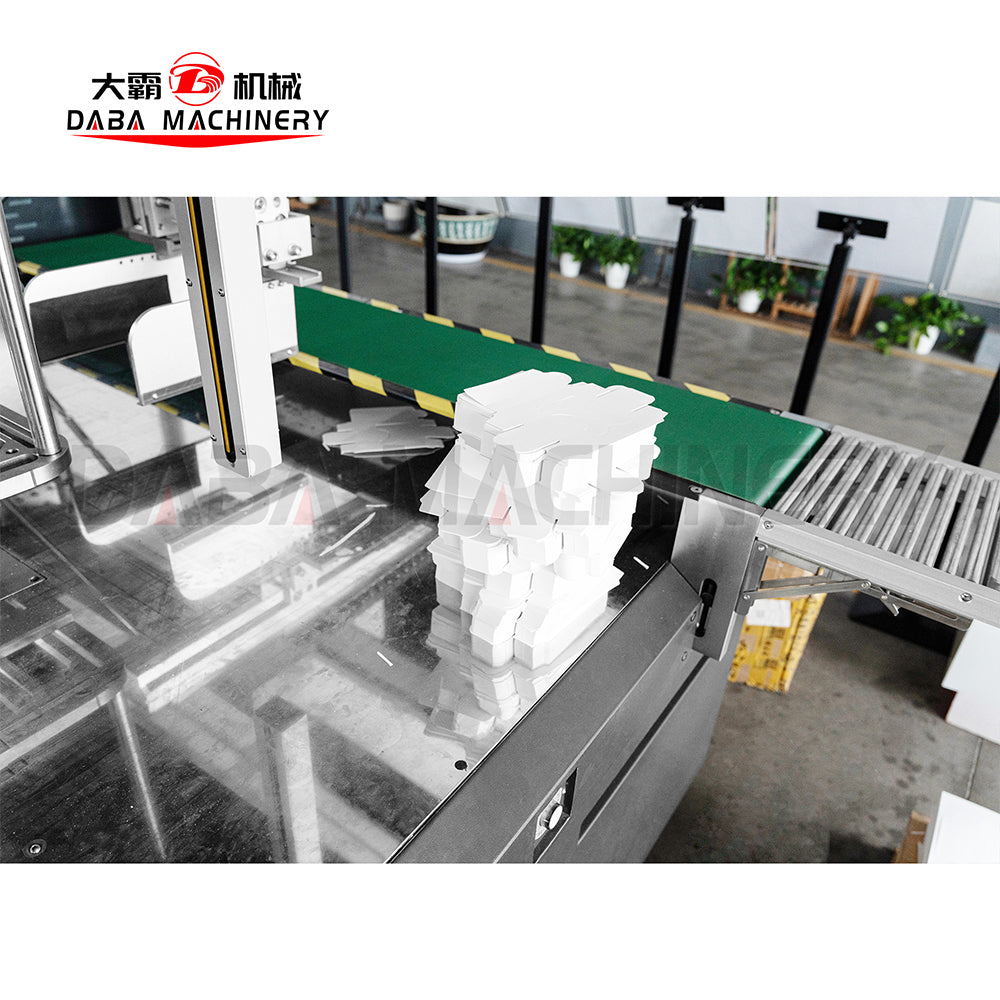

Robot arm picks products automatically after each cycle is completed.
Heavy-duty, quality-built single support base.
Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement.

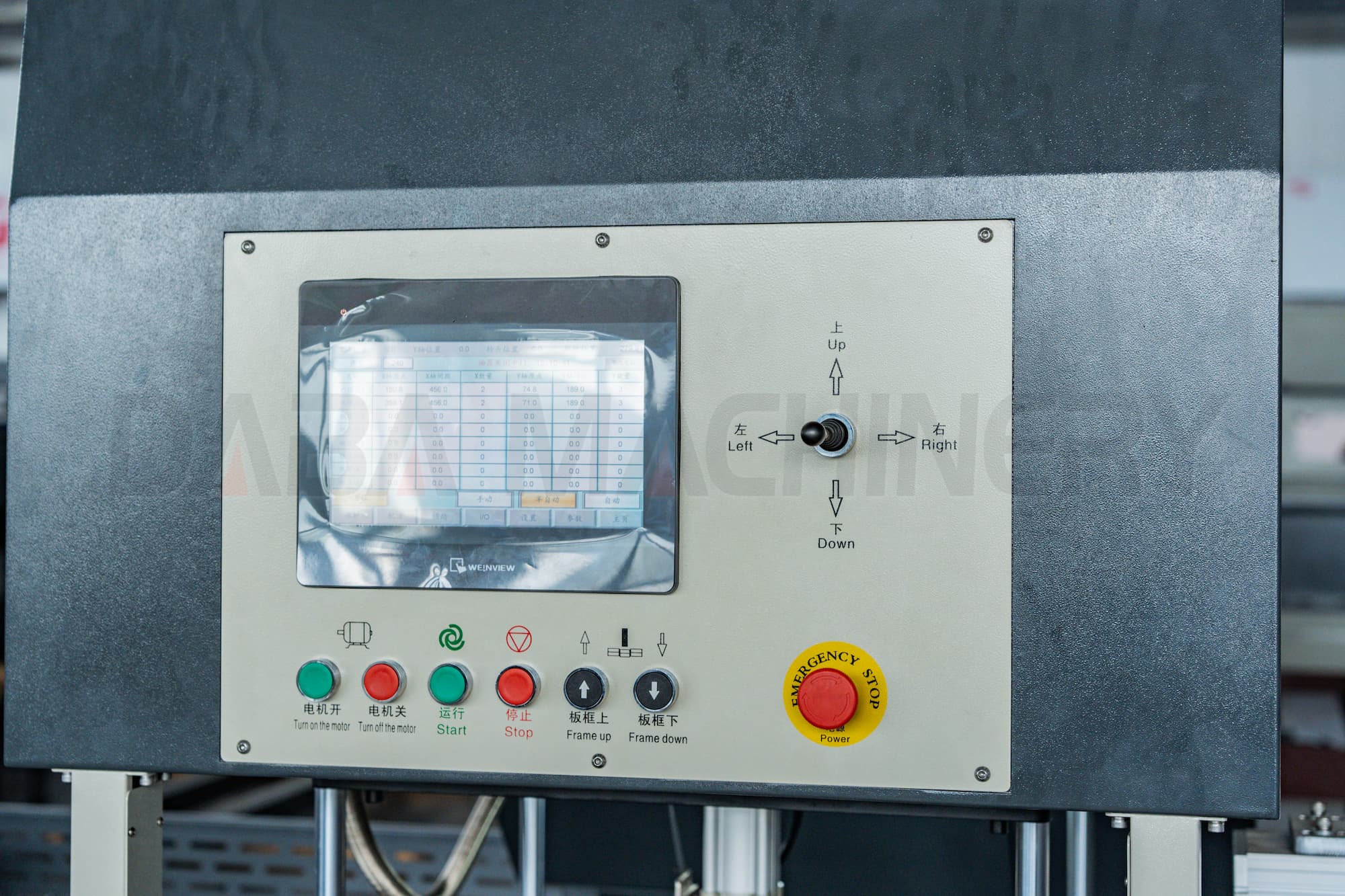

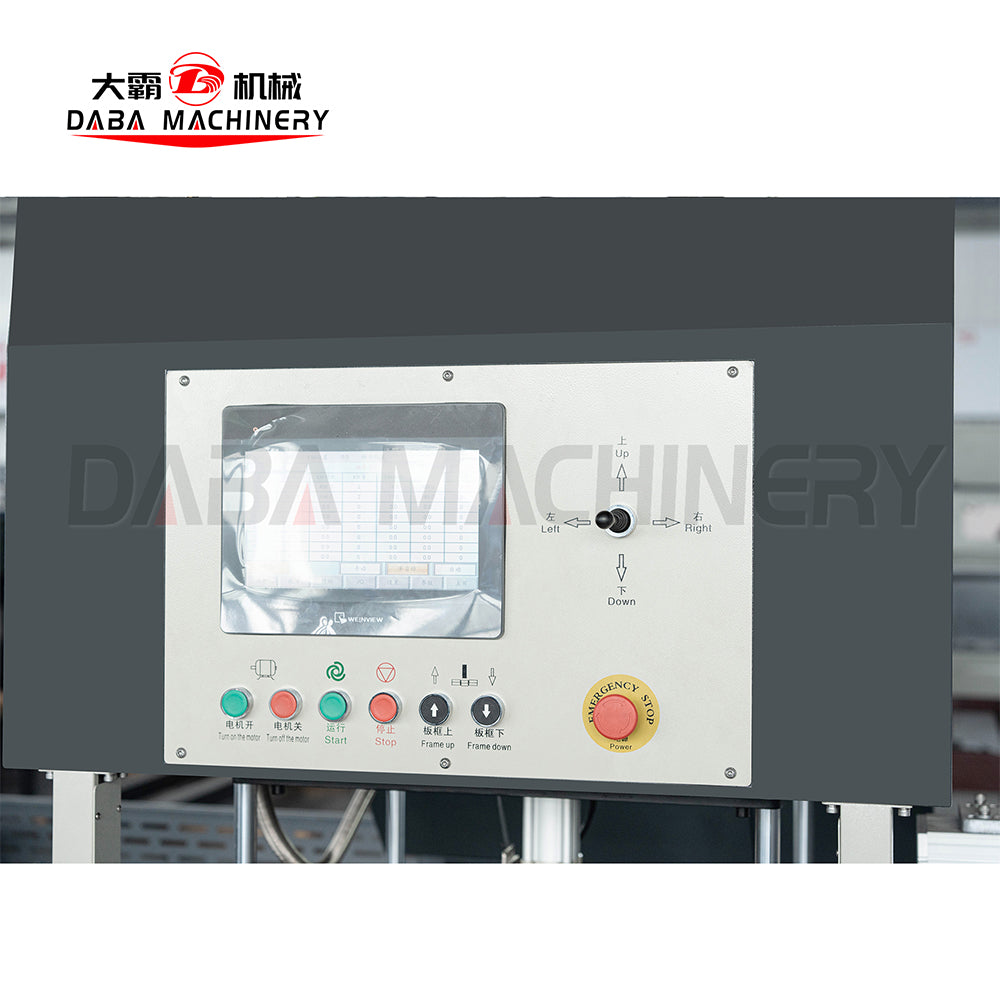

Operator friendly touch screen for quick and simple programing.
Can be customized according to customers’ job demand.
Adopts servo motor, double guide rail and ball screw which makes accuracy.
Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
Automatic lubrication system with timely maintenance extends the service life of the machine.
The complete machine takes much less space and is equipped with PLC, touch screen interface in operation.
