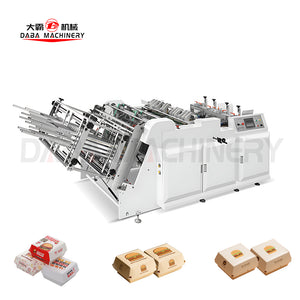

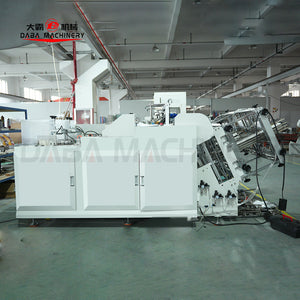

DBJH-SF500-550 Double Lane Paper Hamburger Box Machine

Vendor: DABA Machine

Model: DBJH-SF500-550
Production Capacity: 100~320 box/minute (Speed depends on paper blank size.)
Welding Method: Water-Glue System Welding
Available Material: 200~620gsm board, paperboard, paper, corrugated cardboard, Fluted paper, etc.
Material Thickness: Max. 1.5mm
Paper Length Size: 100-450mm
Paper Width Size: 100-550mm
Paper Height Size: 15-320mm
Paper Angle: 5~50 degrees
Total Power: 5KW
Weight: 2800KG
Demension(L*W*H): 3600*1850*1700mm
Power Source: 3-phase, 380V, 50/60Hz
Air Source: Compressed air at 6-10 bar needed

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

Carton Erecting Machine (paper box forming machine) is an automatic machine,specialized in making food carton,box,container which are made from cardboard, paper,paperboard,corrugated paper etc. The food box (carton,container,dish,tray) is widely used as burger box,hot-dog box(tray),one block box,food pail box(Chinese food box,take-away box), fries box (chips box,chips tray),lunch box,meal box,etc.

Product Size

Features/Functions

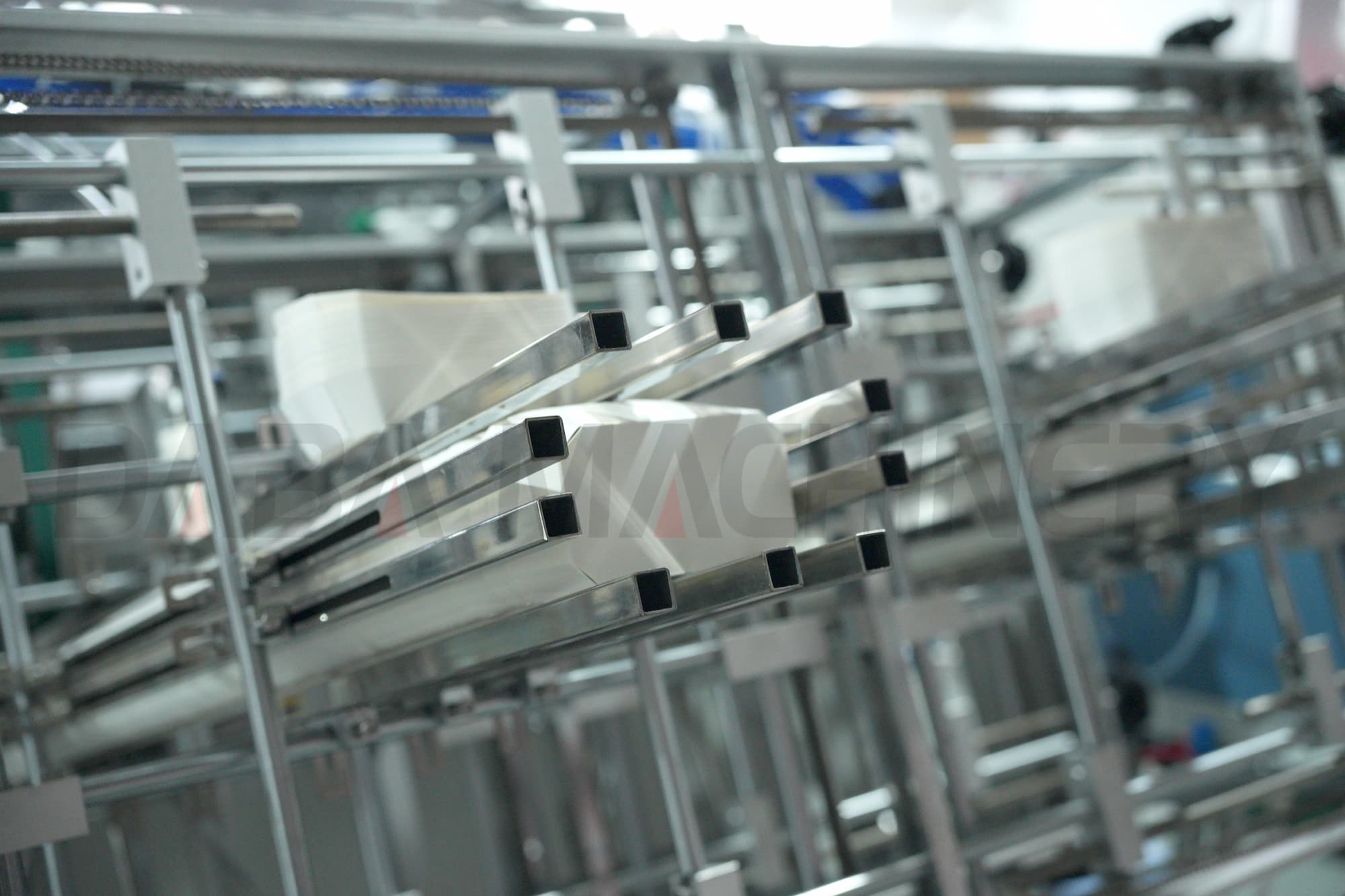

Automatic collection, stock, and count. Human being designed control button and panel, more easy and safe runs by user.
Thick Walls: Machine weight is exceed 2800kgs, machine runs stably at a high speed.

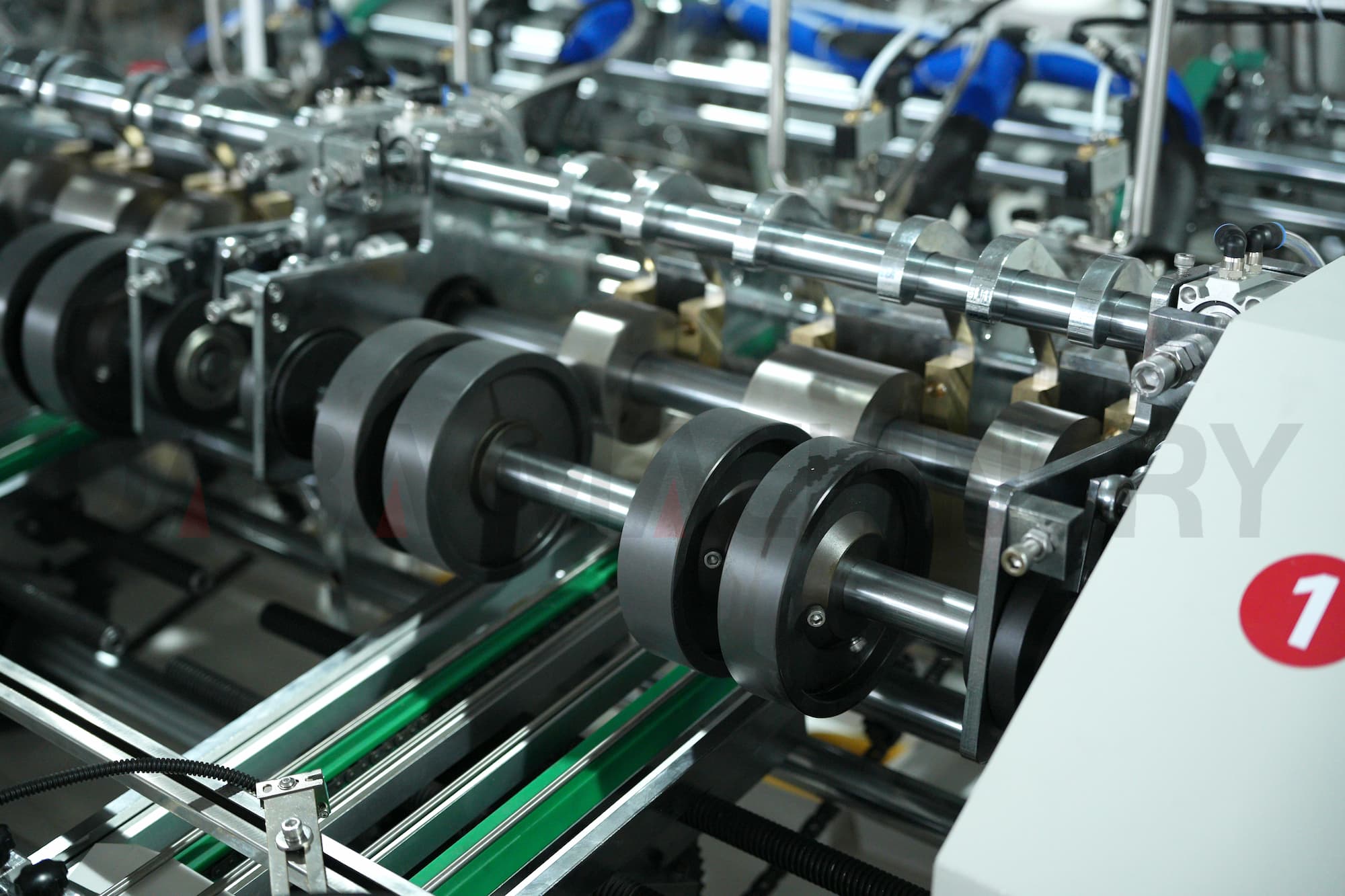

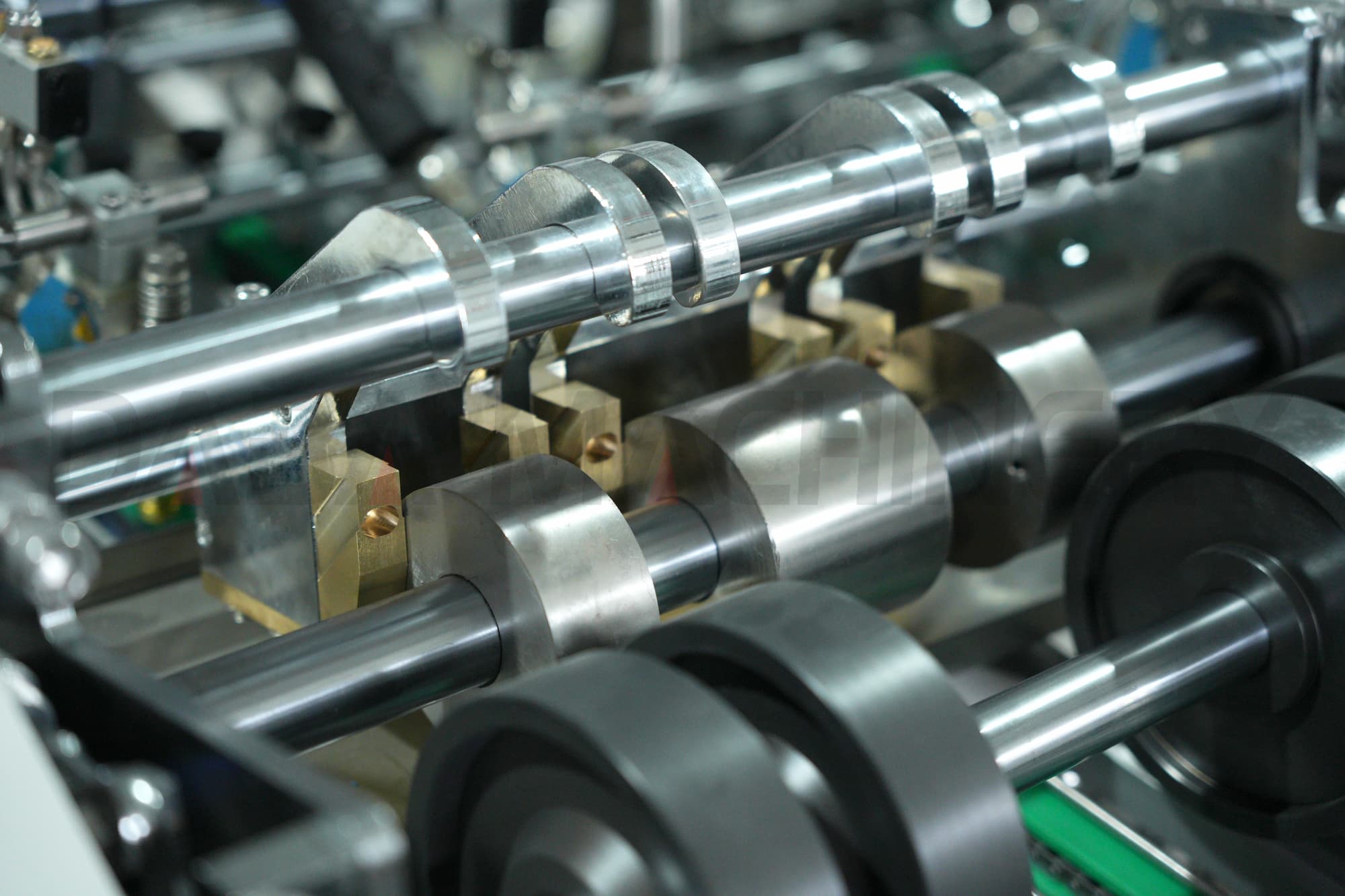

Cam Pushing System: Cam pusher design, reduce the wearing a lot.

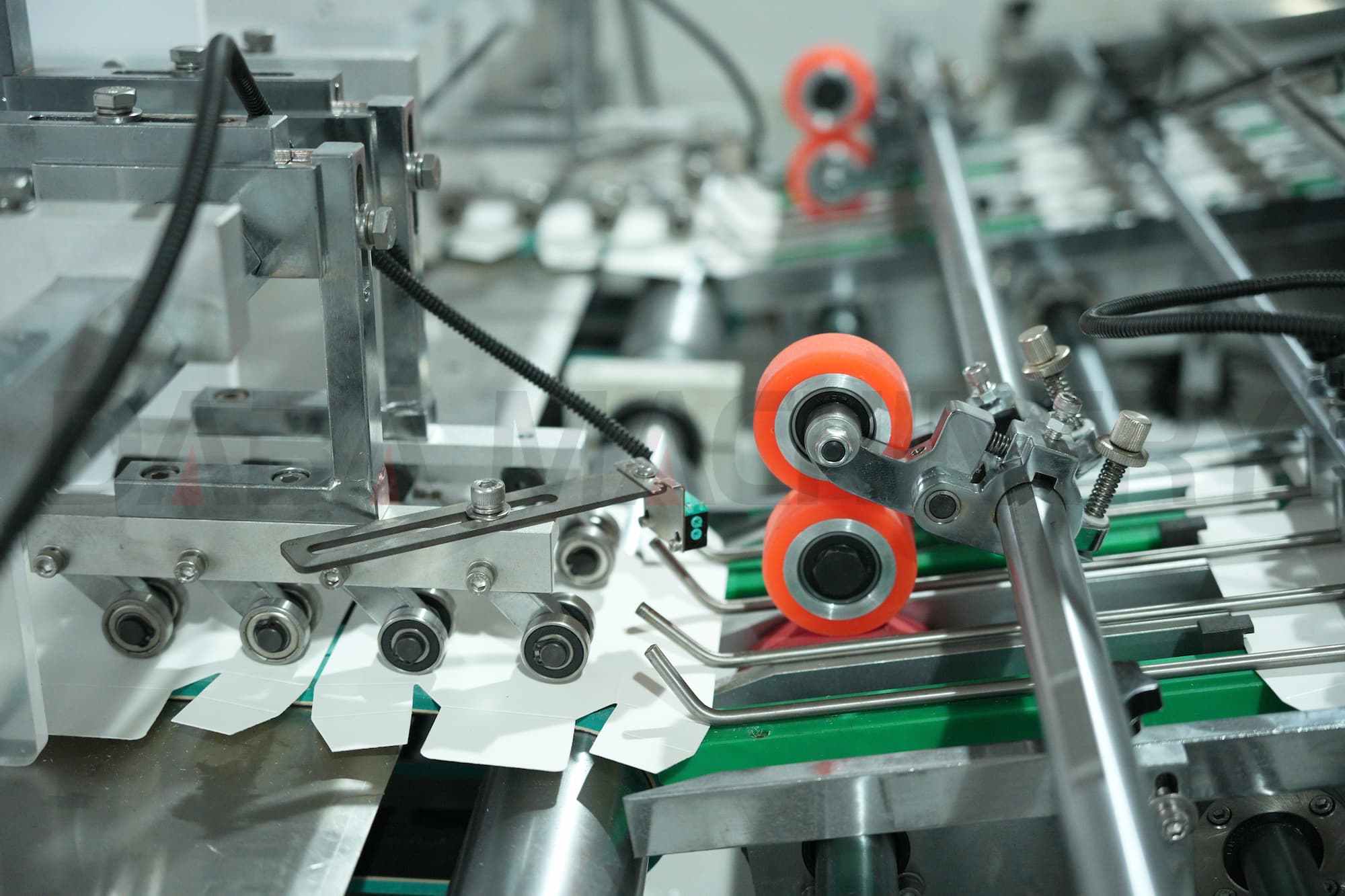

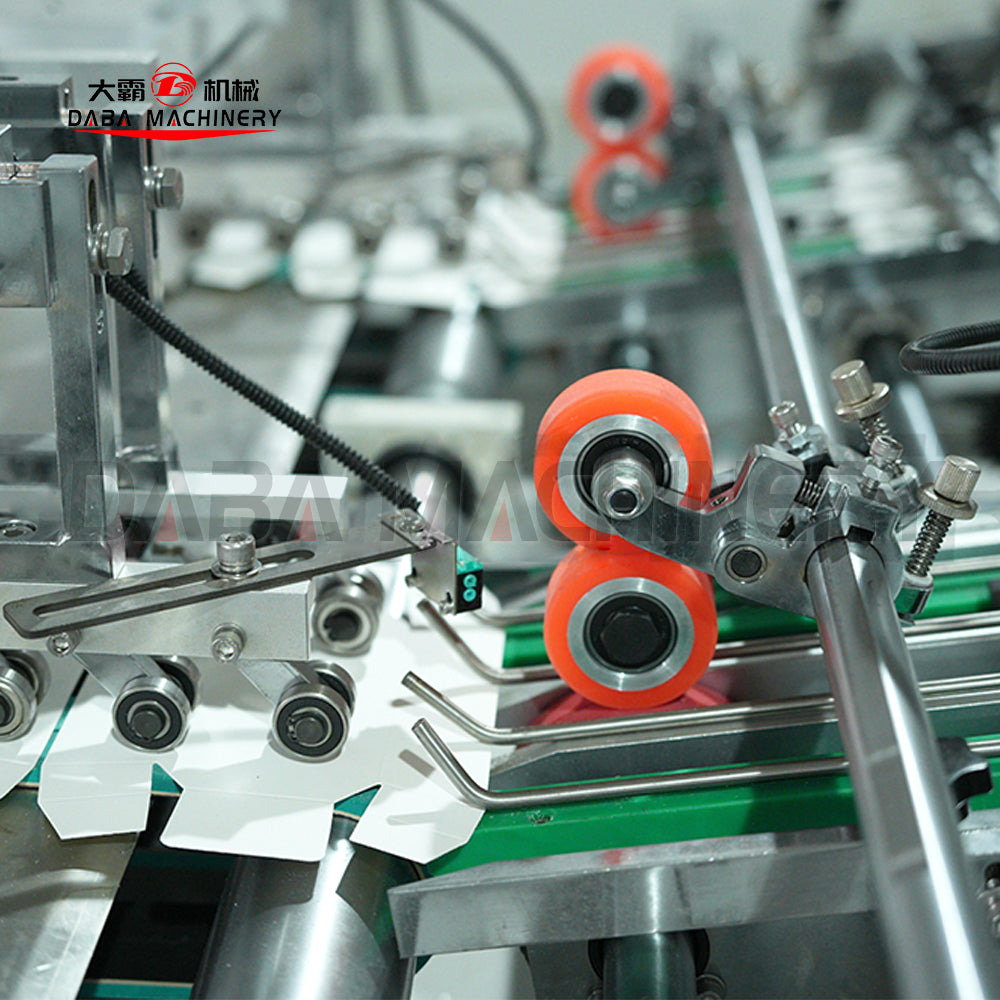

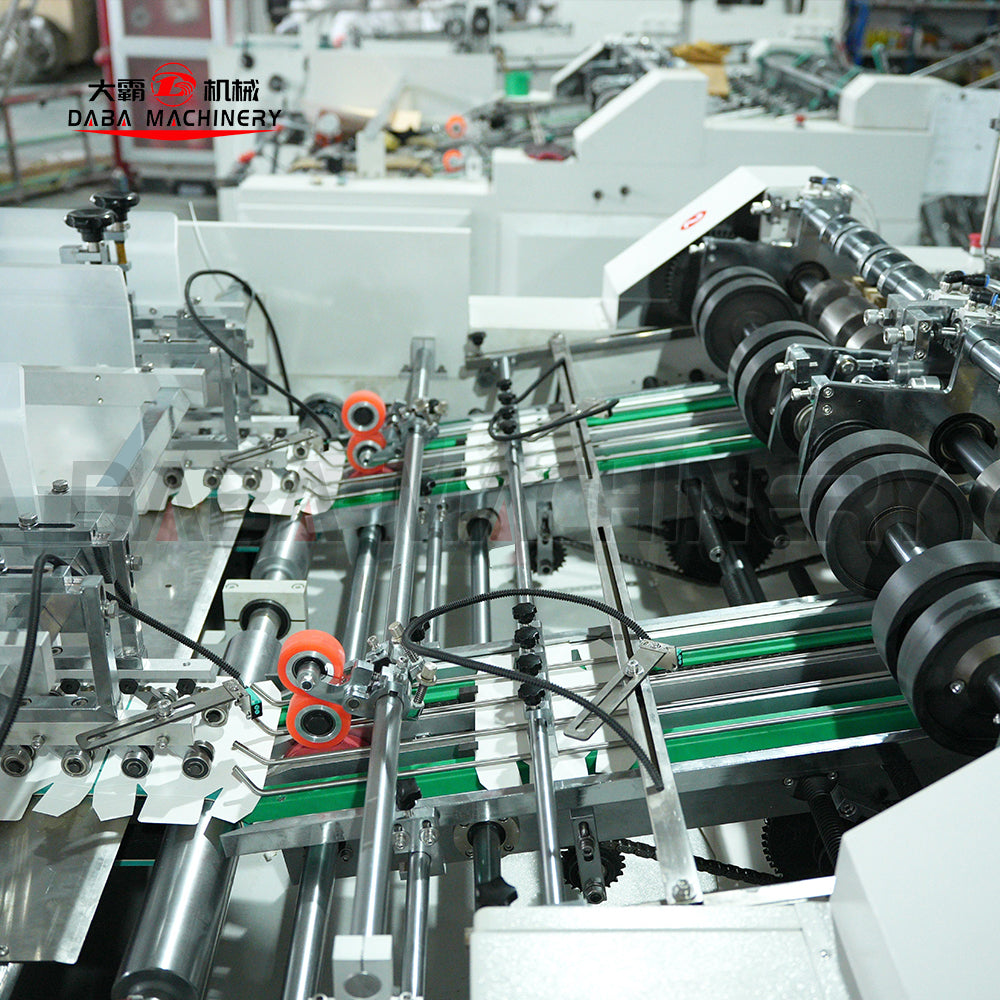

Belt Structure: Belt structure have features of low noise, easy maintenance, longer service life and high precision.We are using same structure as the folder glue machine, the paper will be delivered more smoothly. And hard aluminium material, much better and use imported belt, the machine will stop if the machine doesn’t delivery paper or the machine is not in a correct way, we are also using servo motor for feeding.

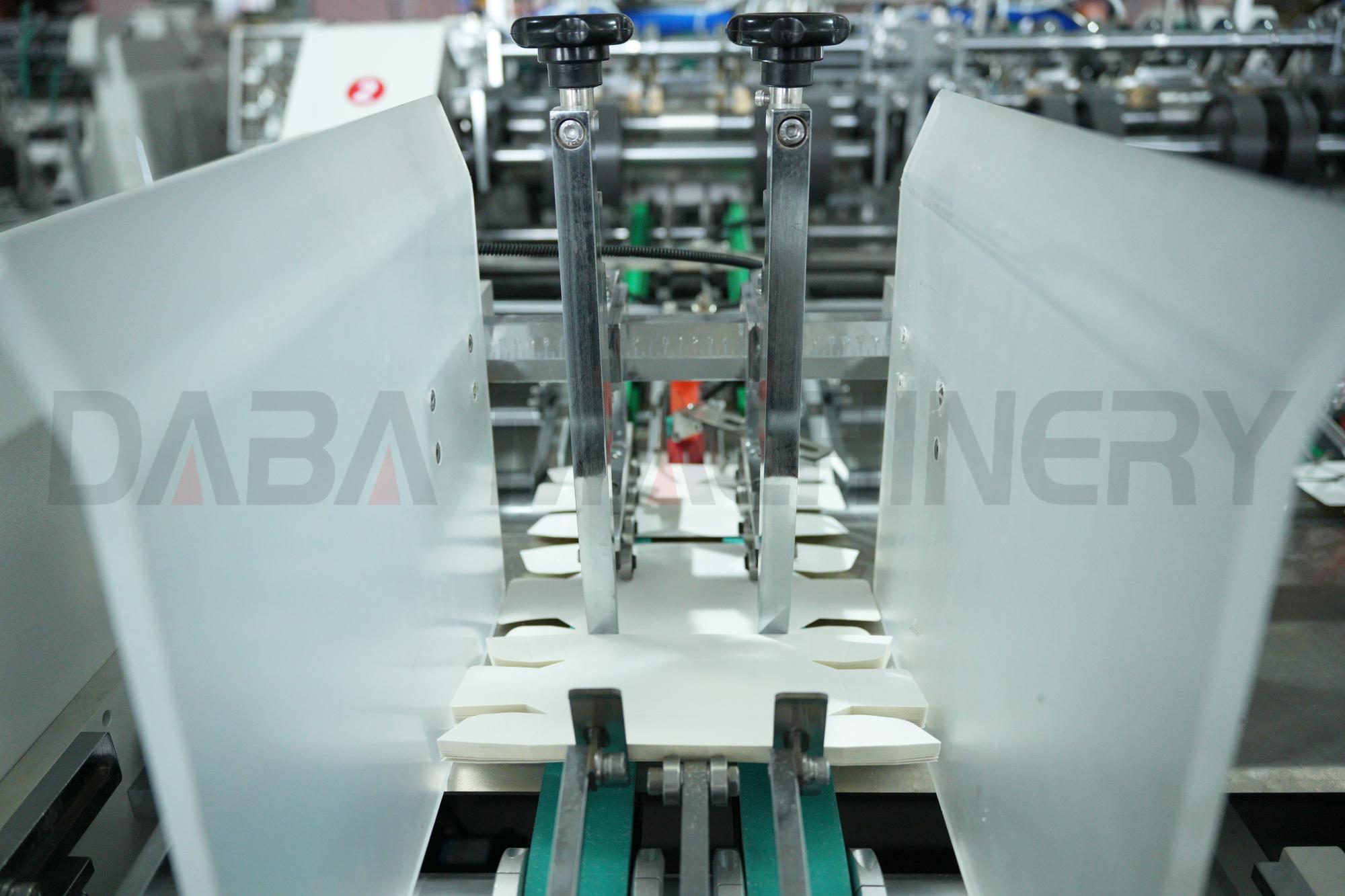

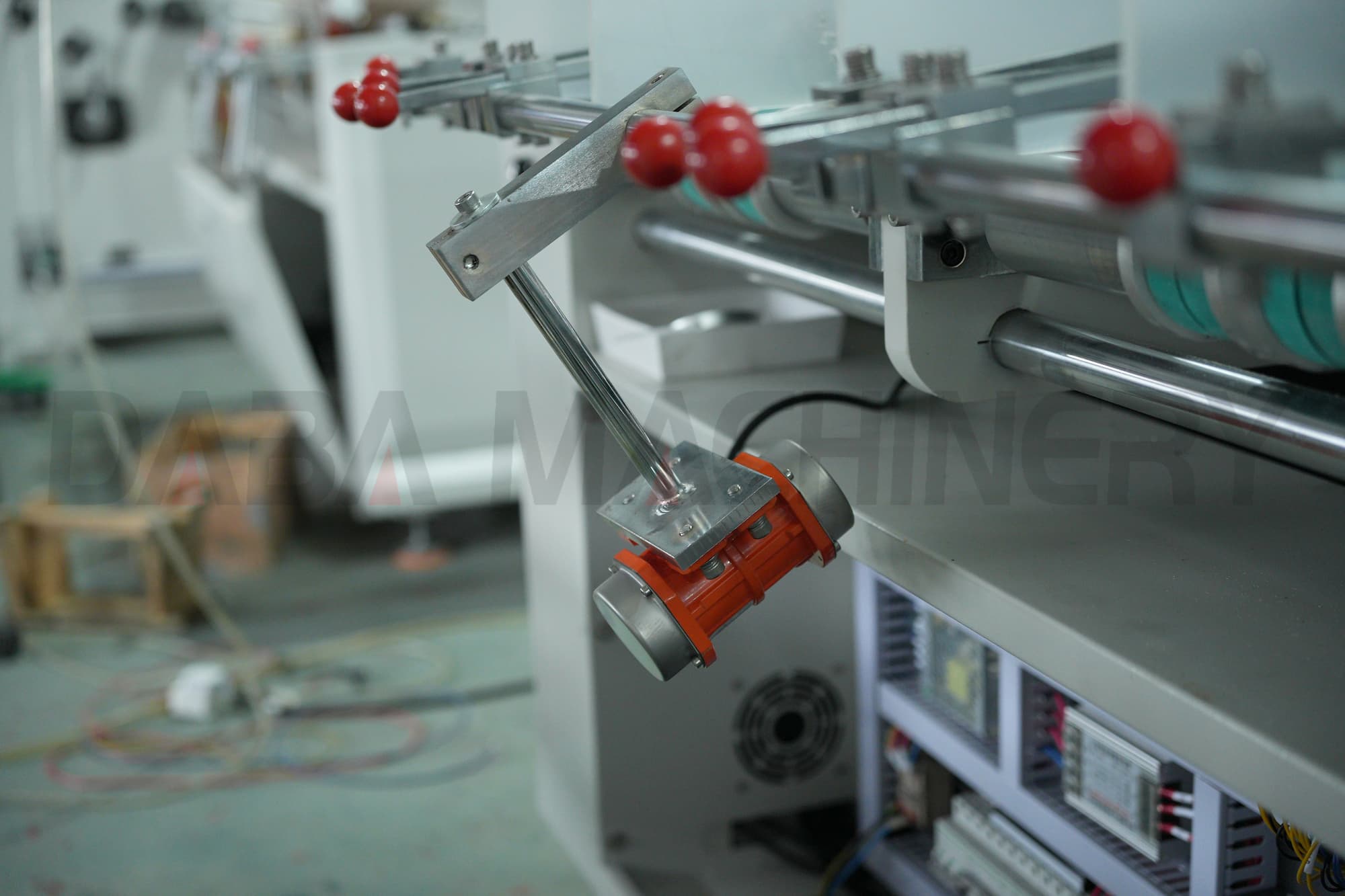

At the beginning of paper feeding part, we install the vibrator, the quality of the output products will be increased when feeding precision is high, and it can make paper feed more smoothly.
Full servo system: We are using 5 servo system-two servo motors for paper feeding, one servo motor for paper sending, one servo motor for dropping paper before forming, one servo motor for molding. The structure is much easier and it has less damageable parts with lower maintenance cost.

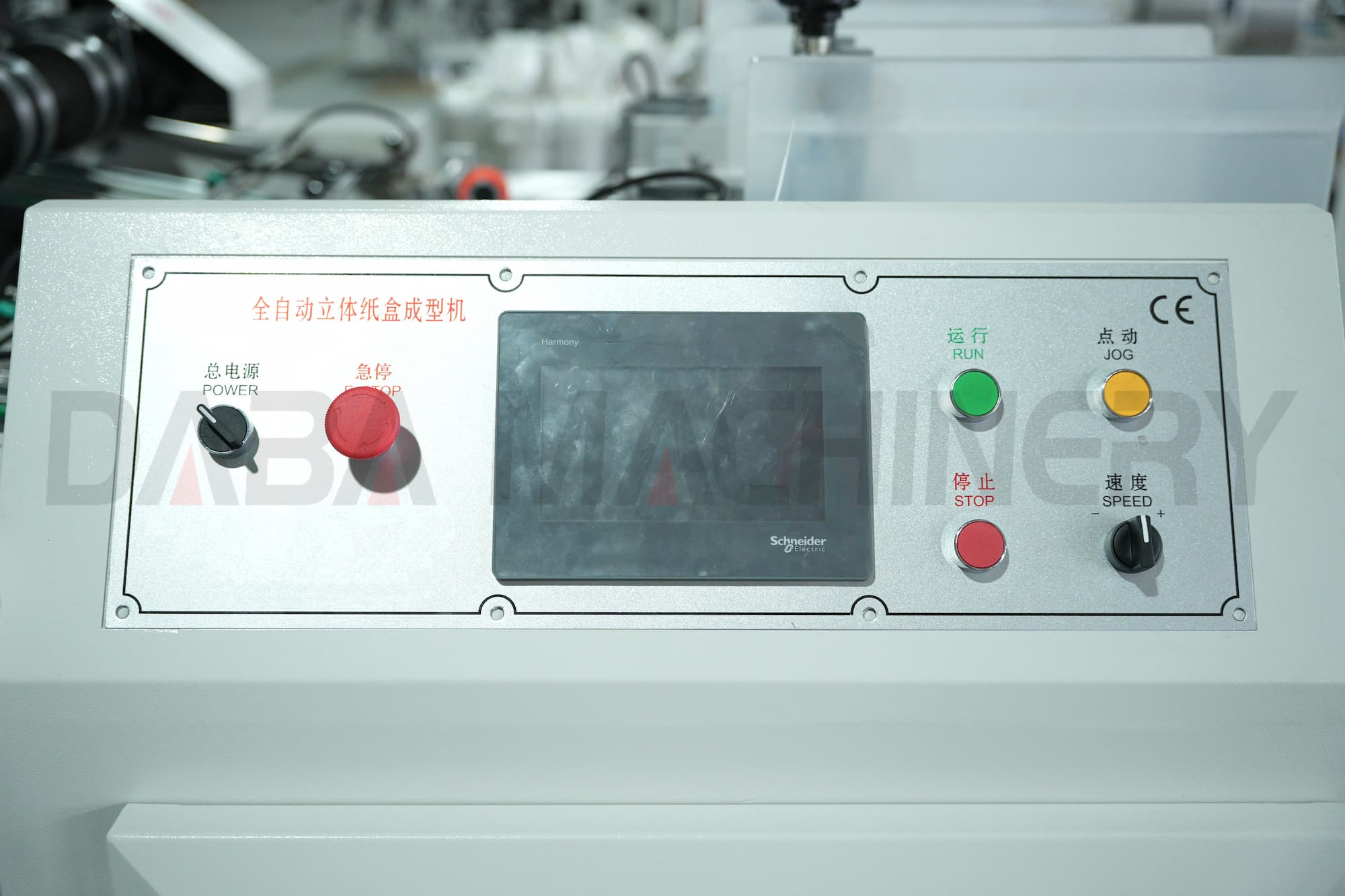

PLC program control the whole line, available to make complicated boxes. You could do the most adjustments by Touch Screen Program PLC. PLC could save the adjusted parameter after you finish adjustment, it will help save time. If you only run the single lane, you could turn off the second lane, they are independent.

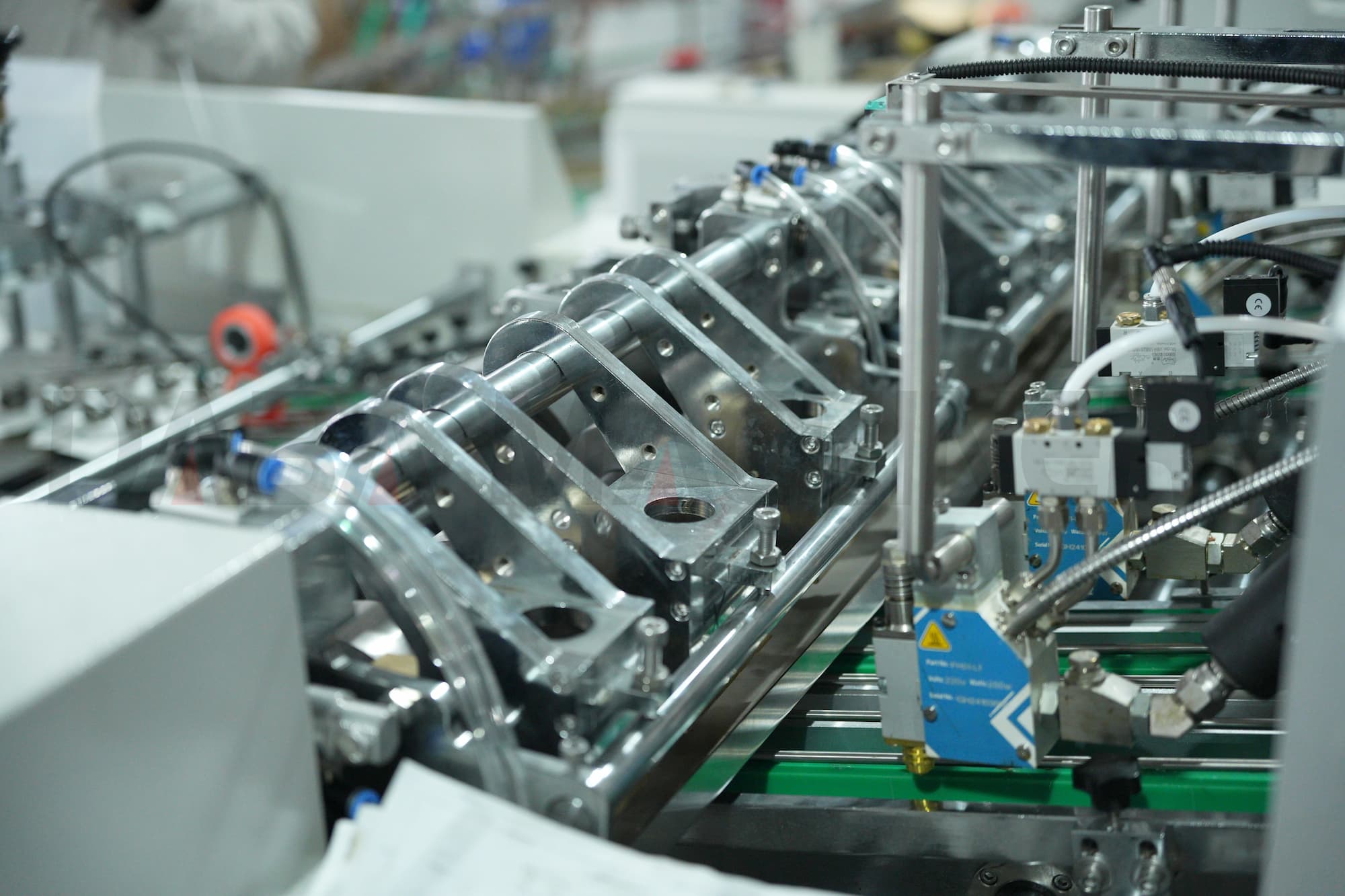

Wheel Glue System – they are independent.
In the forming part, we have the lubrication system and use the two rails which can make the forming more stably and longer service life.
Easy exchange molds to make different products, charging and adjusting time is very short. The collection unit could be open when you change the molds.Two collection units are independent, you can move it smoothly.
