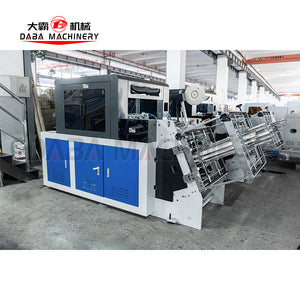

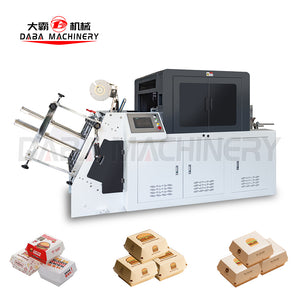

DBJX-DF650-260 Four Servo Paper Hamburger Box Machine

Vendor: DABA Machine
The image material of this machine is still being updated
  • Model: DBJH-D650-200
  • Production Capacity: 144pcs/per min (according to box type )
  • Available Material: 180—600gsm Cardboard / Laminated / Corrugated paper
  • Material Thickness: ≤1.6mm
  • Paper Length Size: 100-450mm
  • Paper Width Size: 100-600mm
  • Paper Height Size: 15-200mm
  • Paper size: Max: 650mm(W)*500mm(L)
  • Max Box Size: 450*400mm
  • Min Box size: 50mm*30mm
  • Glue materia: Water glue
  • Dimension: 3700*1350*1450mm
  • Air requirement: 2kgs/cm²
  • Voltage: 380V 50Hz / 220V  50Hz
  • Total Power: 3kw
  • Weight: 1700kg

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

DBJX-DF650-260 Single Working Station Four Servo Carton Erecting Machine has 4 servo motors which controls the following units.Paper feeding unit -Servo motor drives belts for feeding paper to conveyor. Conveyor unit -Servo motor drives the belt to convey the paper, sensor detected the paper, then machine will past glue in the right place. Paper dropping unit -Servo motor dives paper before forming, to make the molding and falling are in same time. Forming unit -Servo motor dives the mold to push when paper come, make the paper into box and pile them into collector.
Machine

Product Size

Production Size
  1. Pneumatic Air Cylinder Knife (for burger box) :Suitable for all kind of material of Burger box.Traditional cutter, can not handle thick paper when forming burger box.If use such knife, product can get done easily and perfectly.
  2. Full Servo Control: Inteligence / fast adjustment / Easy Maintenance.
  3. Full set of Schneider (France) electronic device.
  4. Auto Lubrication System: Auto Lubrication system to protect the getting damaged.
  5. Belt Structure: Belt structure have features of low noise, easy maintenance, longer service life and high precision.
  6. Cam Pushing System: Cam pusher design, reduce the wearing a lot.
  7. Thick walls: Full Machine weight is exceed 2800KG, machine Running Stably at a high speed
Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper box production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into box fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean box fans.

7. Box Fan

Paper segment prepared for box forming.

8. Paper Box Machine

Make box paper into a three-dimensional lunch box.

9. Paper Box

Completed paper box ready for packaging.

10. Packing Machine

Packs boxs for transportation.

11. Packaging Paper Boxs

Final packaged products ready for shipment.

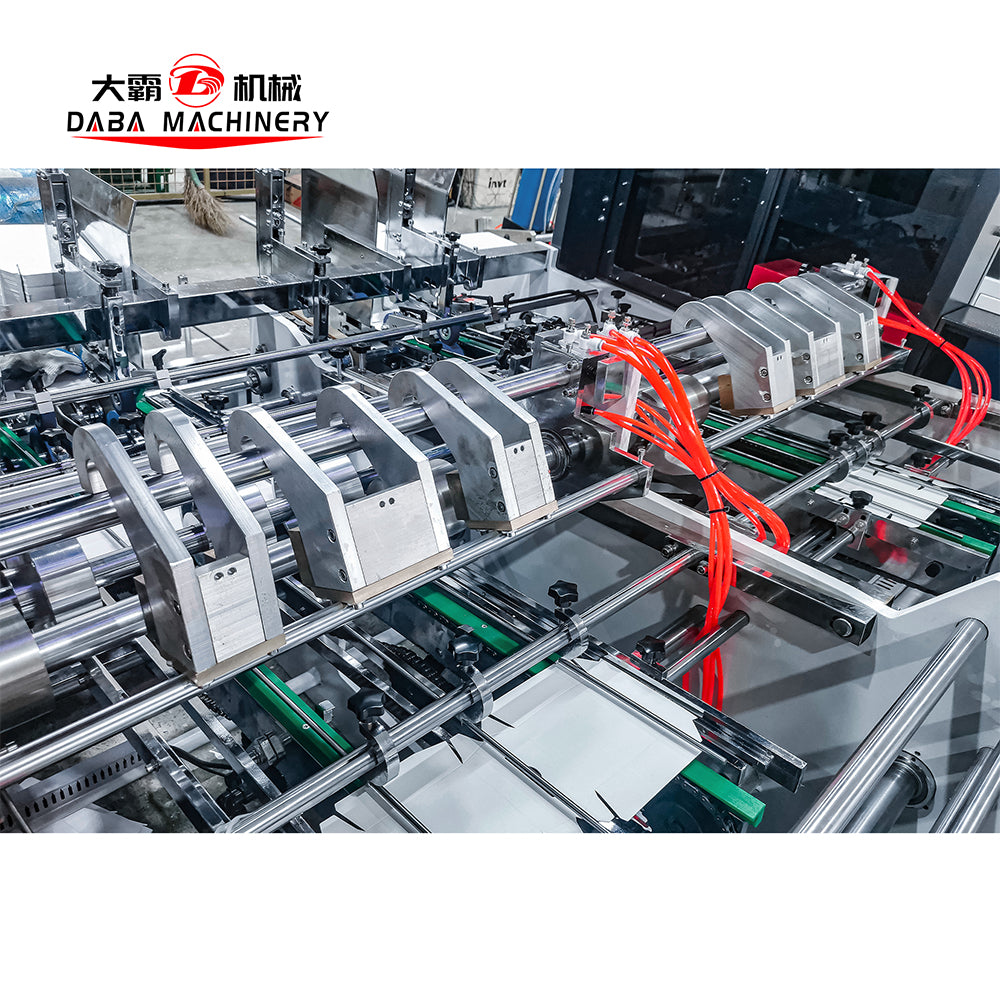

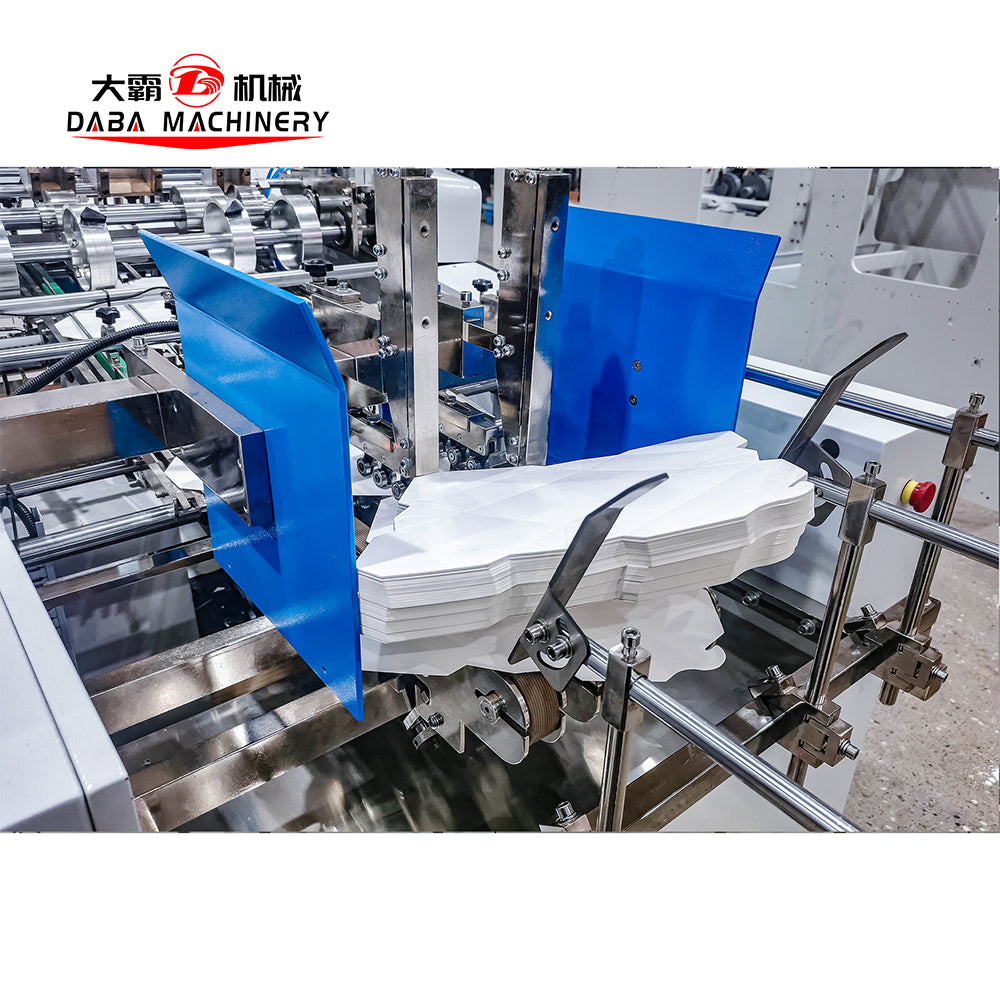

Feeding Section

Belt Structure

Glue Tank

Glue Wheel

Roller

Auto Lubrication System

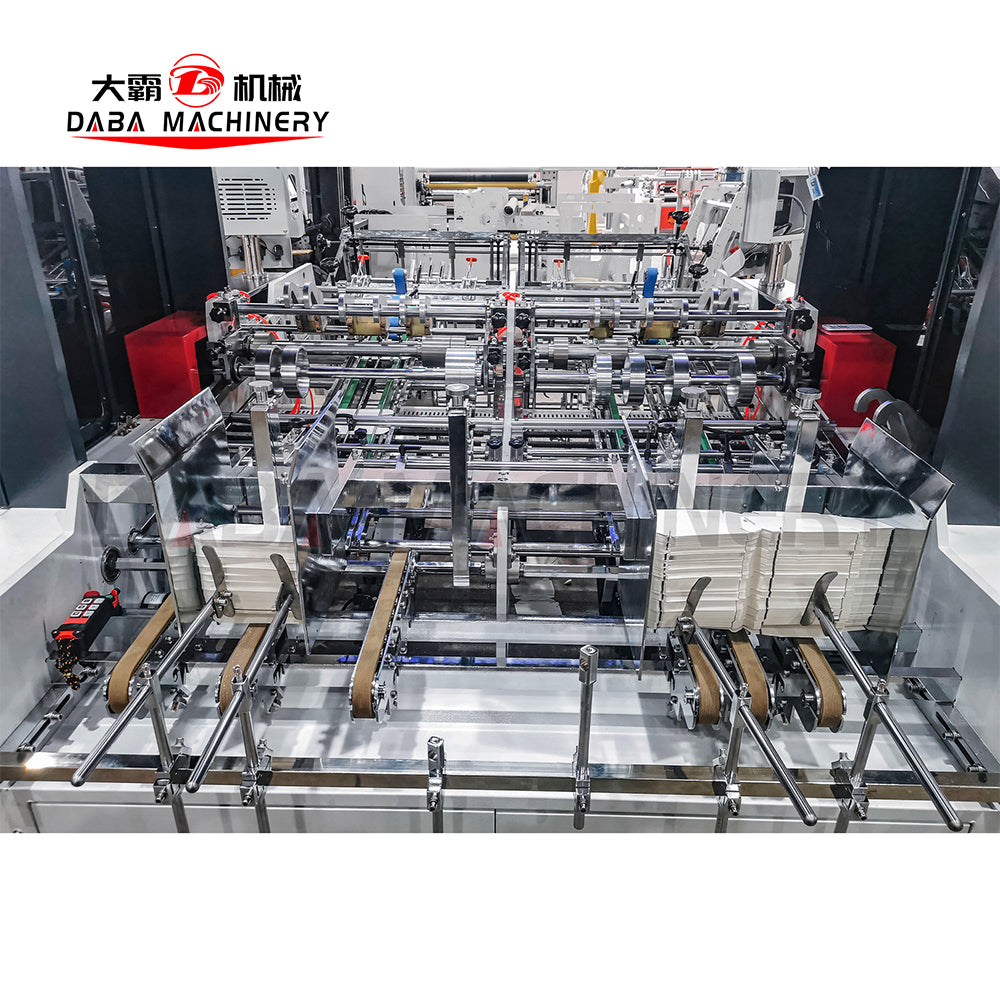

Forming Collecting Rack

Control Panel
