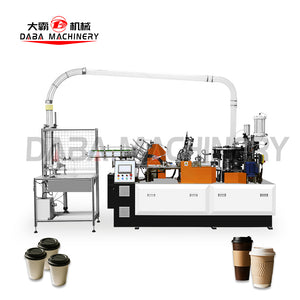

DBDP-BW135-80 Paper Cup Sleeve Machine

Vendor: DABA Machine

Model: DBDP-BW135-80
Paper Cup Size: 5-16oz
Raw Material: outer-Layer Hollow Corrugated Paper
Paper thickness: 180-330gsm
Production Capacity: 80-100pcs/min
Top Diameter: 50-90mm
Cup Height: 60-135mm
Bottom Diameter: 40-70mm
Dimension(l*w*h): 2880*1060*1650mm
Weight: 1700KG
Air Pressure: 0.6-0.8 Mpa
Power: 4KW
Output: 80~ 100Cups Per Min.
Warranty: 1 Year

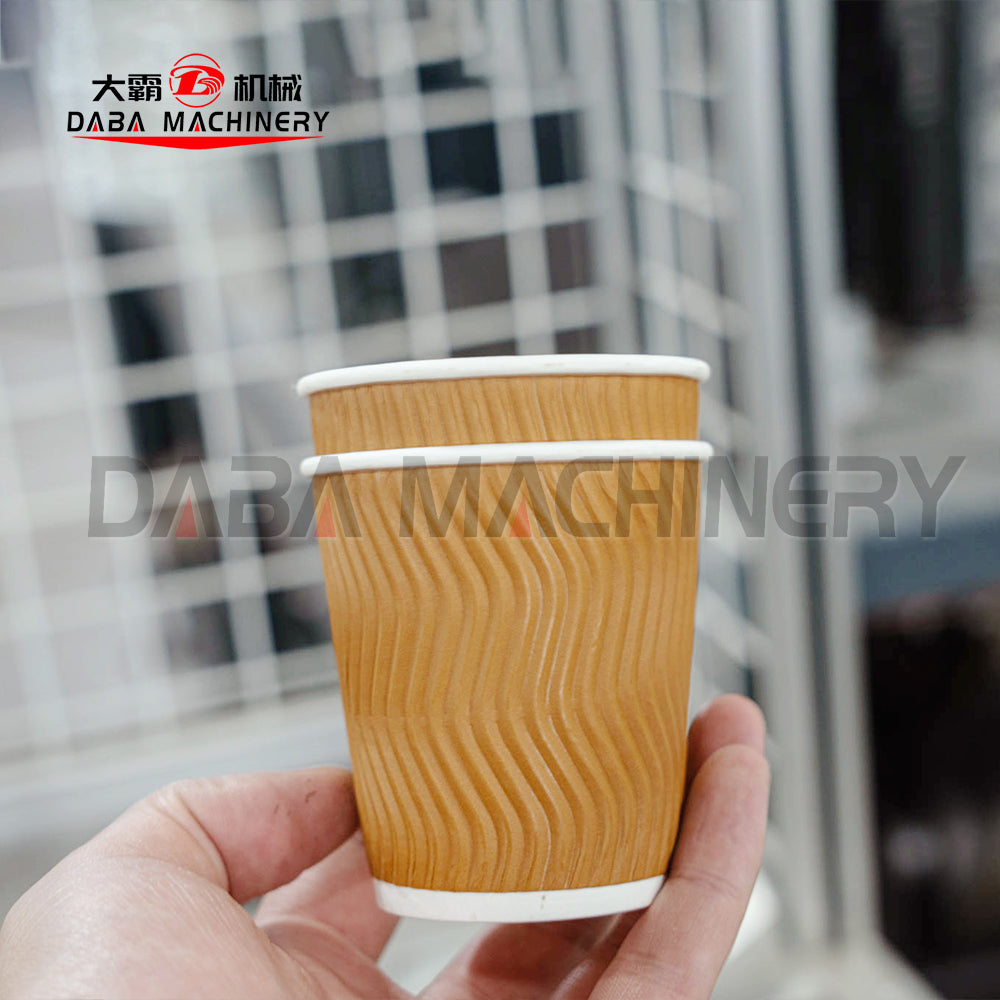

Automation: Fully Automatic paper cups for hot cold drinks

Molds can be customized to meet customer requirements！！！

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

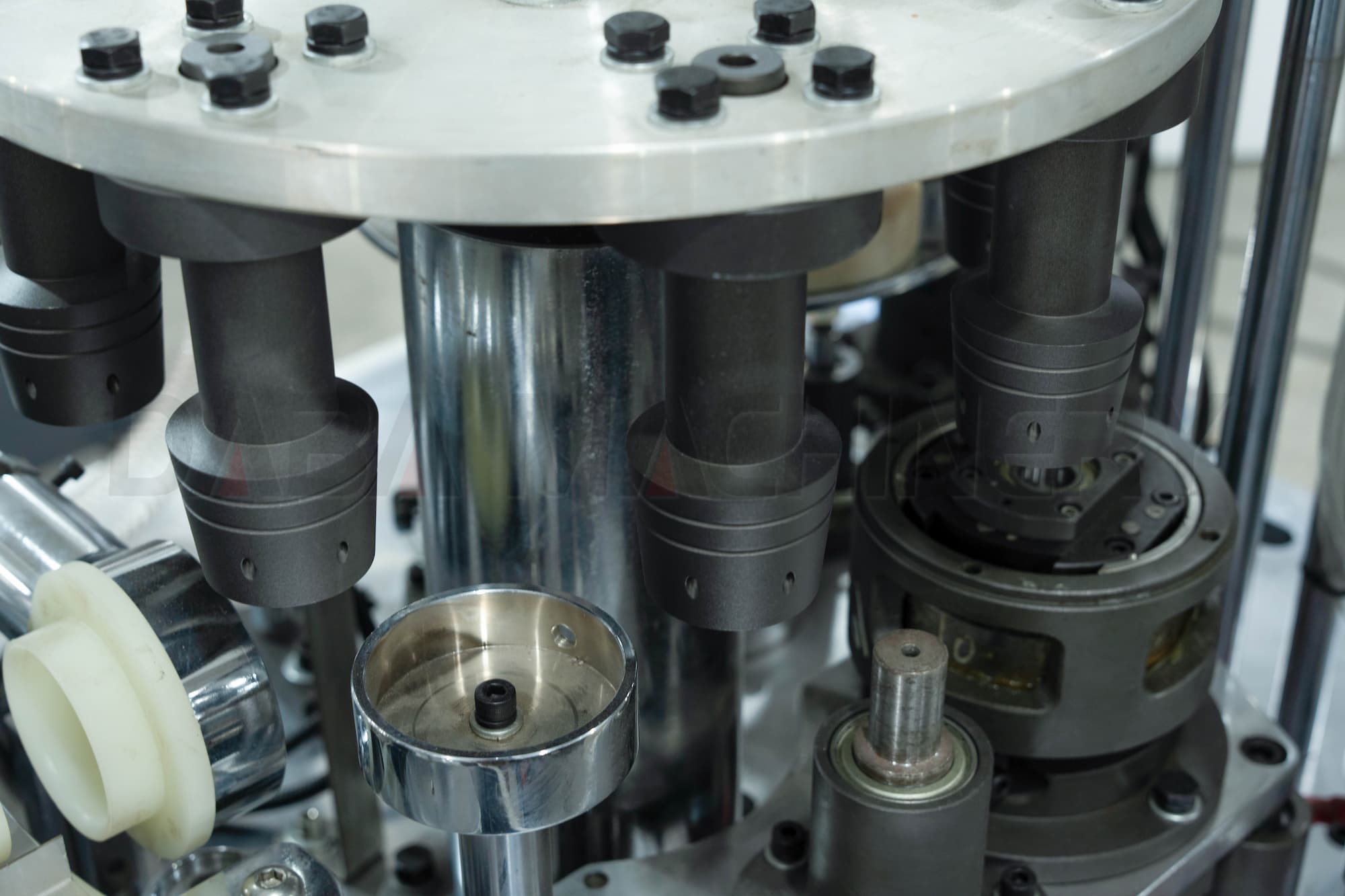

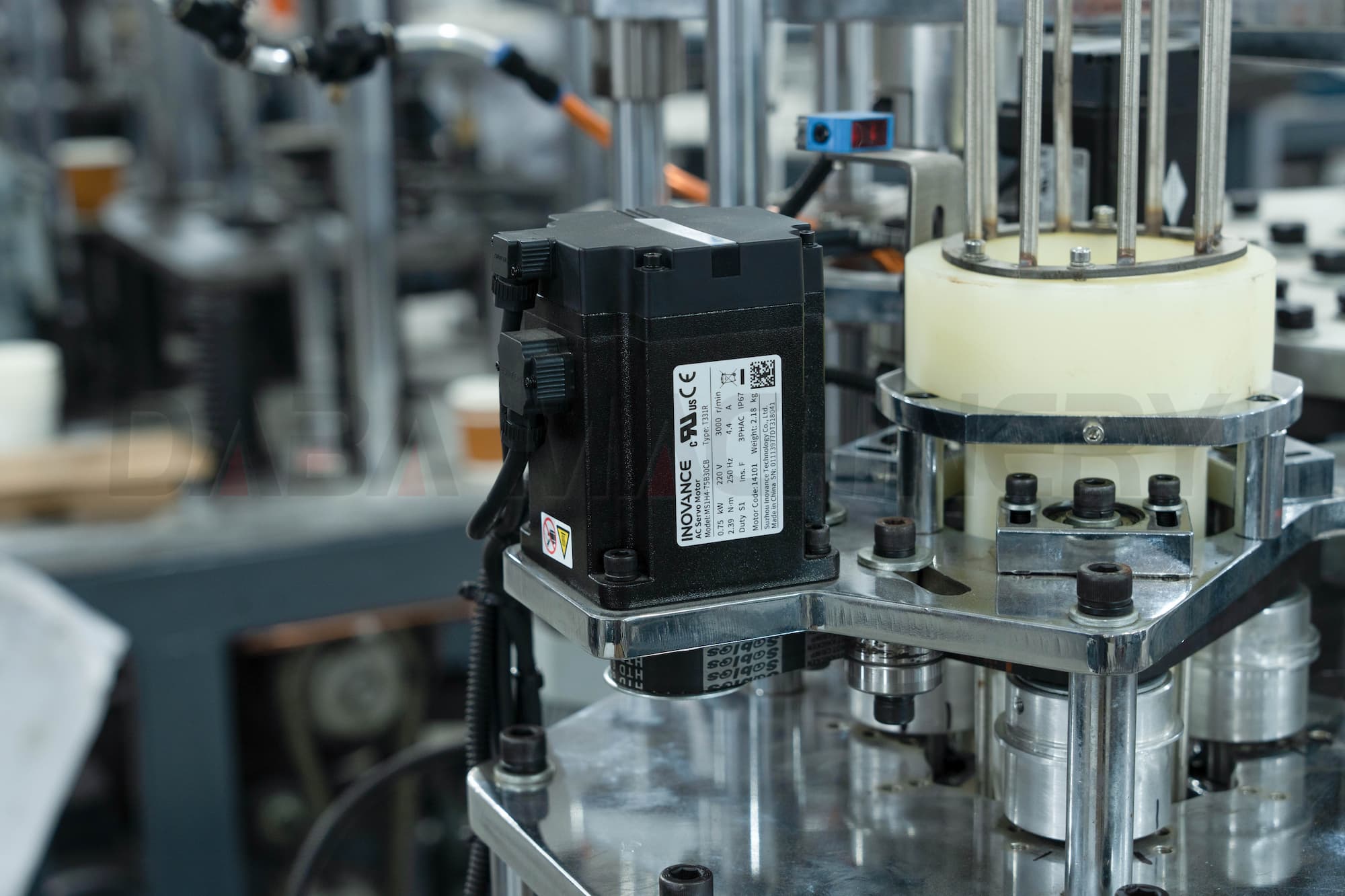

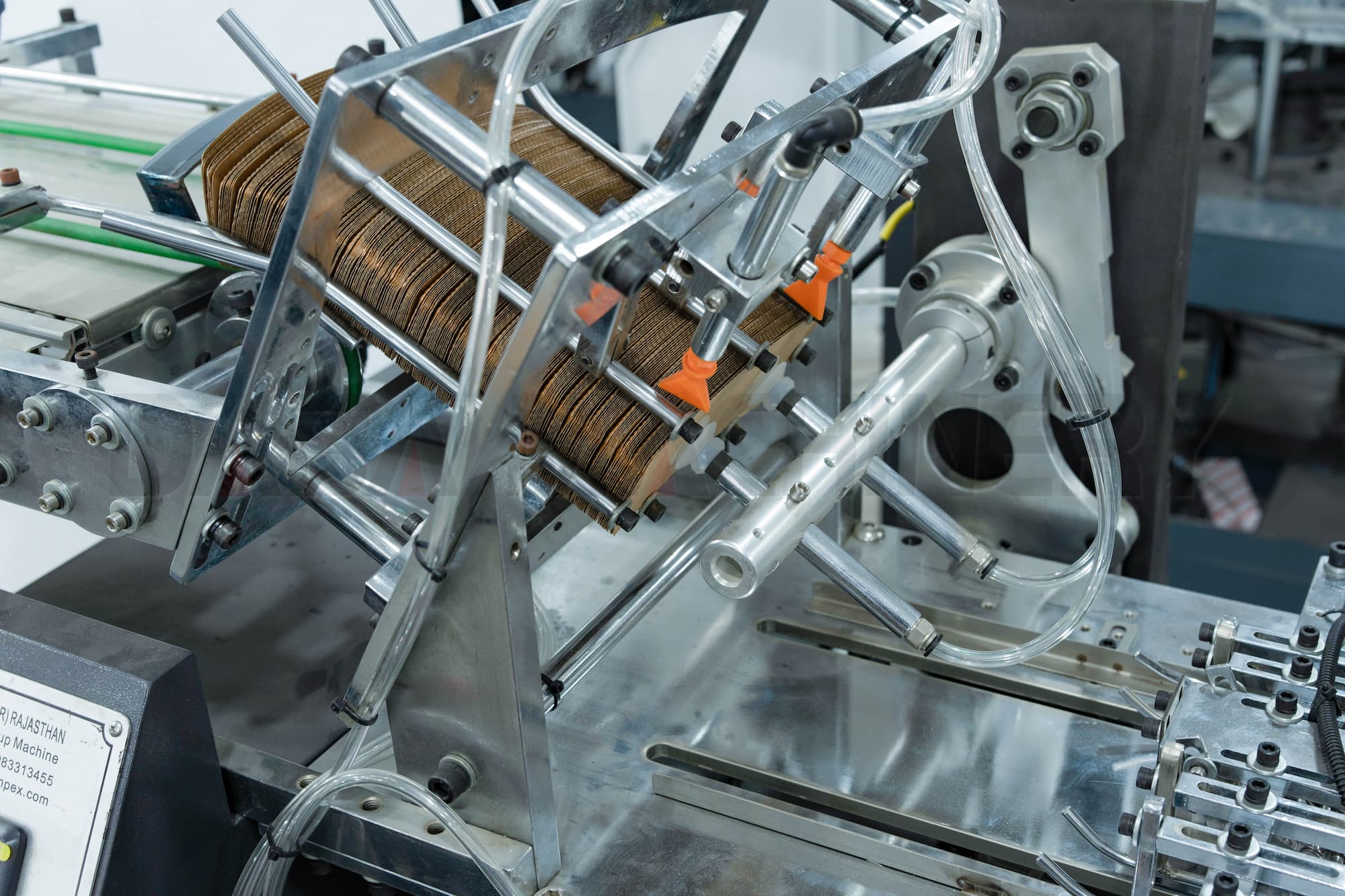

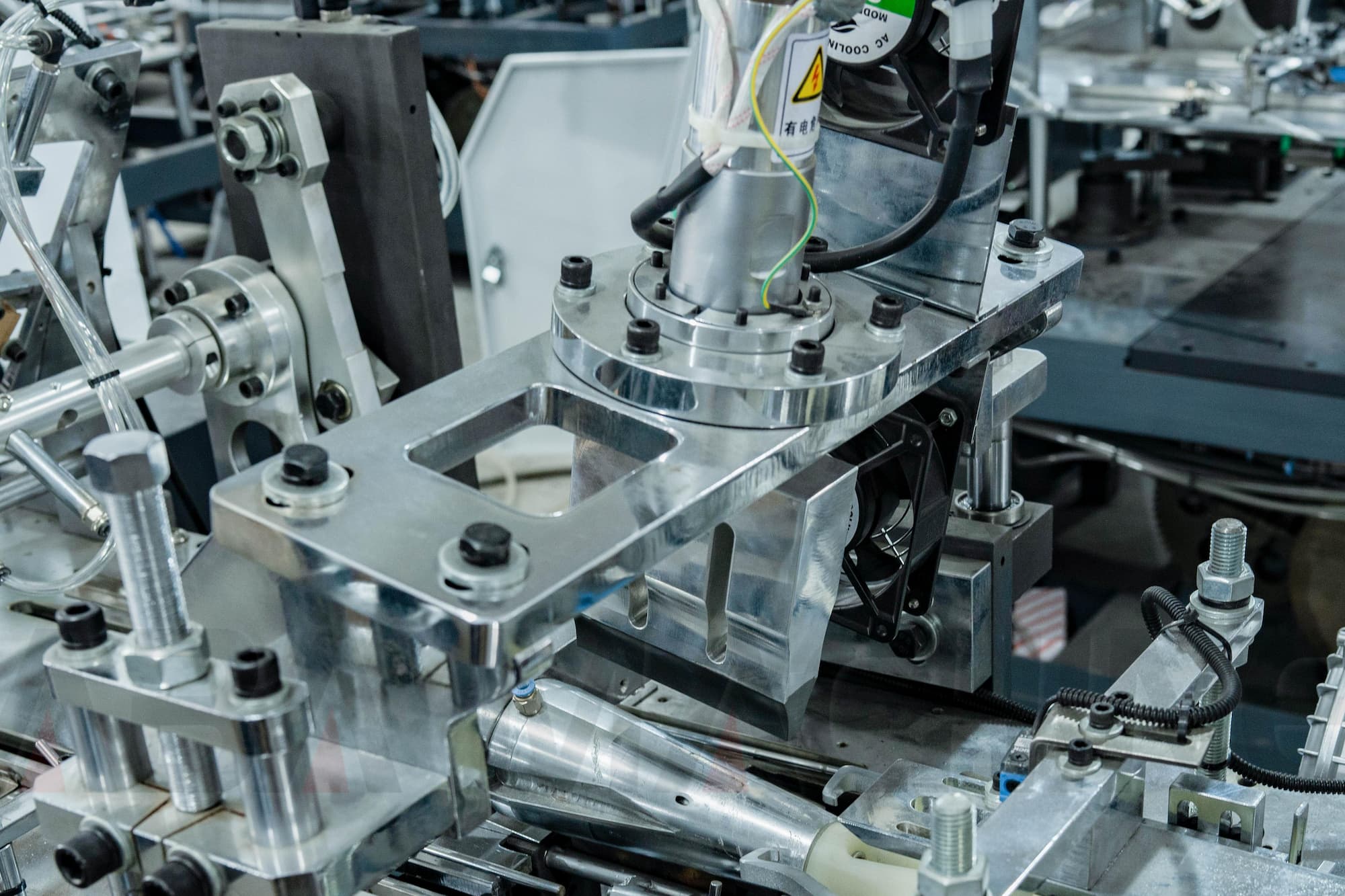

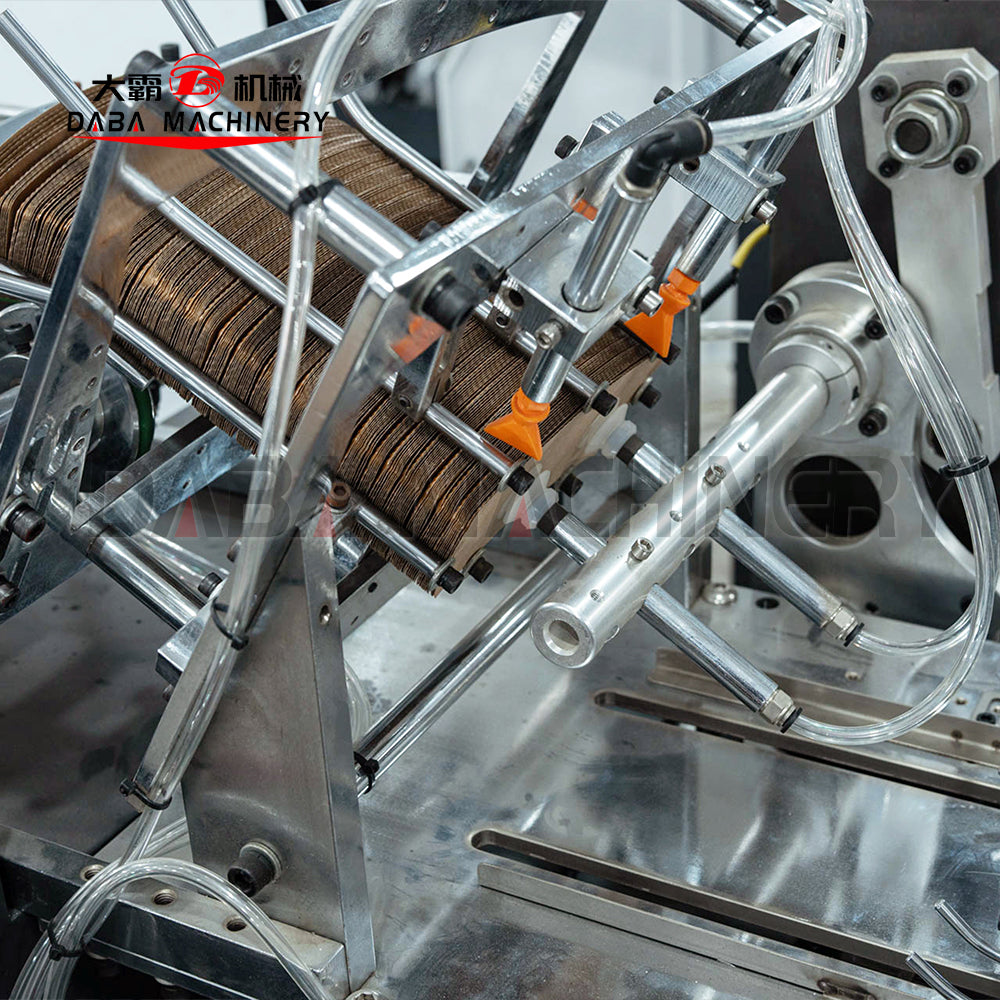

The outer paste hollow corrugated paper cup machine adopts a platform layout, which isolates the transmission parts and molds. The transmission parts are under the platform and the molds are on the platform, this layout is easy to clean and maintain. The machine adopts automatic spray lubrication, longitudinal shaft drive structure, open cylindrical fluted wheel indexing mechanism and gear drive to ensure the stability and quality of the whole machine. For electrical components, PLC, photoelectric tracking and servo feed are used to control the operation. The production capacity of these machines is up to 80-100 / min, suitable for producing 5-16 ounces of cold / hot cups with external hollow corrugated. The suction structure has been updated for more stable suction.

Printing Customizable

Features/Functions

Multiple Model Modules: Guided by simple on-screen prompts, allowing users to select and configure the desired model easily.
Flexible Parameter Settings: Parameters can be backed up, restored, or reset to factory defaults. Users can also manually adjust parameters in detail.
Flexible Encoder Zero Point and Auto-Direction Setup with Self-Diagnosis: Encoder hardware installation does not require positional adjustment; configuration is completed via software.
Automatic Parking Position Configuration: Enables quick stopping in less than one revolution. After configuration, the machine automatically calculates inertia distance, ensuring the deceleration stop point is at least one step faster.

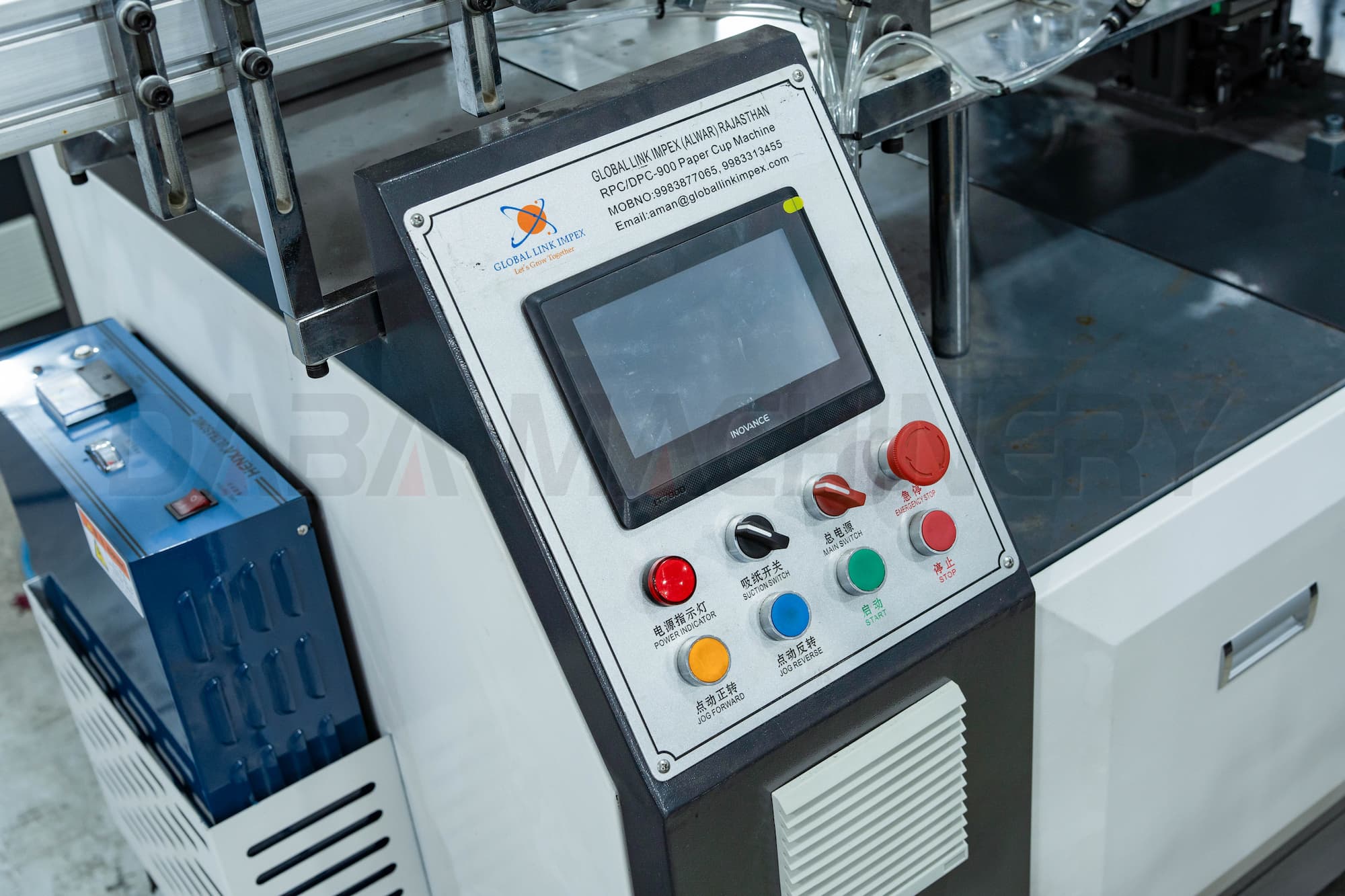

Hardware Monitoring System: Real-time monitoring of PLC output points, relays, contactors, PLC-to-touchscreen, PLC-to-computer connections, and extended circuits. Abnormal alarms on the touchscreen indicate fault causes. Detailed hardware and software fault information allows users to troubleshoot easily based on prompts.
