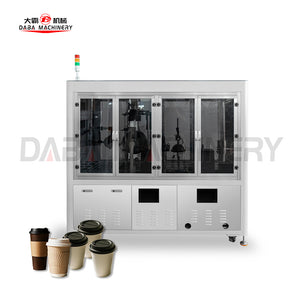

Paper Cup Inspection Machine

Vendor: DABA Machine

Inspection speed: 300pcs/min
Inspection function: Dirty, cracked, damaged, creased
Number of camera brands: HIKVISION*2
Number of lens brands: CTS*2
Number of light source brands: CTS*2
Applicable paper cup range: Small paper cup (4-6 oz), Medium paper cup (8-12 oz), Large paper cup (16-20 oz)
Computer host: HIKVISION professional industrial computer
Inspection software: Wish V1.2 (for paper cups)
Air source: 0.6 MPa
Voltage: 380V
Power: 3800W
Quality: 600kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The Paper Cup Inspection Machine is a fully automatic system designed to ensure the highest quality standards in paper cup production. Equipped with advanced visual inspection technology, it efficiently detects defects such as deformations, stains, cracks, and misprints at speeds of up to 300 cups per minute. With precise OK/NG sorting, stable operation, and easy-to-use controls, this machine provides reliable performance and consistent inspection accuracy—making it an ideal choice for high-speed, high-volume paper cup manufacturing lines.

Machine Structure

Features/Functions

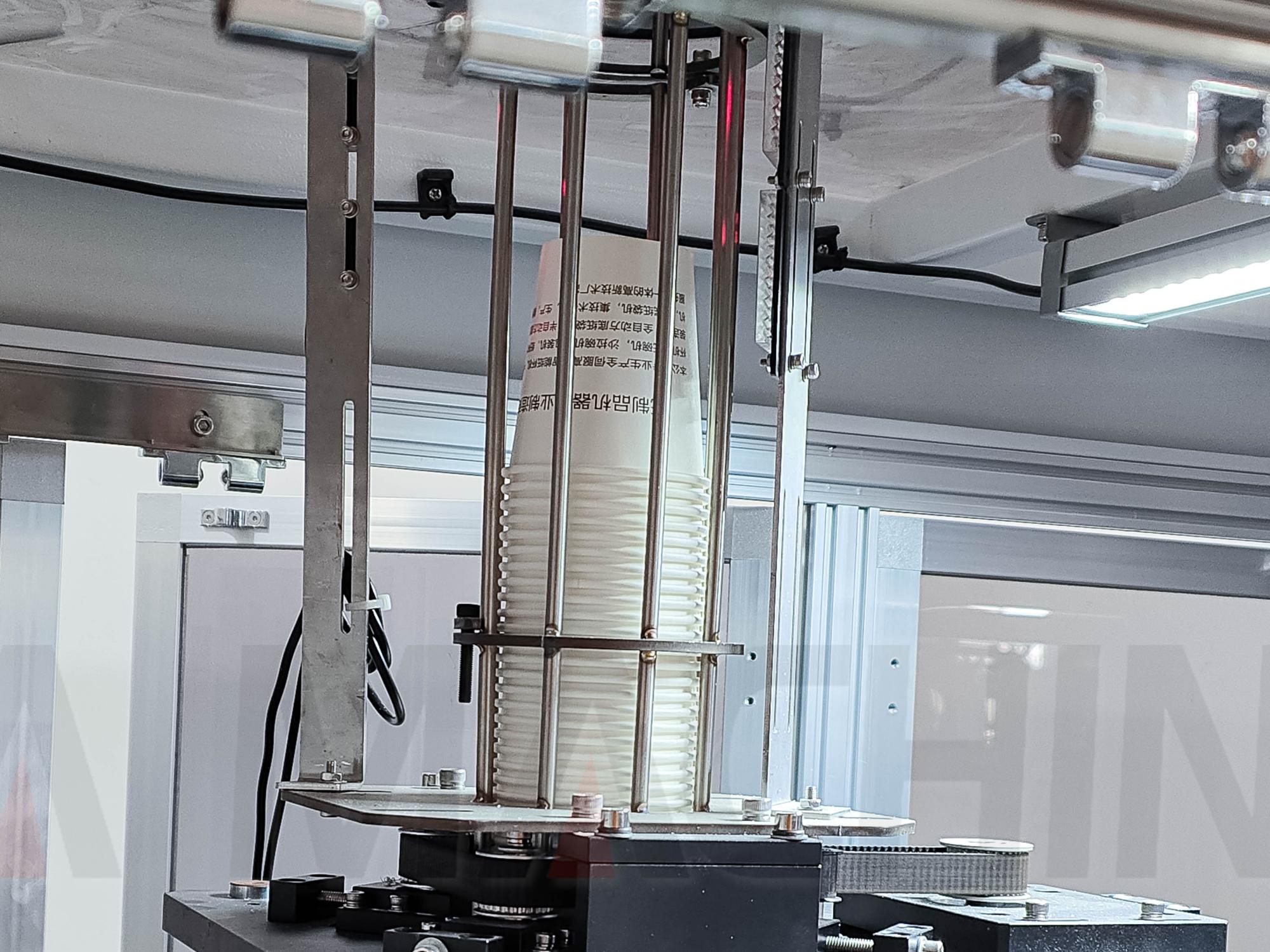

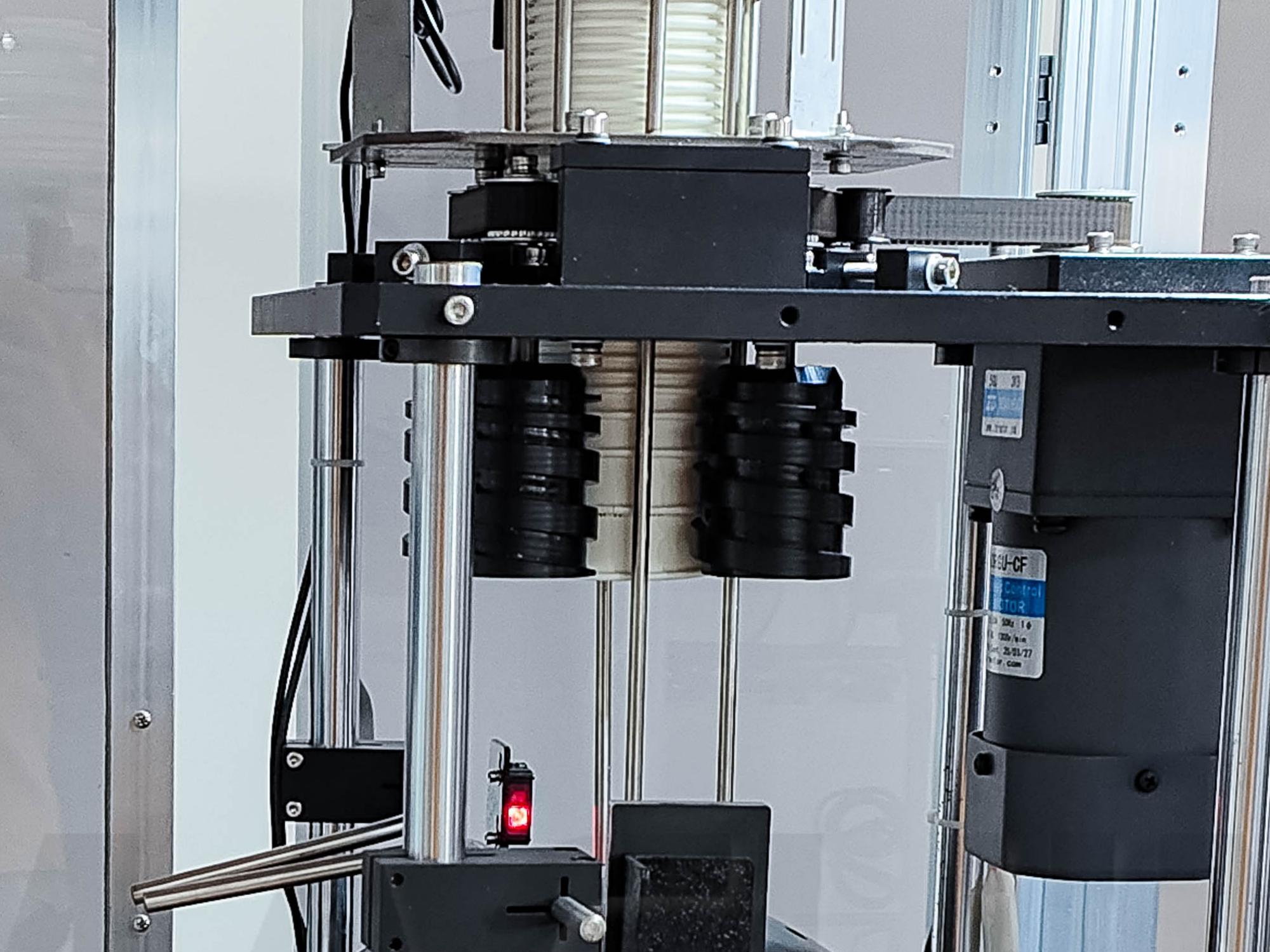

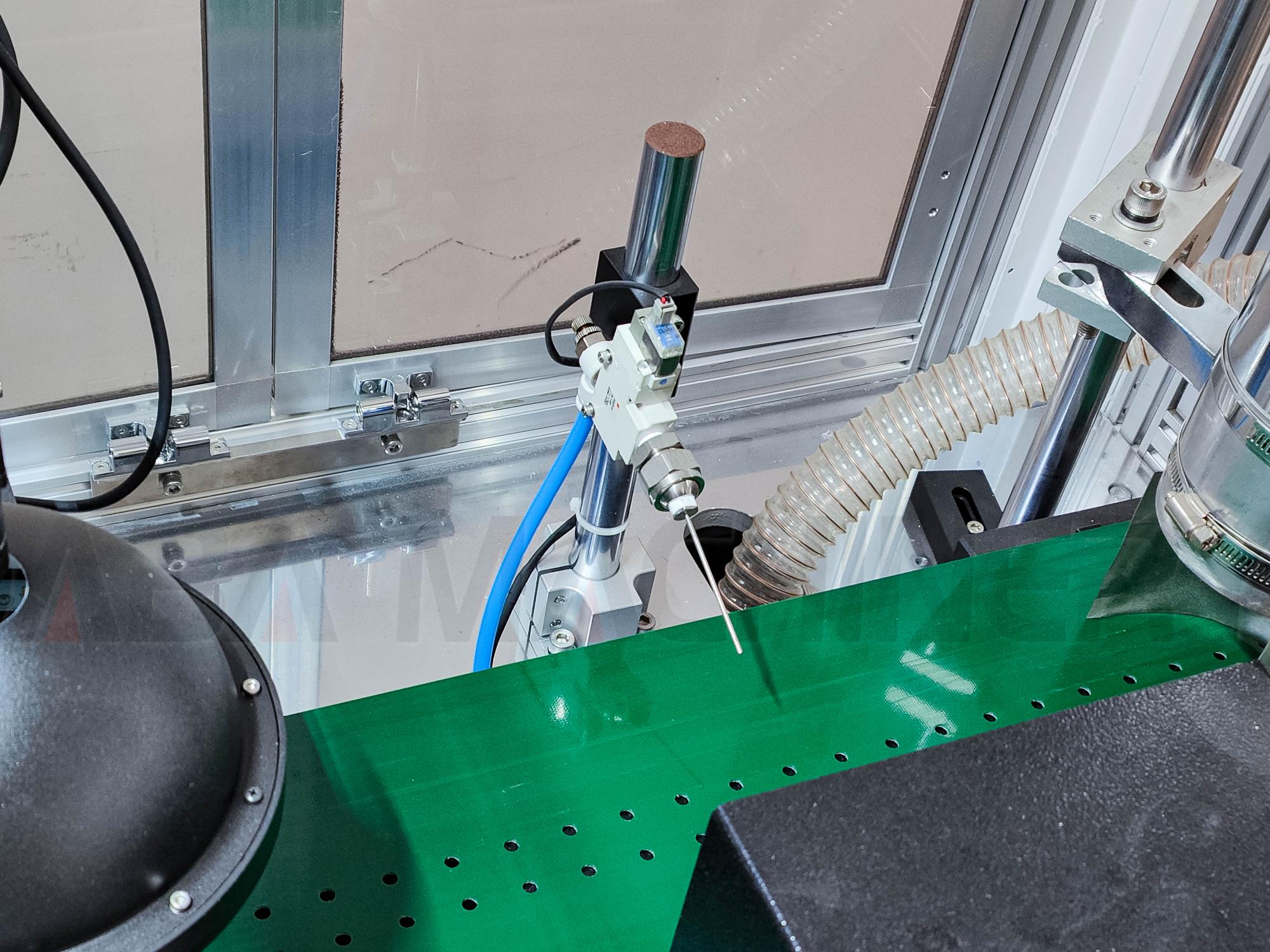

Automatic Cup Feeding System – The negative pressure feeding device ensures stable and precise cup loading without deformation or jamming.

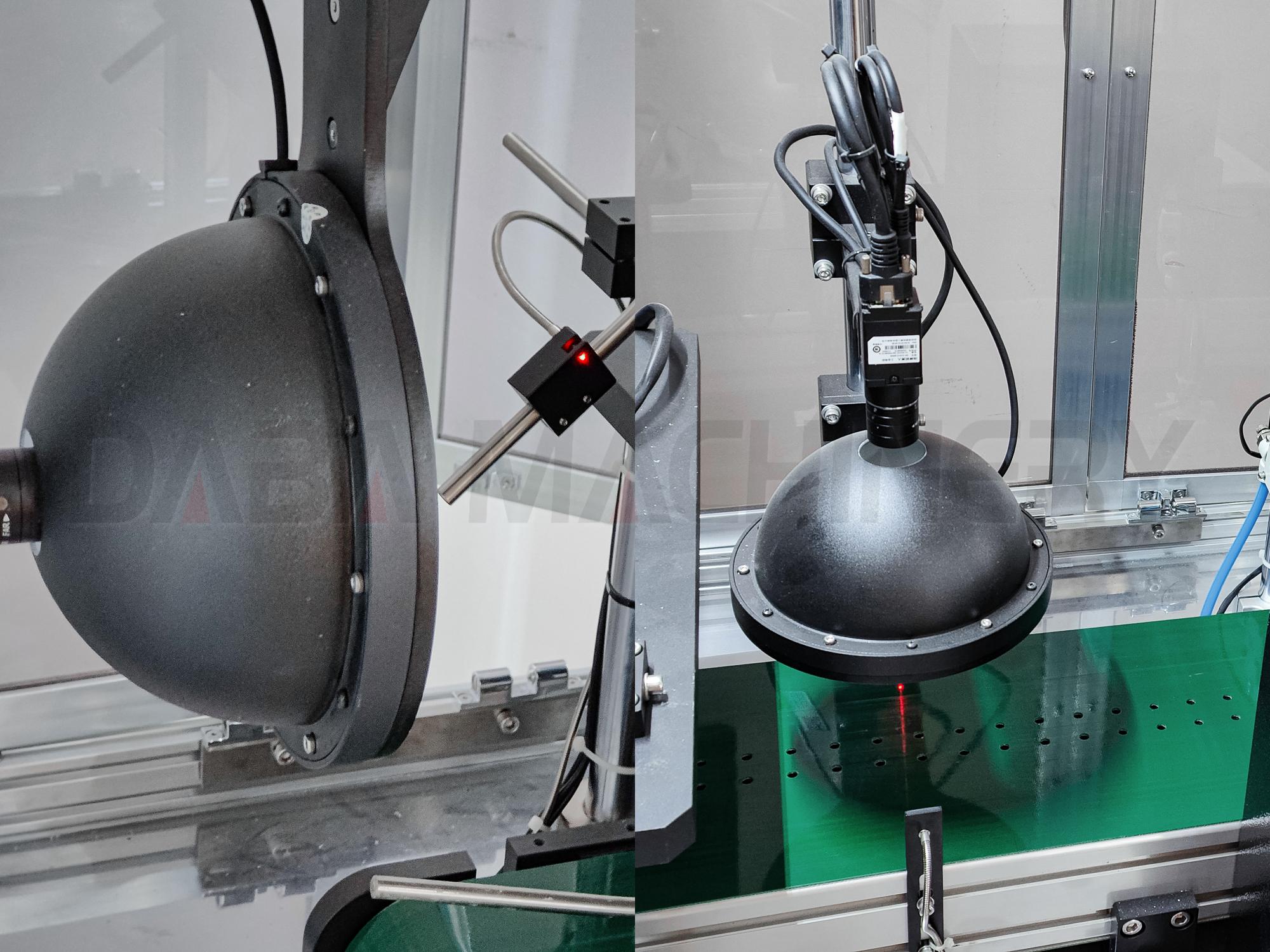

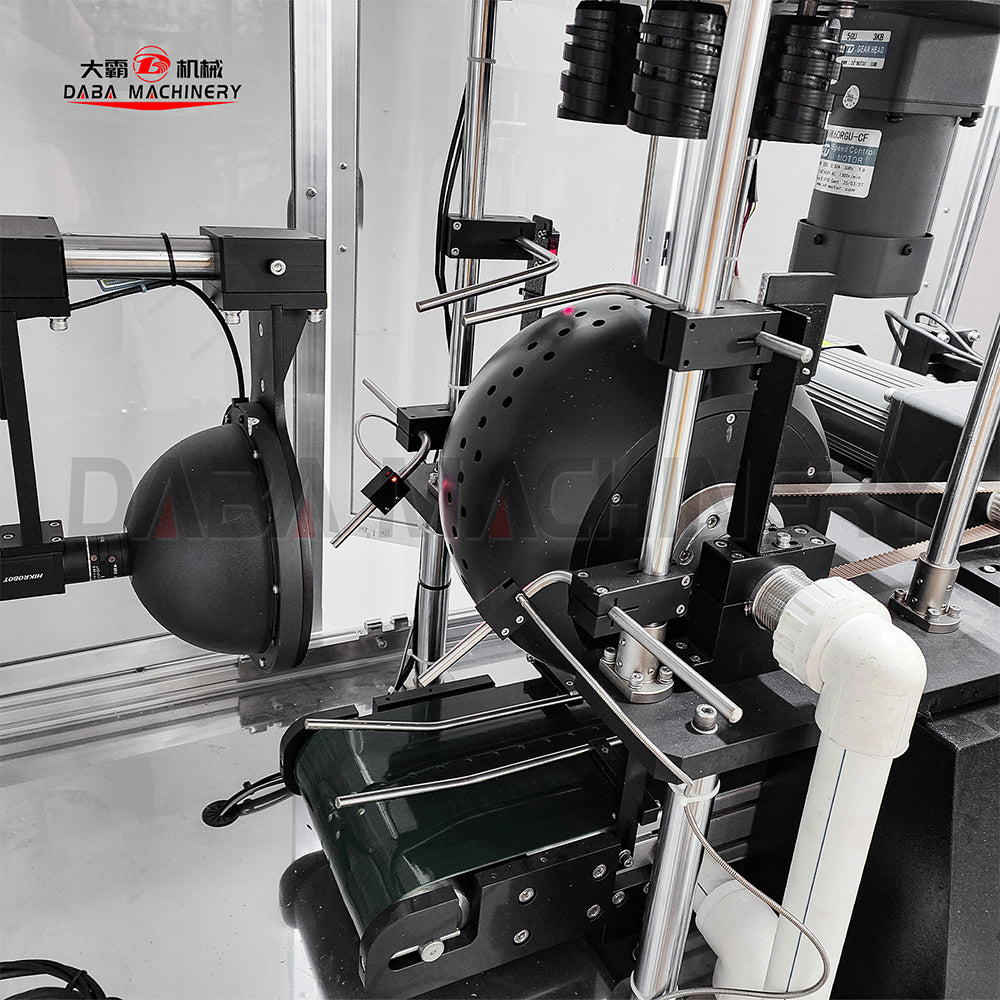

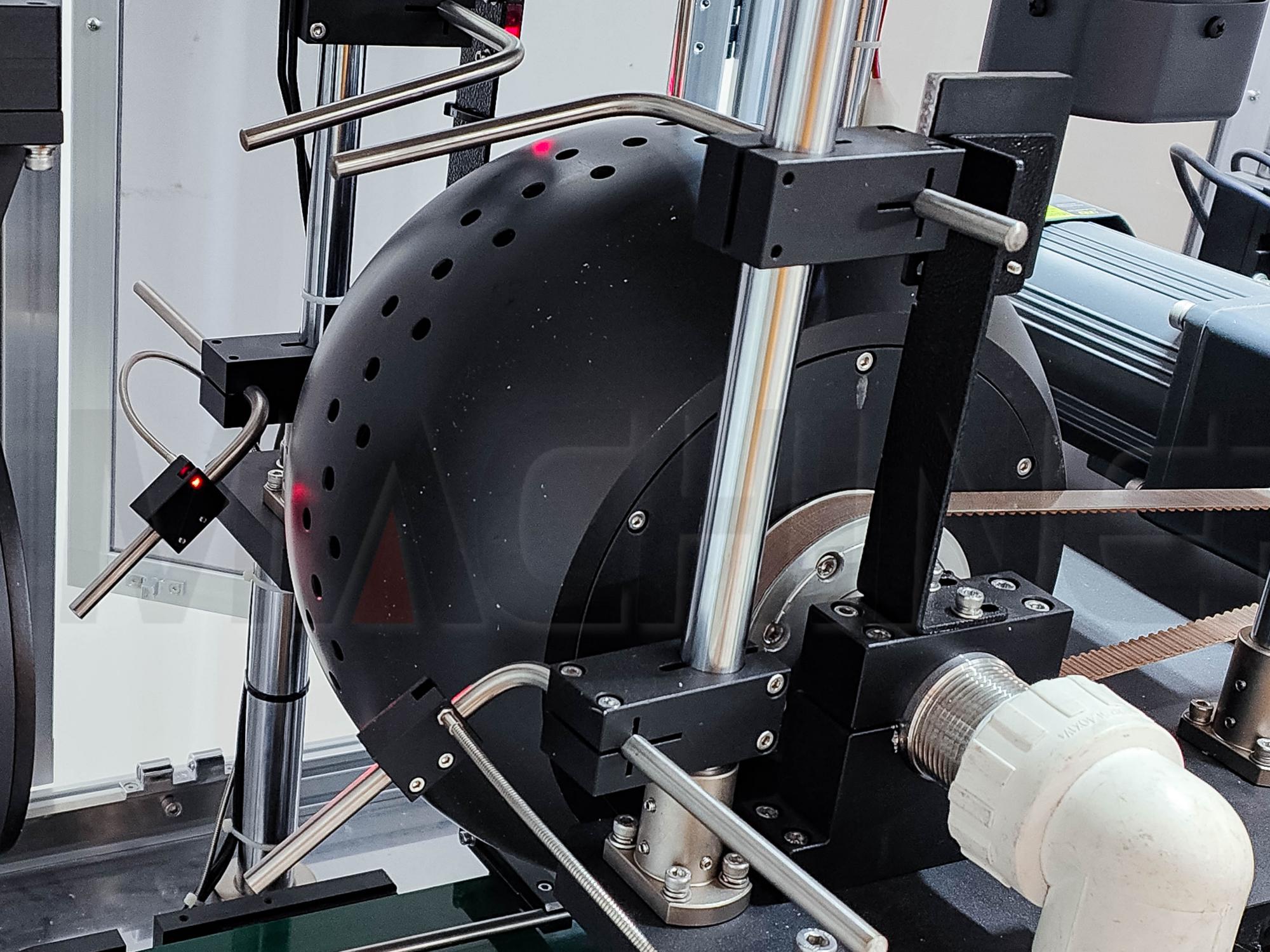

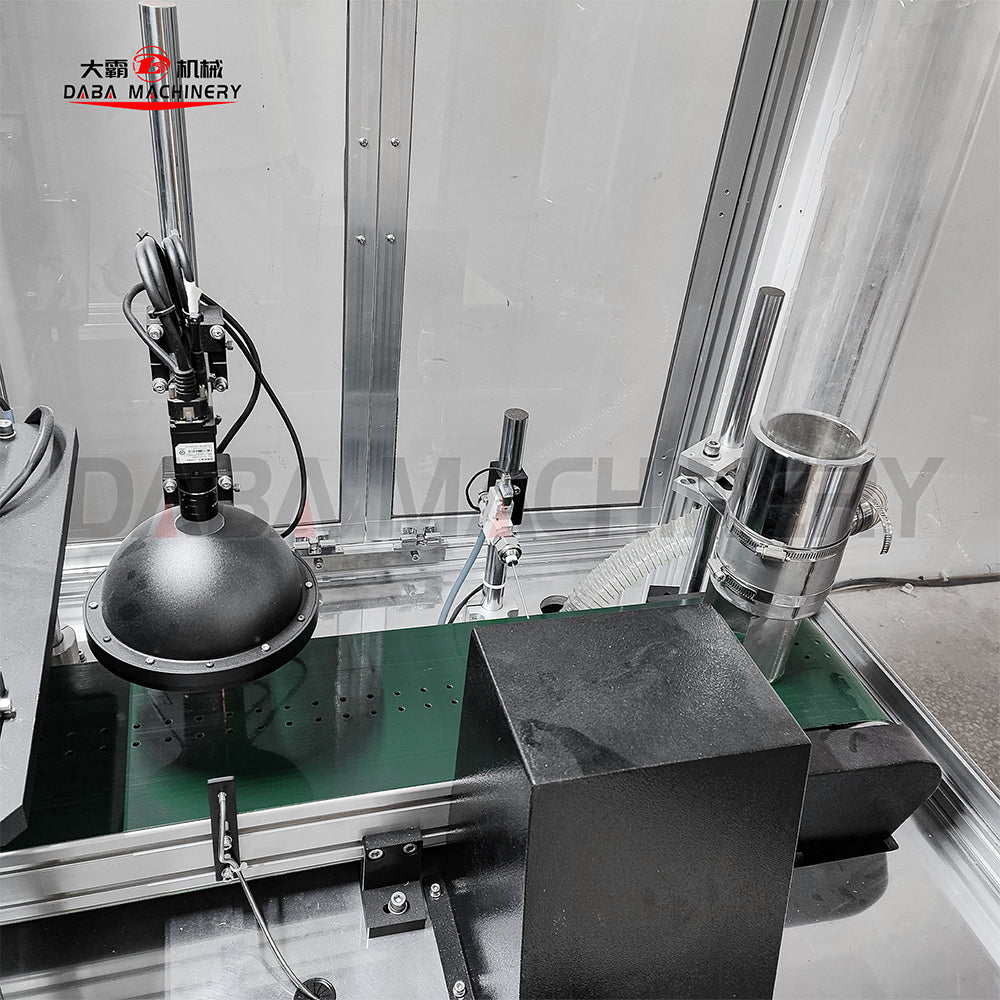

High-Precision Visual Inspection Line – Equipped with industrial cameras and light sources to capture 360° images of each cup, detecting defects such as cracks, stains, or deformed edges.

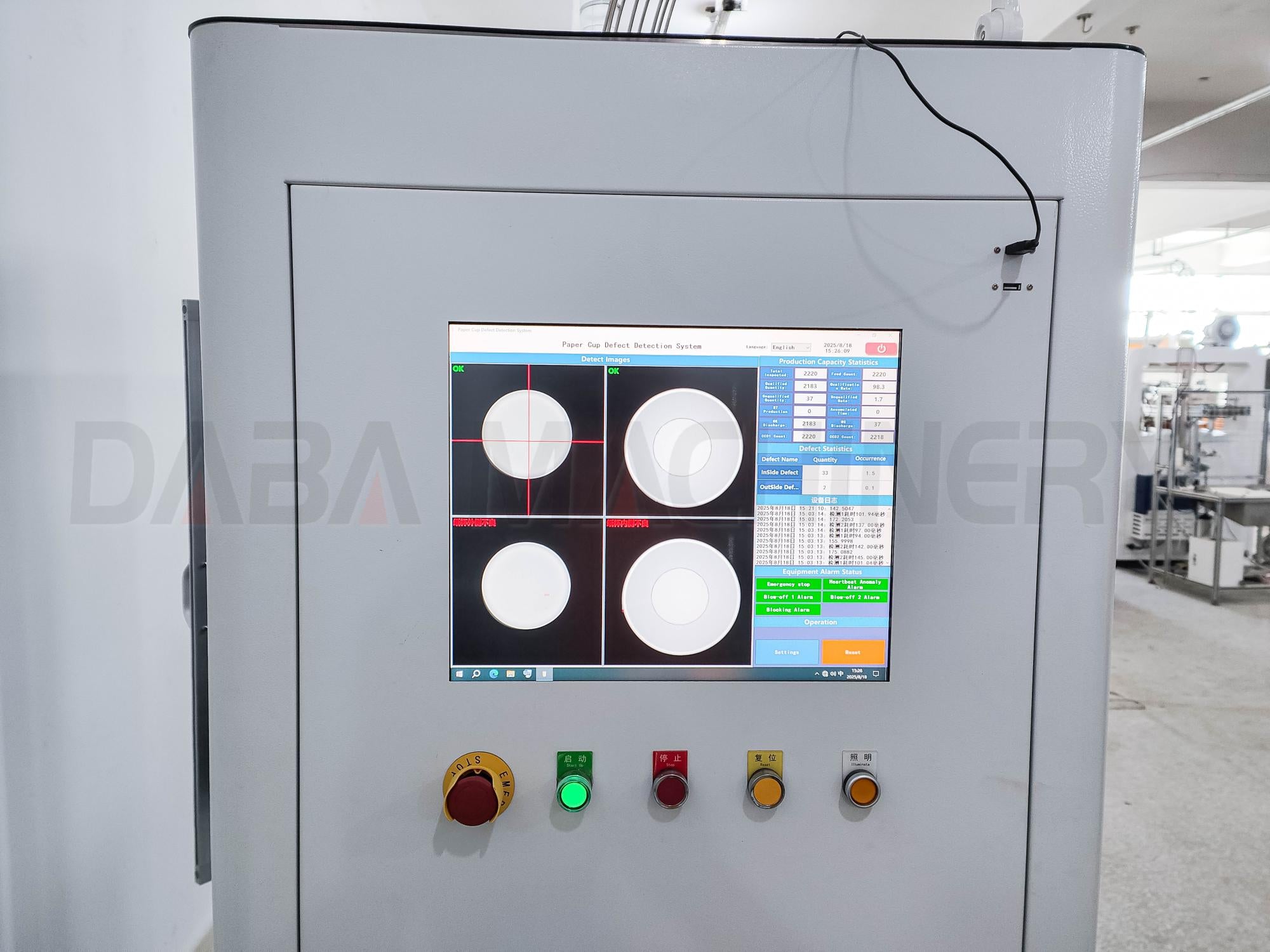

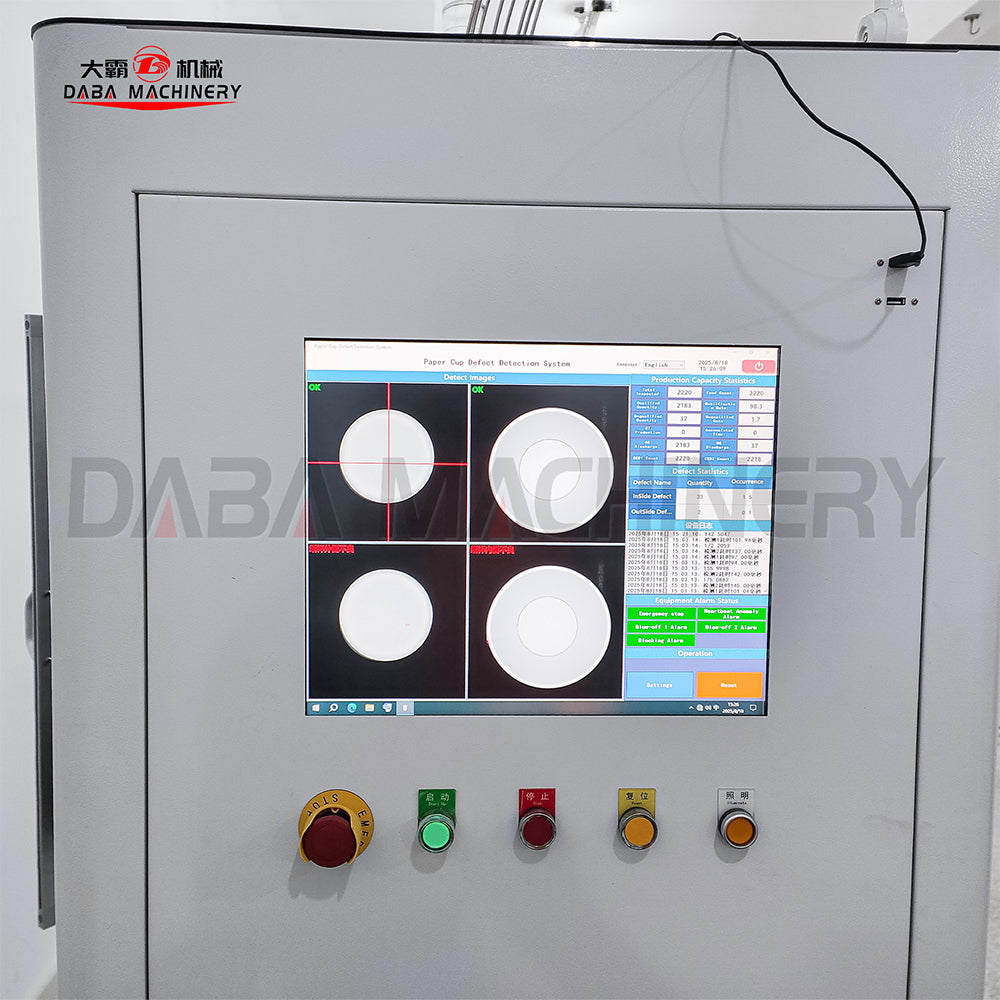

Intelligent Control System – Integrated touch-screen display and PLC control panel allow real-time monitoring, easy parameter adjustment, and automatic alarm functions.

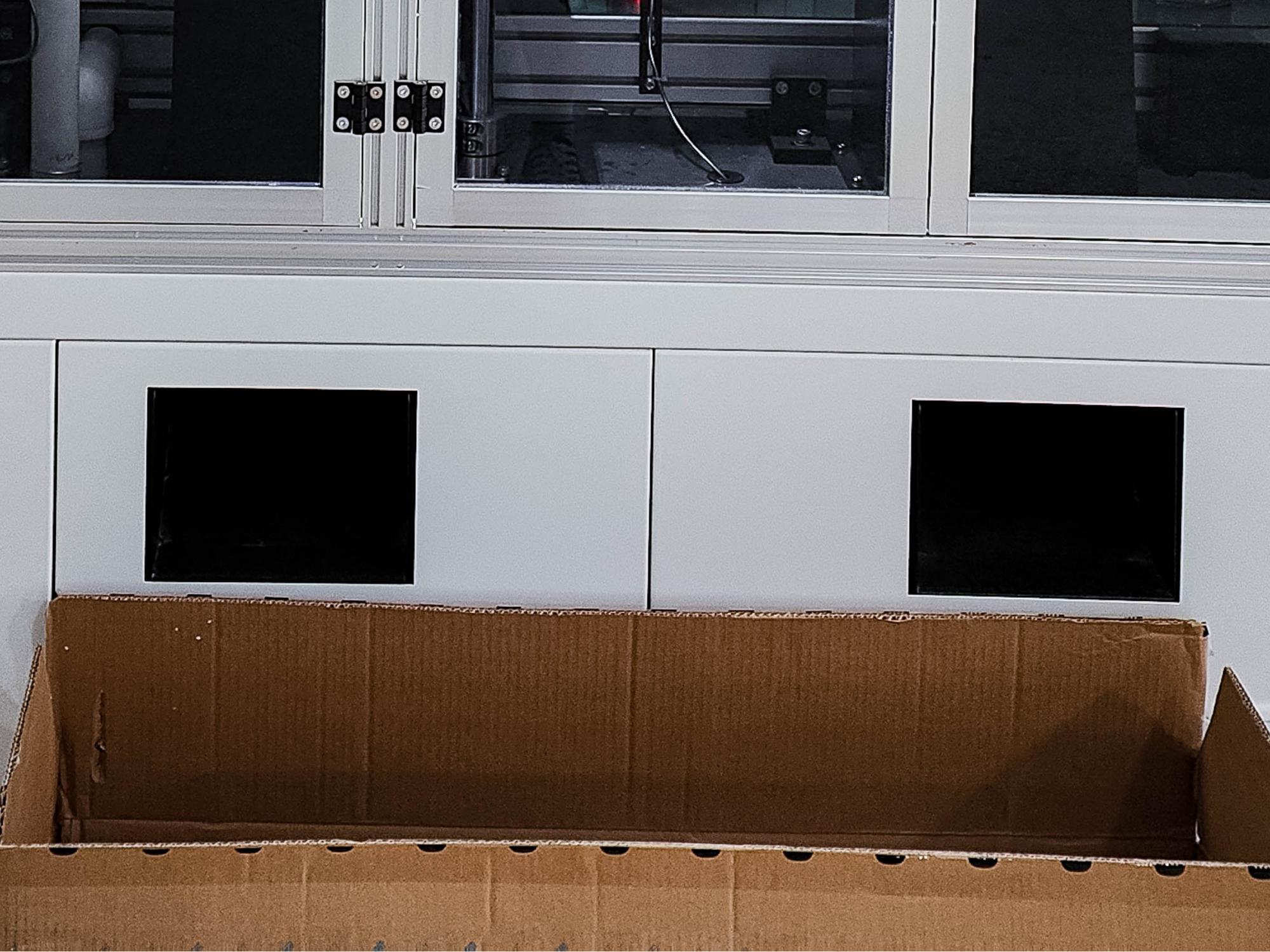

Automatic Sorting Mechanism – The OK and NG outlets automatically separate qualified and defective cups, ensuring consistent quality output.
Three-Color Status Indicator – Provides clear machine status signals (running, warning, fault) for enhanced operational safety.
Stable Electrical Cabinet Design – Independent power and electrical system ensure long-term stability, reliability, and easy maintenance.

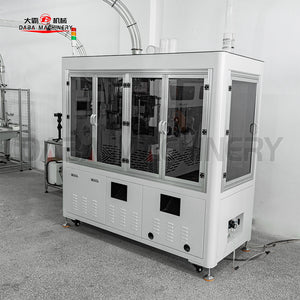

Compact & Durable Structure – Robust frame with vibration-free operation supports high-speed inspection up to 300 cups per minute.
