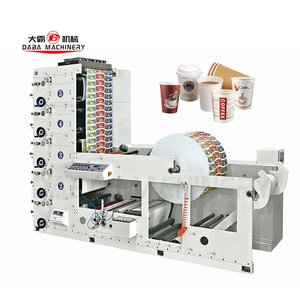

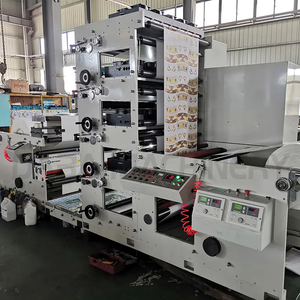

DBRY480 Flexo Printing Machine

Vendor: DABA Machine

Model: DBRY480
Printing speed: 55-65m/min
Printing color: 4 colors
Max. Web Width: 510mm
Printing width: 35-480mm
Max. unwinding diameter: 600mm
Max. rewinding diameter: 600mm
Precision of chromatography: ±0.10mm
Dimensions(L*W*H) : 4.02*1.7*2m
Machine weight: About 3200kg

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBRY480 Flexo Printing Machine delivers a complete, high-efficiency solution for label, note, and paperboard production. Designed for versatility, it integrates unwinding, multi-color printing, drying, laminating and rewinding in a single process, greatly reducing manual handling and improving workflow efficiency. Its durable ceramic anilox rollers ensure long-lasting performance and consistent ink transfer, while automatic tension control and precision registration guarantee accurate, high-quality results at fast speeds. With user-friendly operation, low maintenance requirements, and compatibility with eco-friendly inks, this compact yet powerful press offers excellent economic benefits, making it an ideal choice for modern printing factories seeking precision, productivity, and sustainability.

Features/Functions

Designed for efficiency and precision, the machine integrates feeding, printing, drying, laminating and rewinding in a single streamlined process. With automatic tension control, durable ceramic rollers, and user-friendly operation, it ensures high-quality output, reduced downtime, and long-term reliability.

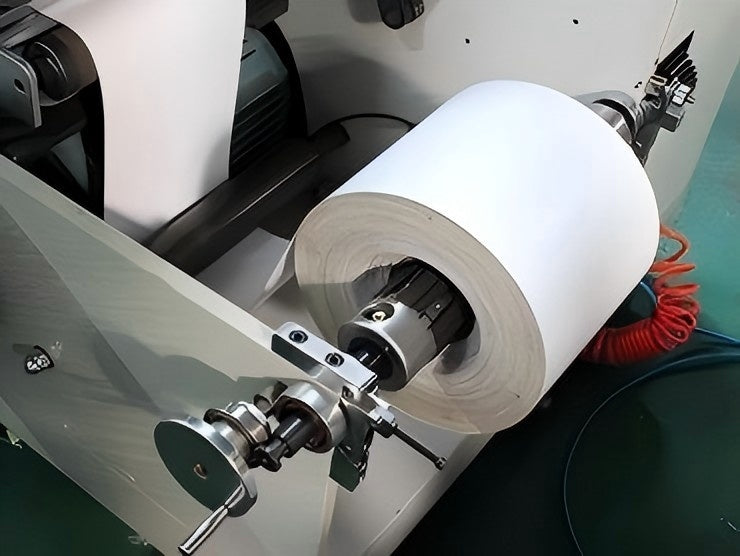

Unwinding Unit
o Maximum unwind diameter: 600mm
o 76mm (3″) air shaft roller.
o Merobel electromagnetic particle brake.
o Auto tension control – No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding tension.
o EPC system to ensure the printing material the lateral position before feeding to the printing station.

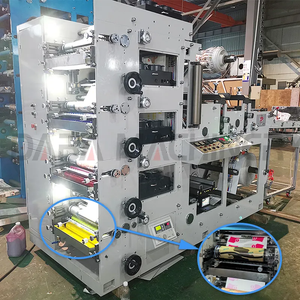

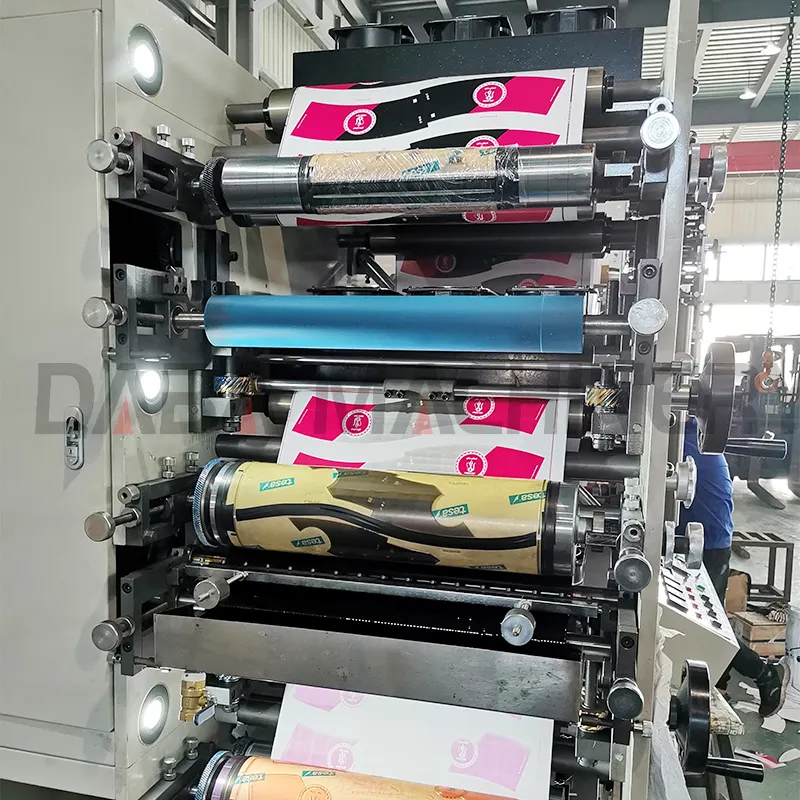

Printing Unit
o Printing width :487 mm
o Max printing area: 580mm X 480mm
o Printing repeat Range :177-585 mm (56T - 182T)
o Printing station consist with :Measuring roller( Rub roller) ,Ceramic anilox roller, printing roller, scrapper
o Automatic withdrawal printing plate to protect the printing plate, Printing plate will leave anilox roller automatic when the machine running.
o Printing driven by 0.75 kw motor. It could by controlled at the control panel independently.
o 360 degree printing adjustment .
o Anilox roller-Ceramic type form 150 LPI -1000 LPI Could be choosed .
o Gearing – 1/8 cp
o Printing plate thickness:1.7 mm
o Both sides tape thickness:0.38mm(3M)

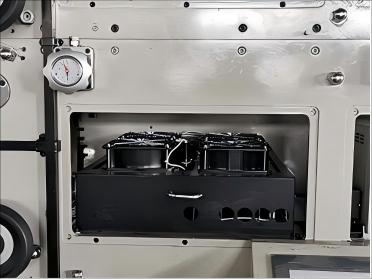

Heating Oven
o Each Printing Unit with one heating oven
o Heating oven is equipped over on the printing material .
o Two Imported heating lamb fix inner each oven
o Heated air feeding by one axial fans
o Hot air was fast blew to the printing ink by higher power axial fan, It decrease the touch time of material with the heating air,will avoid the material change shape and improve the register quality.

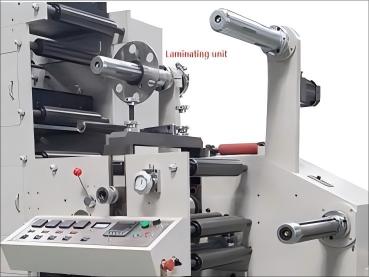

Laminating Unit
o 76mm (3″) quick change air shaft.
o Feeding by motor

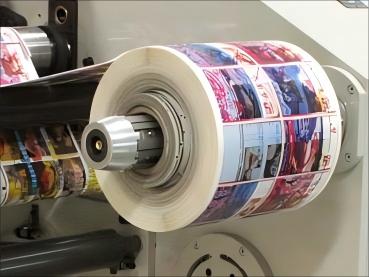

Rewinding Unit
o Maximum rewind diameter: 600mm .
o 76mm (3″) quick change airshaft.
o Merobel electromagnetic particle clutch.
o Auto tension control ensure the rewinding tension is tight and rewinding edge is clean

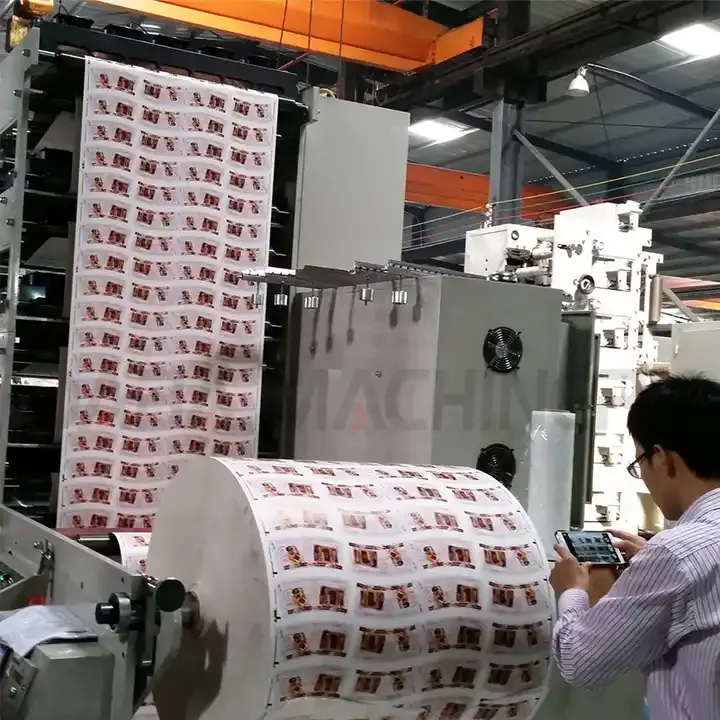

Sample Display

Production Flow

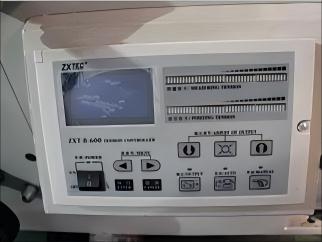

Unwind Unit: Controlled by magnetic powder arrester, clutch and tension inspector.Tension controller is automatic type.

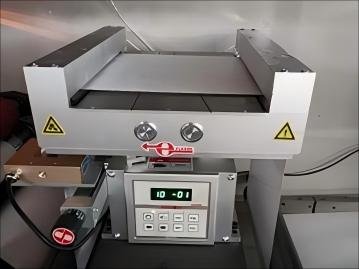

Ultrrasonic Web Guide System: lrregular materials or changing materials can ensure the printingposition, without manual adjustment.

Flexo Printing Unit: Adopt plate register function, each veins roller can printin dependently. Standard IR dryer, the UV dryer is optional.

IR Drying Unit: Each Printing Unit with one infrared heating oven. Two imported heating lamb fix inner each oven. Heated air feedingby one axial fans.
