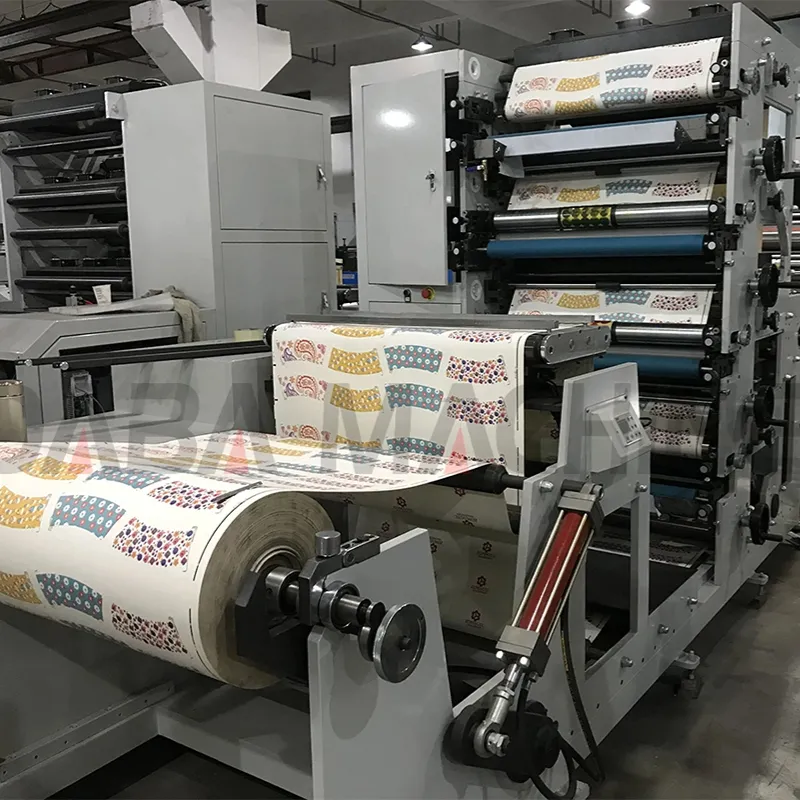

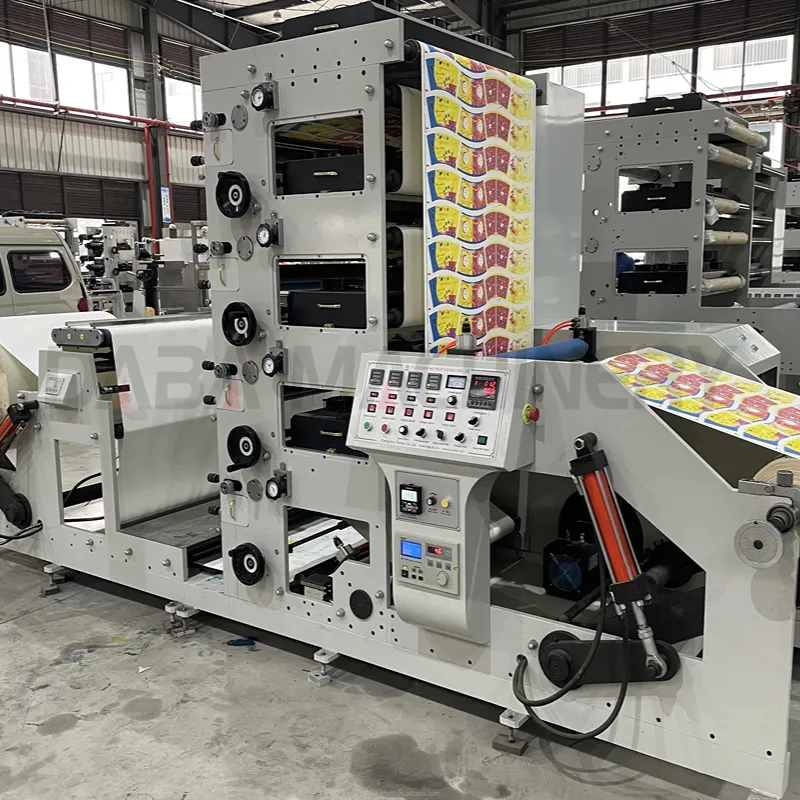

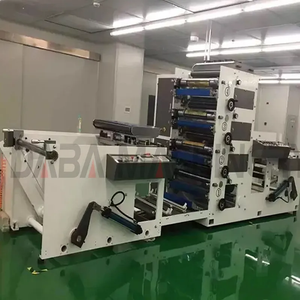

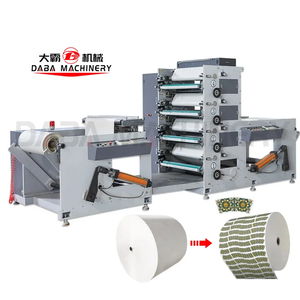

DBRY-950 Four Color Flexo Printing Machine

Vendor: DABA Machine

Model: DBRY-950
Max Web Width: 950mm
Max Printing Width: 930mm
Printing Circumference: 254-508mm
Max Unwinding Diameter: 1400mm
Max Rewinding Diameter: 1400mm
Printing Gear: 1/8cp
Max Printing Speed: 100m/min
Plate Thickness: 1.7mm
Paste Version Tape Thickness: 0.38mm
Substrate Thickness: 40-400gsm paper
Power Supply: 380V±10% 3PH 50HZ
Printing Roller: 2 sets for free(The number of teeth is up to customer)
Anilox roller: 4 pcs(Mesh is up to customer)
Drying: Infrared Dryer with 6pcs lamp
The highest tempreture of heating dryer: 90℃
Main Motor: 7.5KW
Total Power: 40KW

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The DBRY480-4C Flexo Printing Machine delivers a complete, high-efficiency solution for label, note, and paperboard production. Designed for versatility, it integrates unwinding, multi-color printing, drying, laminating and rewinding in a single process, greatly reducing manual handling and improving workflow efficiency. Its durable ceramic anilox rollers ensure long-lasting performance and consistent ink transfer, while automatic tension control and precision registration guarantee accurate, high-quality results at fast speeds. With user-friendly operation, low maintenance requirements, and compatibility with eco-friendly inks, this compact yet powerful press offers excellent economic benefits, making it an ideal choice for modern printing factories seeking precision, productivity, and sustainability.

Features/Functions

Designed for efficiency and precision, the machine integrates feeding, printing, drying, laminating and rewinding in a single streamlined process. With automatic tension control, durable ceramic rollers, and user-friendly operation, it ensures high-quality output, reduced downtime, and long-term reliability.

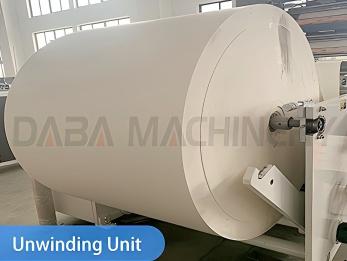

Unwinder Unit

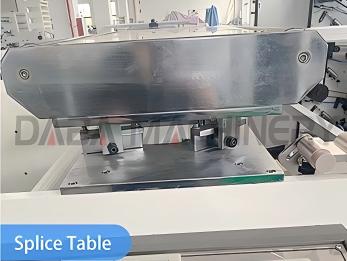

o Max unwinding diameter 55inch(1400mm), with 3 inch roll axis core, including Automatic web guiding device, correct the position of paper automatically.With paper binding table and hydraulic lifting paper shaft device, and with Auto tension controller system.
o 3inch Air swelling shaft core

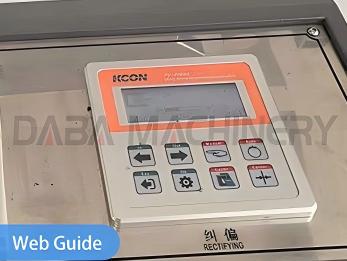

o Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised(Ikon FV-2000)
o one Magnetic powder brake
o with fast inflatting gun
o Feeding tension unit:Taper control technology to ensure the regsiter precisio

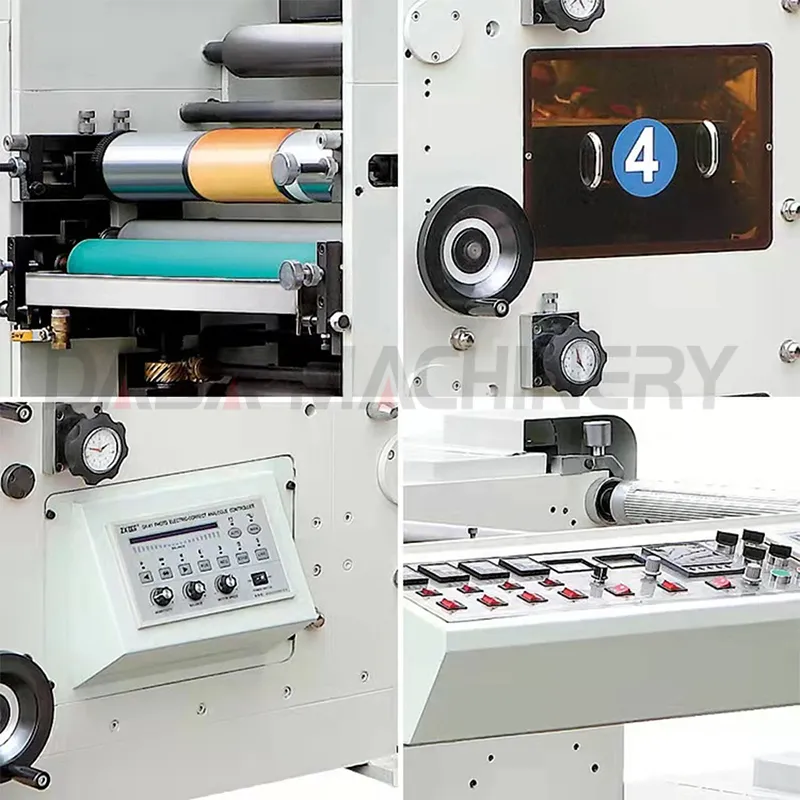

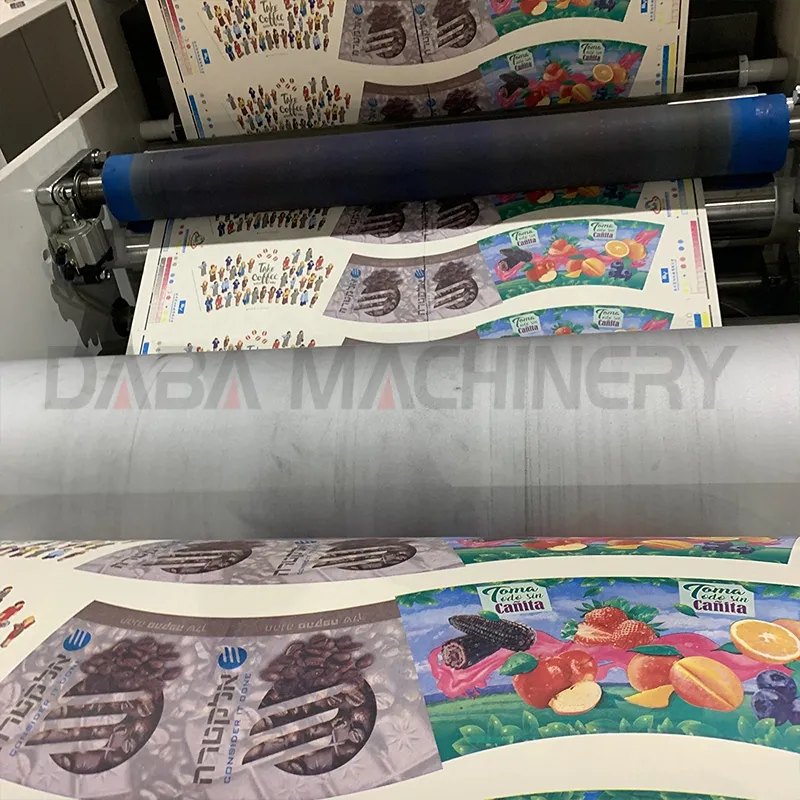

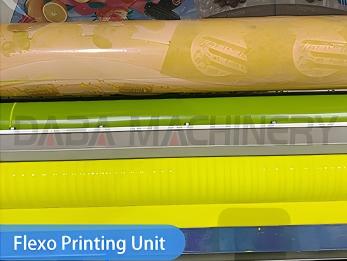

Printing Unit
o Four colors printing unit,ceramic anilox roller, printing roller and pressure roller with high precision.
o The printing unit adopt 45 degree of DP13 helical gear structure.It can eliminated the vibration of the machine , to make it more stable and durable.
o Printing roller :8pcs(teeth number as require)
o Ceramic Anilox roller: 4pcs(lpi as require)
o Anilox roller, printing roller pressure pneumatic clutch

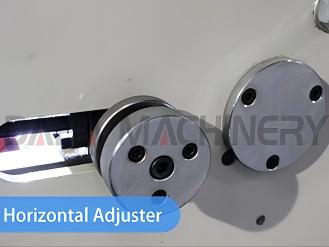

o Manual transverse focusing alignment 4 set

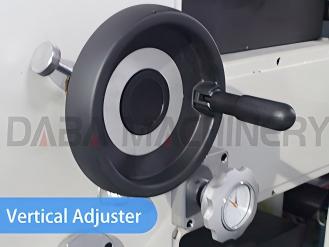

o Manual vertical focusing alignment 4 set
o Single pole reverse scraping system 4 set
o Stainless steel cartridge 4 set
o Fast changing plate cylinder without any tools
o Anilox roller rotation function: when machine stoped the anilox roller still running automatically, to prevent ink dry on anilox roller, avoid the anilox roller plug.
o The printing gear:cp1/8

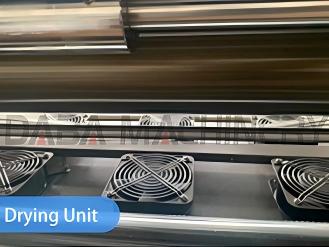

Drying Unit
o Each printing group with IR dryer with 6pcs lamps ,controlled by independent switch,tempreture is adjustable.
o Hot wind and natural cold wind blowing combination.(Including the suction blower)The incoming air volume is adjustable in each unit.
o Each printing group with hot air fans,ensure the quality of drying.(6 blowing and 1 suction)

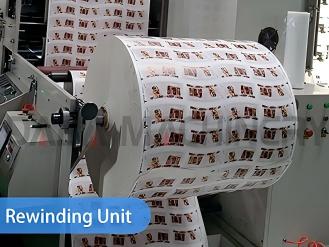

Rewinder Unit
o A set of winding for rewinding after printing, with motor driven, ensure the stablity of rewinding tension and the precision of high speed running.
o Back to back design rewinding makes the paper roll more smoothly and more tight.
o With one 3inch rewind shaft core.
