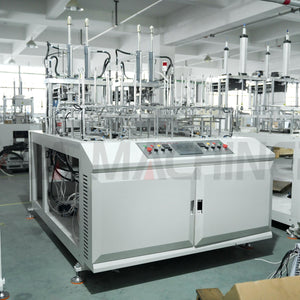

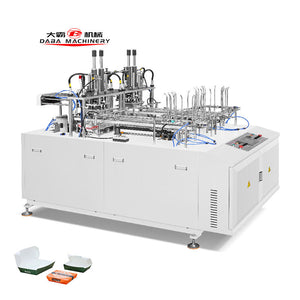

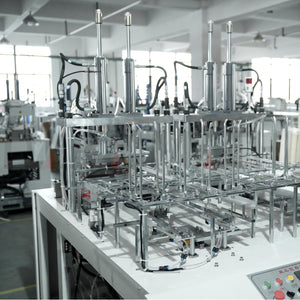

DBRH-S480-100 Double Station Paper Box Thermoforming Machine

Vendor: DABA Machine
  • Model: DBRH-S480-100
  • Production capacity: 60-100times/min(Actual production according to product size)
  • Maximum paper  size: 480x400mm
  • Minimum paper size: 120x100mm
  • E-power voltage: 380V 50HZ (can be changed)
  • Suitable Material: 200-600g/m²PE(PE Coated paper)
  • Total Power: 8.5KW
  • Total Weight: 1500KG
  • Working Air Source: Air pressure 0.5Mpa

Ask a question
Share

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

The automatic hydraulic carton thermoforming machine is a fully automatic paper forming machine with the advantages of high speed and convenient operation. This model uses a self-contained hot air generator for single PE coated paper. It is used to produce single-color disposable paper lunch boxes,cake tray and food packaging boxes through automatic feeding,heating (with hot air generating device),hot press forming (four corners of bonded lunch boxes),automatic point collection,and microcomputer control. Mechanical transmission,energy saving, stability,and easy operation.

Product Size

Production Size
Sample Display
Production Flow Diagram

1. Paper Roll

Base raw material for paper box production.

2. Printing Machine

Applies customized designs on paper rolls.

3. Printed Paper Roll

Printed rolls ready for die cutting.

4. Die Cutting Machine

Cuts printed paper into box fan shapes.

5. Flat Sheet of Paper

Processed sheet material for next steps.

6. Waste Stripping Machine

Removes waste material and prepares clean box fans.

7. Box Fan

Paper segment prepared for box forming.

8. Paper Box Machine

Make box paper into a three-dimensional lunch box.

9. Paper Box

Completed paper box ready for packaging.

10. Packing Machine

Packs boxs for transportation.

11. Packaging Paper Boxs

Final packaged products ready for shipment.

Paper Unwinding Rack

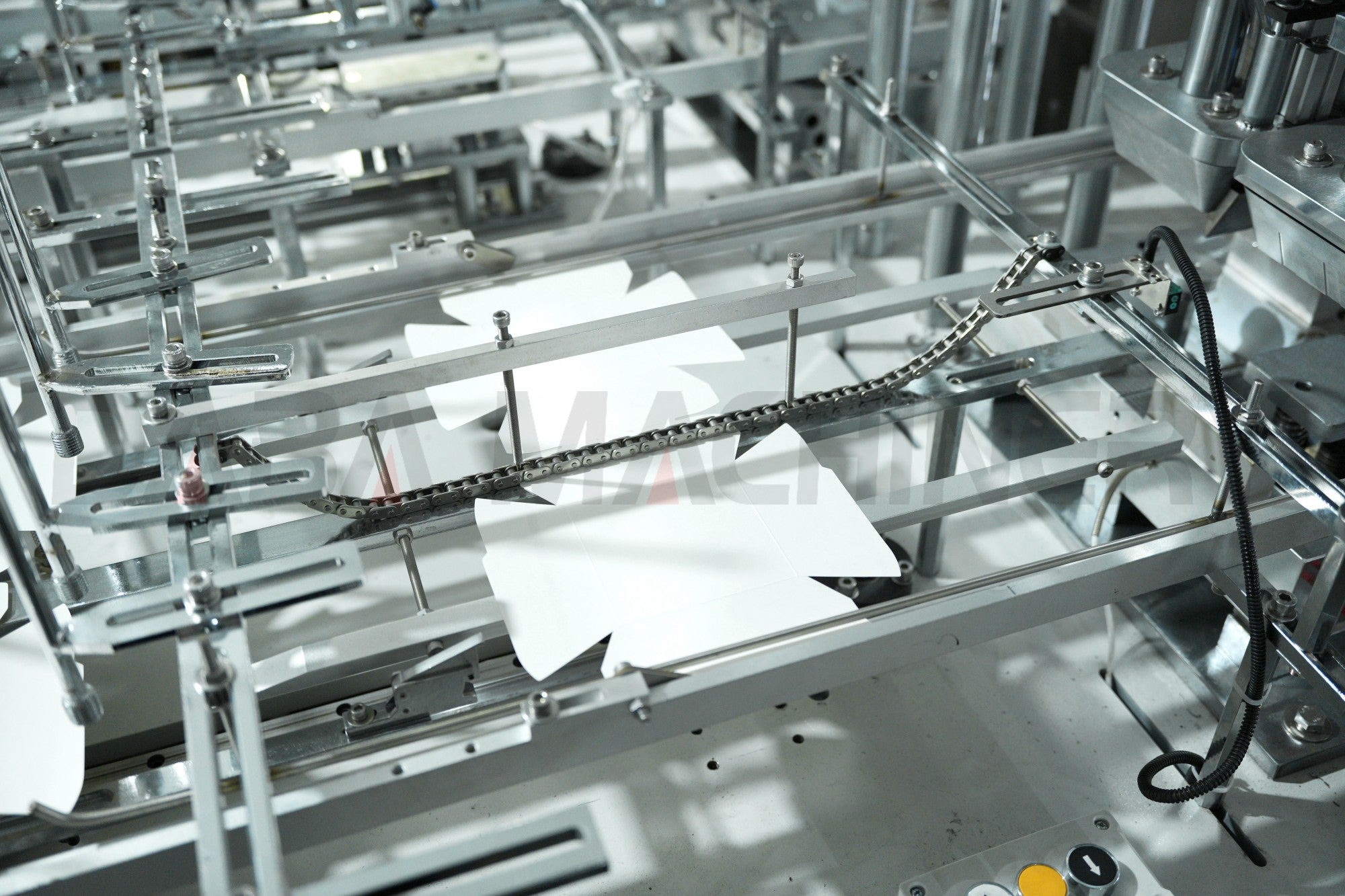

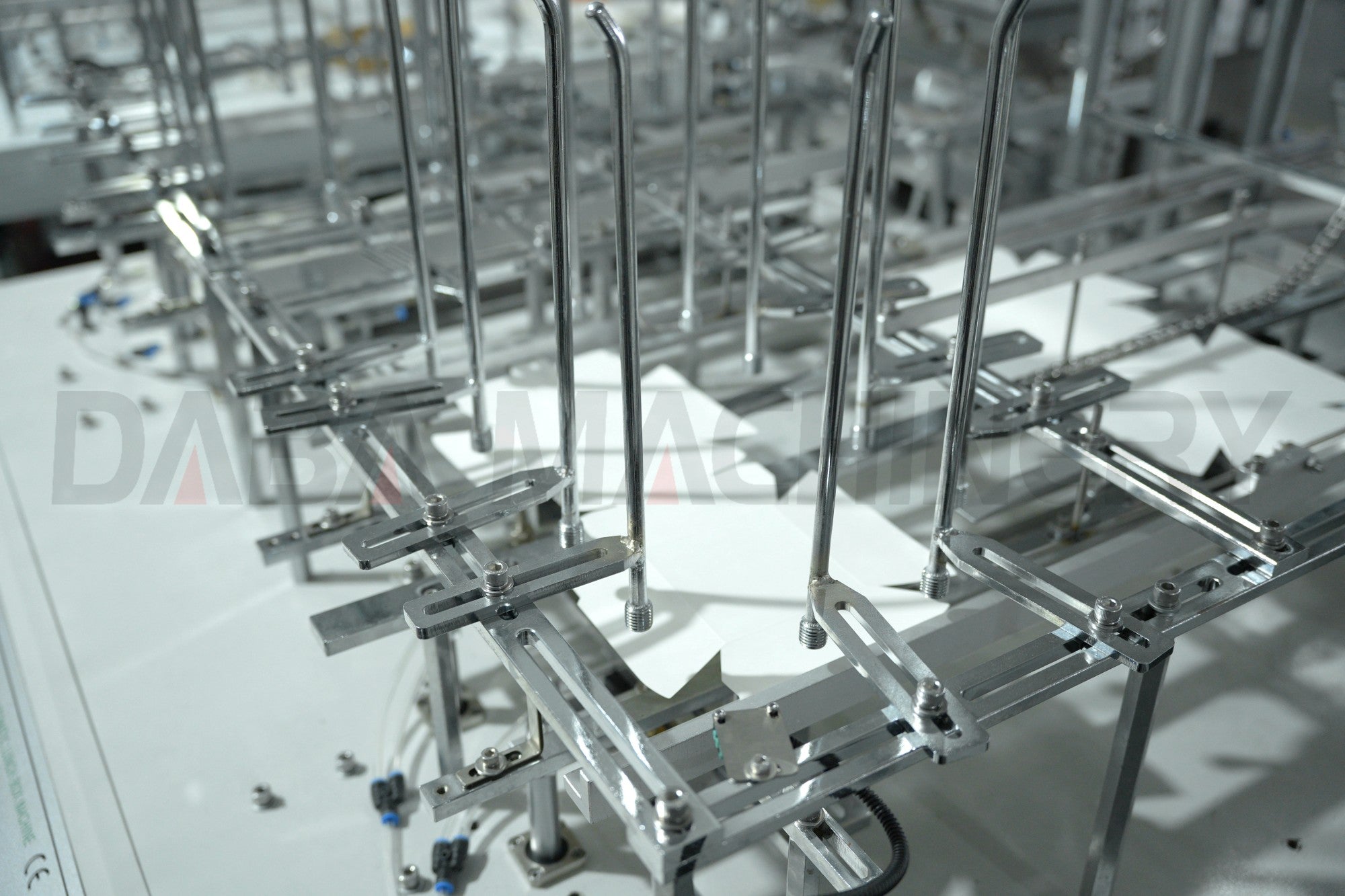

Paper Feeding Station

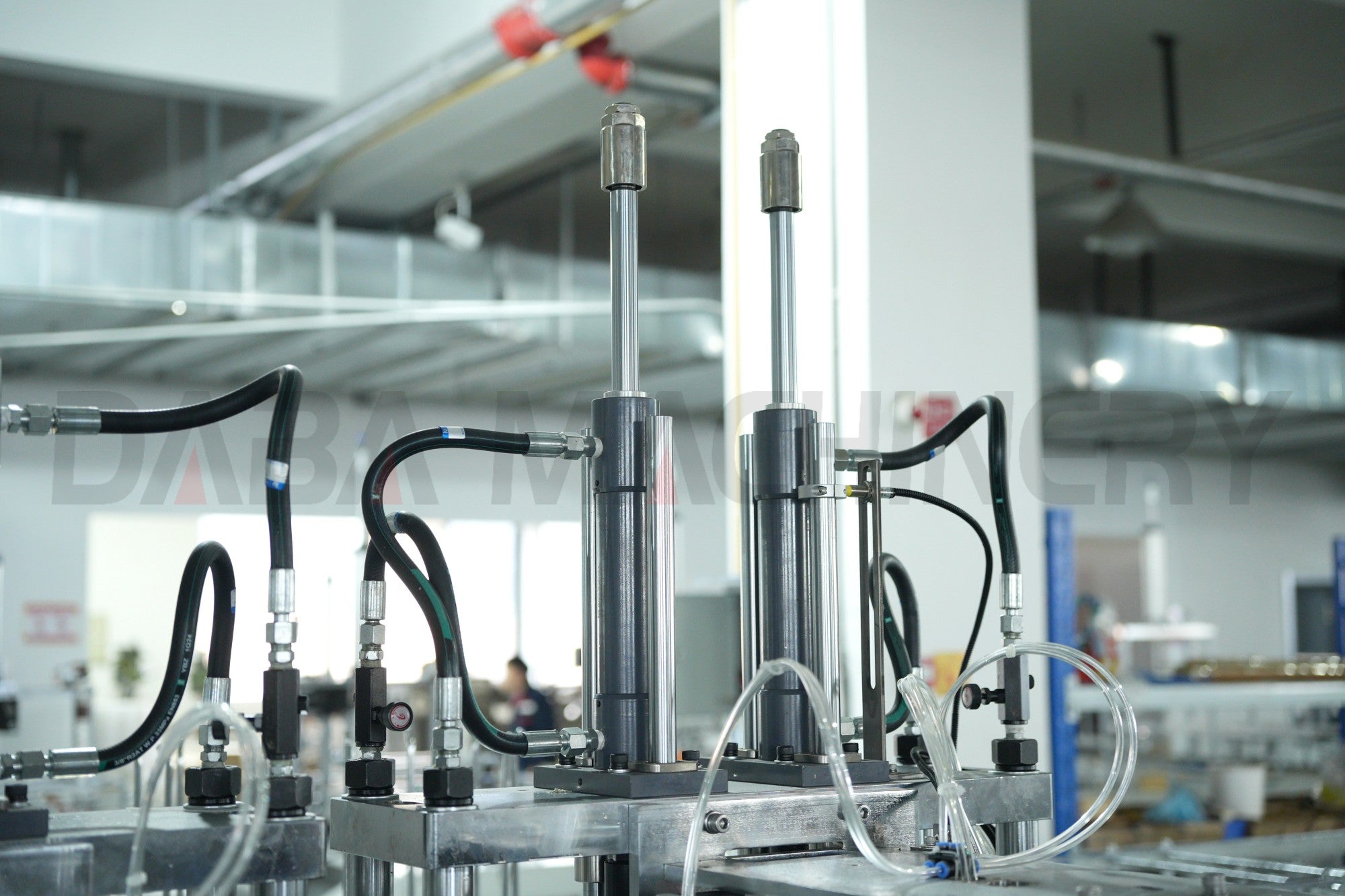

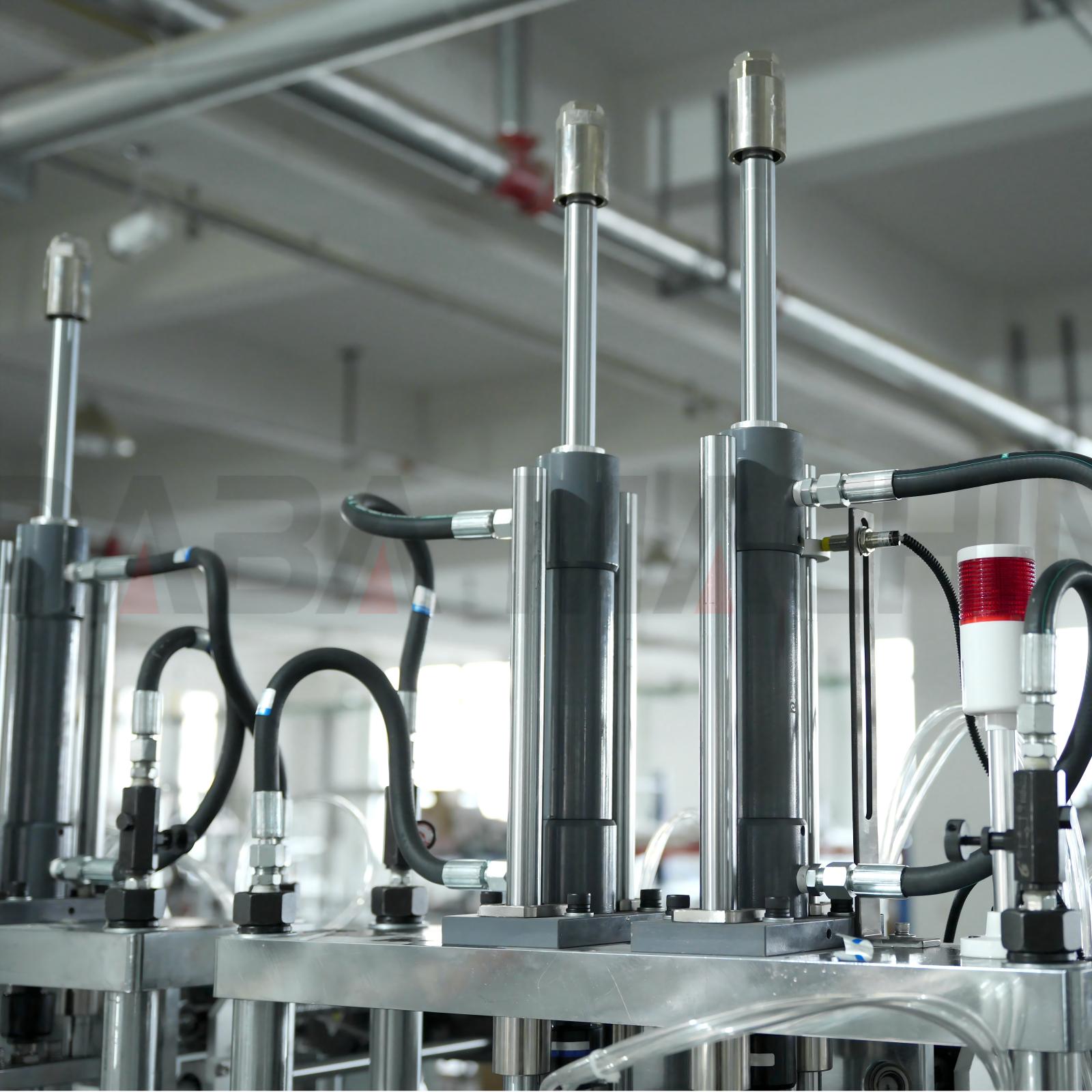

Cylinder-Driven Mold Pressing

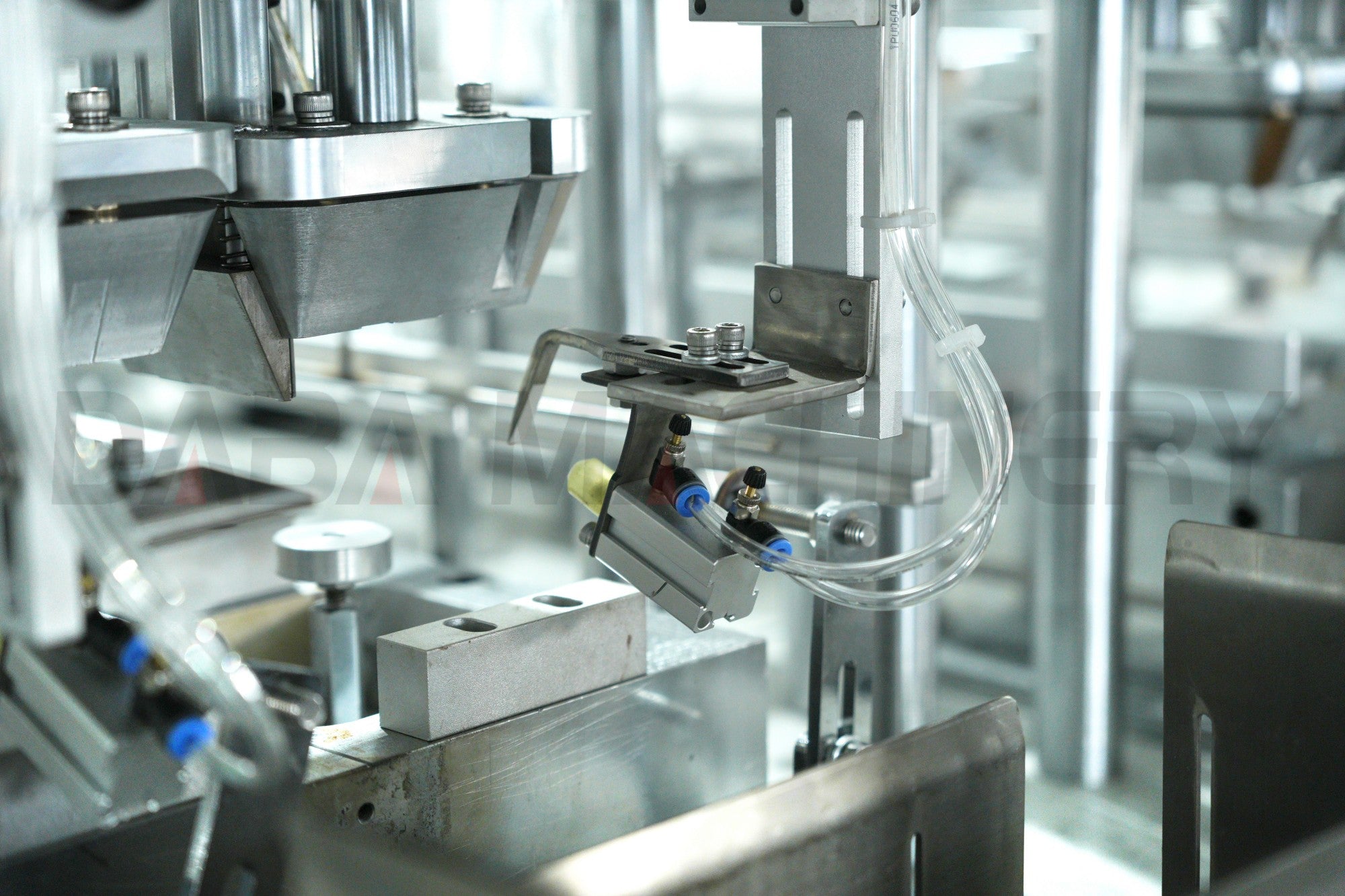

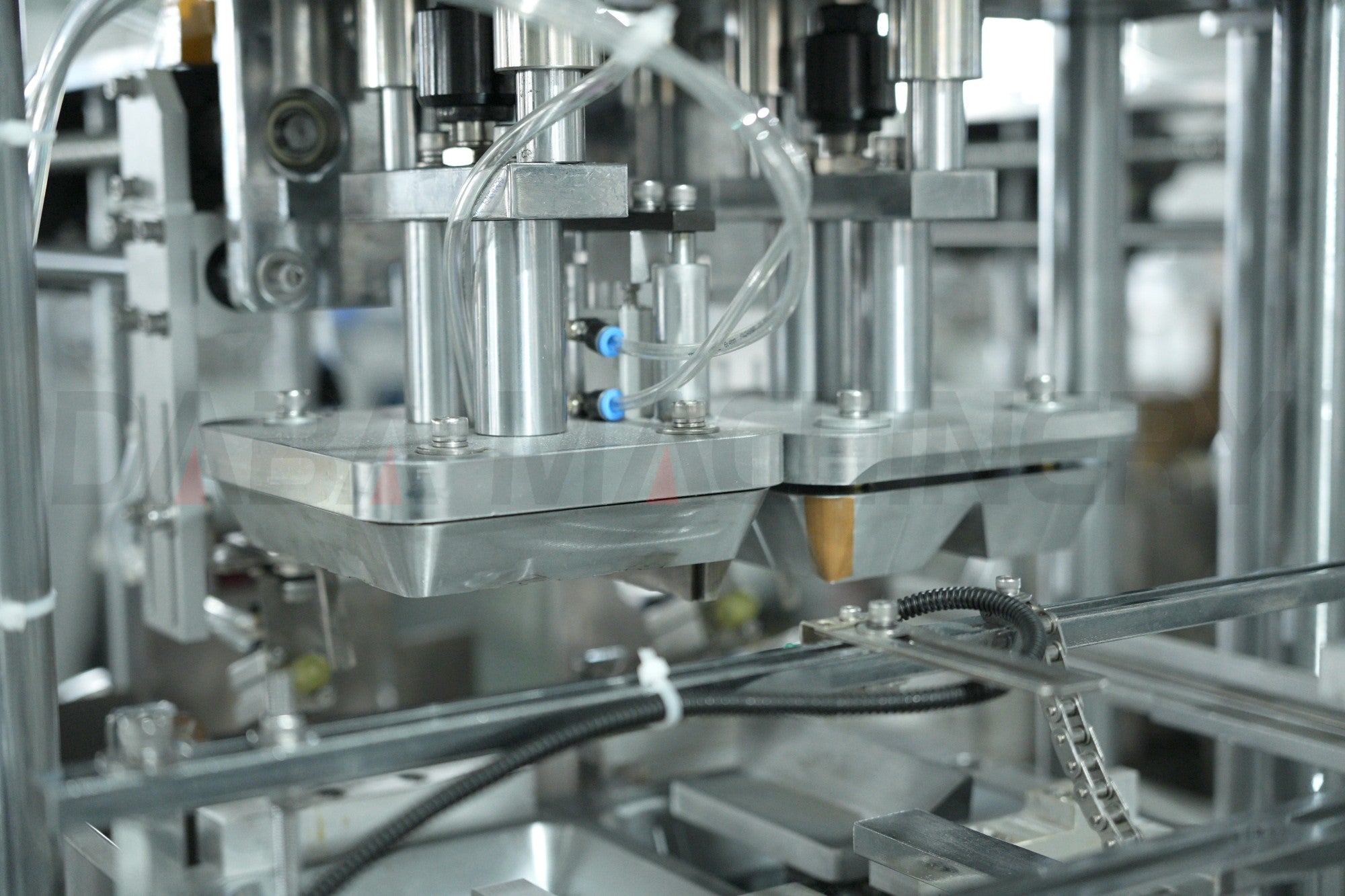

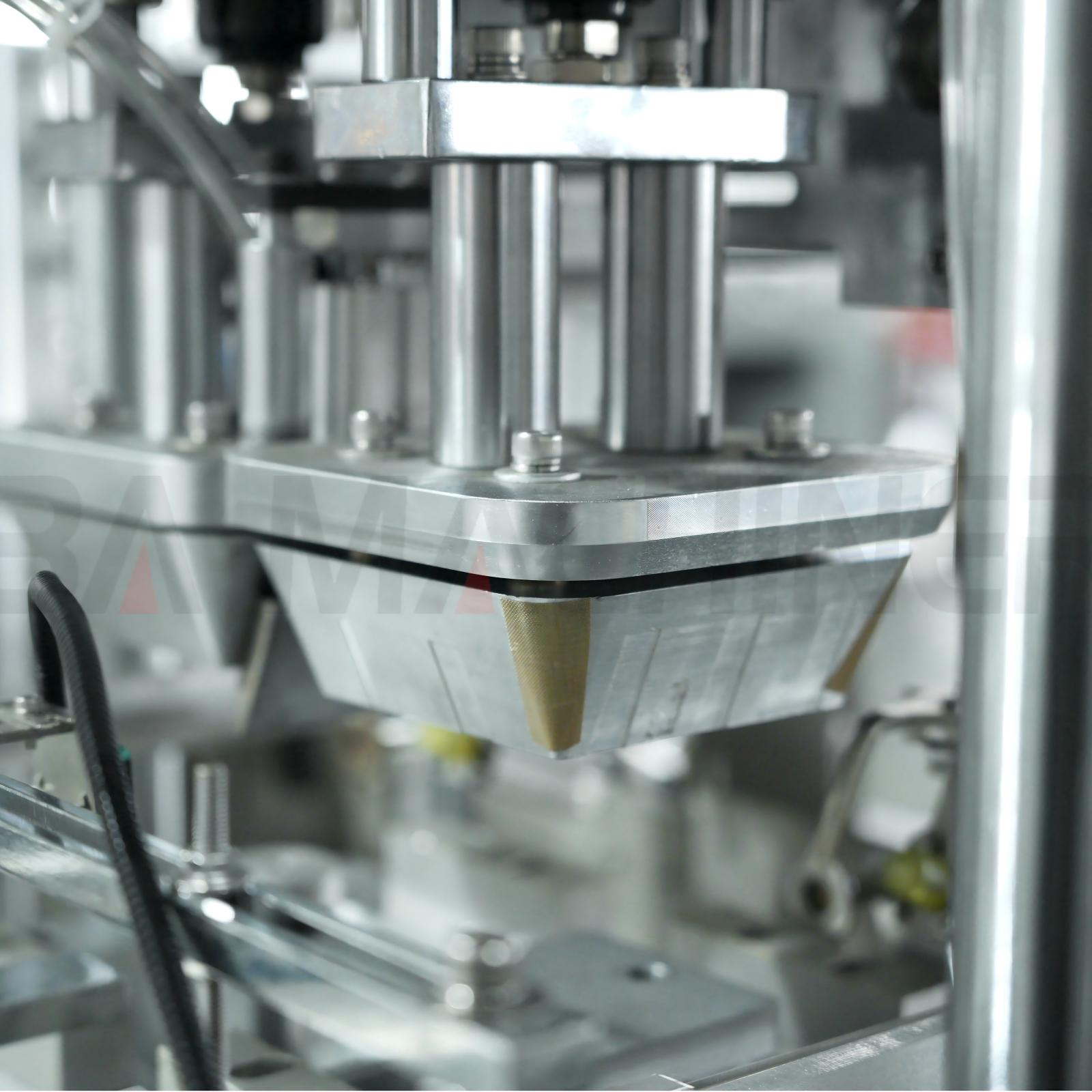

Forming Mold

Registration Sensor

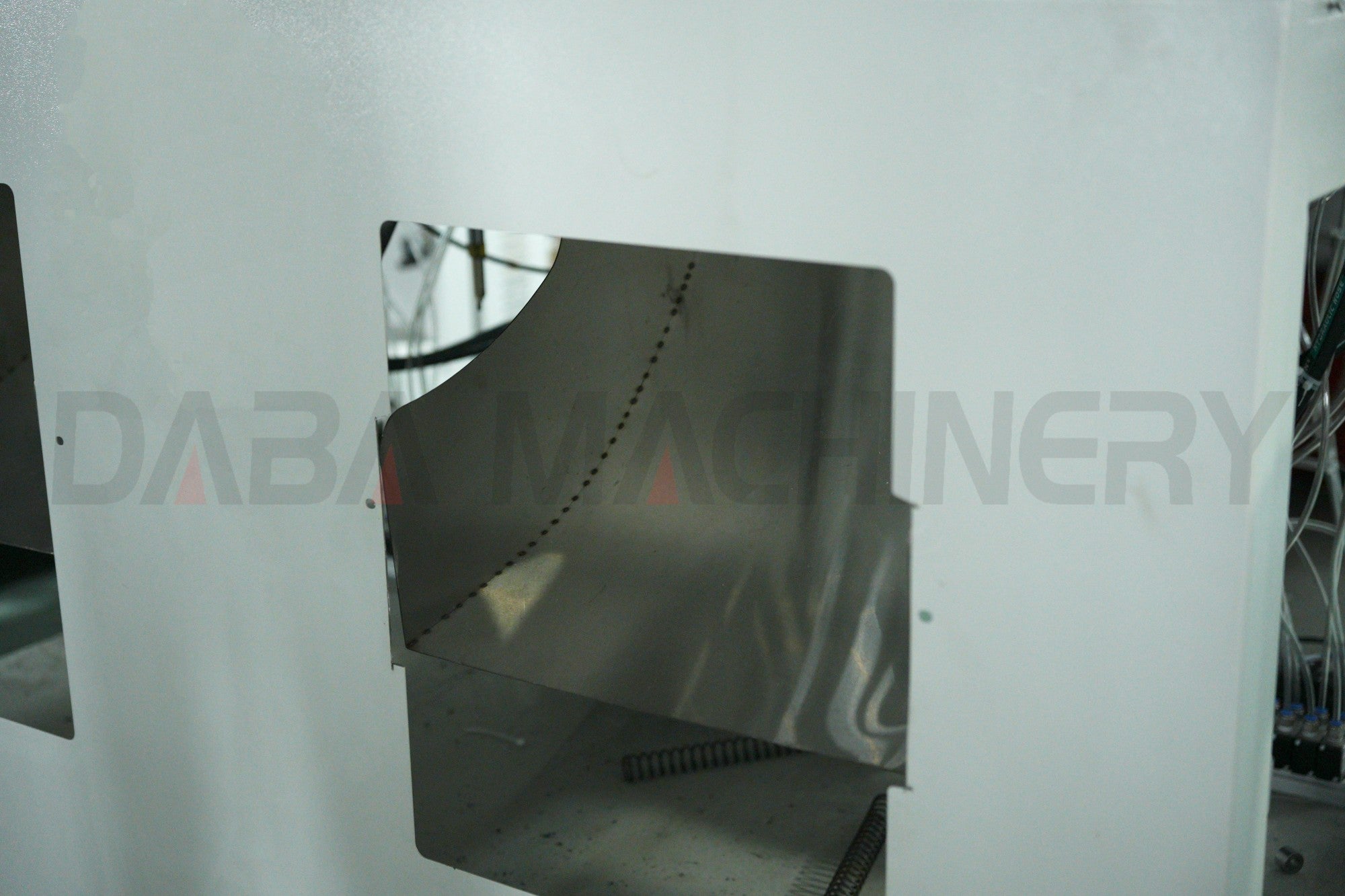

Carton Output Channel

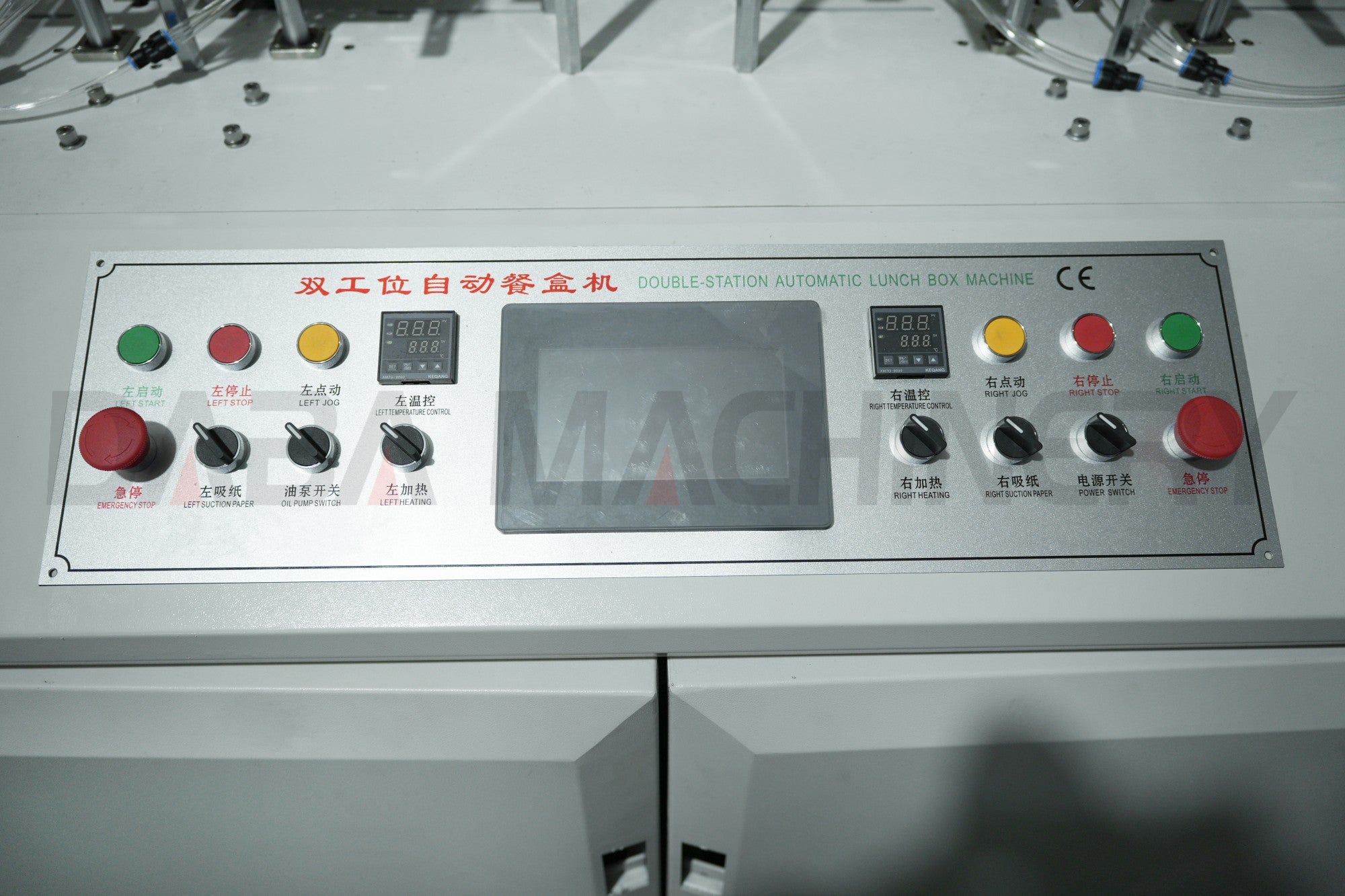

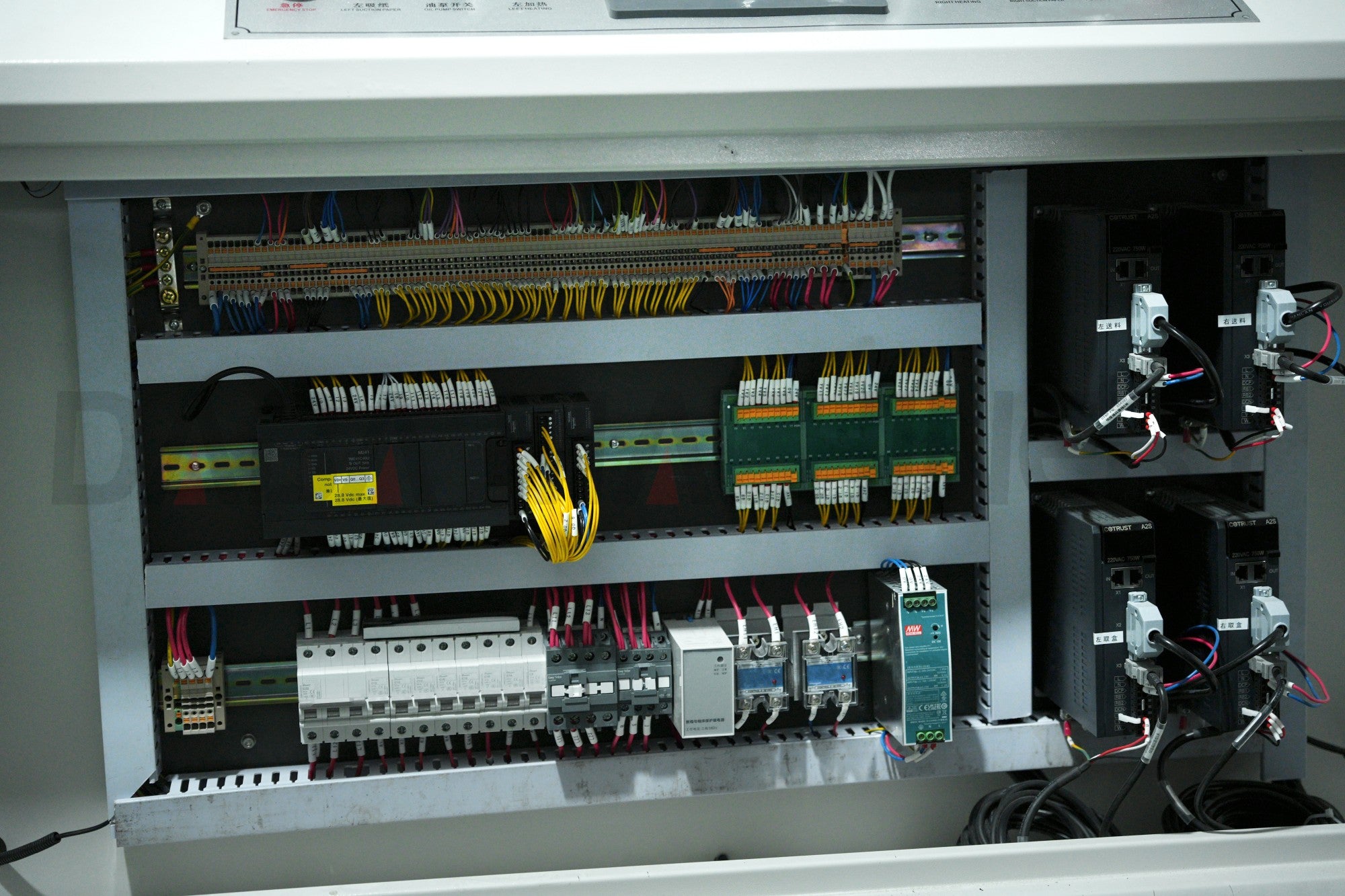

Control Panel

Power System
