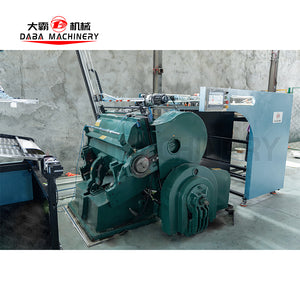

DBMQ-PS750-HS Flat Bed Die Cutting Machine with Waste Stripping

Vendor: DABA Machine

Model: DBMQ-PS750-HS
Max Paper Feed Size: Determined by the size of the client's beer machine table
Max Die-cutting Size: 750*520mm
Min Die-cutting Size: 250*250mm
Processable Paperboard: Cardboard≥200g, 3-7-layer carton, industrial gray board, transparent film
Die-cutting Accuracy: ±0.2
Production Speed: 900-1200/h
Stacking Height: 1100 mm (depending on the height of the customer's beer machine)
Delivery Height: 1100 mm (depending on the height of the customer's beer machine)
Pressure Adjustment Range: ±0.8-±1.0
Min Waste Edge Size: ≥25mm
Total Power: 6.5KW
Footprint (approx.): 5*2m
Machine Weight (approx.): 1.15T

Contact our support team via phone or WhatsApp:
📞 +86 136 4655 1968

Covers key components and technical support for 12 months.
🛠️ 1-Year Manufacturer Warranty

Description

Machine Description

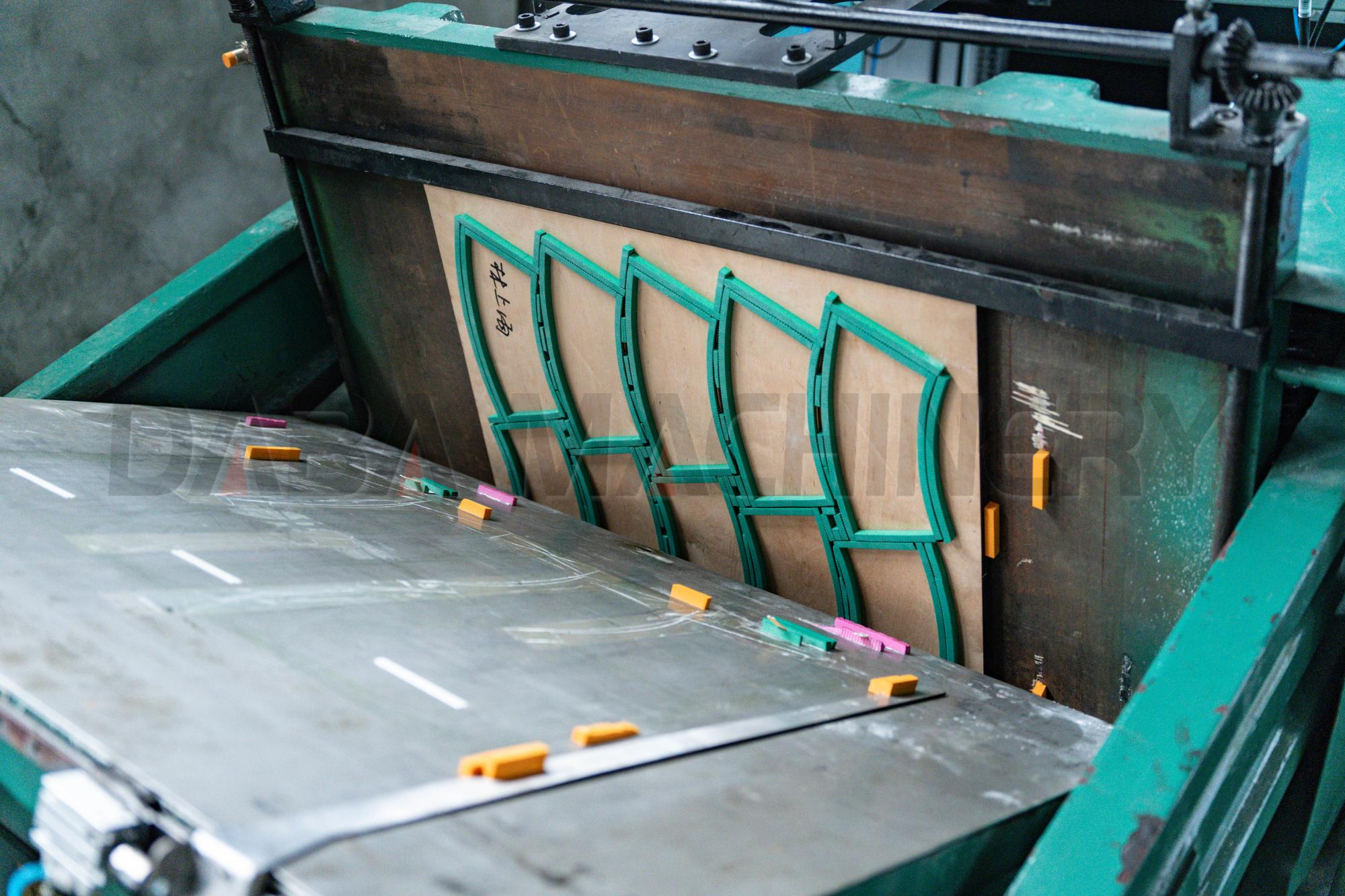

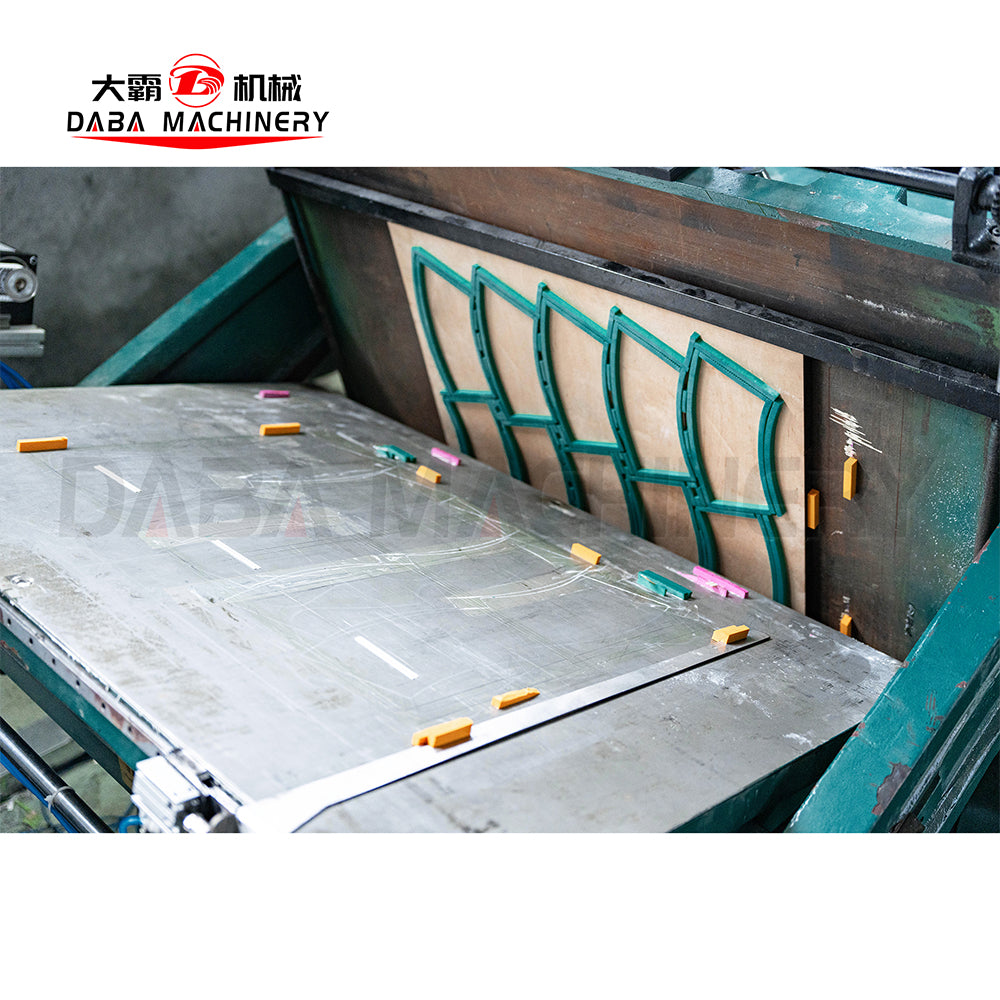

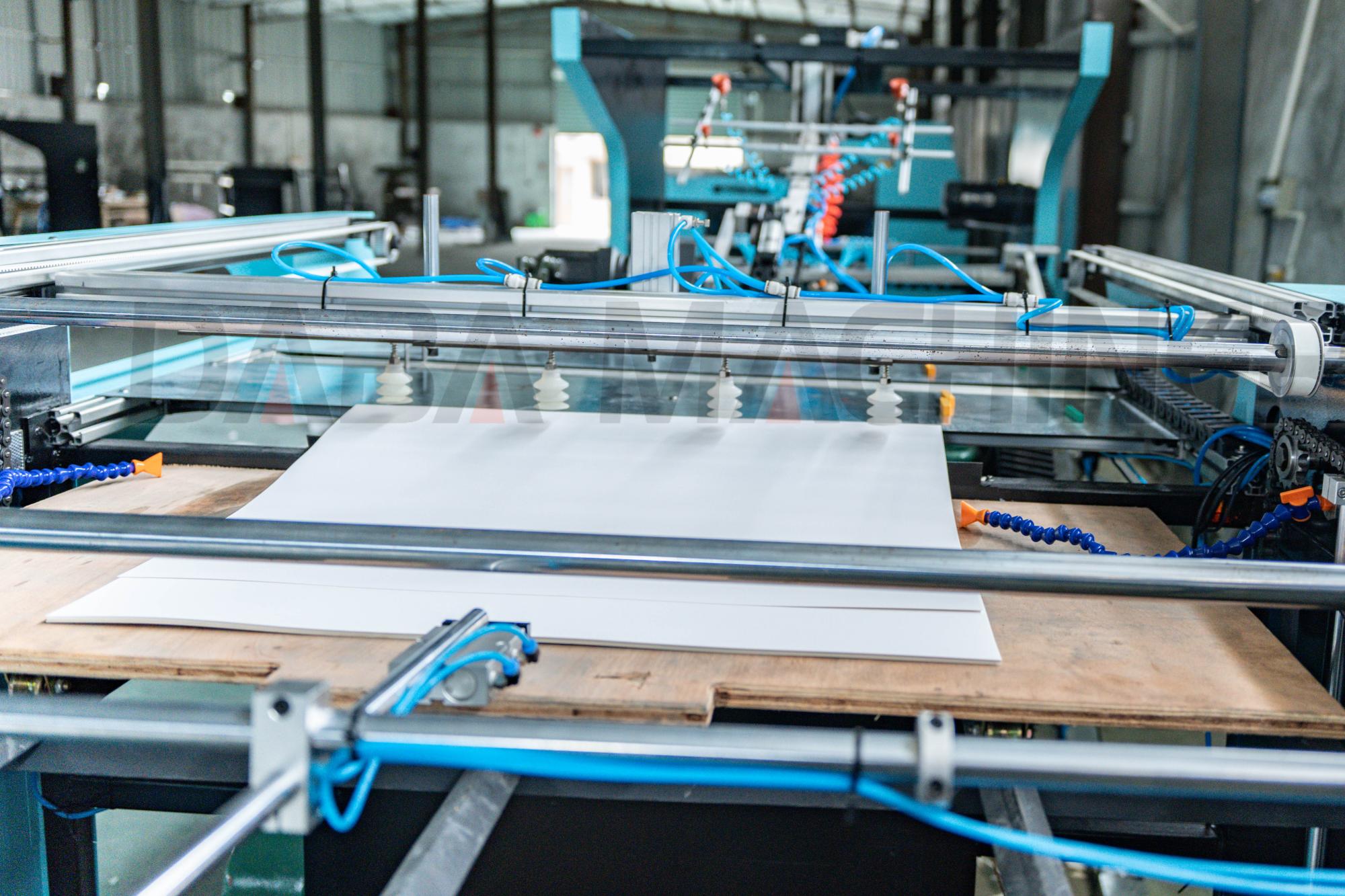

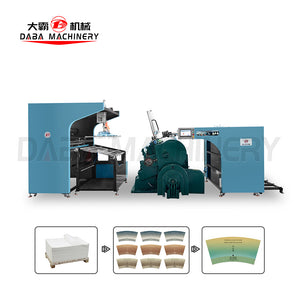

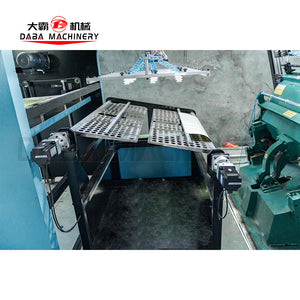

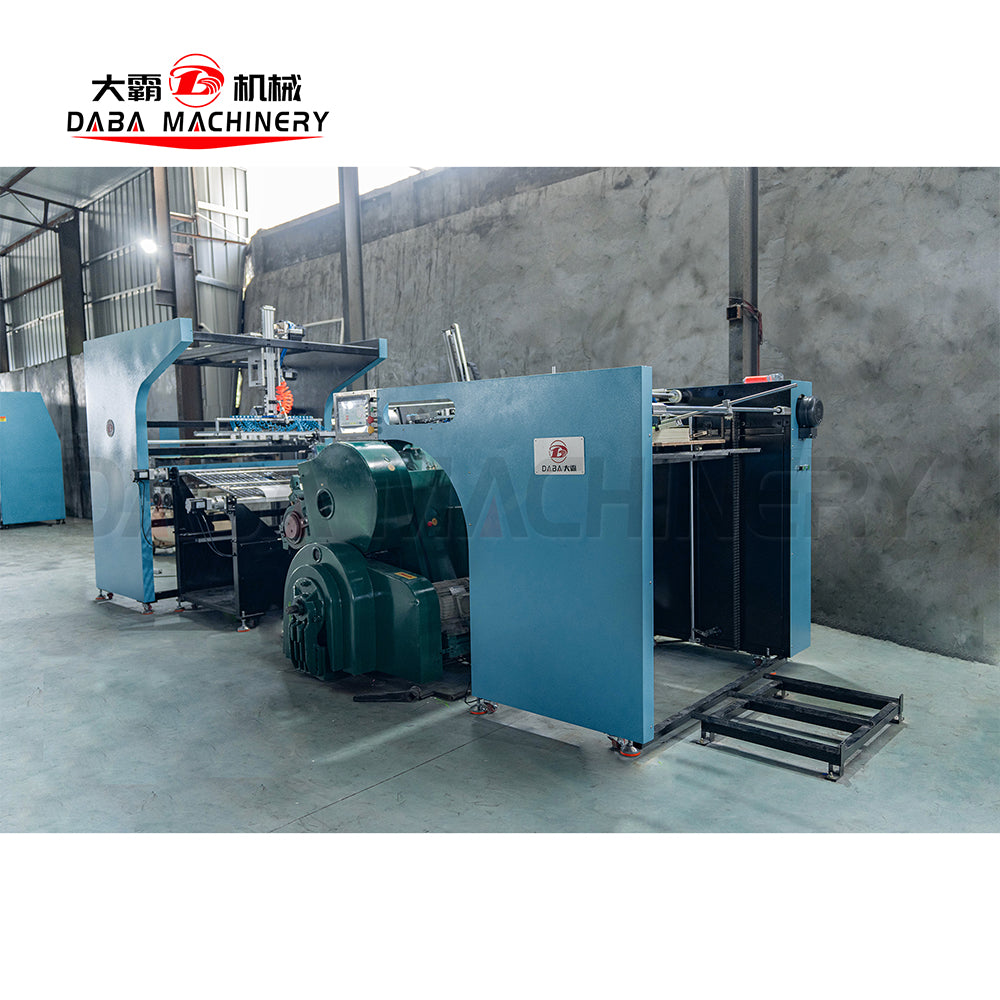

The DBMQ-PS750-HS Flat Bed Die Cutting Machine with Waste Stripping is an upgraded automation solution built on the proven DBMQ-PS750 platform. It features a three-robot-arm system that streamlines the entire production process: the first arm automatically lifts and feeds sheets onto the receiving table, the second rotary arm transfers them precisely into the flatbed die-cutting station, and the third arm performs waste stripping and stacking with accuracy and consistency. This fully integrated setup minimizes manual handling, boosts productivity, and ensures clean, precise creasing and cutting on materials such as cardboard, corrugated board, plastic sheets, and leather. Delivering smooth edges, stable performance, and high output efficiency, the DBMQ-PS750-HS is an ideal choice for modern packaging and printing facilities seeking automation and precision in one advanced system.

Features/Functions

Labor-saving automation: The robotic system significantly reduces manual labor, allowing one operator to oversee 2–3 machines while the technician focuses only on setup, cutting labor costs by up to three times.

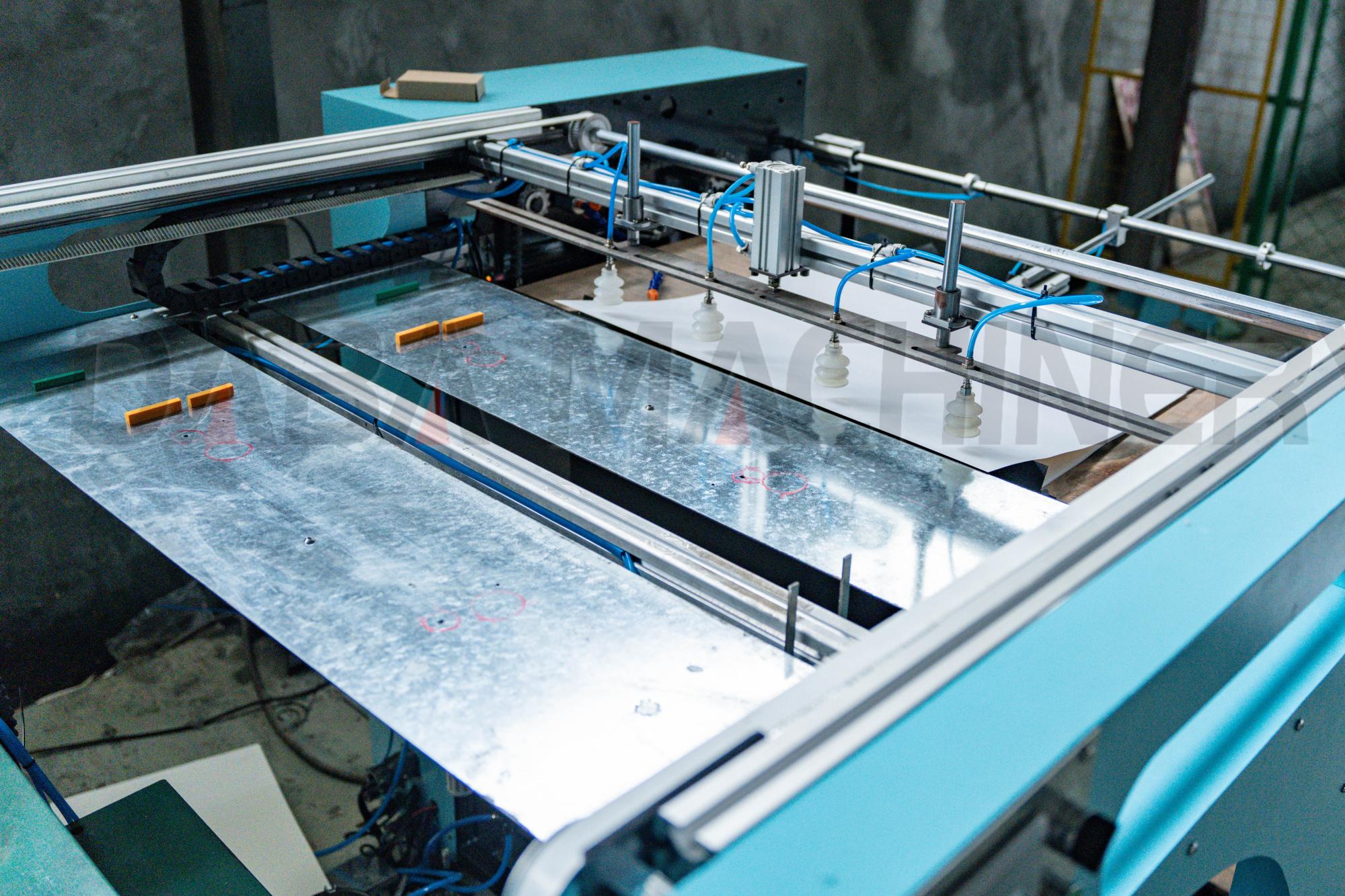

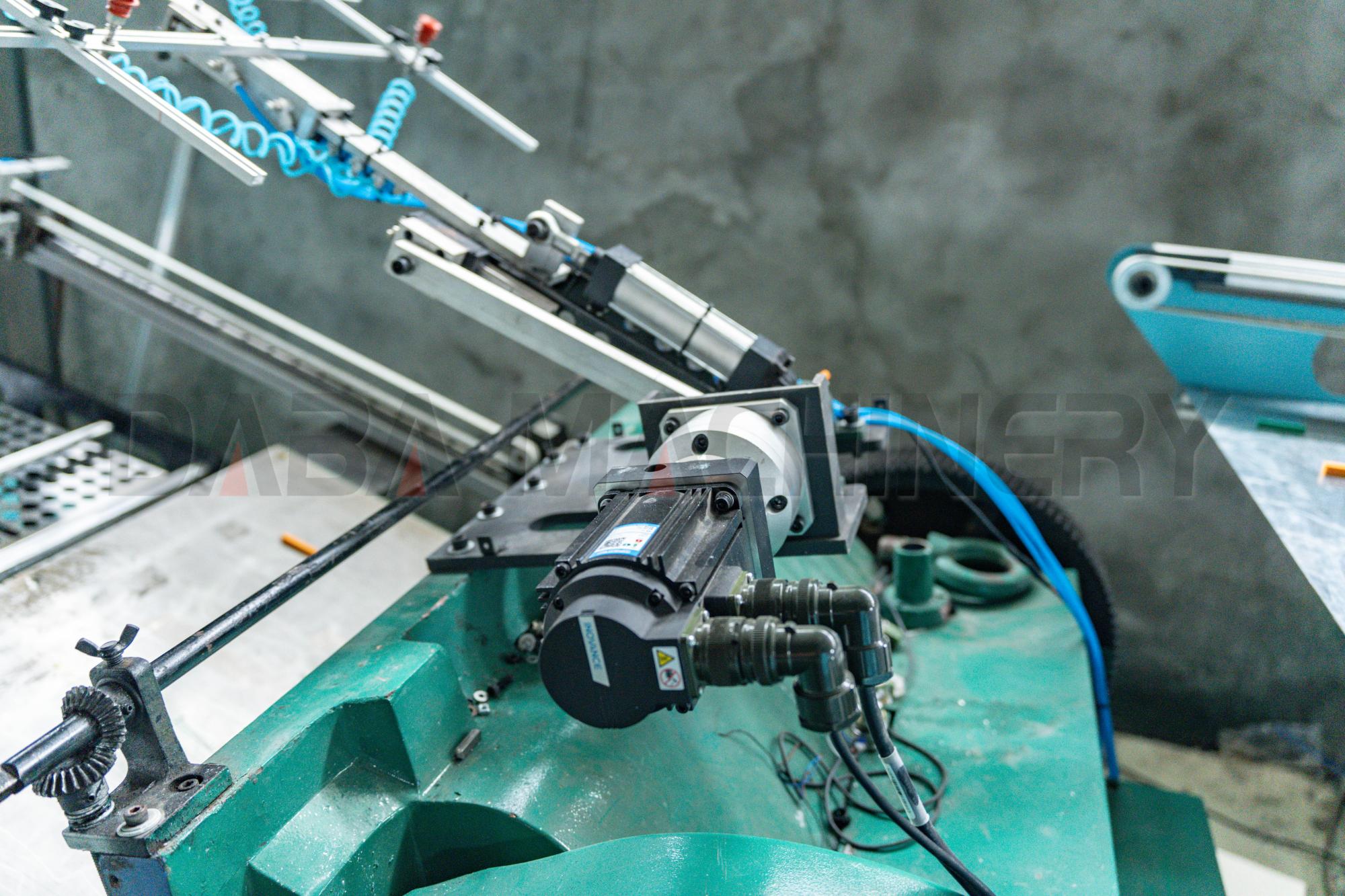

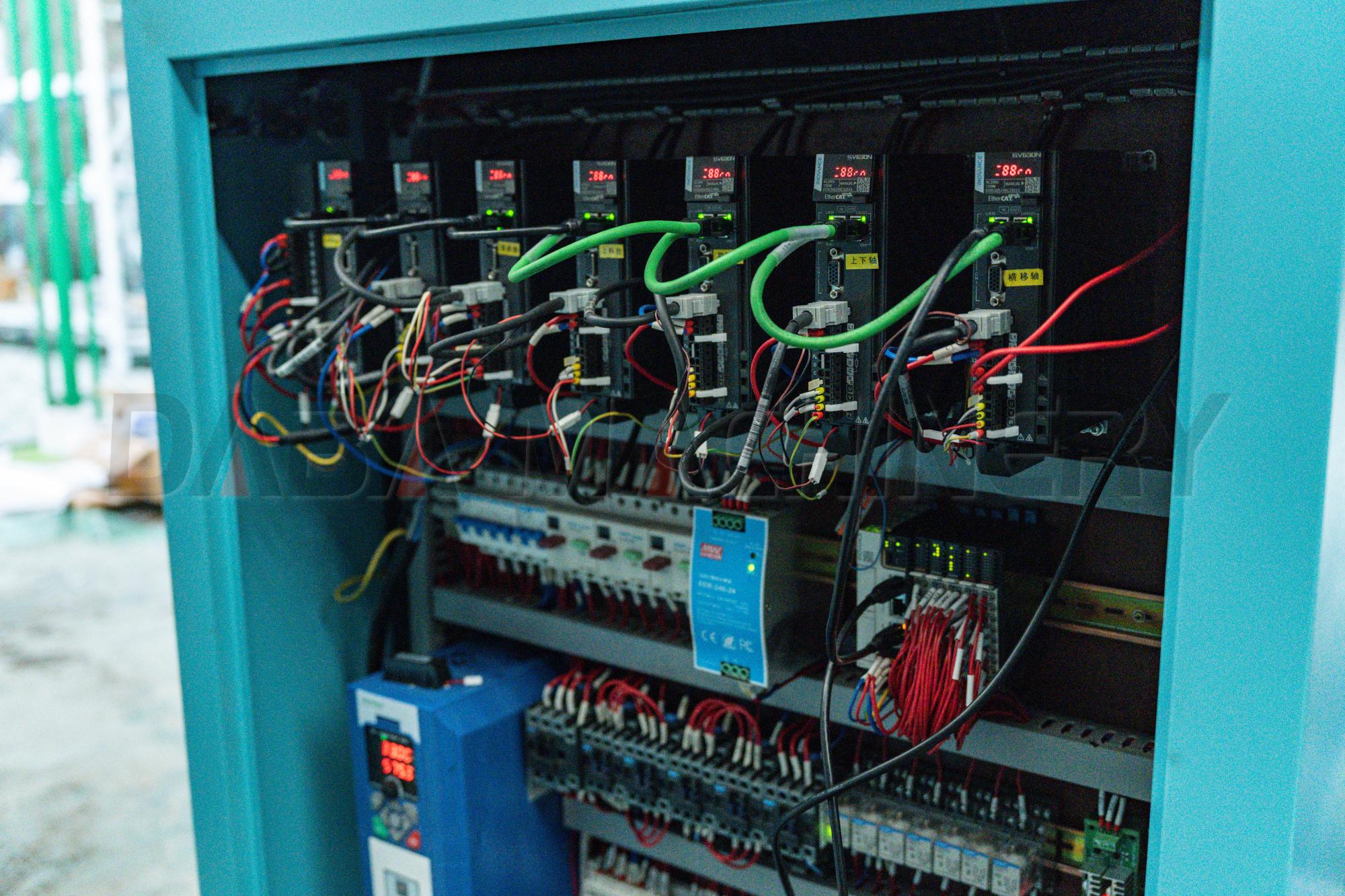

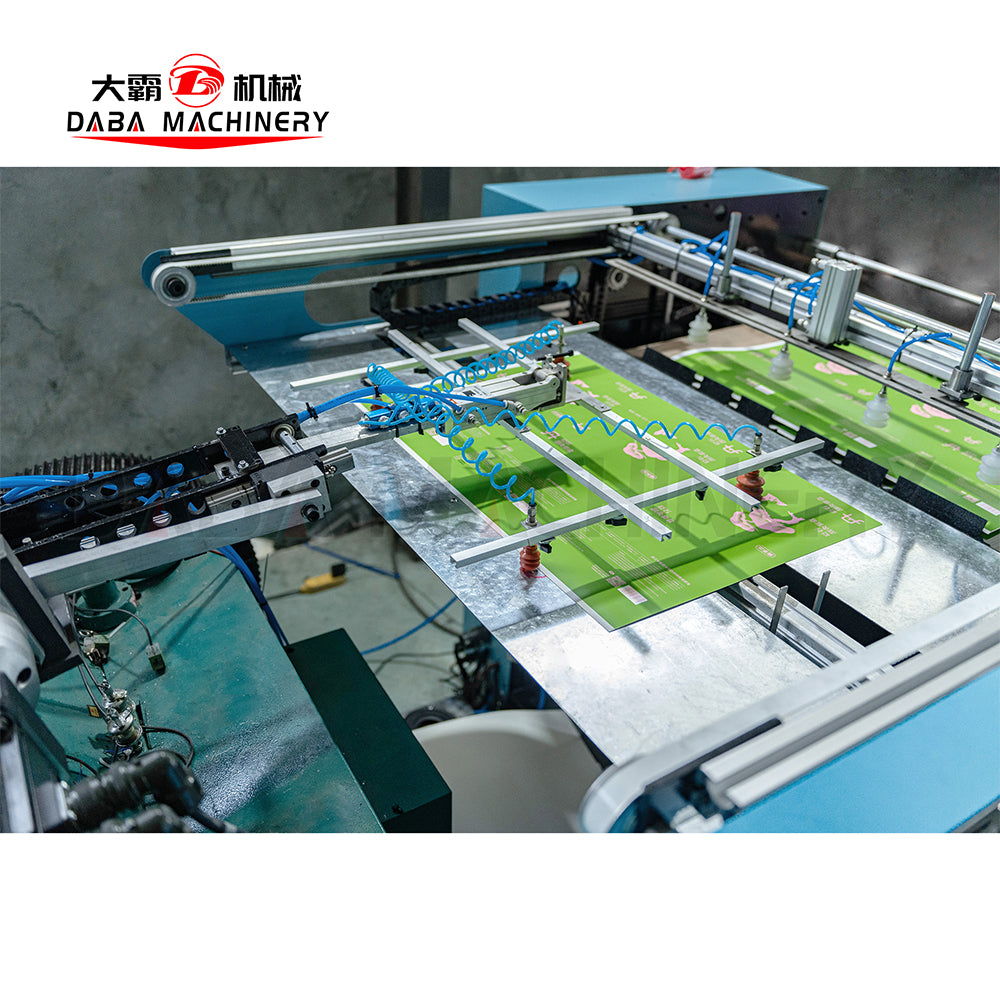

High-precision feeding: Servo-driven synchronized feeding ensures accuracy within ±0.2 mm for stable and consistent sheet handling.
Increased productivity: Production efficiency improves by up to 30%, reaching 1,000 sheets per hour, and up to 1,200 sheets per hour after mechanical break-in.
Cost-effective investment: Installing 5–10 robotic systems can eliminate up to 16 workers, enabling a full return on investment within one year.

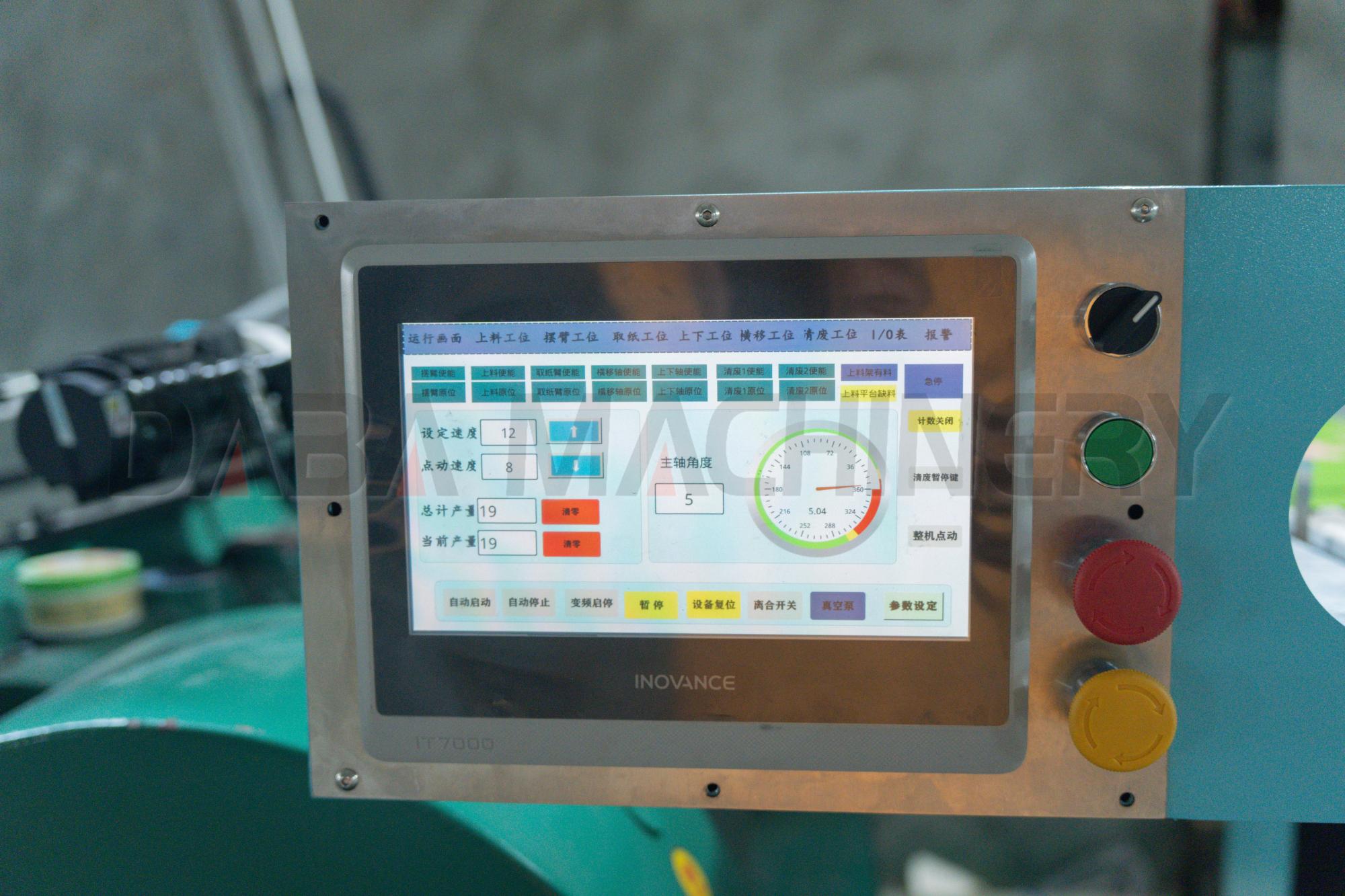

Quick setup and easy operation: Fast installation, simple adjustment, and user-friendly controls make it easy to learn and maintain while improving efficiency.
Enhanced safety: Reduces workplace injuries and integrates risk prediction and alarm systems for safer operation.
Continuous production: Capable of 24-hour non-stop operation, ensuring higher productivity and timely delivery.
Versatile material compatibility: Handles a wide range of materials including 190 g paperboard, 5-layer corrugated sheets (up to 8 mm), films above 0.2 mm, and sheets weighing 1–5 kg.

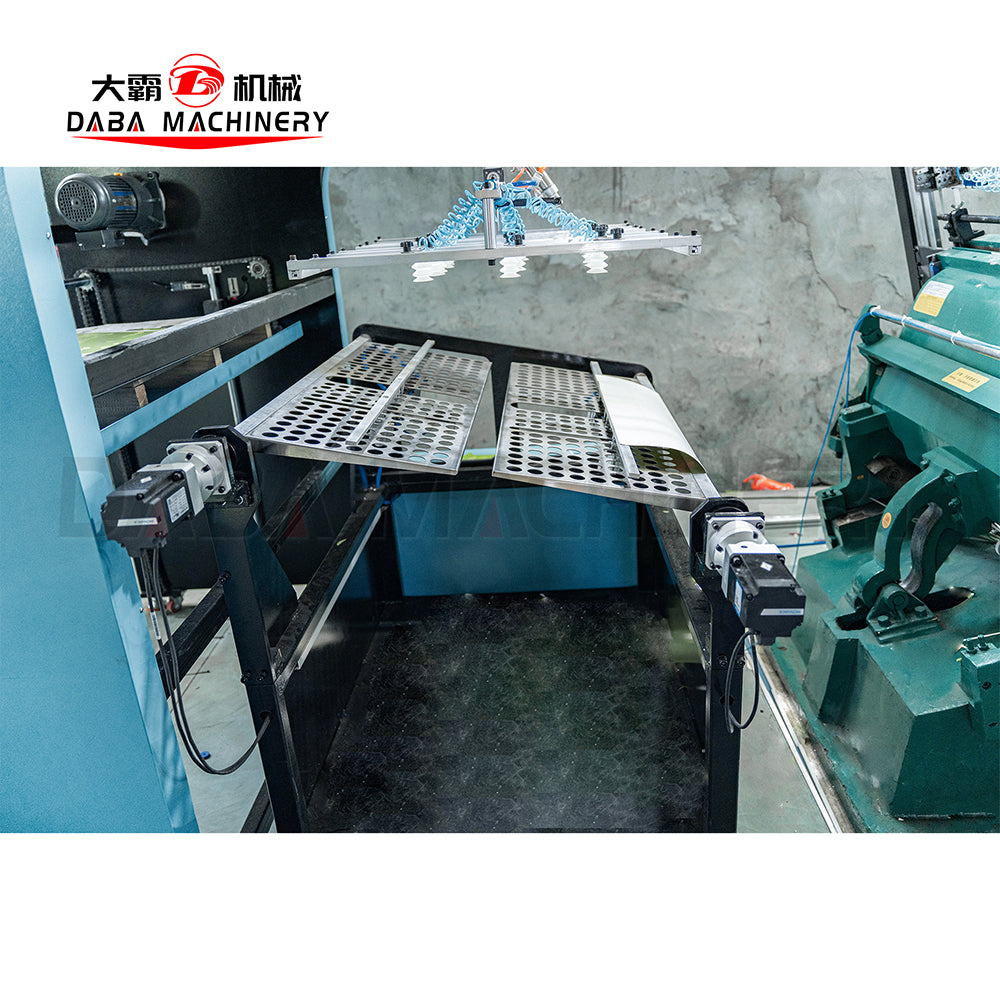

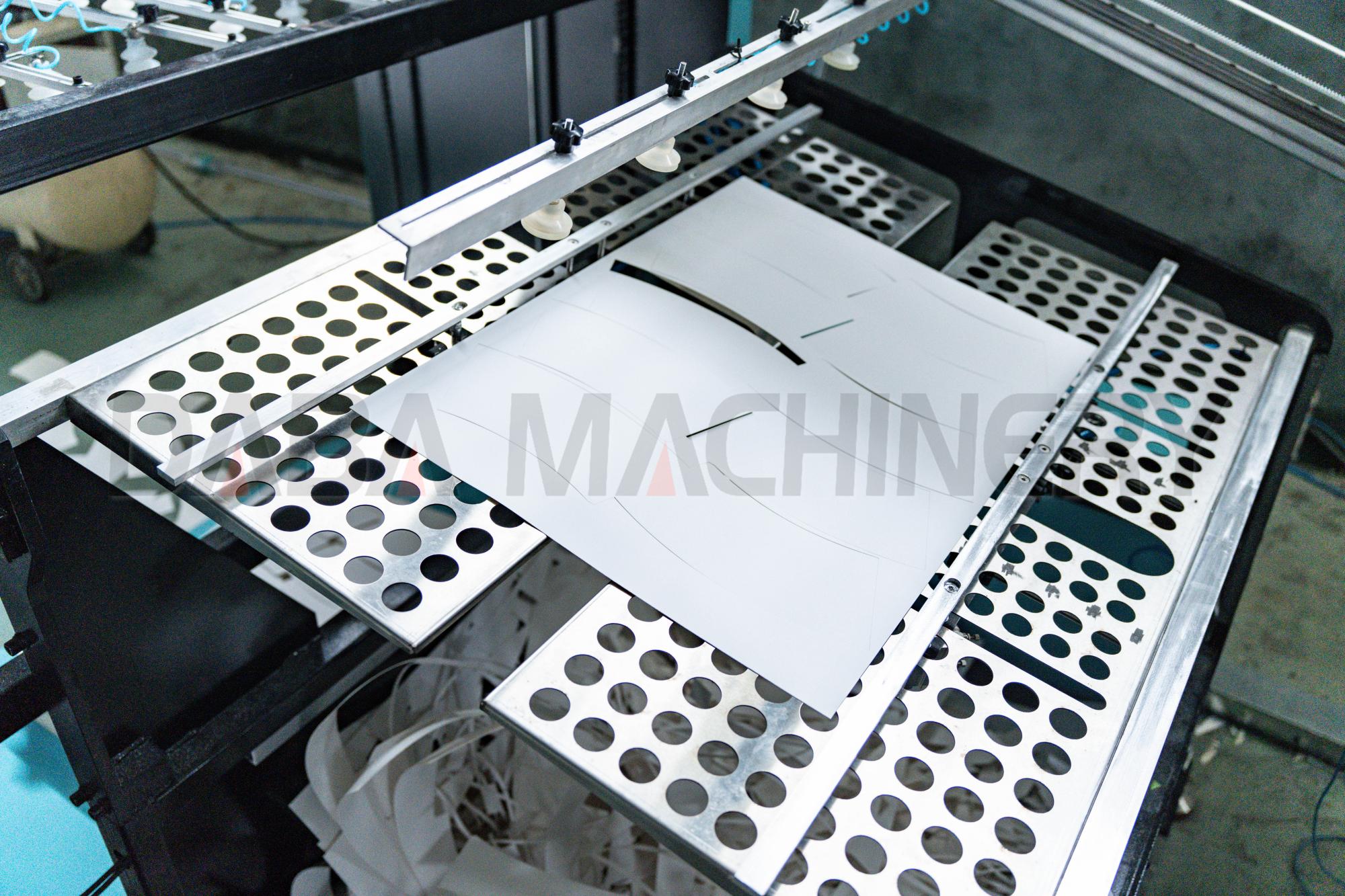

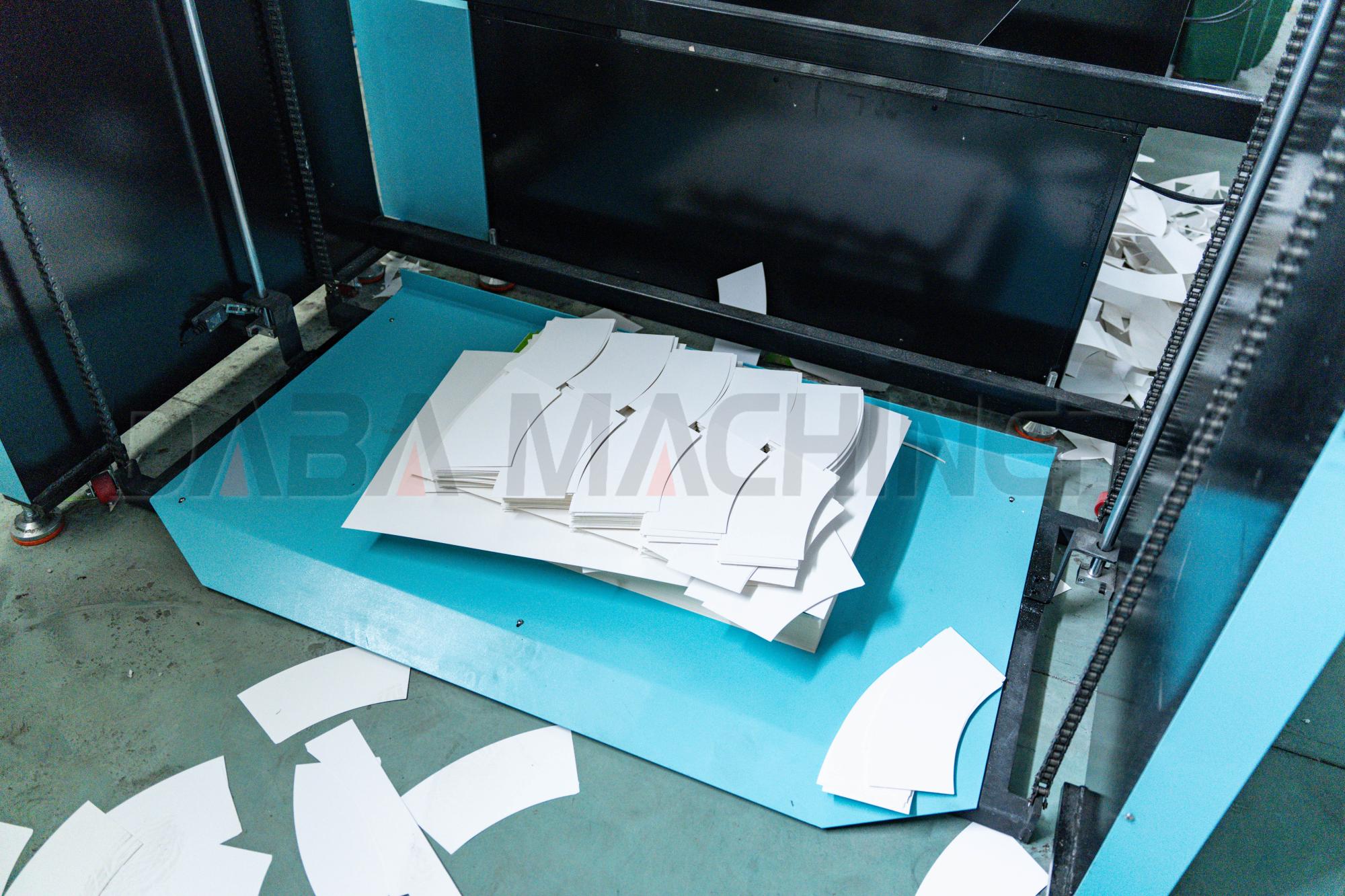

Advanced waste stripping system: Features a unique fully automatic waste removal mechanism that clears waste and edge scraps cleanly without manual intervention, with a minimum trim width of 25 mm.
